Maitinimo adapteris VANTRUE ACC VP03 12-24V USB-C X4S N4 N2S N4 PRO N5 S1 PRO

Trumpai apie prekę

Prekė: Maitinimo adapteris VANTRUE ACC VP03 12-24V USB-C X4S N4 N2S N4 PRO N5 S1 PRO. Kategorija: Automobilio vaizdo registratoriai.

• Gamintojas: Vantrue
• Modelis: ADAPTER N4 SWITCH

- ADAPTER IS EQUIPPED WITH A SEPARATE CABLE FOR POWER SUPPLY AFTER THE IGNITION

- FASTER SWITCHING OF THE RECORDER BETWEEN PARKING RECORDING AND DRIVING

- IN THE FACTORY SET FOUR SETS OF QUICK COUPLERS FOR CONNECTION TO FUSE SOCKETS

- QUICK COUPLERS IN FOUR SIZES - 2x ATS / 2x ATC / 2x MICRO2 / 2x MINI

- FUSES FOR EACH QUICK COUPLER 2x ATS / 2x ATC / 2x MICRO2 / 2x MINI

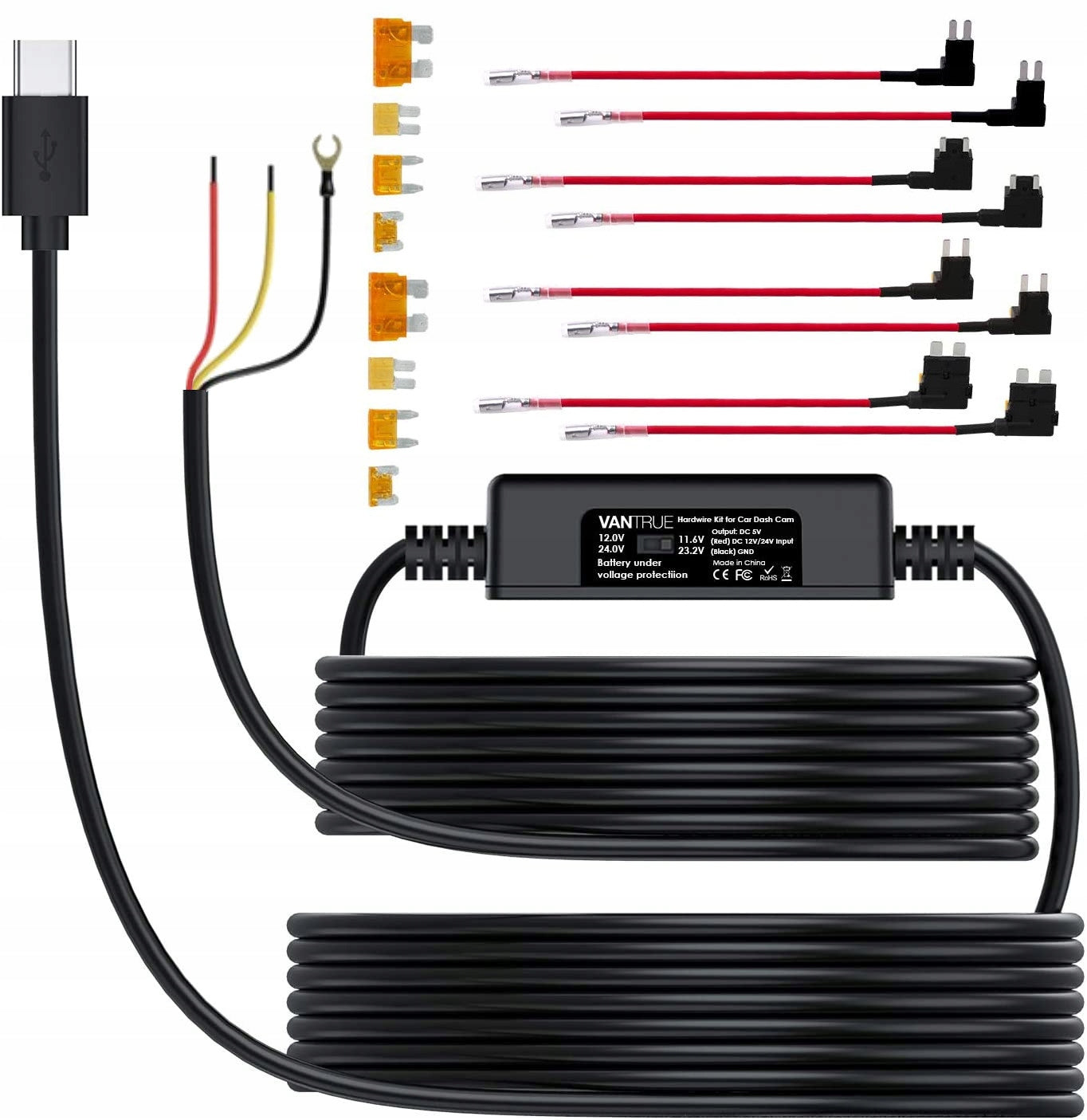

• 12-24V / USB-C power adapter

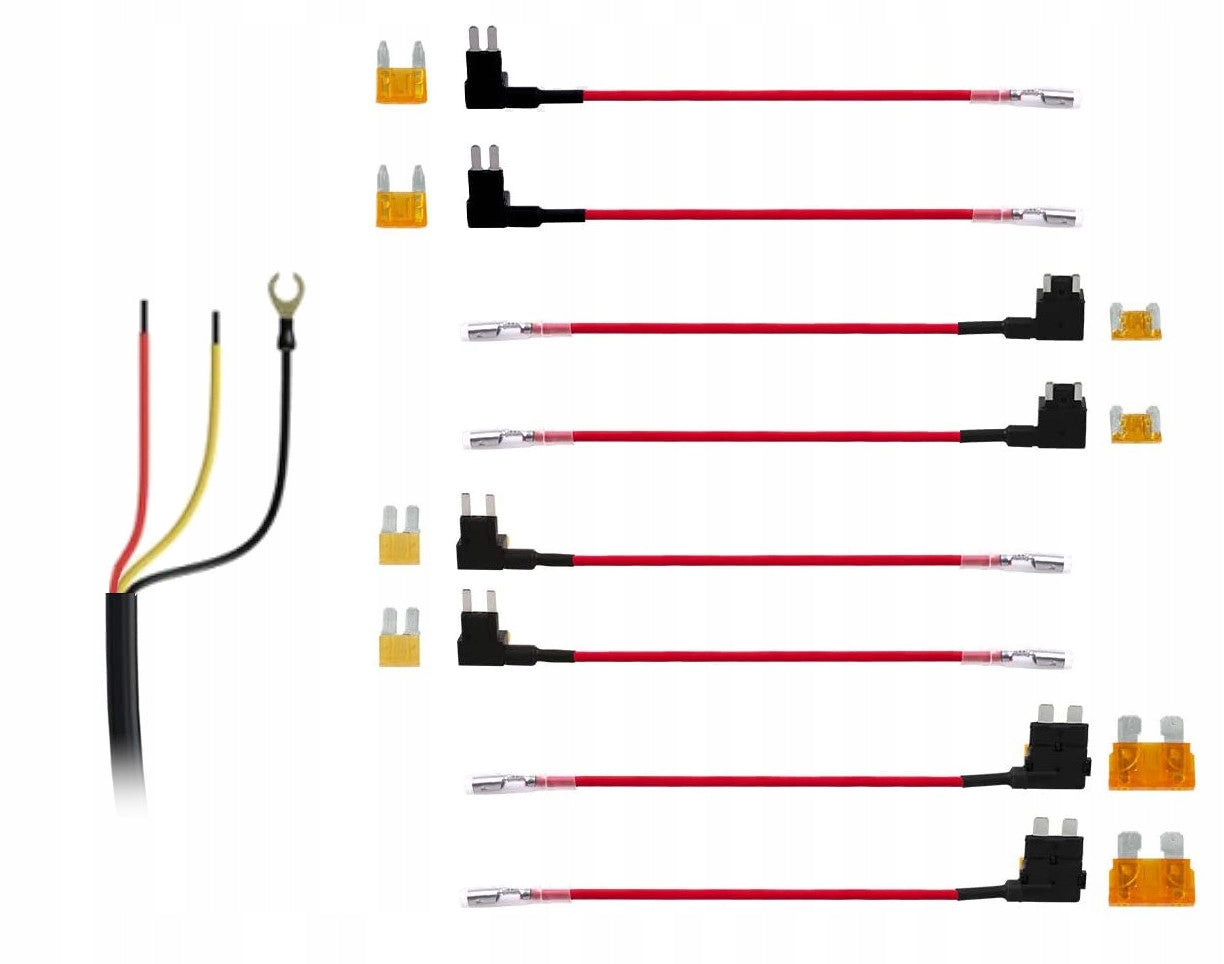

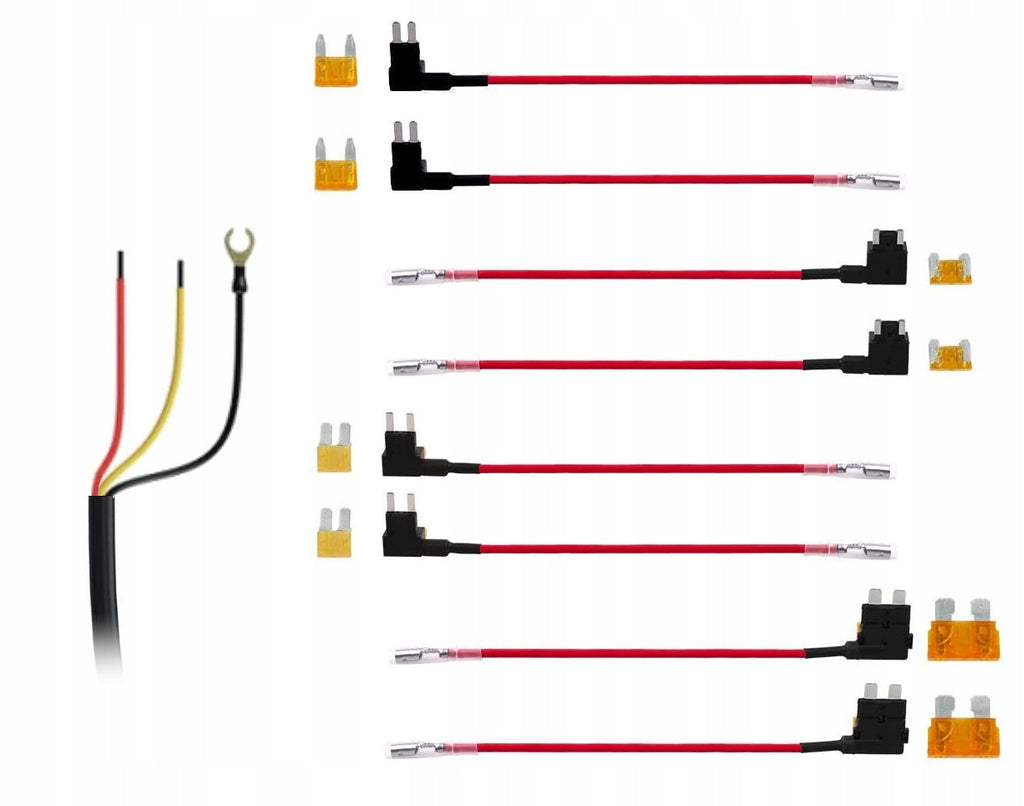

• 8x fuse adapter (2xATS / 2x ATC / 2x MICRO2 / 2x MINI)
• 8x fuse (2xATS / 2x ATC / 2x MICRO2 / 2x MINI)

The Vantrue ACC N4 USB-C power adapter fits most passenger cars and trucks (accepts 12 to 24 V input voltages).

Release the cigarette lighter socket for another device, such as a mobile phone or USB charger.

The adapter will safely turn on parking mode: the kit will turn off automatically when too low battery voltage is detected, which will prevent the vehicle battery from discharging.

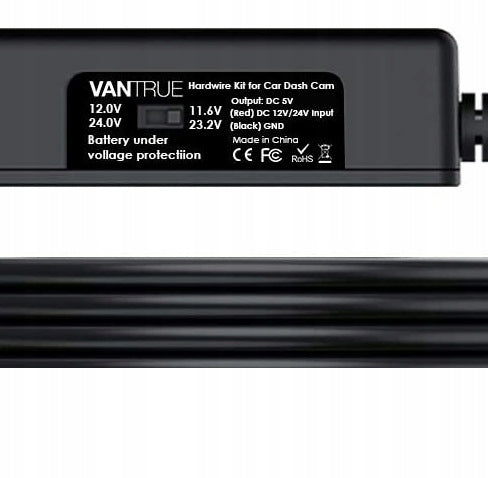

We set the cut-off threshold ourselves, and we have two options to choose from:

1) 11,6V or 23.2V

2) 12.0V or 24.0V

For cars with diesel engines, we recommend 12.0V, while for gasoline engines 11,6V.

A - black wire - grounding (any metal element)

B - red wire - connect to the fuse constant voltage

C - yellow wire - connect to the fuse voltage after the ignition

D - output voltage 5V/2A

Specifications
