Trumpai apie prekę
Prekė: Litavimo stotelė YATO 80W LCD, temperatūros kontrolė 50-480°C, antgalis 900M. Kategorija: Lituokliai.
- Gamintojas: Yato
- Modelis: YT-82701
- Galia: 80 W
- Įtampa: 230 V

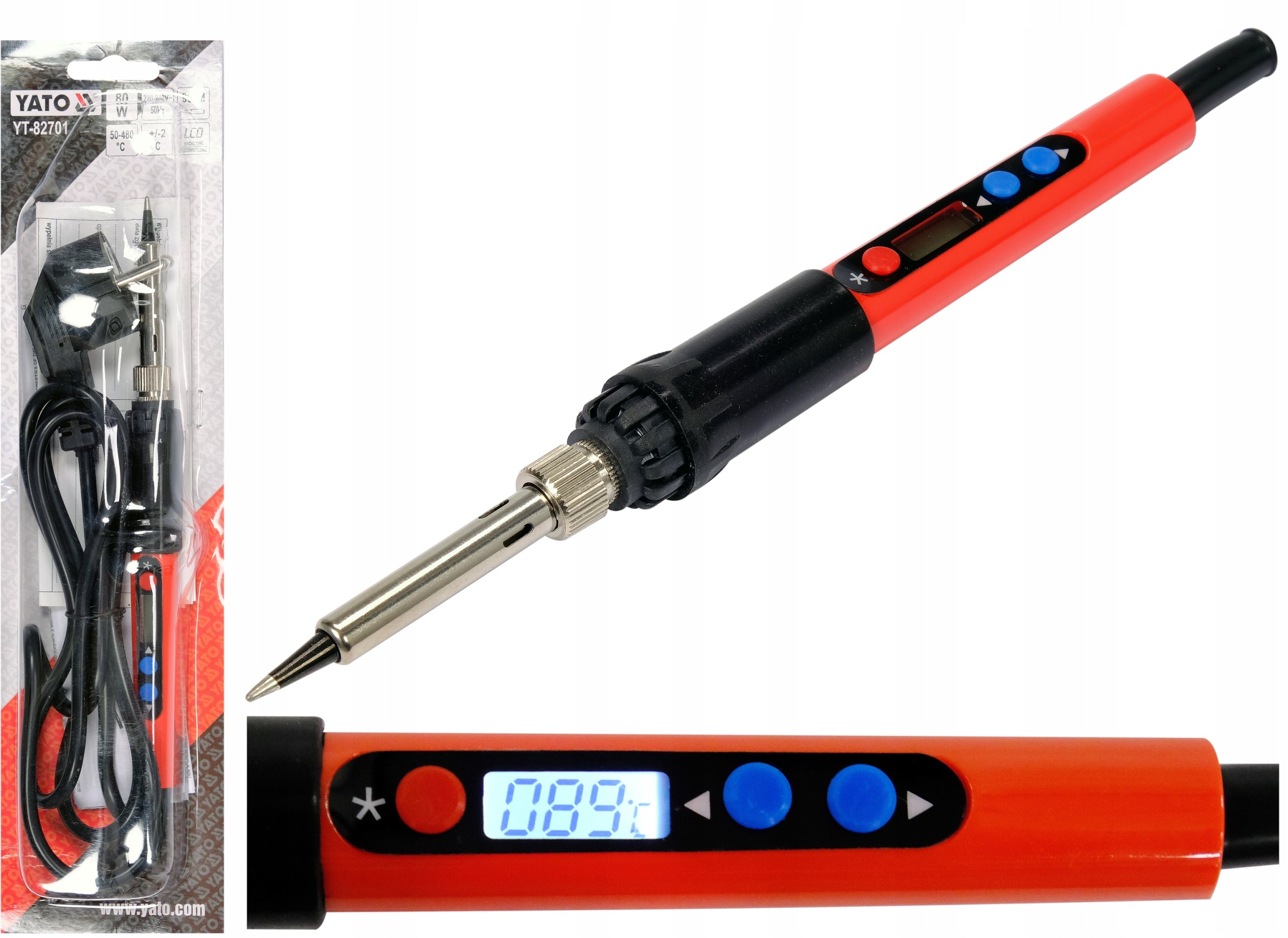

80W soldering iron for 900m tip with LCD display and temperature control 50-480°C
Precise cob soldering iron with temperature control via buttons, adapted to the very popular interchangeable tips from the 900M series.
Functions:
- Temperature stabilization function: allows you to maintain the set temperature of the tip under different conditions of heat demand to make the correct solder connection. Depending on the size of the soldered element, the tip gives off more or less heat, and the device uses the built-in tip temperature sensor to read its real value on an ongoing basis and compare it to the set value, then, depending on the needs, increases or decreases the power consumption to maintain the set temperature.
- Temperature calibration function: allows you to calibrate the newly built-in temperature sensor. Depending on the quality, size and degree of wear, the tip demanding the user with the help of a temperature measuring device can calibrate the sensor himself. Correct reading not only positively affects temperature stabilization, but helps an experienced user avoid the error of overheating the connection in PCBs.
Temperature calibration in YT-82701: Press the red button briefly, then set the real temperature of the tip with the buttons to adjust the temperature and wait about 3 seconds for the setting to be approved. During the calibration process, the temperature on the display blinks.

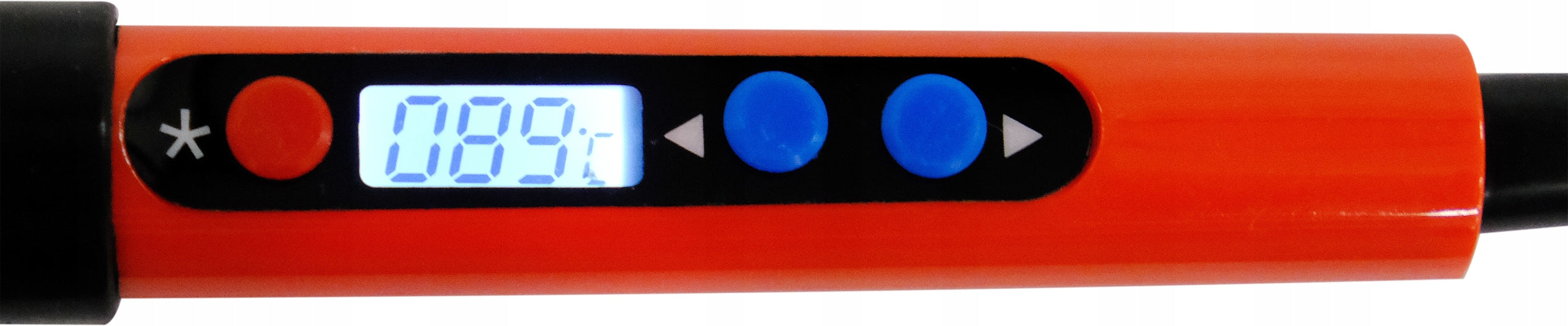

Built-in LCD display
Displays the set and then the real temperature of the tip, and allows you to calibrate the temperature.
Additional information:
- Power: 80 W
- temperature range: 50 - 480°C
- Temperature accuracy: +-2°C
- temperature stabilisation
- temperature calibration
- ceramic heater
- on-off button
- cable length: 1 m
YT-82701 flask soldering iron for operating temperature 350°C heats up in about 20 seconds
AR9GWEYT-82701MK3S
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Power | 80 W |
| Parametry | Product weight with unit packaging | 0.25 kg |
| Parametry | Manufacturer code | YATO_YT-82701 |
| Parametry | EAN (GTIN) | 5906083540448 |
| Parametry | Maximum operating temperature | 480°C |
| Parametry | Brand | Yato |
| Parametry | Minimum operating temperature | 50°C |
| Parametry | Model | YT-82701 |
| Parametry | Supply voltage | 230 V |
| Parametry | Device weight | 0.3 kg |
| Parametry | Power supply | mains |
| Parametry | Kind | heater (resistance) |
| Parametry | Batteries included | no |
