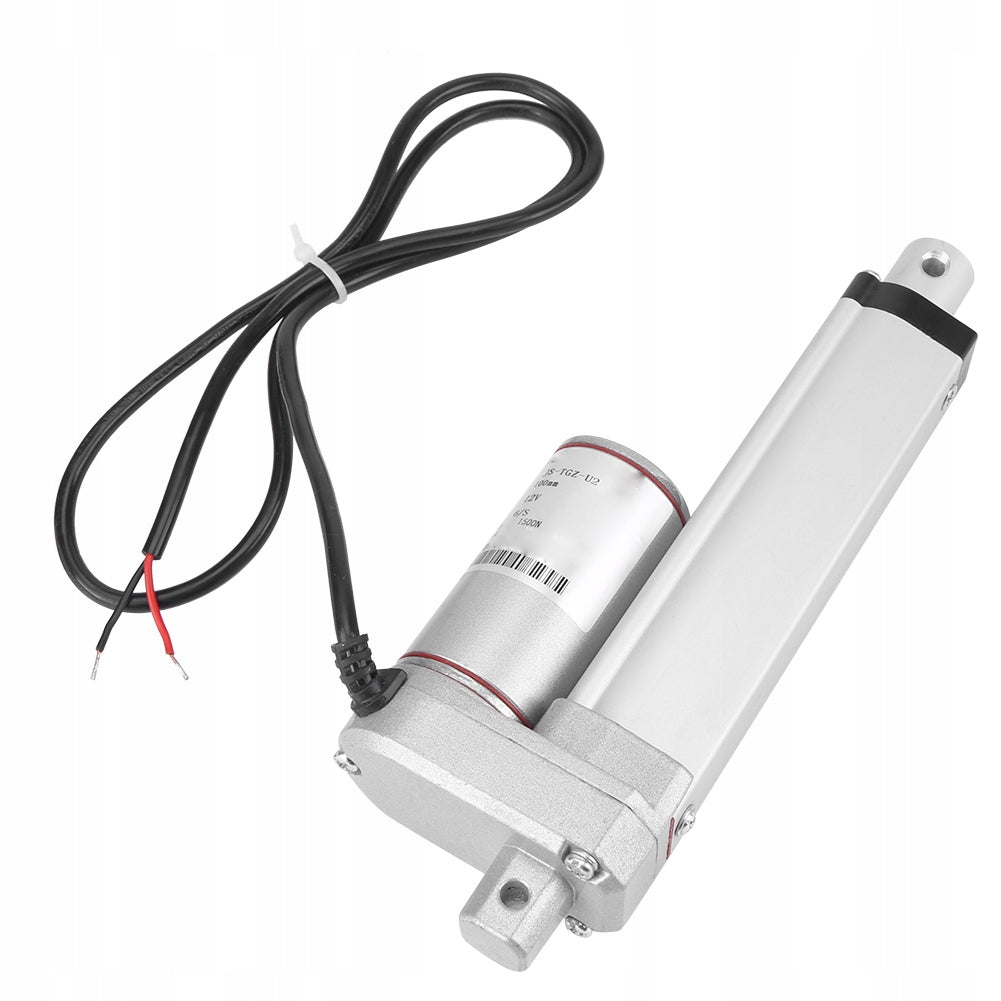

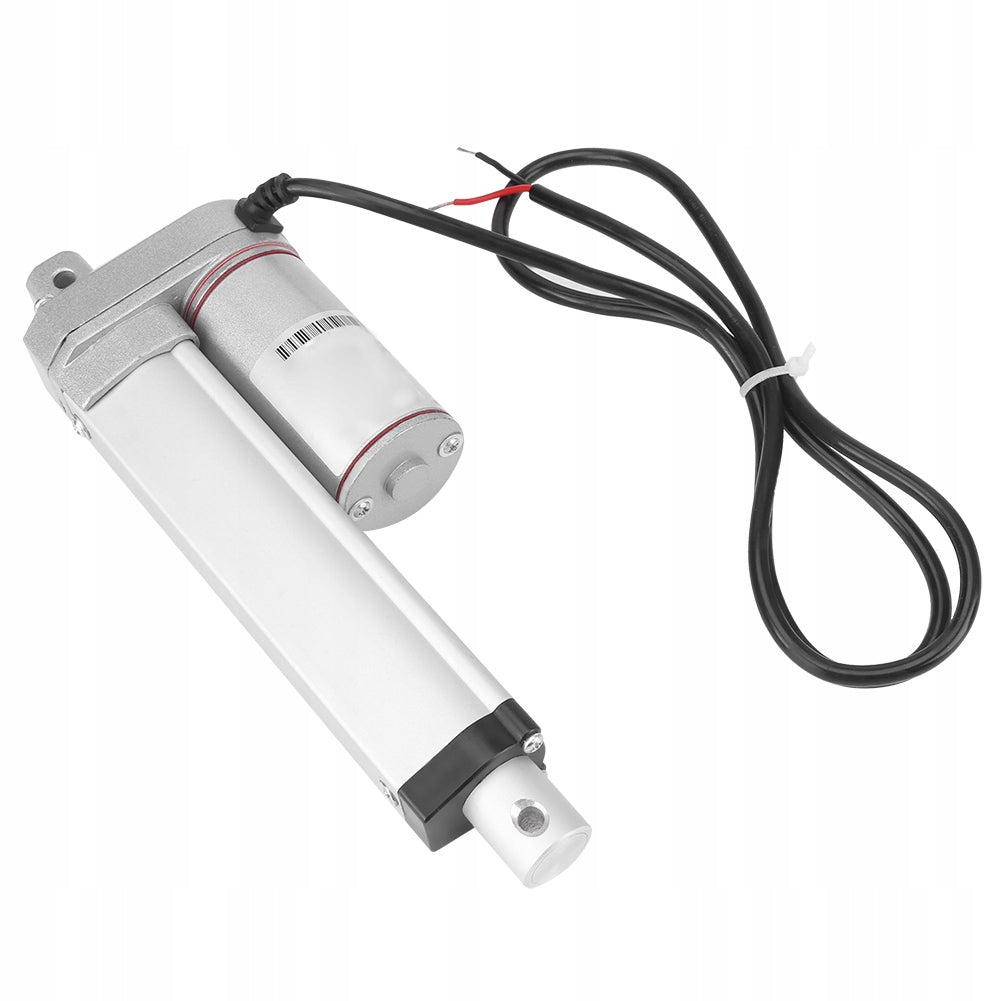

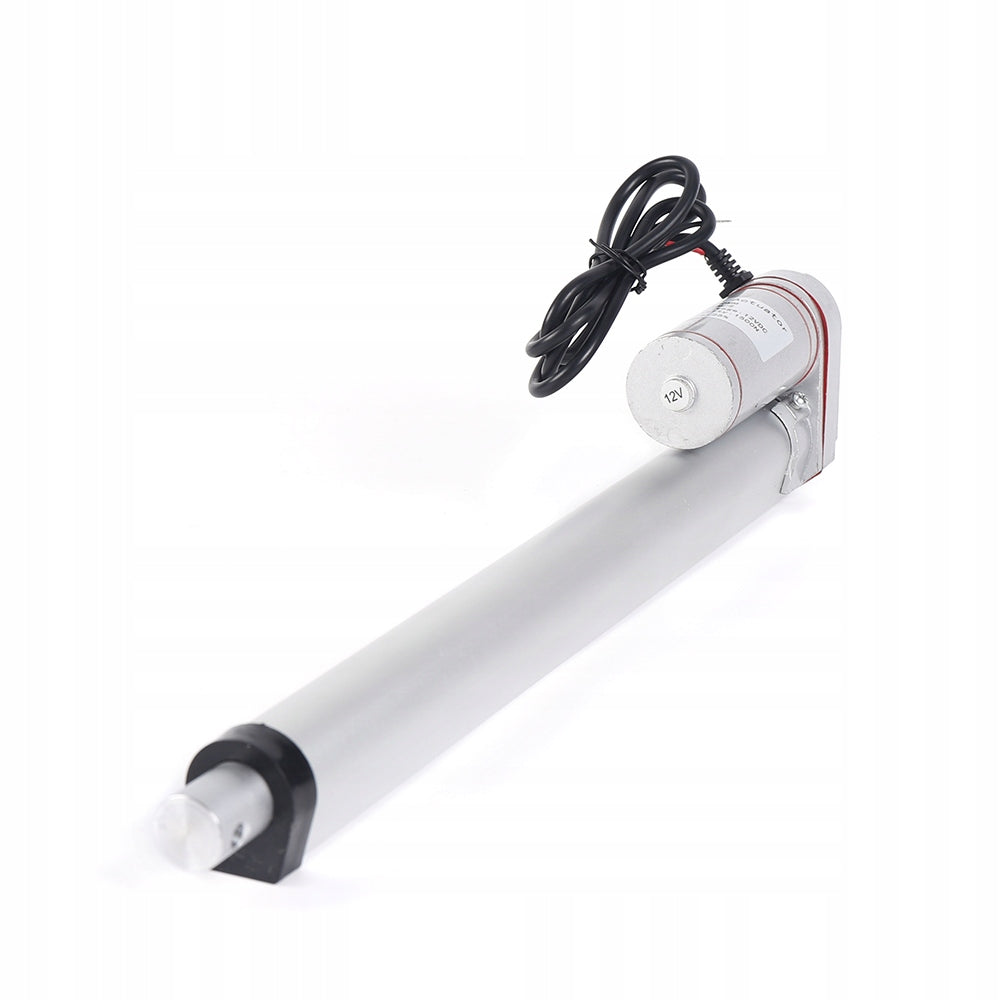

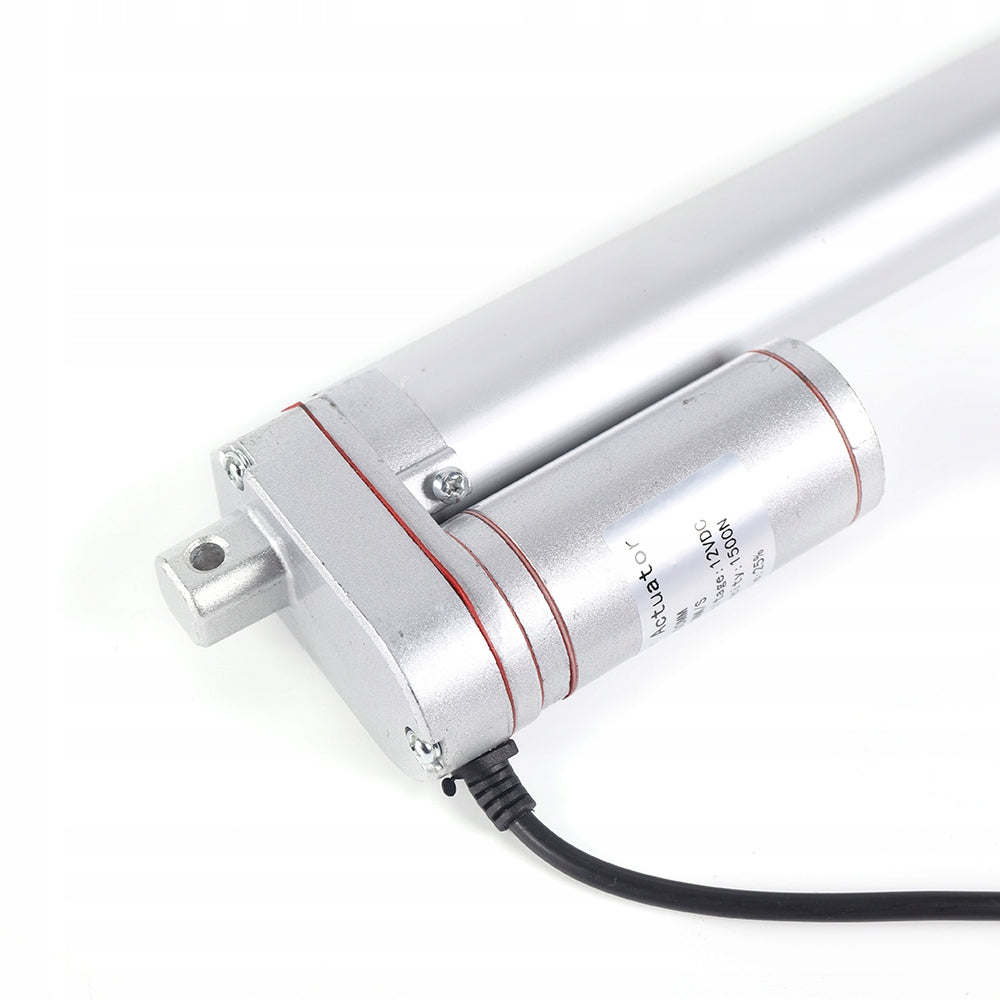

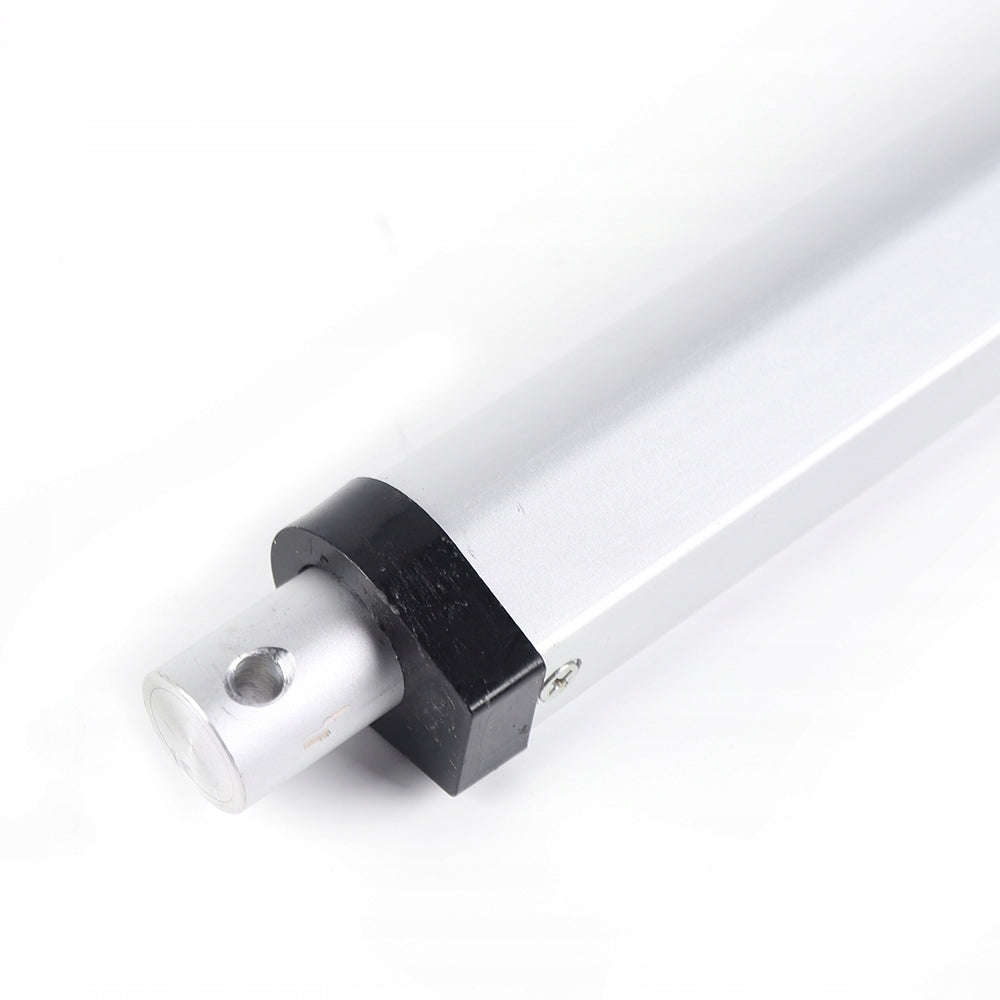

Linijinis pavaras, 12 V DC, eiga 300 mm

Trumpai apie prekę

Prekė: Linijinis pavaras, 12 V DC, eiga 300 mm. Kategorija: Kietieji diskai.

• Gamintojas: no brand
• Modelis: 6529731

Linear motor 900N 50/300mm, door opening adjustment drive, DC12V linear actuator motor, linear technology actuator, linear actuator (300mm)

Application:

Electric nursing bed, operating bed, traction bed, massage chair, dental chair, electric wheelchair,

Electric sofas, electric booths, electric skylights, ergonomic furniture, etc.

This will be very convenient in other situations where it is necessary to mount linear motion actuators

Commonly used in medicine, fire protection, interior decoration, electromechanics, chemistry,

Bathroom, relaxation and other fields.

Motor with permanent magnets 12 V DC, thrust up to 900 N.

Sleek and compact design with a small installation size.

Built-in limit switch (non-adjustable).

Steel mount on the back.

Noise level 48 dB(A), the controller is not loaded. Work cycle, up to 10% or 2 minutes of continuous use, then 18 minutes without use.

Features:

l 12V DC motor with permanent magnet

And power up to 900N in pulling.

l Sleek and compact design with small installation dimensions

l Built-in limit switches (not adjustable)

l Steel rear handle

l Noise level 48 dB (A), actuator not loaded.

l Working cycle, max. 10% or 2 minutes continuous use followed by 18 minutes unused

Specification:

Voltage: DC12V

Standard Stroke: 50mm / 300mm

Speed: 10mm/s

Maximum pushing/pulling force: 1000 to 1500 N

Noise: 48dB

Standard level of protection: IP44

Minimum installation size: 50mm motor 155mm/300mm motor 450mm (the distance between the two holes before and after the pusher is completely hidden)

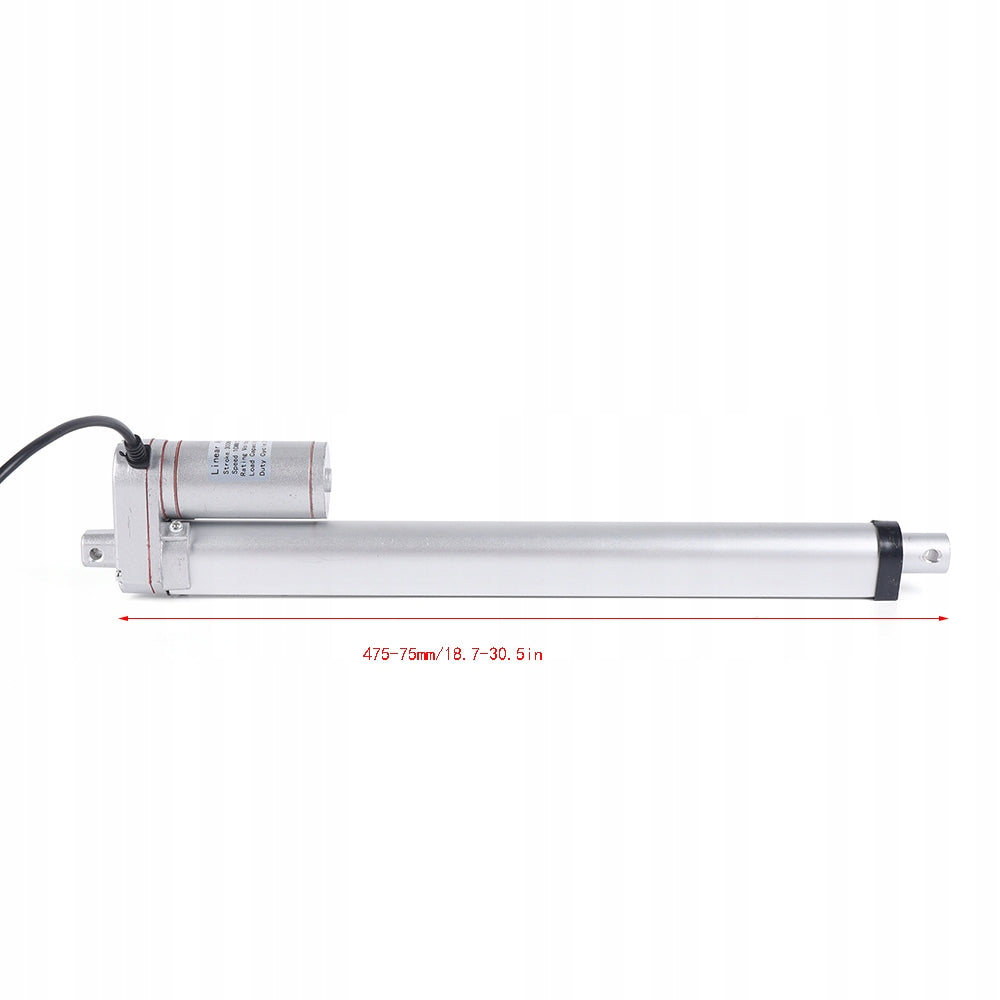

Fully developed product size: 50mm 205mm / 300mm motor 705mm motor

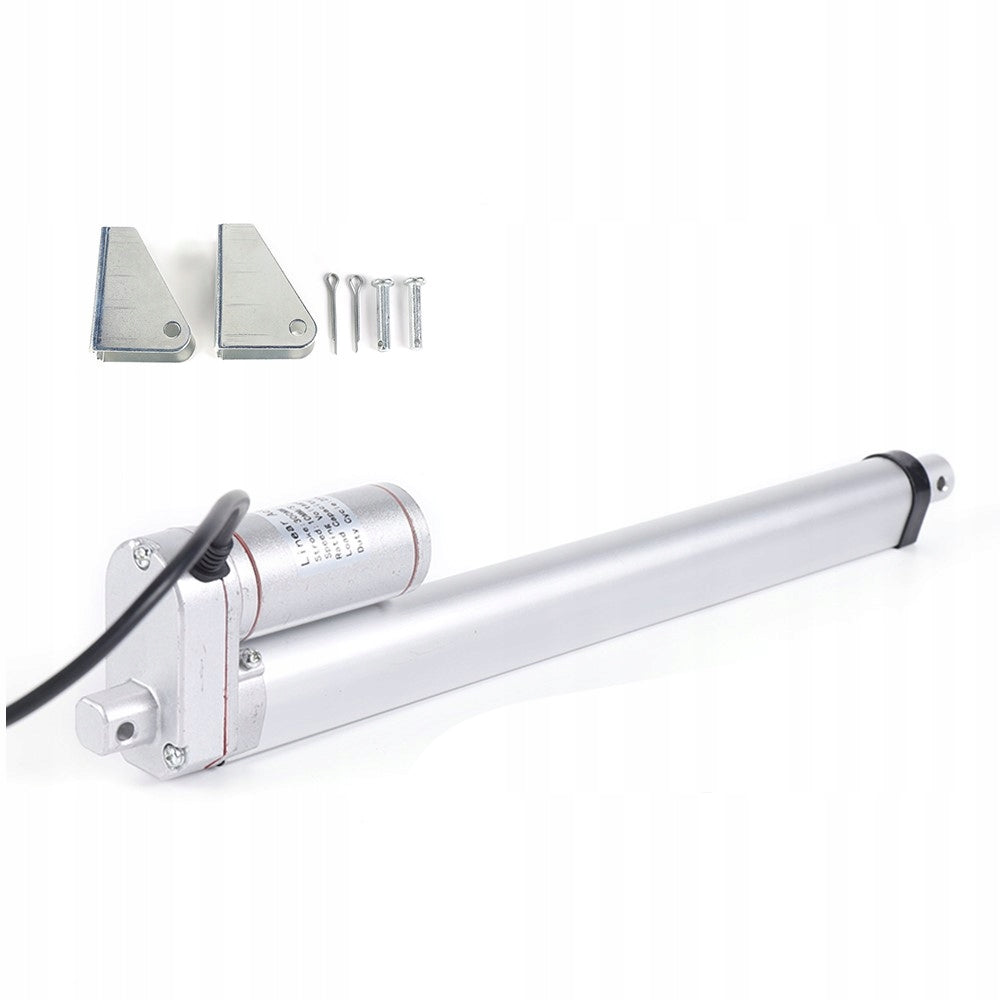

combination:

1 * linear actuator

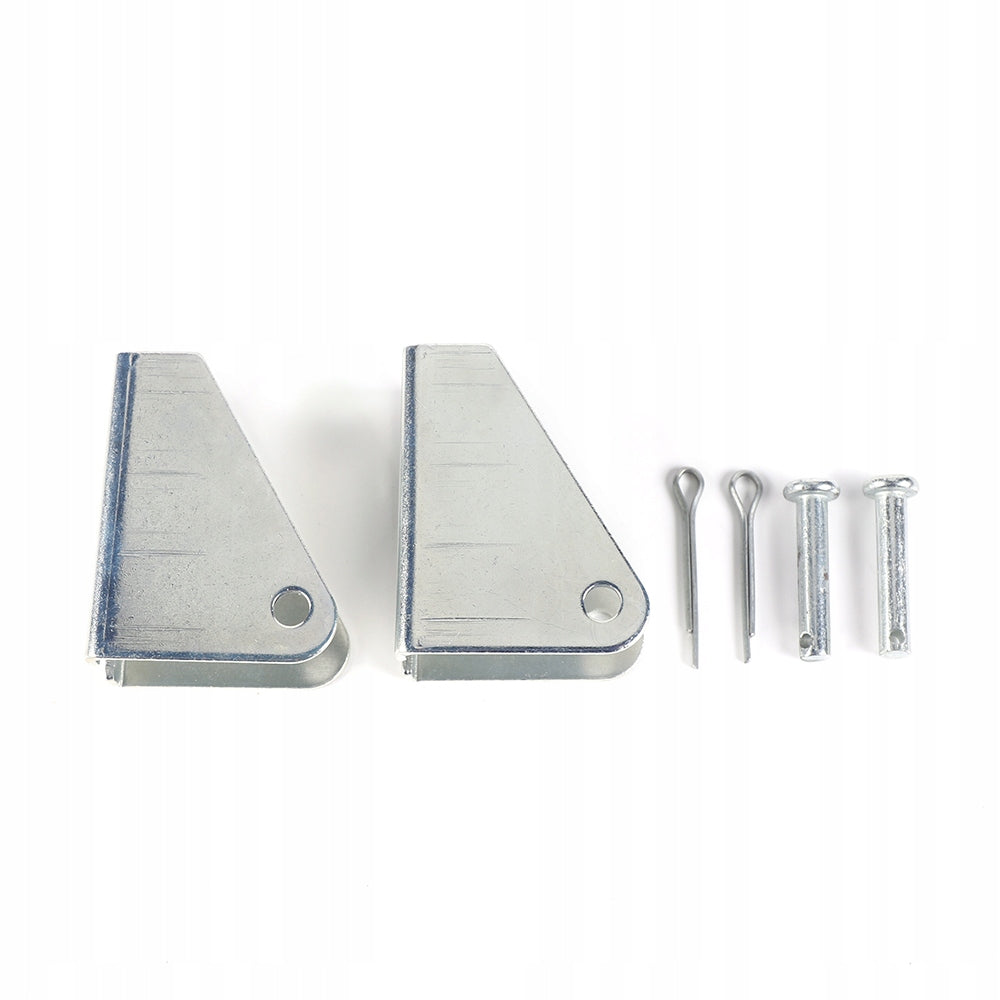

1 set of accessories
