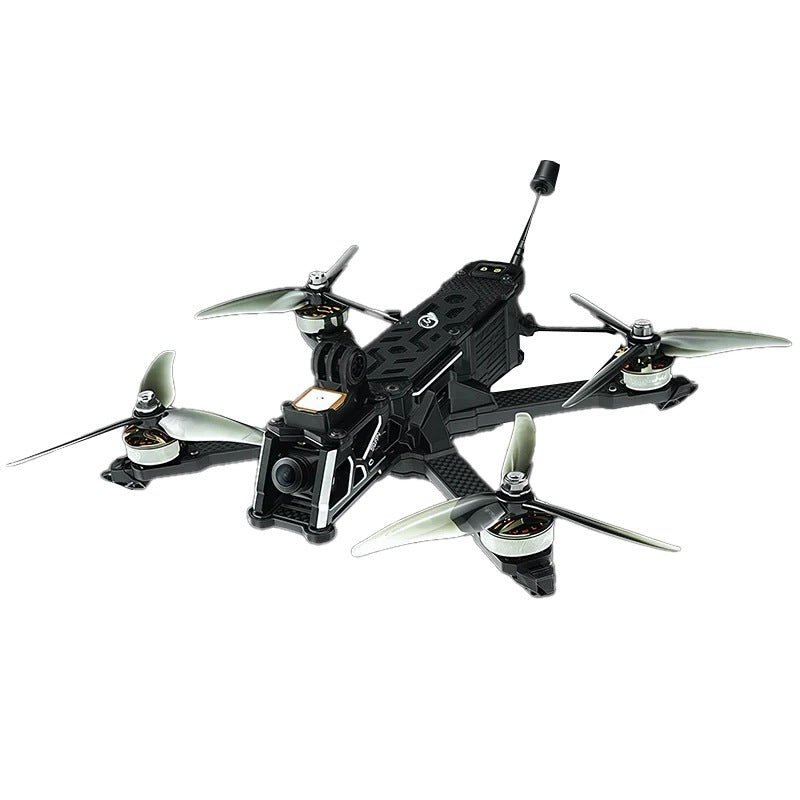

Lenktyninis dronas SEQURE Heison5X 6S Analog 1.3W ELRS 2.4G (AM32)

Trumpai apie prekę

Prekė: Lenktyninis dronas SEQURE Heison5X 6S Analog 1.3W ELRS 2.4G (AM32). Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: Heison5D 6S Analog ELRS 2.4G

⬇ See more ⬇

The SEQURE Heison5X 6S Analog 1.3W ELRS 2.4G (AM32) racing drone is a ready-made FPV platform for those looking for high power, precise control and durable construction. The analog version is equipped with a powerful VTX 1.3W transmitter, ELRS 2.4G receiver and premium components for dynamic freestyle and fast flights.

Key features of the product:

• Heison 5X frame with 220 mm wheelbase
• 4 – 8S power support, recommended 6S LiPo/LiHV 1200 – 1500 mAh battery
• SEQURE H743 V2 flight controller with STM32H743 processor
• ICM-42688P gyroscope for stable and precise flight
• 32-bit ESC 70A 4in1 for high performance
• Analog FPV system with VTX 1.3W and Caddx Ratel2 camera
• ELRS 2.4G receiver for fast and reliable connectivity
• Propellers Gemfan 51466 V2 included

The Heison5X model is distinguished by refined aerodynamics, active cooling and a built-in design that improves the protection of components. An additional advantage are LED strips, buzzer, GPS SEQURE M10-18 and USB Type-C port for convenient configuration and tuning of parameters.

Why choose this model:

• lightweight and durable construction with aluminium elements 7075
• Hidden motor wires for better protection and aesthetics
• active VTX cooling system for increased work safety
• Built-in GPS for easy positioning and satellite search
• projector and LED lighting for improved visibility and visual effect
• 16 MB black box for recording flight data
• Support external sports camera
• Weight without batteries: 514,5 g

Composition of the set – analog version:

• SEQURE Heison 5X drone × 1
• Propellers Gemfan 51466 V2, grey × 2 sets
• battery strap M20 × 270 mm × 2
• Silicone pads for batteries × 2
• instruction × 1
• set of screw accessories × 1
• 3D printed parts × 1
• VTX 1.3W × 1
• Antenna Maple Black RHCP 8 cm × 1

Technical data:

• wheelbase: 220 mm
• Operating voltage: 4 – 8S (14V – 35V)
• Engines: 1800KV (6S), 1600KV (8S)
• FC: SEQURE H743 V2
• firmware: SEQUREH7V2
• ESC: 32-bit 70A 4IN1
• OSD: AT7456E
• GPS: SEQURE M10-18
• Battery connector: XT60
• package dimensions: 270 × 260 × 110 mm
• Packing weight: 820 g
