Trumpai apie prekę

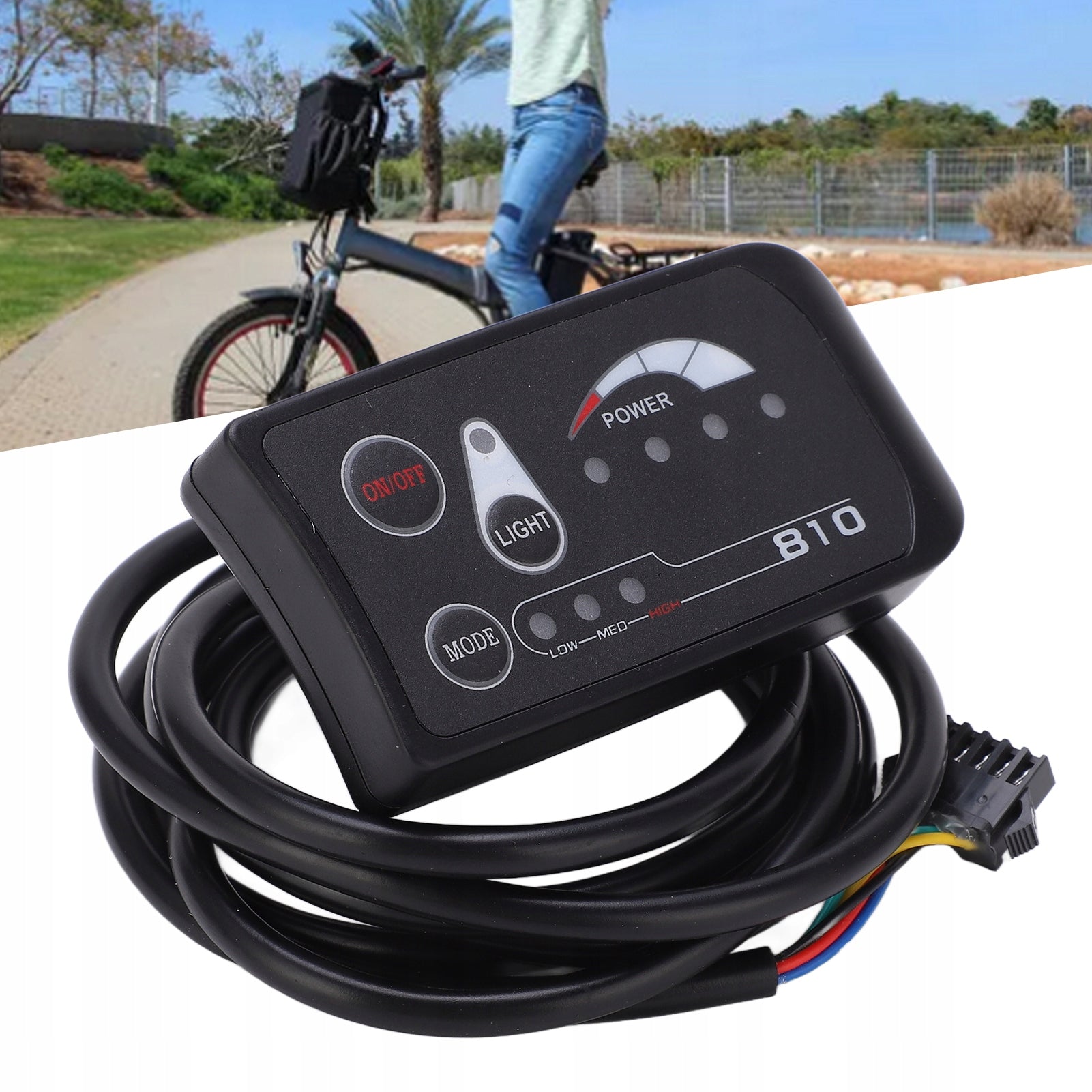

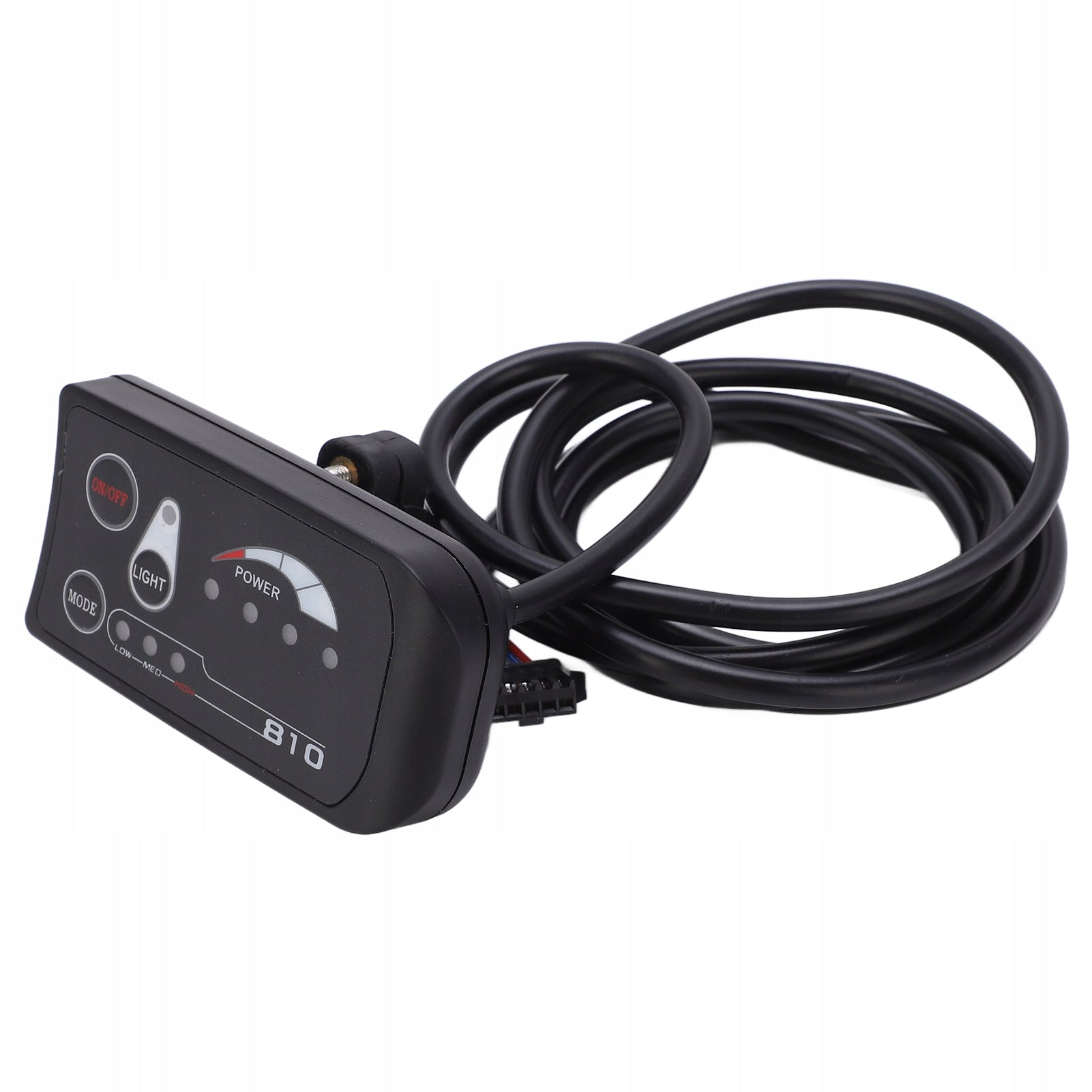

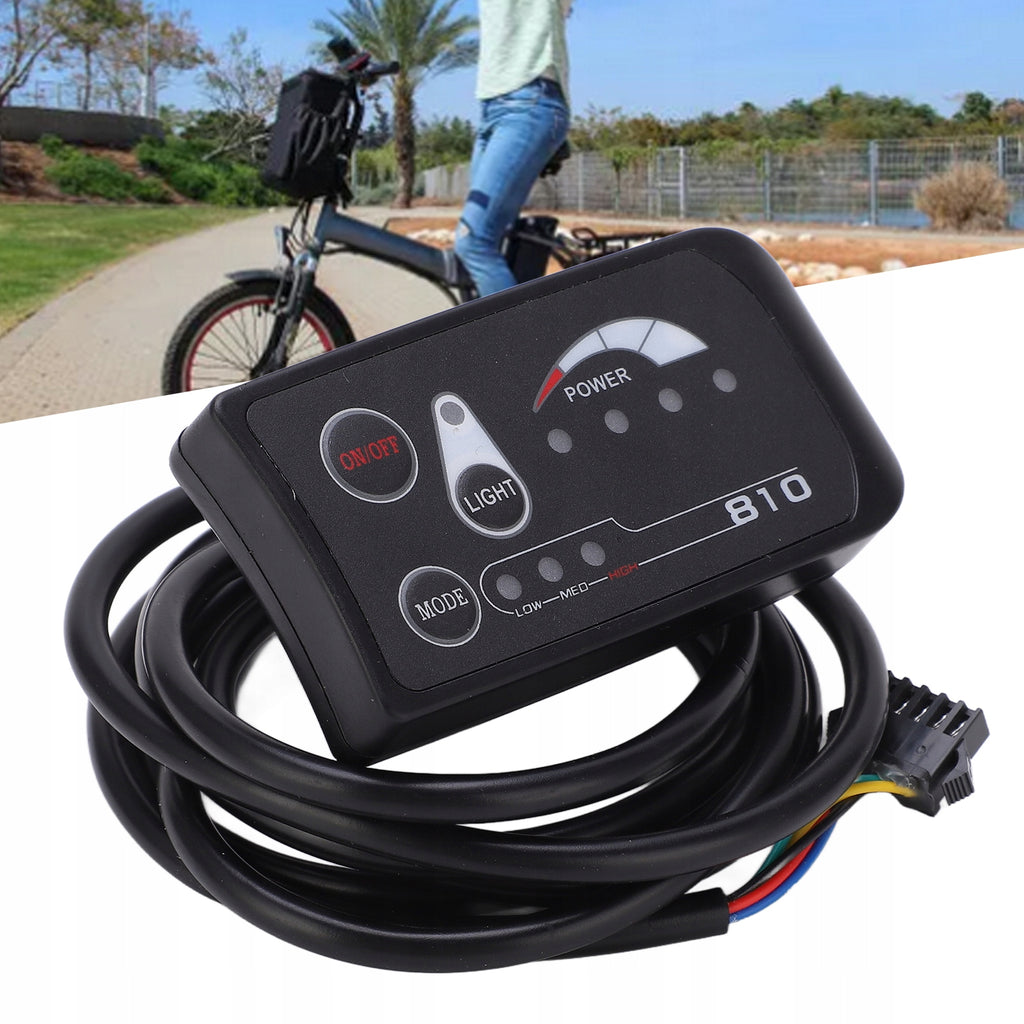

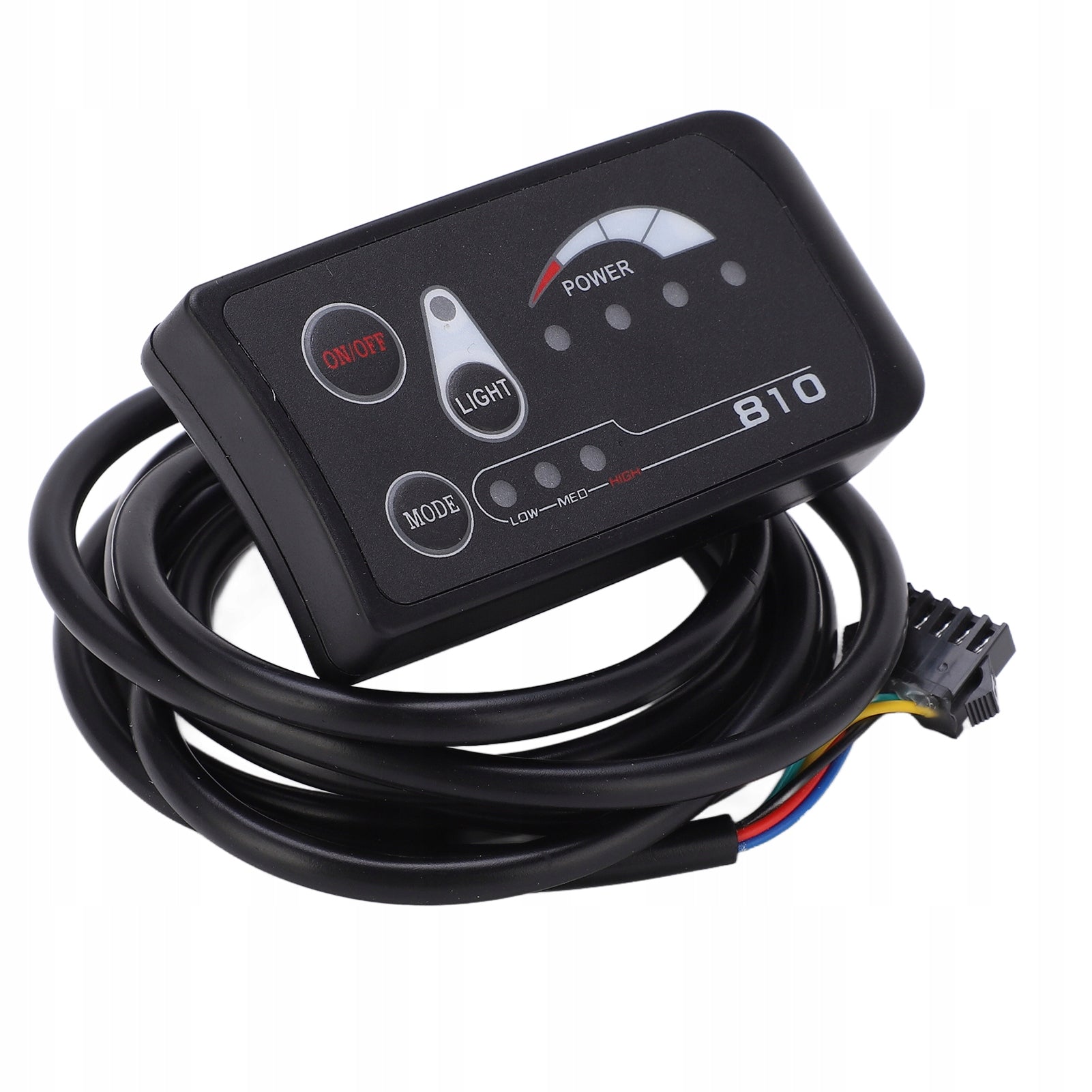

Prekė: LED dviračio ekranas S810 36V 48V elektrinis. Kategorija: Monitoriai.
- Gamintojas: no brand
- Modelis: 2716210317811
- Svoris: 143 g
✔ Function:
1. Plastic material: plastic coating has excellent workmanship, good strength and water resistance, providing better protection for the inner circuit and making it more durable.
2.
3. Gear memory function: analog high, medium and low gear torque comes from gear switch and gear indicating display, with gear memory function, and the gear status can be automatically restored when power on.
4. Customize settings: Apply five-wire digital communication and has multifunctional parameters of self-tuning function. Users can adjust settings according to different models, such as engine parameters, speed parameters, and speed parameters.
5. Wide applications: Compatible with 36V and 48V voltage, suitable for 22.2mm handlebar, excellent akcesoria for electric bikes, scooters, etc., suitable for JN controller and Pasion electric bike motor kit.
✔ Specification:
Item Type: S810 LED Electric Bike Display
Material: plastic
Color: as shown in the pictures
- Weight: approx. 143 g/5,0 oz
- Display size: approx. 82 x 42 mm / 3,2 x 1,7 inch, 159,5 cm / 62,8 inch Cable length without connector
- Suitable handlebar installation: 22.2mm/0,87 inch diameter handlebar
- Voltage: 36 V 48 V
- Interface: 5-pin regular interface
- Application: for JN controller and motor kit for Pasion electric bike
✔ List of packages:
1 x S810 display
1 x Manual
Note:
1. The S810 display must be used in conjunction with communication protocol compatible products.2.
1. Cable instructions for the end of the controller connection: red instrument power line, blue controller power control line, black instrument ground line, green instrument data line, yellow instrument data sending line.2. Operating instructions: the function can be realized by connecting the display screen meter socket to the controller meter interface.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 2716210317811 |
| Parametry | Brand | no brand |
| Parametry | Weight | 143 g |
| Parametry | EAN (GTIN) | 4005773089937 |
| Parametry | Product weight with unit packaging | 0.13 kg |
| Parametry | Batteries included | no |
