Lazerinis ploteris graviravimui NEJE MAX 30W 81x46cm

Trumpai apie prekę

Prekė: Lazerinis ploteris graviravimui NEJE MAX 30W 81x46cm. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: Neje
• Modelis: Master 2 Max

NEJE Master 2 Max 30W - a new generation super laser plotter - this is the second version, improved - engraving machine - portable, safe and easy to use.

This engraving is a modern combination of laser technology and a printer. Depending on the power of the laser, it allows you to engrave and burn various materials: wood, bamboo, paper, cardboard, plastic, rubber, leather, varnish, painted metal, PCBA, bone, mahogany. The 3500 mW is ideal for grayscale playback. Model 7 W and higher can mean in colored metal - depending on the hardness of the material, the degree of reflection of light, the degree of transparency and color.

You can use the original and simple NEJE software (Windows and Mac) or GBRL to operate the device. The device can directly use BMP, JPG, PNG and files in another format, you can also insert text and edit text directly to achieve full mapping. The device supports a maximum of 255 mm x 440 mm, the point distance is 0.075mm. The software supports basic G-CODE (. nc) (Inkscape) and basic CAD functions (. dxf)

GRBL software is open source and supports almost all G-CODE components, hardware supports z-axis, simple CNC functions.

New in Master 2 version is the ability to work with wireless applications for iOS, macOS and Android.

Safety: The device has a built-in acceleration sensor - an accelerometer. In the event that the device tilts or moves (accidental touch), the printer will stop automatically. This allows you to protect the fired object, protect against damage to the laser as well as people operating the device.

The device has surge protection, temperature sensor which effectively prolongs the life of the laser.

Adjusting the laser beam is very simple, it allows you to increase the efficiency of engraving the printer.

ALWAYS WEAR SAFETY GLASSES!!

Offline operation is very simple:

• Press the button once to reset the device,
• press 2 times to make the positioning frame,
• press 3 times to start engraving,
• Press 4 times to stop engraving.

The device is lightweight, portable and convenient to transport.

Software in English version.

The device is not dedicated to serial, industrial operation.

Version for self-assembly.

Specification NEJE Master 2 Max 30W:

• Original NEJE Master 2 Max 30W
• material: acrylic + PP + aluminium
• Input power: 30 W
• Laser optical power: 7500 mW
• wavelength: 450 nm

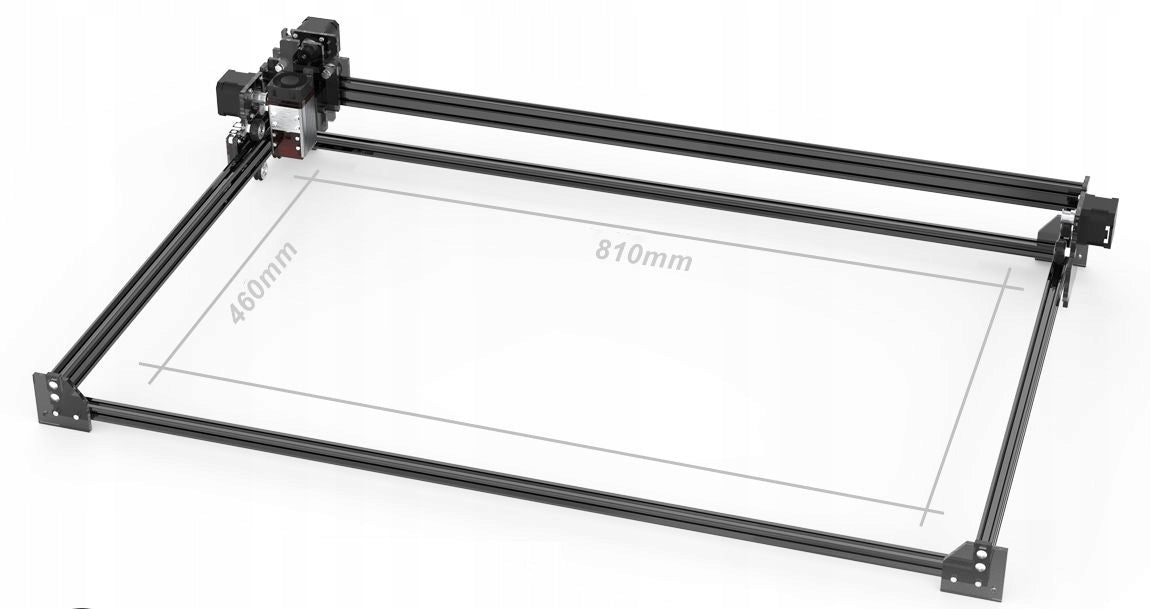

• Engraving surface: 810 mm x 460 mm
• laser focal length: 1 - 25 mm
• replacement head
• Power Supply: 12V 4A
• Minimum requirements for Windows 7, 8, 10 or OS X 10.10
• wireless communication: iOS, macOS, Android
• Point distance: 0,075 mm
• supported formats: . nc, . dxf, . bmp, . jpg, . png, etc.
• laser does not engrave steel, aluminum.

We treat each order individually, taking care of quality, speed and good service. We hope we will meet your expectations.

More specific products can be requested by email.

If you have any additional questions, we remain at your disposal.
