Lakštinio metalo perforatorius 20,0 mm 01029 ALFRA

Trumpai apie prekę

Prekė: Lakštinio metalo perforatorius 20,0 mm 01029 ALFRA. Kategorija: Įrankių rinkiniai.

• Gamintojas: no brand
• Modelis: 01029

Die for fast punching of round holes without burrs in S235 steel sheets, non-ferrous and light metals, plastics · For screw connections of cables with PG and metric thread and sanitary fittings · 3-point incision · Stretch screw: Metric fine coil thread · Ideal for fitters of control installations, electricians, installers, industry and crafts.

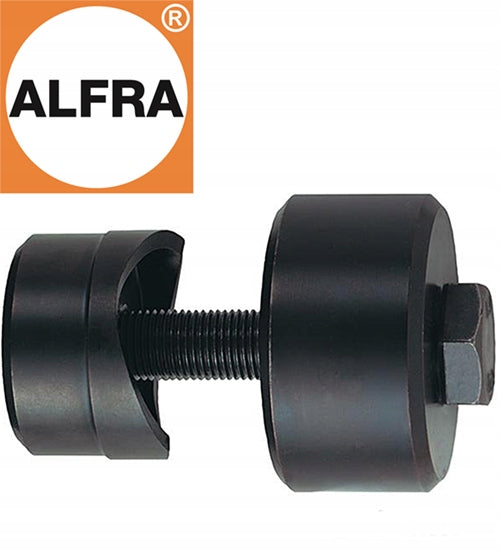

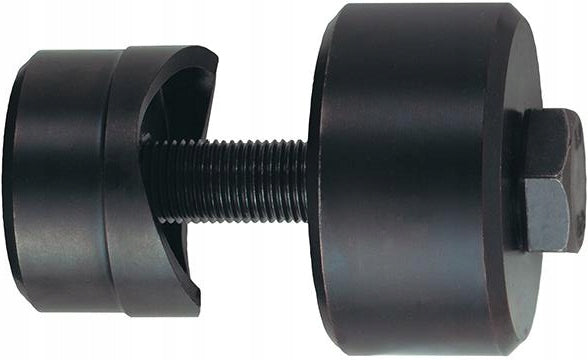

Die perforator ALFRA 20,0 mm – punching without burrs

THE ALFRA PUNCHING DIE 20,0MM is a reliable tool from the German manufacturer ALFRA – a world leader in the production of industrial tools of the highest quality.

What is it for?

With this die, you can quickly and precisely punch round holes in S235 steel sheets, non-ferrous metals, light metals and plastics – without burrs and additional processing!

The most important advantages:

• Hole diameter: Ø 20,0 mm
• Three-point incision – clean edges of the hole
• Heavy-duty stretch screw with metric fine coil thread
• Fast and convenient punching thanks to precise handling
• Ideal for electricians, installers of control systems and installers
• Safe and durable solution for industrial and craft work

Technical data:

• Catalog number: 01029
• Ø hole: 20,0 mm
• Screw: 9,5 x 40 mm
• Pre-drilling: drill Ø11 mm
• Sheet thickness: up to 2 mm
• Material: S235 steel, colored metals, light, plastics

Description of the item:

• 3 cutting tips
• for 2mm thick sheets with a compression screw with a diameter of 9,5mm
• in the case of compression screws with a diameter of 9,5mm, make a pre-hole with an 11mm drill
• for fast, clean perforation of steel sheets and plastics without burrs

General description of sheet metal die:

Sheet metal die is used for fast and precise cutting of specific shapes, holes and forms from sheet metal (steel, aluminum, stainless steel, copper) in the punching process, mainly in serial production. It works by pressing a specially profiled stamp to the material on the die with great force, which cuts off the desired element, ensuring high repeatability and material savings.

Benefits:

• Speed: Significantly speeds up the production process compared to manual cutting.
• Precision: Provides highly accurate dimensions and shapes.
• Automation: Allows easy automation of manufacturing processes.
• Material saving: Optimal use of raw material.

ALFRA has its headquarters in the motorsport capital of Hockenheim, Germany. However, for over 40 years, the company has been developing rapidly in the United States. ALFRA manufactures high quality construction tools for various applications: metalworking, handling, manufacturing.

ALFRA supplies its high quality products all over the world. Technical challenges in different markets drive innovation. Thus, the production technology of a set of tools and machines for the construction industry is constantly evolving. ALFRA strives to provide distributors with the highest quality that will enable them to achieve a higher level of efficiency.

Tools for metalworking

Reliable metalworking tools, core drills for metal, circular saws, deburring are designed and manufactured in factories in Germany and the USA. ALFRA assumes primarily customer satisfaction, and thanks to the trust and commitment of people producing tools, it does it every day.
