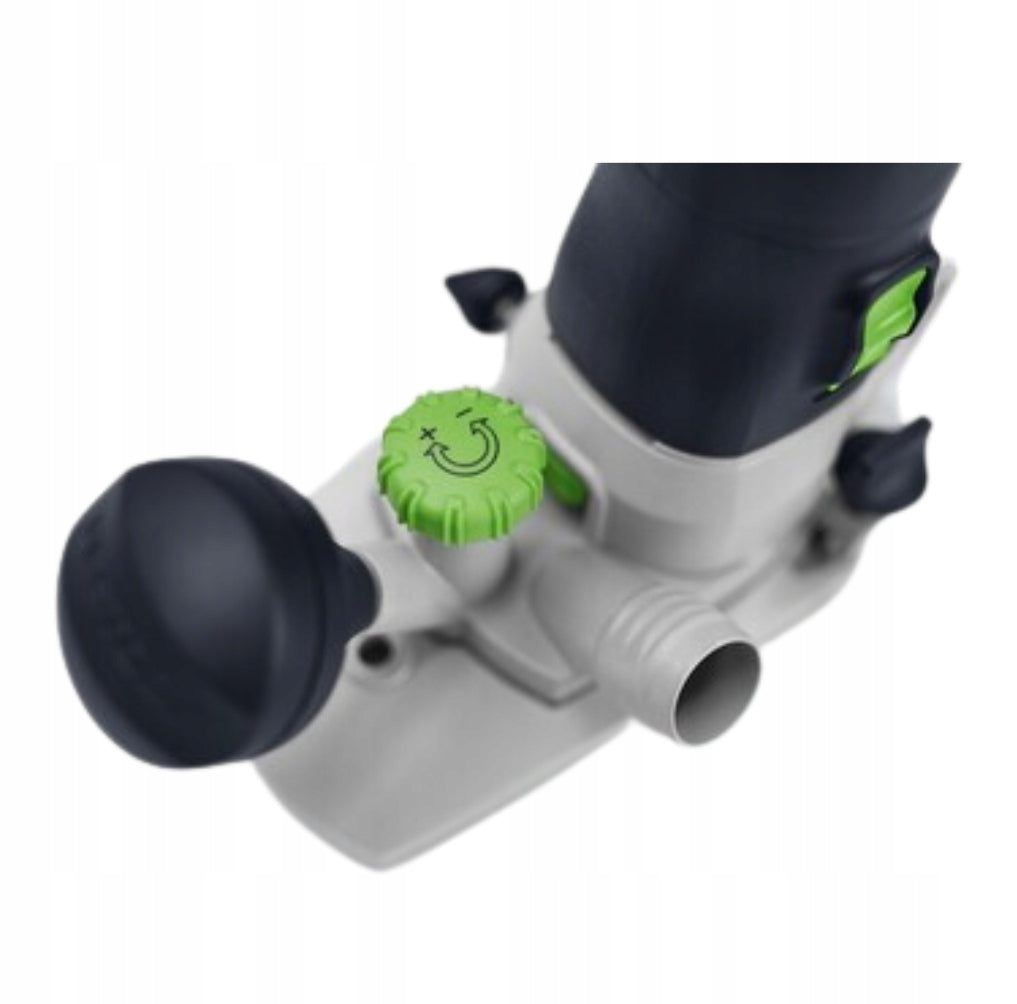

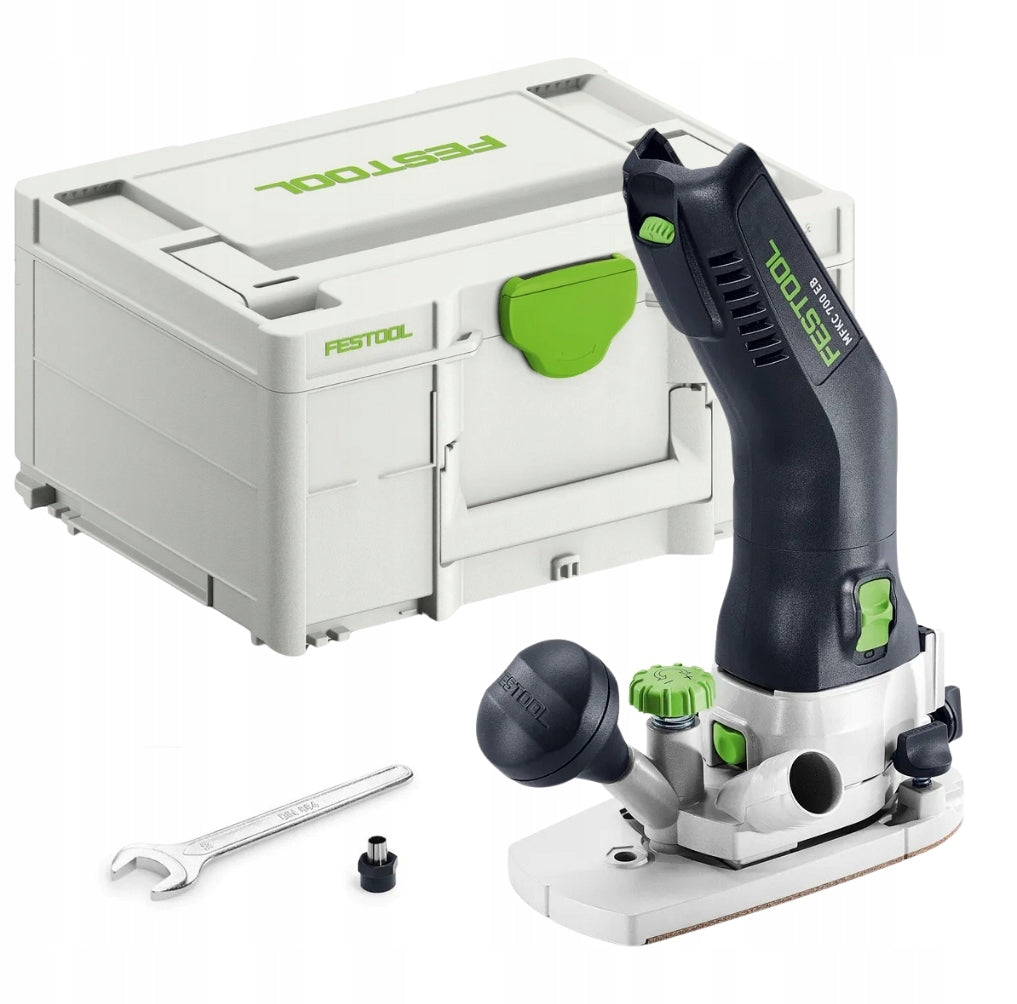

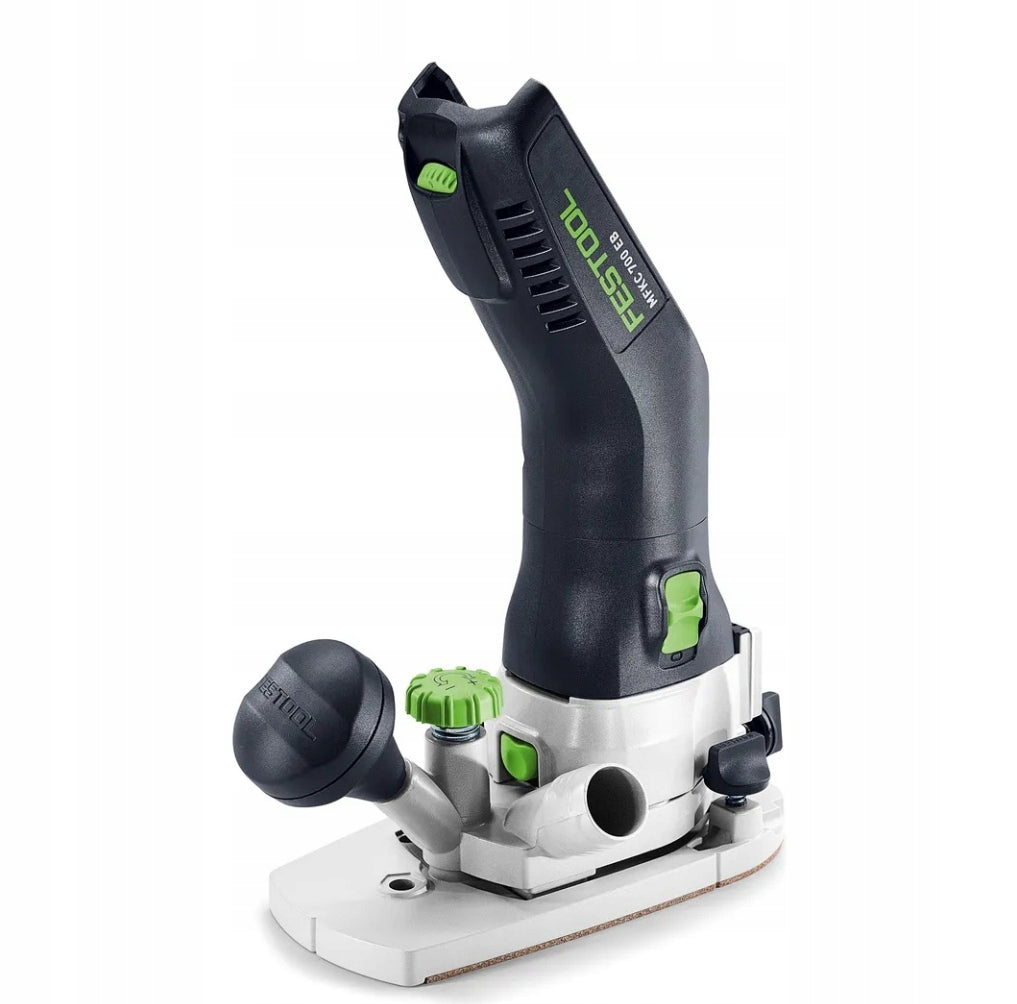

Kraštų frezavimo staklės Festool MFKC 700 Basic, akumuliatorinės

Trumpai apie prekę

Prekė: Kraštų frezavimo staklės Festool MFKC 700 Basic, akumuliatorinės. Kategorija: Frezavimo staklės.

• Gamintojas: Festool
• Modelis: 578011
• Įtampa: 18 V

• Modular milling machine for MFKC 700 Basic cordless edge milling machine
• Clamping sleeve SZ-D 8/OF 1010 No. 488755
• flat key SW 19
• Systainer³ SYS3 M 187 No 204842
• without battery
• without charger

Technical data:

• Battery voltage (rated voltage): 18 V
• Idle speed: 10 000 - 25 000 min⁻¹
• Clamp holder diameter: 6 - 8 mm
• Cutter stroke (precise adjustment): 14,00 mm
• Max. cutter diameter: 32,00 mm
• Dust extraction connection Ø 27 mm
• Product weight without equipment: 1,70 kg
• Transport weight with accessories: 4,00 kg
• Type of drive: Battery

Greater freedom thanks to the battery.

Precise depth adjustmenti

The milling depth can be set to an accuracy of 1/10 mm. The easy-to-use clamp knob prevents the milling table from moving during operation.

Flexibility when working vertically

Various milling tables (equipment) and versatile guide systems can be mounted vertically using a universal connector.

Horizontal and vertical connector

The integrated connector can be used for mounting various milling tables with 0° and 1,5° inclination (equipment) horizontally or vertically, as well as for mounting universal guide systems. This allows rounding, chamfering, profiling and making inlets. It is also possible to process protruding sandwich panels and edge stickers.

Clean and healthy workplace

The integrated suction channel in the wide guide table effectively drains d chips and ensures optimal handling.

Replacement of cutters in seconds

Spindle lock allows easy and quick replacement of the cutter.

Rotary speed adjustment depending on the material

Thanks to the MMC electronic system, you can set the rotational speed depending on the material currently being processed and keep it at a constant level regardless of the load. At the same time, the engine temperature is monitored, which ensures a long service life.

Mobility thanks to battery

The integrated battery provides convenient edge milling without tangled wires.

Brushless EC-TEC motor

Efficiency, power, low noise and vibration: thanks to the EC-TEC brushless motor with integrated control.

Festool 18 V Bluetooth®

When using Bluetooth® batteries, cordless edge milling machines can be perfectly combined with the function of remotely turning on the vacuum cleaner – machine on, vacuum cleaner on.

Sliding guide foot (equipment)

Can be mounted on MFK 700. Allows full use of the cutter blade. The guide foot is used in conjunction with a horizontally mounted milling table (at an angle of 0° or 1,5°) for machining edge stickers.

Equalizing milling of arched elements (equipment)

The design of the milling table allows precise flat milling for solid wood edge stickers with an excess thickness of up to 15 mm on arched and round elements. This is needed, for example, for bar tables.

Exceptional guidance system (equipment)

The driver evens out unevenness, preventing errors from being transferred to the cutter and thus to the edge of the workpiece. When working with closed surfaces, the vodka can be replaced with a roll.

Wireless operation and versatile use in the field of edge milling

If the subject of processing is the edge of the workpiece around the perimeter, the wire can wrap around the milling machine. Now it's in the past. The slim design and optimally positioned center of gravity make it easy to drive the machine safely without the risk of tilting. Thanks to the innovative connector, it is possible to quickly switch between different milling tables, which ensures proper preparation for any application in the field of edge processing.

Functions:

• Greater variety of applications: tool-free replacement of milling tables
• Precise setting: easy and accurate setting of milling depth with an accuracy of 1/10 mm
• Universal character: the possibility of using all standard cutters (up to 32 mm in diameter) thanks to the 8 mm collet
• Plastic foot: prevents damage to the workpiece. Excellent sliding properties and scratch resistance
• Large overlay: 130 mm milling table top for accurate milling
• Replacement of the cutter: easy and fast thanks to the spindle lock
• Handy operation: slim design, light weight and optimally positioned center of gravity
• Optimal suction: integrated directly into the milling table
• Comfortable operation: automatic start of the vacuum cleaner with Bluetooth® battery
• Rotary speed adjustment: can be individually adjusted. Reduces burn marks
• High power: with brushless, quiet EC-TEC motor
• Long service life: engine temperature control
• Mobility: convenient edge milling without wire
• Strength: aluminium side guide for making frames and outlets (optional equipment)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Festool
Parametry	Series	MFKC 700
Parametry	Milling machine type	specialized
Parametry	Power supply	rechargeable battery
Parametry	Supply voltage	18 V
Parametry	Maximum no-load speed	25000 RPM
Parametry	Maximum milling depth	14 mm
Parametry	Pitch of the milling unit	14 mm
Parametry	Device weight	1.7 kg
Parametry	Product weight with unit packaging	3.5 kg
Parametry	Manufacturer code	578011
Parametry	EAN (GTIN)	4014549445297
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
Parametry	Customs tariff code	84672985
Parametry	Tool holder (mm)	6,8
Parametry	Additional information	dust removal,speed regulator,transportation box included
