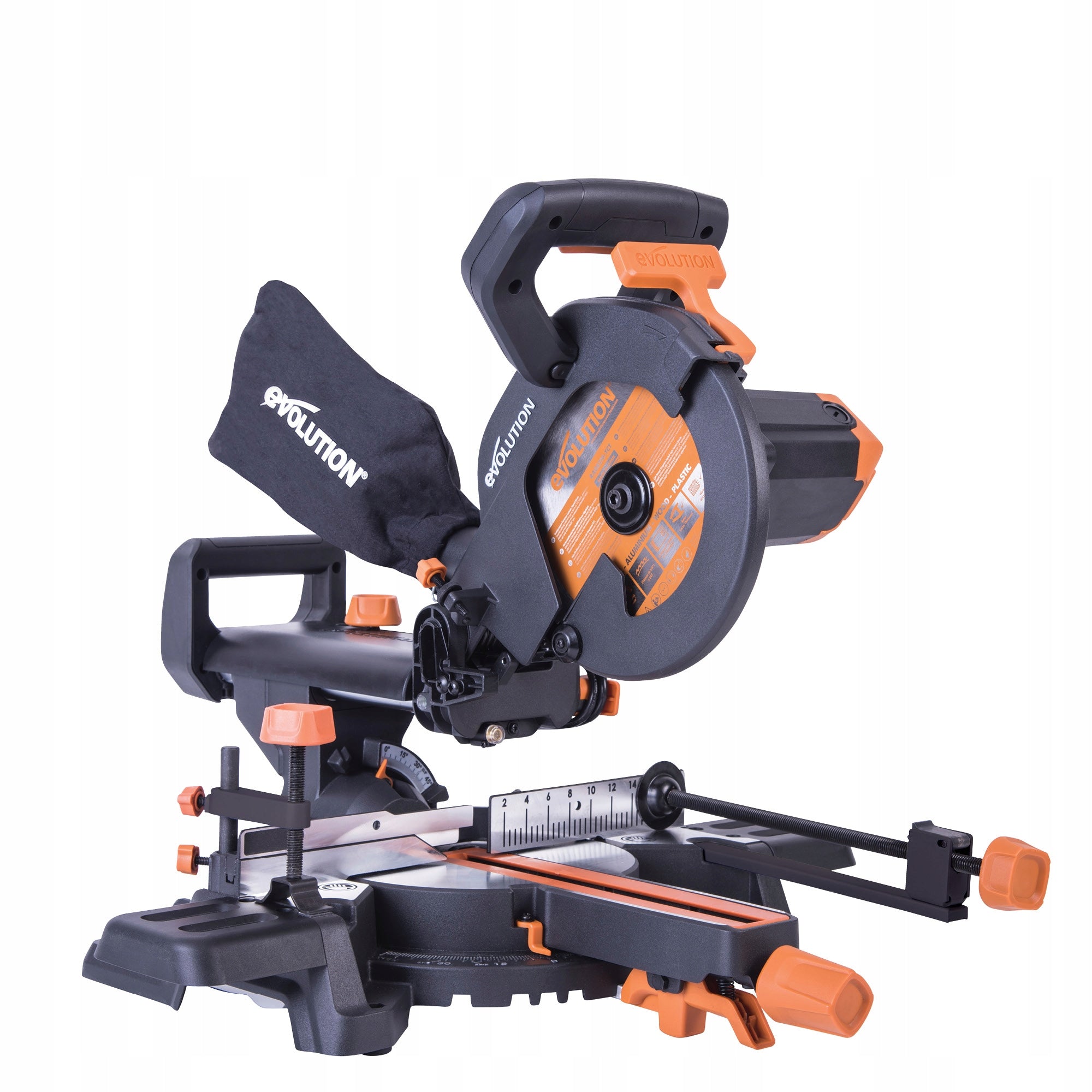

Kampinis pjūklas su kreiptuvais EVOLUTION R210SMS PLUS, 210 mm

Trumpai apie prekę

Prekė: Kampinis pjūklas su kreiptuvais EVOLUTION R210SMS PLUS, 210 mm. Kategorija: Kampiniai pjūklai.

• Gamintojas: Evolution
• Modelis: 048-0003A

The new Evolution R210SMS+ multi-purpose miter saw can cut through many materials, such as steel profiles, aluminium profiles, plastics, wood, wood with nails. The 24 carbide tooth disc with special blade geometry ensures optimal cutting conditions.

When cutting steel profiles (from structural steel), we obtain a surface without burns, ready for welding, and when cutting, there are almost no sparks.

The device provides the ability to cut materials with a maximum cross-section of 230x65mm. Ideally suited for cutting copper and plastic pipes, aluminum profiles, MDF boards, skirting boards, hardwood like ash and oak and many other materials.

When cutting recycled wood, both the miter saw and the disc are not a problem when cutting nails, screws or staples placed inside the wood.

A diamond blade (sold separately) designed for cutting bricks, stone, paving stones, etc. can be installed in the cutter.

For cutting steel profiles, it is recommended to use a disc for cutting steel.

The R210SMS+ comes with a multi-purpose RAGE210 (24 teeth) dial. The RAGE 210mm disc is manufactured in Japan using the highest quality materials. Through the use of patented technology from Evolution Power Tools, the disc can be cut: steel. Aluminum, wood, wood with nails and many other materials.

Advantages of the PLUS version:

- PREMIUM quality cutting disc, extended blade life and easier cutting, associated with more ribs (24),

- Quick-release clamps material. Provide faster, more secure and easier material attachment when cutting

- guide guard made of plastic. It protects the guides from damage and from filings and chips formed during cutting.

- cleaner and safer work. The use of a chip bag that can be easily mounted allows you to keep your workstation clean. Please note that the chip bag cannot be used when cutting metal components, There is also an adapter included to connect the vacuum cleaner to the extraction port.

- integrated transport handles. They provide the ability to carry the device more easily.

- long power cord. It increases the comfort of work and in many cases eliminates the need for an additional extension cord.

The manufacturer does not specify the number of cuts with shields. The performance of the discs depends on m.in. from the type and size of the material being cut, the feed used.

TECHNICAL DATA

• Model: R210SMS PLUS
• Engine power: 1500 W
• Supply voltage: 230 - 240 V
• Rotation speed (no load): 3750 rpm /min
• Maximum wall thickness of the cut profile: 3 mm
• Maximum cutting capacity at 0°: 230 x 65 mm
• Maximum cutting capacity at 45° (angle) / 45° diagonal: 150 x 65 mm
• Maximum cutting capacity at 45° (angle): 230 x 38 mm
• Maximum cutting capacity 45°: 150 x 38 mm
• Maximum thickness of cut sheet metal (soft steel): 6 mm
• Dimension of the device (L x W) x H ): after assembly: 314 x 575 x 610 mm
• Package Dimension (L x W) x H ): 315 x 475 x 435 mm
• Weight of the device: 11,2 kg
• Disc diameter: 210 mm
• Diameter of disc mounting hole: 25,4 mm
• Disc thickness: 1,7 mm
• Number of Teeth: 24 of
• Disc rotation speed (no load): up to 5000 rpm /min
