Kampinis pjūklas DEDRA DED7772, 305 mm, 2,0 kW

Trumpai apie prekę

Prekė: Kampinis pjūklas DEDRA DED7772, 305 mm, 2,0 kW. Kategorija: Kampiniai pjūklai.

• Gamintojas: Dedra
• Modelis: DED7772

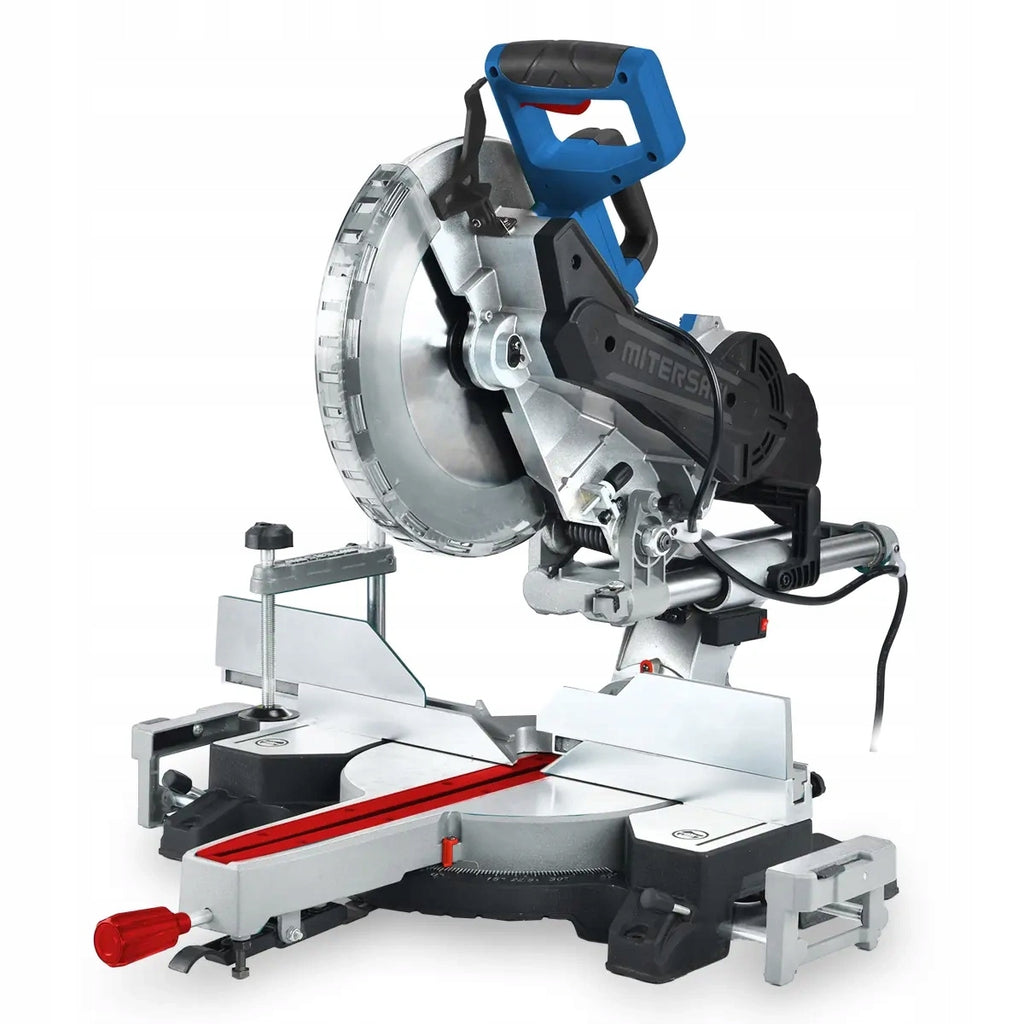

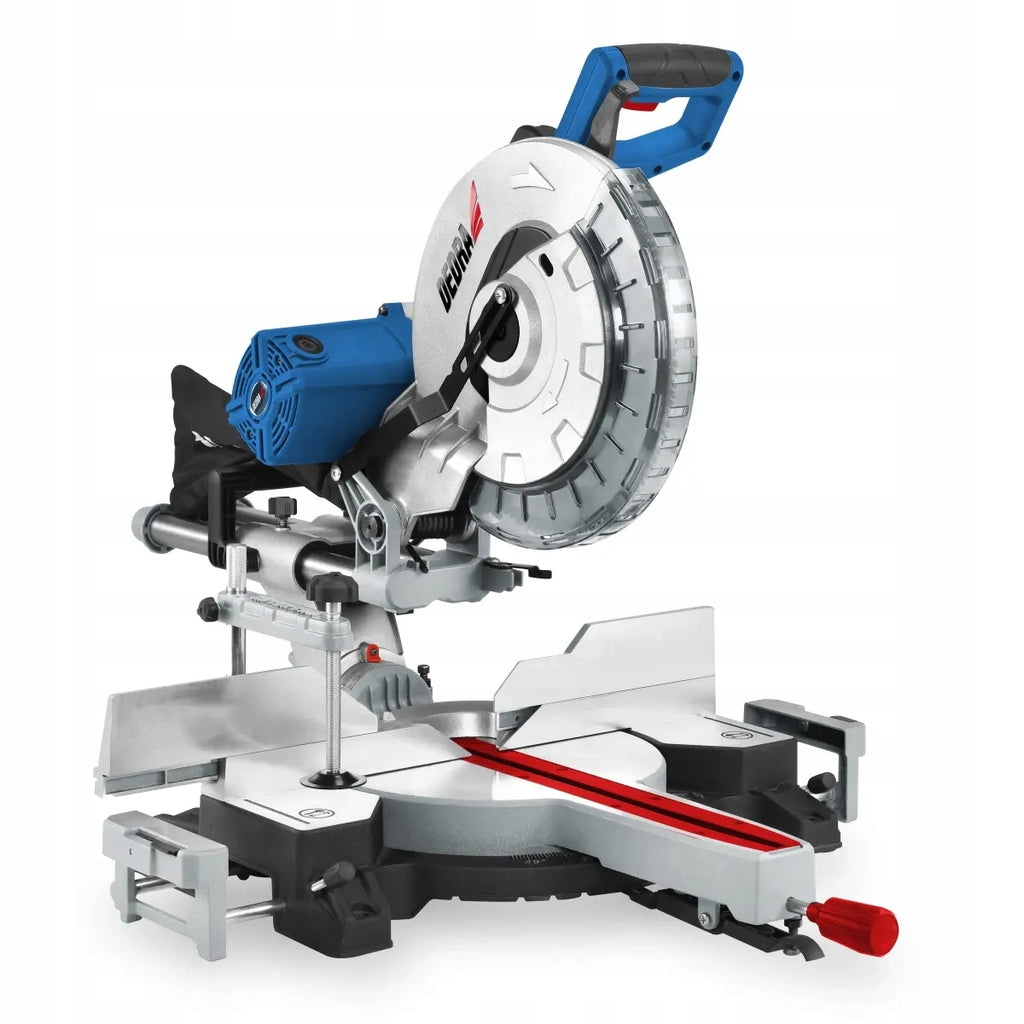

Bevel saw with feed DED7772 is a tool designed for cutting wood, wood-like materials such as plywood, MDF or chipboard.

The feed function makes it easy to work with, ensuring that the material moves smoothly and evenly through the disc, reducing user fatigue and allowing for more comfortable operation without having to manually press the material against the disc. This is especially useful when cutting harder or larger pieces.

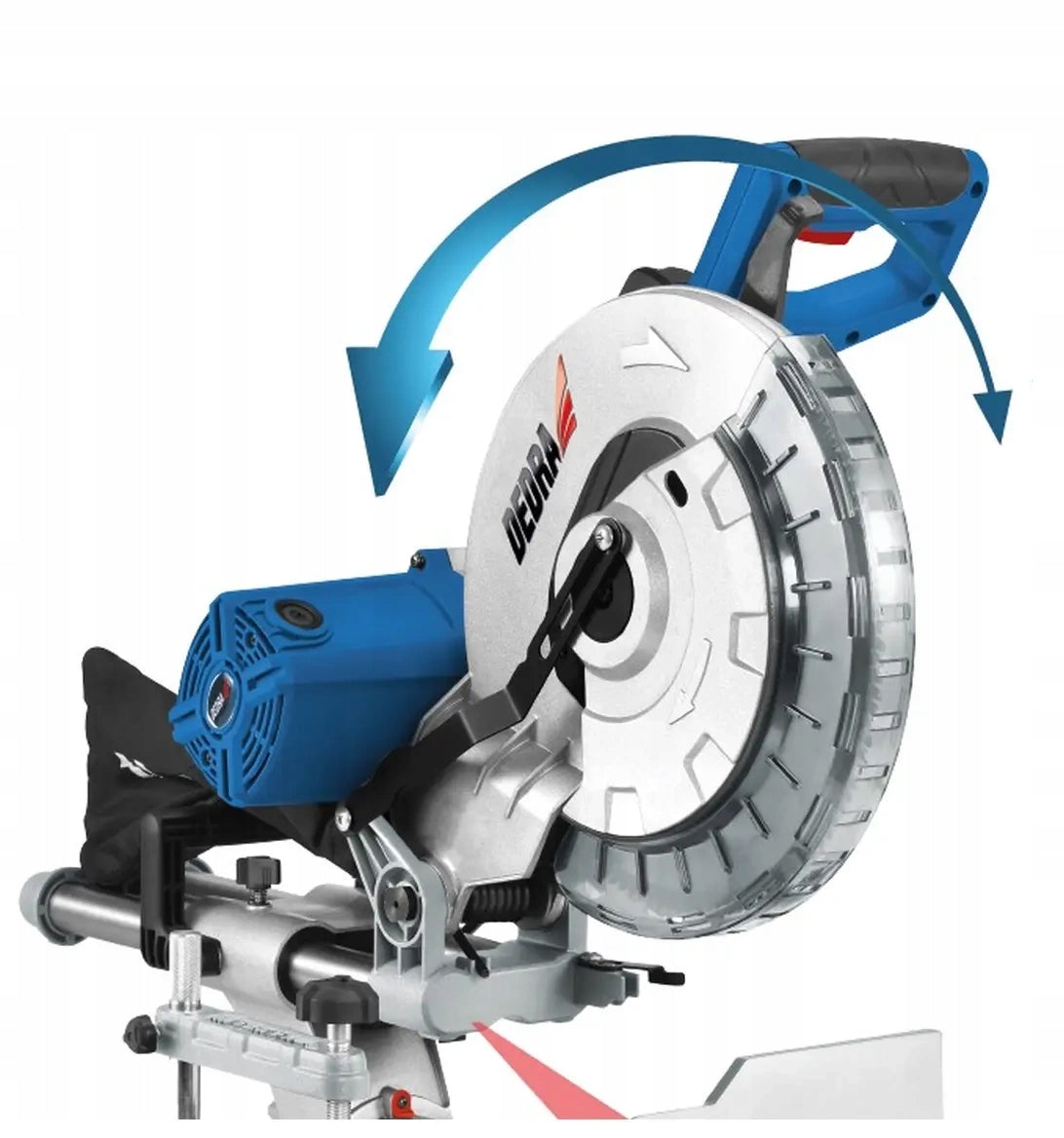

The ability to adjust the angle of the bevel, allows you to adjust it exactly depending on your needs. With this feature, the saw becomes more versatile, allowing you to cut from different angles. In addition, the bevel angle lock ensures stable maintenance of the setting, which translates into cutting accuracy.

The built-in laser is an additional advantage of the saw - the laser displays a straight line on the processed material, which allows the user to easily track the cutting line and eliminate errors resulting from the imprecise setting of the tool.

The saw is equipped with a compression to hold the workpiece, which ensures the stability of the material during cutting. Thanks to this solution, the workpiece remains in place, which eliminates the risk of shifting it during operation.

Aluminum base and metal guides guarantee the solidity and durability of the structure. Additionally, the cutting disc cover provides protection to the user, preventing accidental contact with the rotating disc, which increases work safety.

For the DEDRA DED7772 bevel saw, we recommend compatible wood discs with cemented carbide H30540, H30560, H30580 and H305100.

PRODUCT CHARACTERISTICS

• Soft start – reduces jerking at start-up for smooth and stable start-up
• Feed function – allows smooth movement of the disc through the material
• Laser for easy straight cutting – displays the guide line on the material, which helps in accurate cutting
• Left/right incline – allows you to set the angle of inclination of the disc in both directions for oblique cuts
• Quick lock when setting the bevel angle – allows stable maintenance of the set cutting angle
• Clamp to hold the workpiece – stabilizes the material during operation
• Cutting disc cover – protects the user from accidental contact with the disc
• Additional double-sided supports – increase stability and comfort when cutting larger elements
• Metal guides – ensure durability during intensive use
• Aluminum base – guarantees lightness, and at the same time stability and durability of the structure.
• Drive via the belt – provides quieter operation and better vibration absorption

TECHNICAL DATA

• Voltage: 230V / 50 Hz
• Power: 2000 W
• Rotation speed: 4500 RPM
• Disc diameter: 305 mm
• Disc hole diameter: 30 mm
• Max. cutting ranges (width x depth):
• Centrally 0°-90°: 340 x 105 mm
• Centrally ±45° - 90°: 235 x 105 mm
• right 0°- 45°: 340 x 40 mm
• right ±45° - 45°: 235 x 40 mm
• left 0°- 45°: 340 x 48 mm
• left ±45° - 45°: 235 x 48 mm
• Right/left head inclination range: -45°, 0°, +45°
• Power cord length: 2 m
• Weight: 23 kg
• Purpose: Cutting wood, wood-based materials

Completion:

• Bevel saw with feed
• Disc saw for wood 305x30mm 40T
• Key to mounting the shield
• Additional table supports
• Bag for excavation
• Clamp to stabilize the cut material
• Set of electrographite brushes

Dedra is a Polish company operating in the industry since 1991. It has in the catalog a wide range of power tools, cordless devices, accessories for power tools, garden tools, welding equipment, hand tools, health and safety articles.
