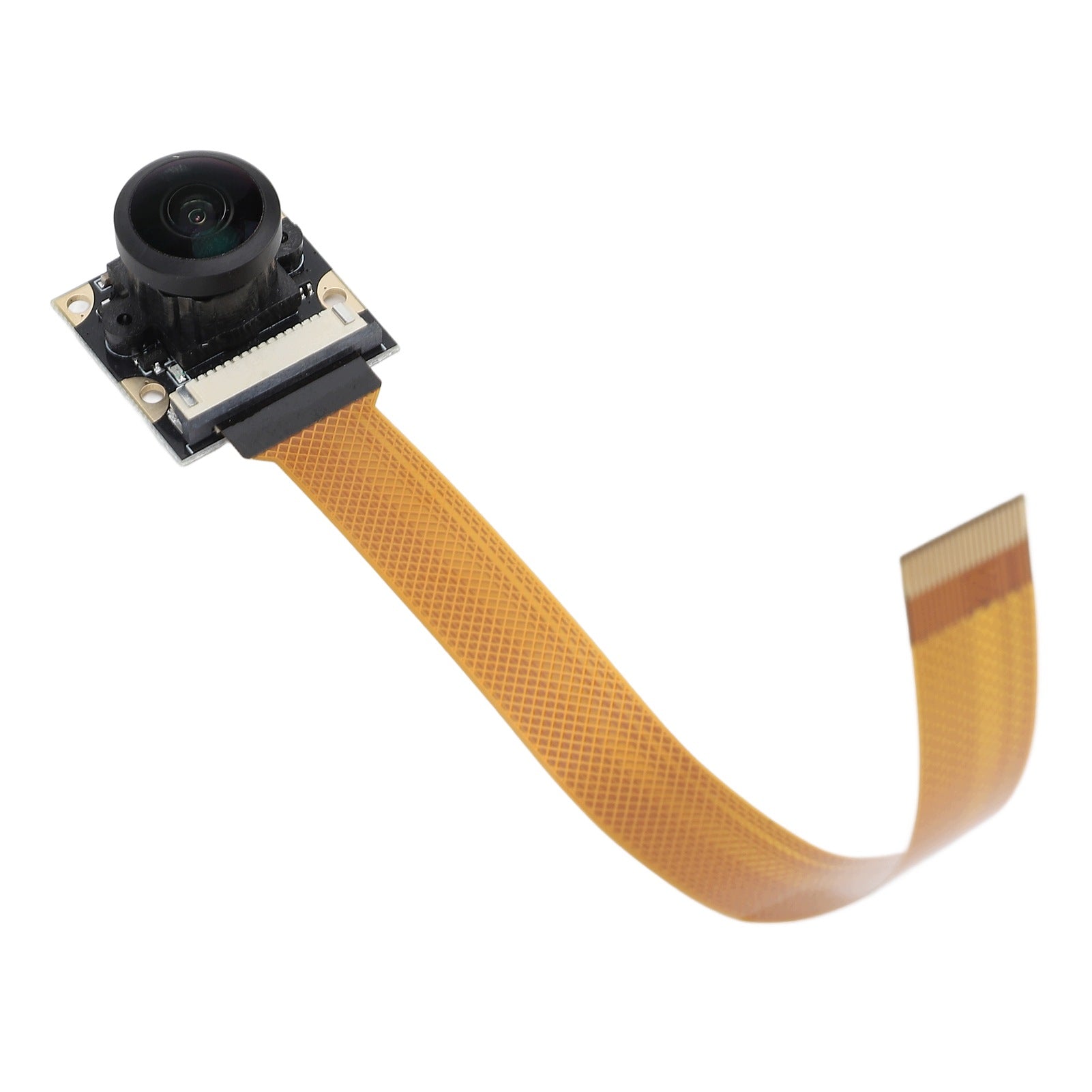

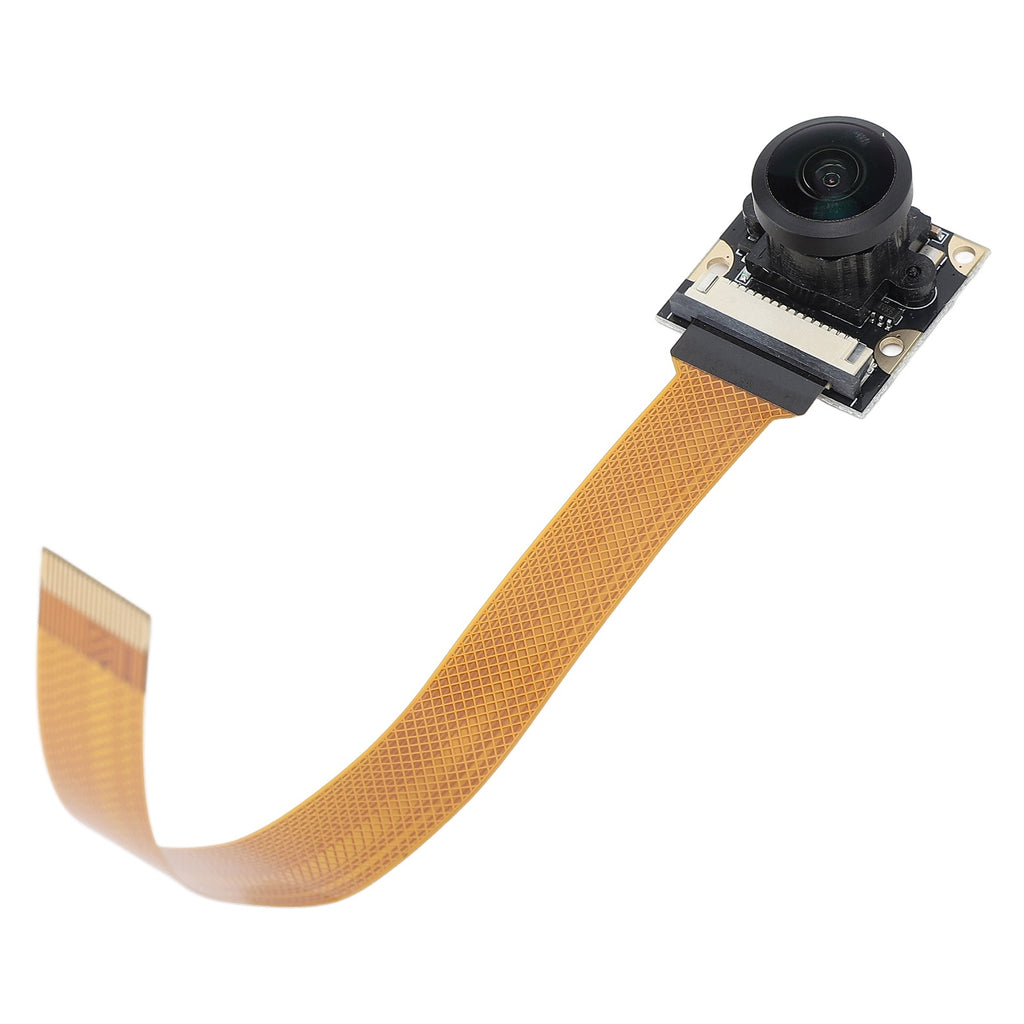

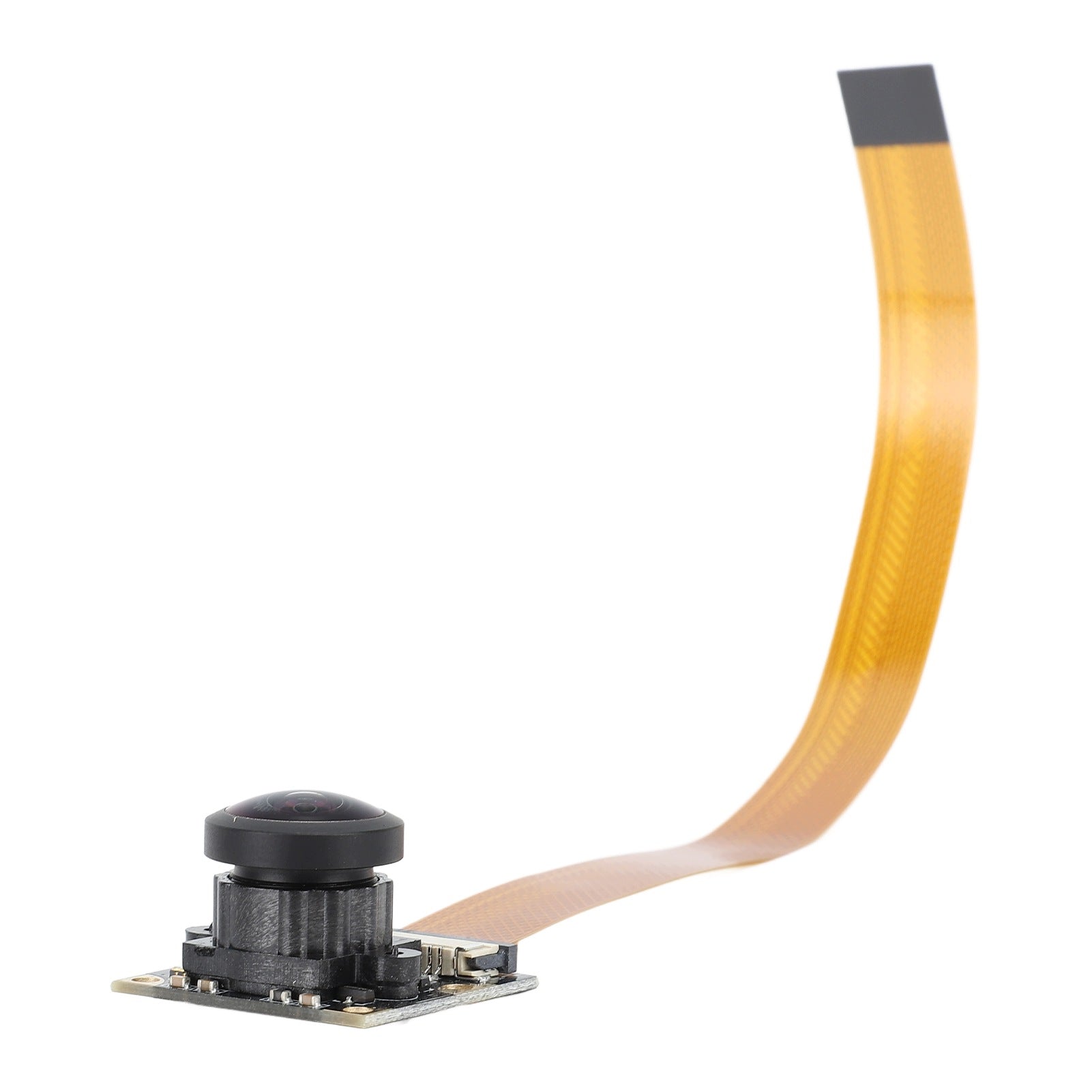

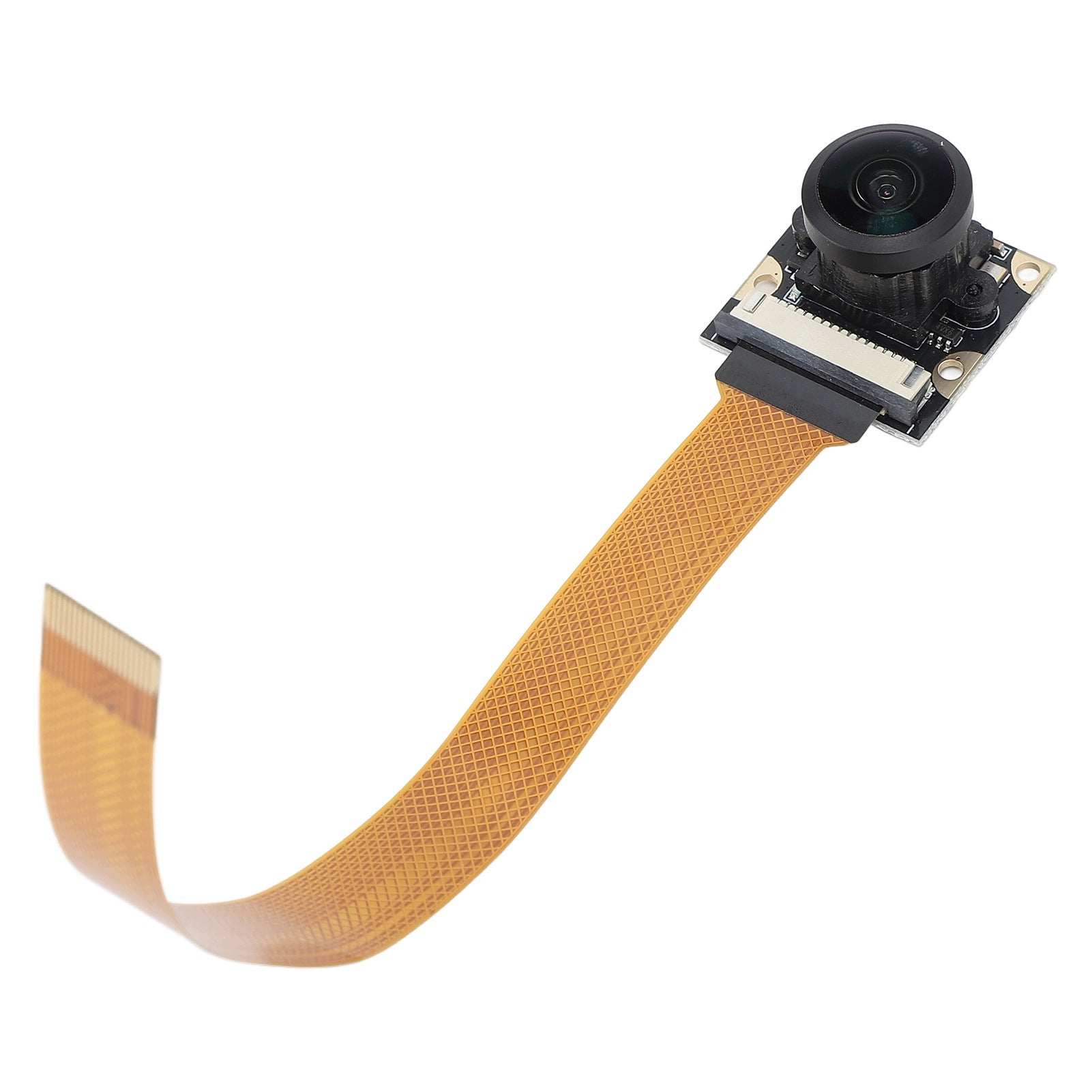

Kameros modulis OV5647 HD 1080P 220° JY jutiklis

Trumpai apie prekę

Prekė: Kameros modulis OV5647 HD 1080P 220° JY jutiklis. Kategorija: Veidrodiniai fotoaparatai.

• Gamintojas: no brand
• Modelis: 4272IHWA
• Komplektacija: not specified

Function:

1. 1080P HD: The camera module is equipped with 5MP pixel resolution lens, extra wide 220 degree angle, supports 1080p HD video recording, automatic light detection adjustment, clear image and true colors.

2. Strong compatibility: the camera module is perfectly compatible with RPi 5 and RPi zero series, there are no error reports after normal operation, the camera can work perfectly, meeting the needs of different devices.

3. Powerful lens: HD 1080P camera module built into OV5647 sensor with 0,72MM lens, supports manual focusing, helps to get clear image.

4. Easy installation: The 1080P camera module is mounted with standard M2x6 screws, equipped with a 15 cm cable that can be directly inserted into the CSI bayonet for easy installation.

5. Temperature resistance: The replaceable camera module can withstand a working environment of -20~70 degrees Celsius and ensures stable operation.

Specification:

• Item Type: Camera Module
• Material: ABS, optical glass
• Lens Pixels: 5 MP
• Sharpening distance: 0,76 mm
• Focus Mode: Manual
• Lens angle: 220 degrees
• Screw Type: M2x6 Screws

How to use:

• 1. Turn off and unlock the RPi card: First, make sure the RPi card is turned off, then use the appropriate tool (such as a toothpick) to release the card lock in the CSI slot, allowing it to be raised.
• 2. Install the camera ribbon cable and connecting cable: Insert one end of the ribbon cable into the CSI interface, making sure that the cable side with metal contacts is facing the opposite corner of the interface. Then connect the connecting cable of the camera module to the corresponding port on the ribbon cable.

3. Secure the camera: Properly mount the camera module on the RPi, making sure all connections are secure, then turn on the power to update the camera system and driver.

List of packages:

• 1 x Camera Module
