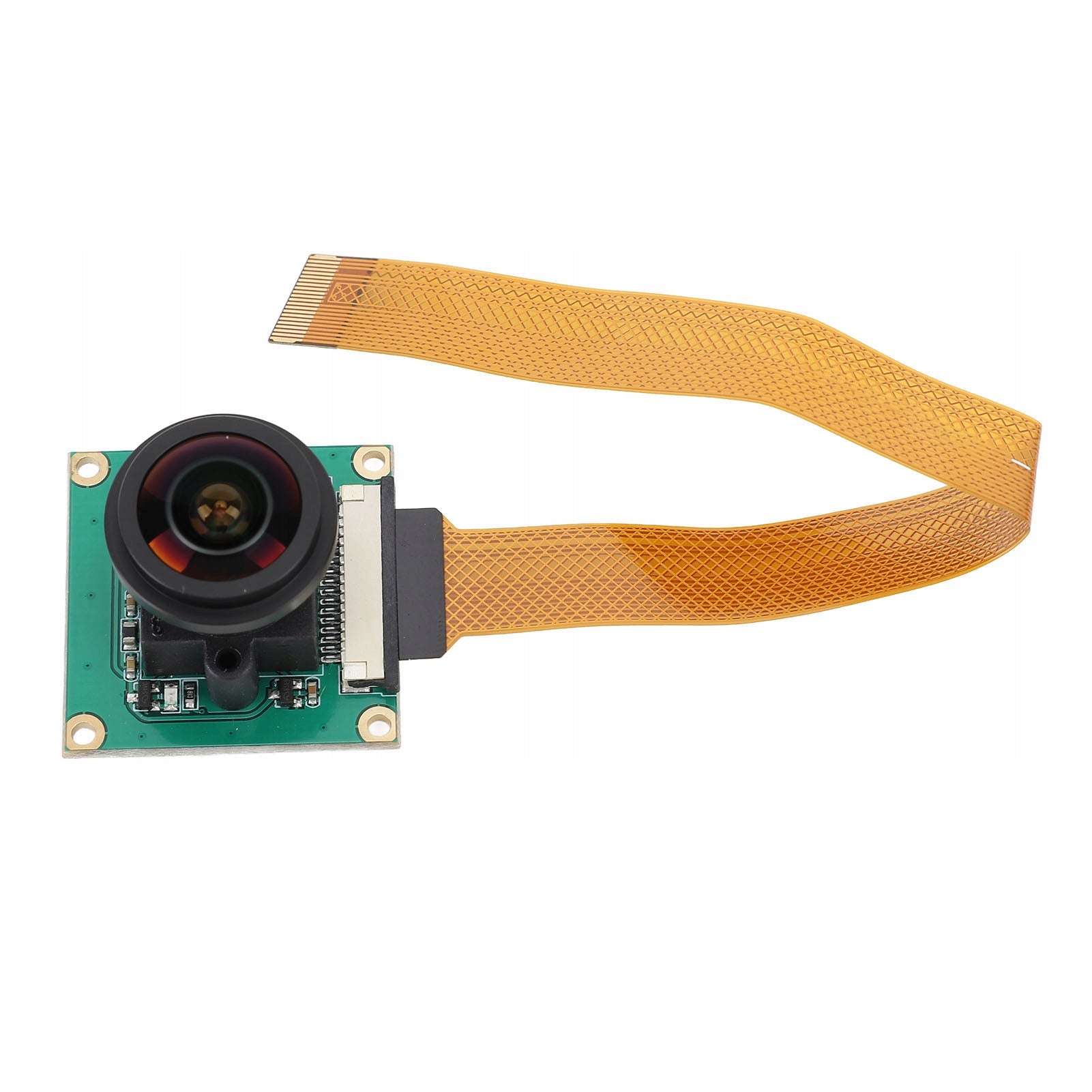

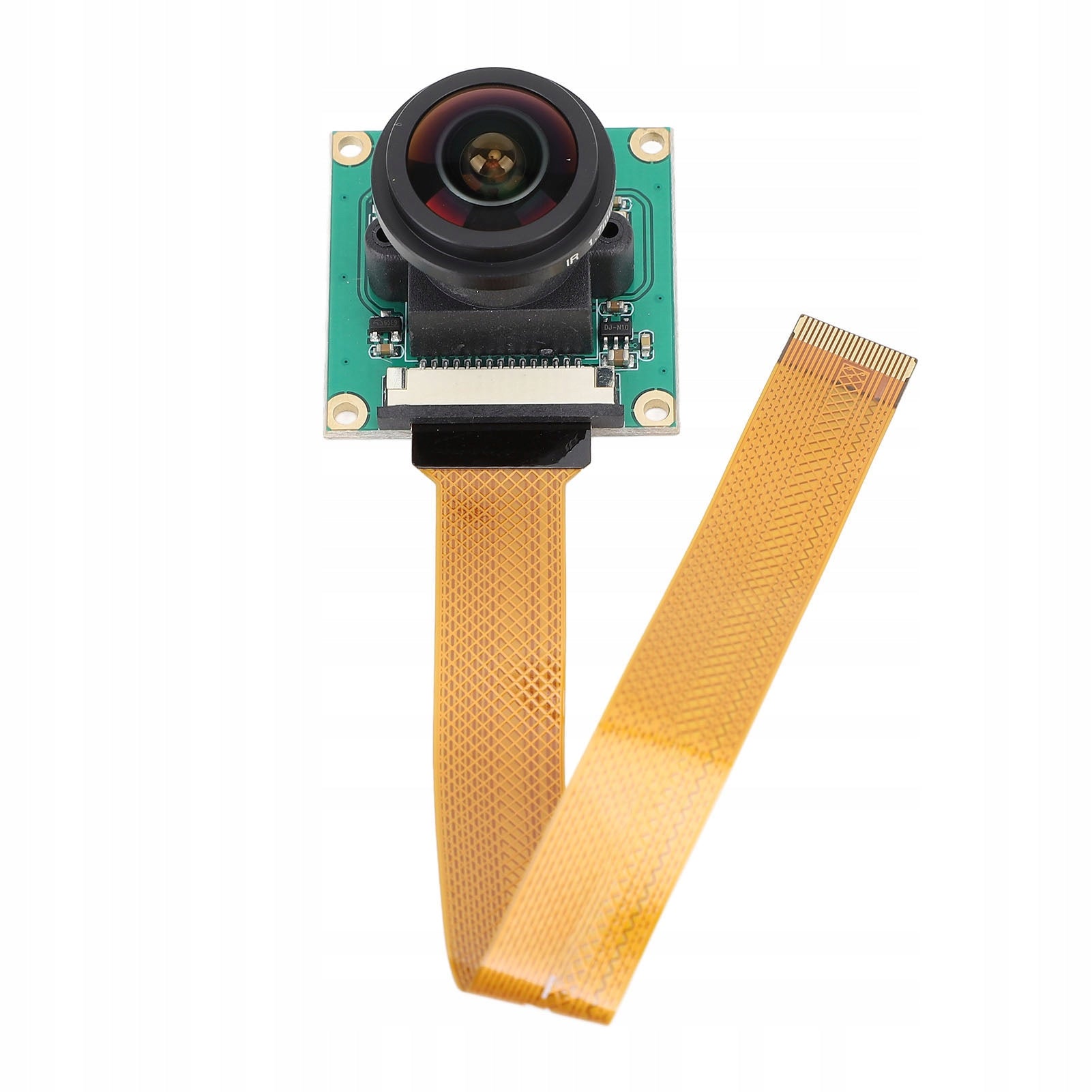

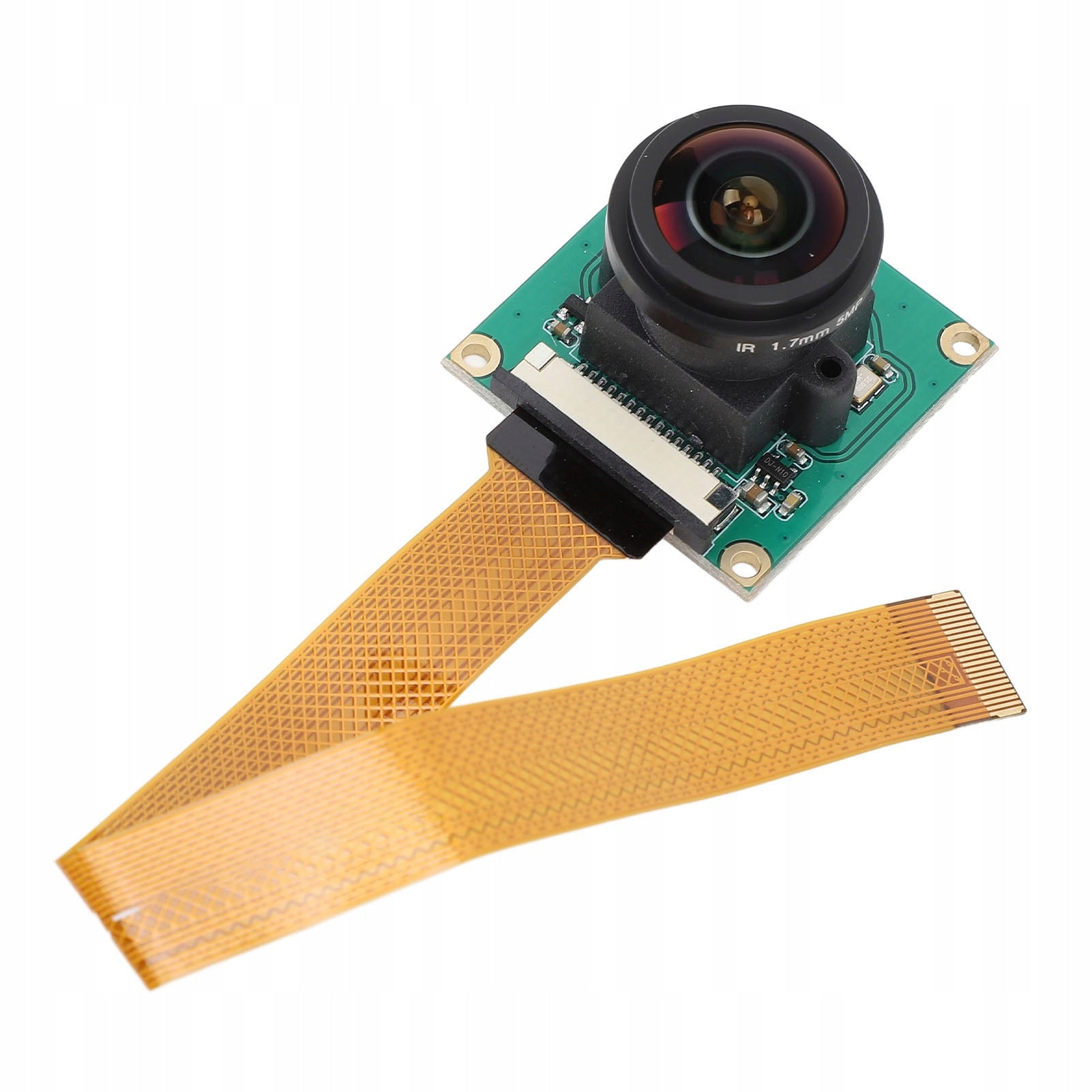

Kameros modulis 1080P 5MP 175° plataus kampo 2592x1944 CSI sąsaja 4O

Trumpai apie prekę

Prekė: Kameros modulis 1080P 5MP 175° plataus kampo 2592x1944 CSI sąsaja 4O. Kategorija: Veidrodiniai fotoaparatai.

• Gamintojas: no brand
• Modelis: 6446TVCU
• Komplektacija: not specified

Function:

1. 1080P HD: Record high-definition 1080p videos using a 500W lens with a wide 175° angle for crisp and realistic colors with automatic light adjustment.

2. STRONG COMPATIBILITY: Perfectly compatible with RasPi 5 series and zero, brak error message after normal operation, the camera works perfectly to meet different needs of devices.

3. POWERFUL LENS: Equipped with OV5647 sensor and 3,6MM lens, the improved module supports manual focus to help you get clear and excellent images.

4. EASY INSTALLATION: Securely attached with standard M2x6 screws, includes a 15cm long ribbon cable for direct connection to the CSI interface for easy installation.

5. DURABILITY AND RELIABILITY: The camera module can withstand operating temperatures from -20 to 70 degrees Celsius, ensuring stable operation in a variety of environments.

Specification:

• Item Type: Camera Module
• Material: ABS + optical glass
• Lens Pixel: 5 MP
• Focal length: 3,6 mm
• Focus Mode: Manual
• Lens angle: 175°
• CMOS Size: 1/2,5 inch
• Resolution: 2592x1944
• Screw Model: M2x6

How to use:

• 1. Turn off and unlock RasPi: First, make sure RasPi is turned off, then use the appropriate tool (such as a toothpick) to release the card slot latch on the CSI connector, allowing you to pick it up.
• 2. Install the camera ribbon cable and connector: Insert one end of the ribbon cable into the CSI interface, making sure that the cable side with metal contacts is facing the opposite side of the interface. Then connect the camera module connector to the port corresponding to the ribbon cable.

3. Secure the camera: Correctly install the camera module for RasPi: make sure all connections are secure, then turn on the power to update the camera system and drivers.

List of packages:

• 1 x Camera Module
