Kambarinė DVB-T MUX8 omni kryptinė antena

Trumpai apie prekę

Prekė: Kambarinė DVB-T MUX8 omni kryptinė antena. Kategorija: Antenos.

• Gamintojas: Blow
• Modelis: ATD14
• Spalva: black

‼ BLOW ATD14 active TV antenna has been designed to receive digital terrestrial television in the DVB-T and DVB-T2 standards. Support for a wide range of VHF and UHF frequencies enables reception of multiplexes available in Poland , including MUX-8. The built-in high-gain amplifier helps achieve a more stable and clear signal, especially in areas where standard passive antennas may not be sufficient. ‼

✅ Key Features

✔️ Reception of digital terrestrial television DVB-T and DVB-T2

✔️ Support for VHF and UHF bands

✔️ Reception of multiplexes MUX-1, MUX-2, MUX-3, MUX-4, and MUX-8

✔️ Powerful signal amplifier up to 25 dB for UHF

✔️ Gain up to 20 dB for VHF

✔️ Built-in filter to reduce interference from LTE networks

✔️ SMT 4G PROTECT technology

✔️ Antenna can be rotated 360°

✔️ Clip mount and magnetic base

✔️ Compact and lightweight design

✔️ Ultrasonic welded housing

✔️ Increased moisture resistance

✔️ Can be used indoors and outdoors

✔️ Low voltage power supply 5 V DC

✅ High-quality TV reception

The BLOW ATD14 antenna enables the reception of terrestrial television programs broadcast in the following quality:

✔ HDTV

✔ Full HD

✔ 4K Ultra HD – if the program is broadcast in this resolution and the TV or decoder supports it

➡ A high-quality amplifier is characterized by a good level of gain and a low noise level. This helps reduce problems with image stuttering, signal loss, or interference.

➡ The actual reception quality depends on, among other things, the distance from the transmitter, terrain, obstacles, installation location and local signal strength.

✅ LTE FILTER FOR INTERFERENCE PROTECTION

➡️ Mobile network signals can cause interference with terrestrial TV reception, especially when LTE transmitters are located near the antenna's installation site.

➡️ The integrated SMT 4G PROTECT system helps reduce unwanted signals from mobile networks. This ensures the antenna provides more stable TV channel reception and is less susceptible to interference.

➡️ This is particularly important in cities and areas with a high density of mobile phone transmitters.

✅ WIDE FREQUENCY RANGE

The antenna operates in the 170–860 MHz range, supporting bands used by digital terrestrial television.

Supported Bands:

• VHF – used by MUX-8, among others
• UHF – used by other terrestrial TV multiplexes

The antenna allows reception of programs available within the following multiplexes:

✔️ MUX-1

✔️ MUX-2

✔️ MUX-3

✔️ MUX-4

✔️ MUX-8

The availability of specific channels depends on your location, transmitter coverage, and the broadcasters' current offerings.

✅ 360° ADJUSTMENT

The ability to rotate the antenna 360 degrees allows you to easily point it towards the nearest or best-receiving transmitter.

Proper antenna positioning can significantly improve the strength and quality of the received signal. The compact design makes it easy to find the best mounting spot, even in small rooms or vehicles.

✅ UNIVERSAL MOUNTING OPTIONS

The antenna can be mounted in both vertical and horizontal positions.

The included mounting accessories allow you to adapt the installation to your usage location:

✔️ magnetic base for stable mounting on metal surfaces,

✔️ clip mount for attaching the antenna to a chosen element,

✔️ can be placed on a desk, cabinet, or windowsill,

✔️ can be used in a car, camper, or caravan.

Its modern and discreet appearance allows the antenna to blend well with the decor of a living room, bedroom, kitchen, office, or hotel room.

✅ ROBUST AND DURABLE HOUSING

✔️ The antenna's housing is made from high-quality materials and ultrasonically welded. This construction enhances its sealing and moisture resistance.

✔️ As a result, the antenna can be used not only indoors but also in appropriately protected outdoor locations.

✔️ The compact design makes it easy to transport and store, making the antenna ideal for mobile applications as well.

⚙ TECHNICAL SPECIFICATIONS

• Model: ATD14
• Type: active TV antenna
• Supported standards: DVB-T, DVB-T2
• Supported bands: VHF / UHF
• Frequency range: 170–860 MHz
• UHF Gain: Up to 25 dB
• VHF Gain: Up to 20 dB
• Output impedance: 75 Ω
• Power supply: 5V DC / 50mA
• Rotation ability: 360°
• Interference filter: LTE / 4G PROTECT
• Mounting method: vertical or horizontal
• Mounting type: clip or magnetic holder
• Application: interior and exterior

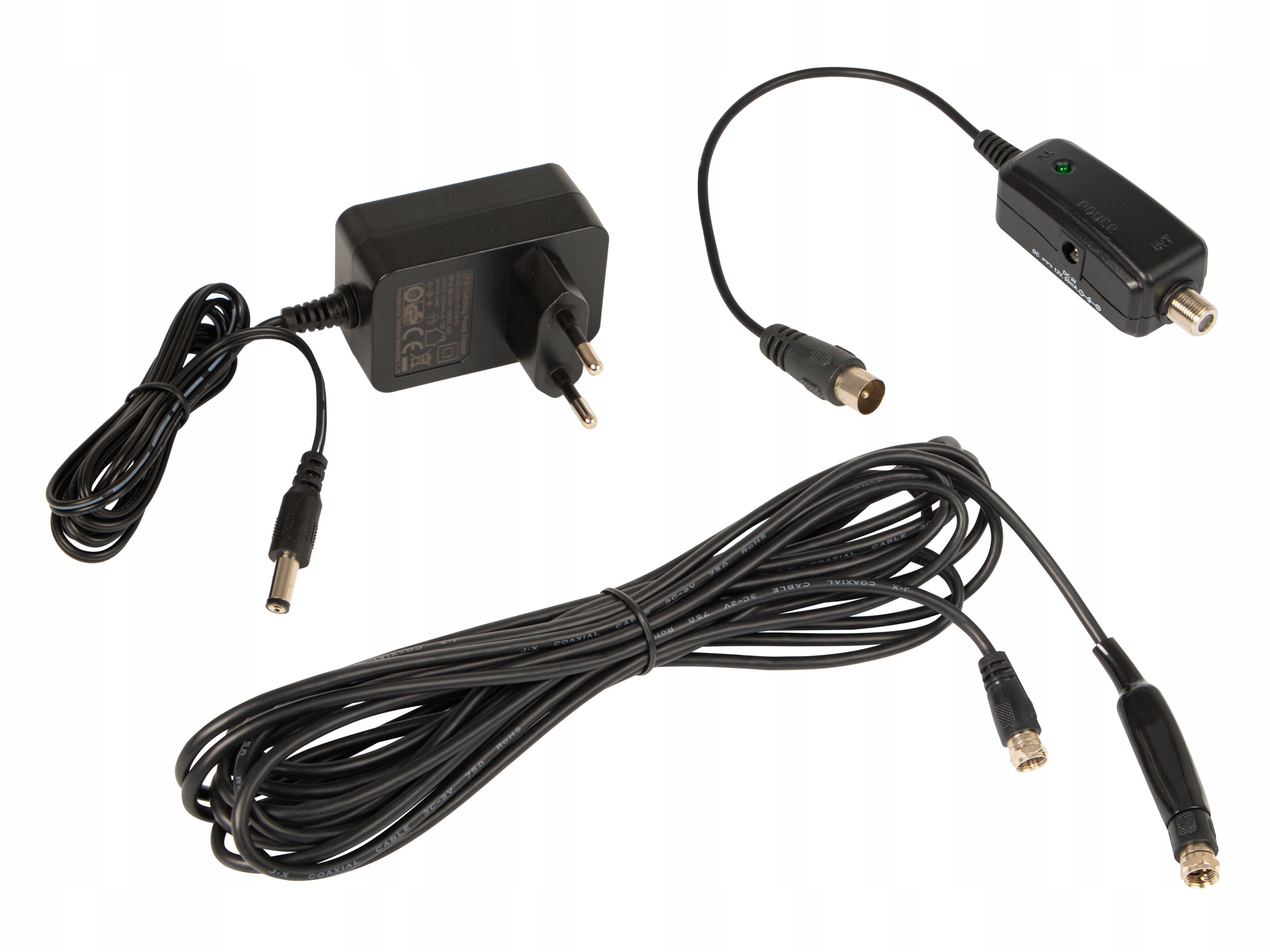

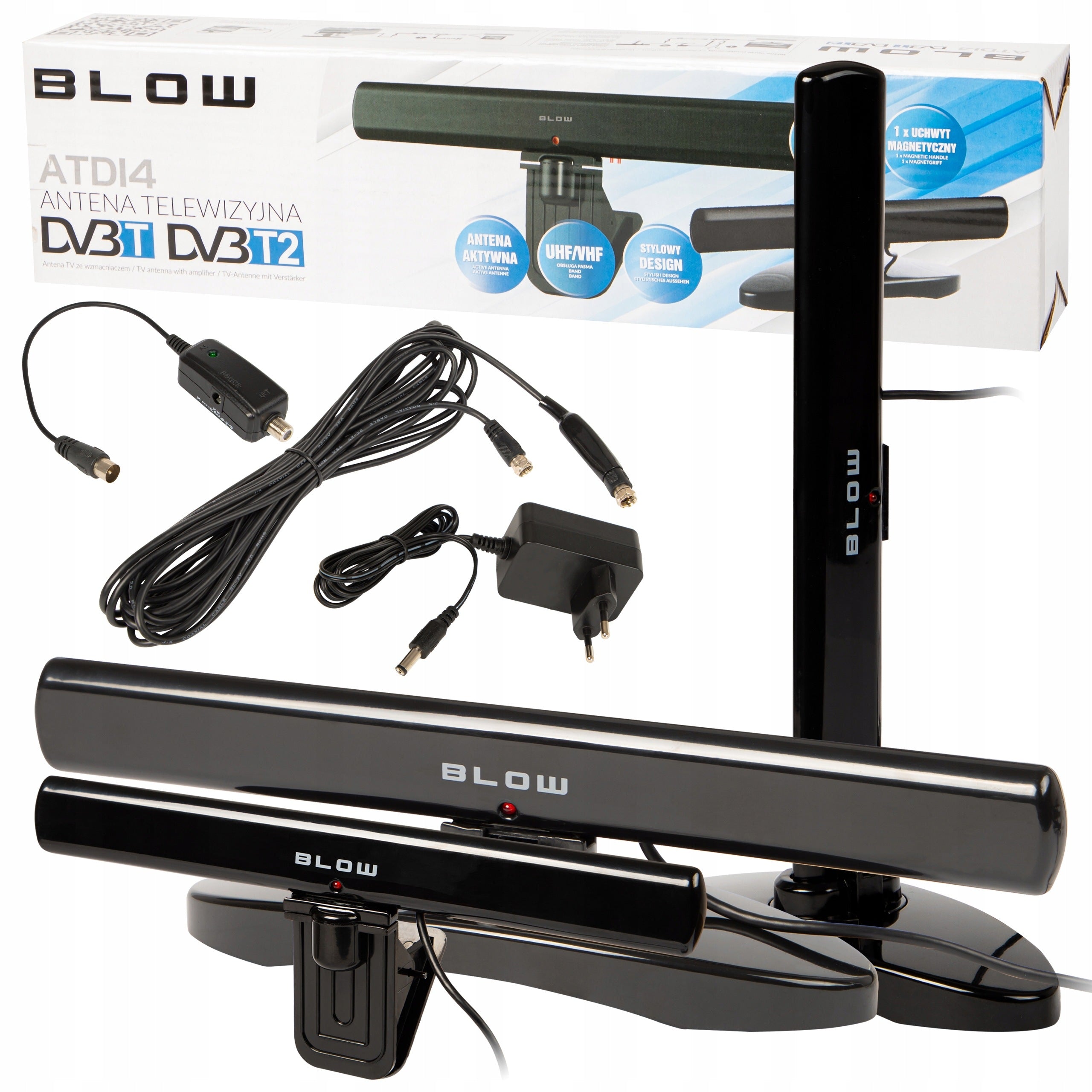

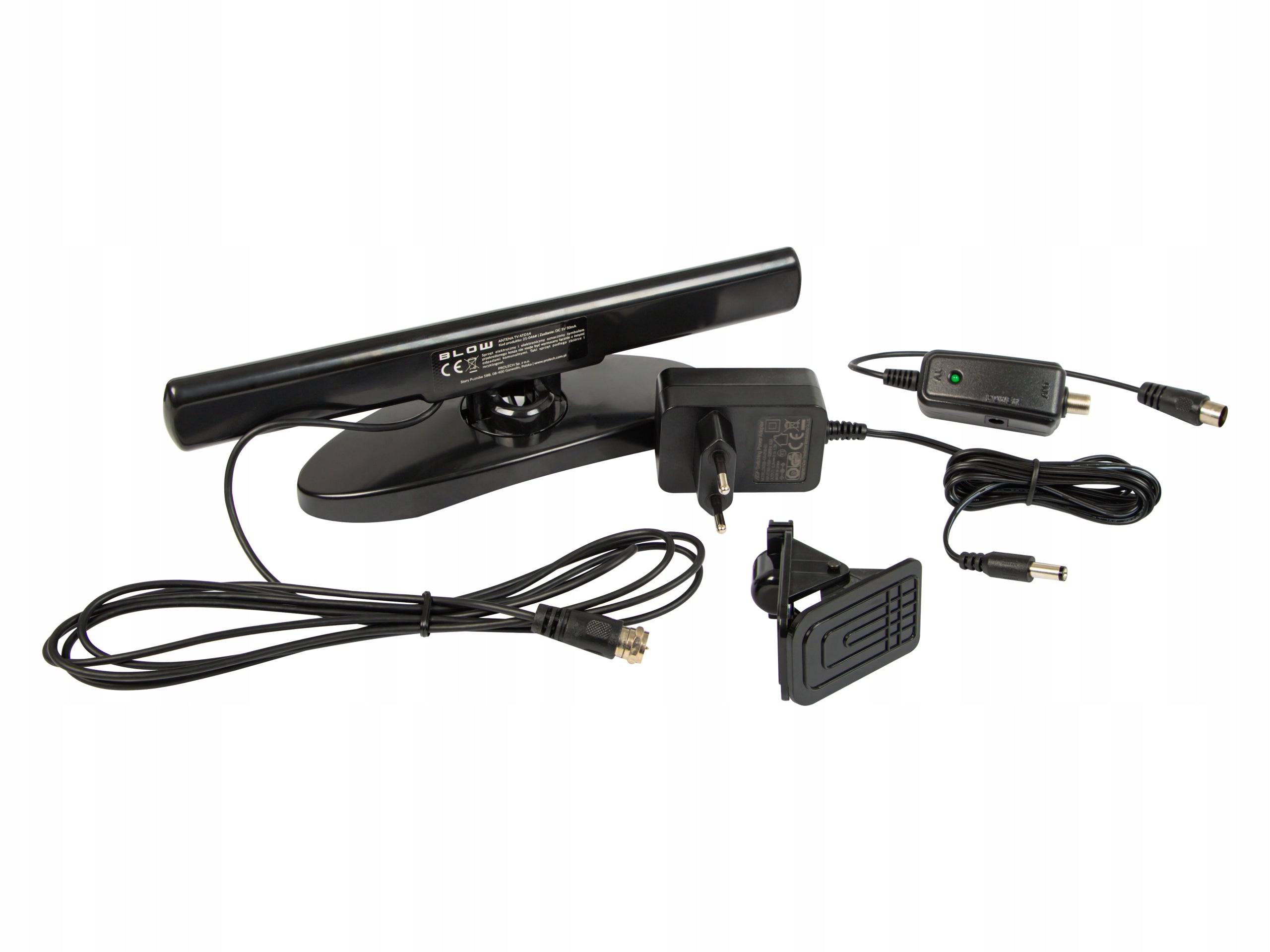

📦 KIT CONTENTS

• Active antenna BLOW ATD14
• AC adapter
• Antenna cable
• Elements enabling assembly
• Operating and assembly instructions
