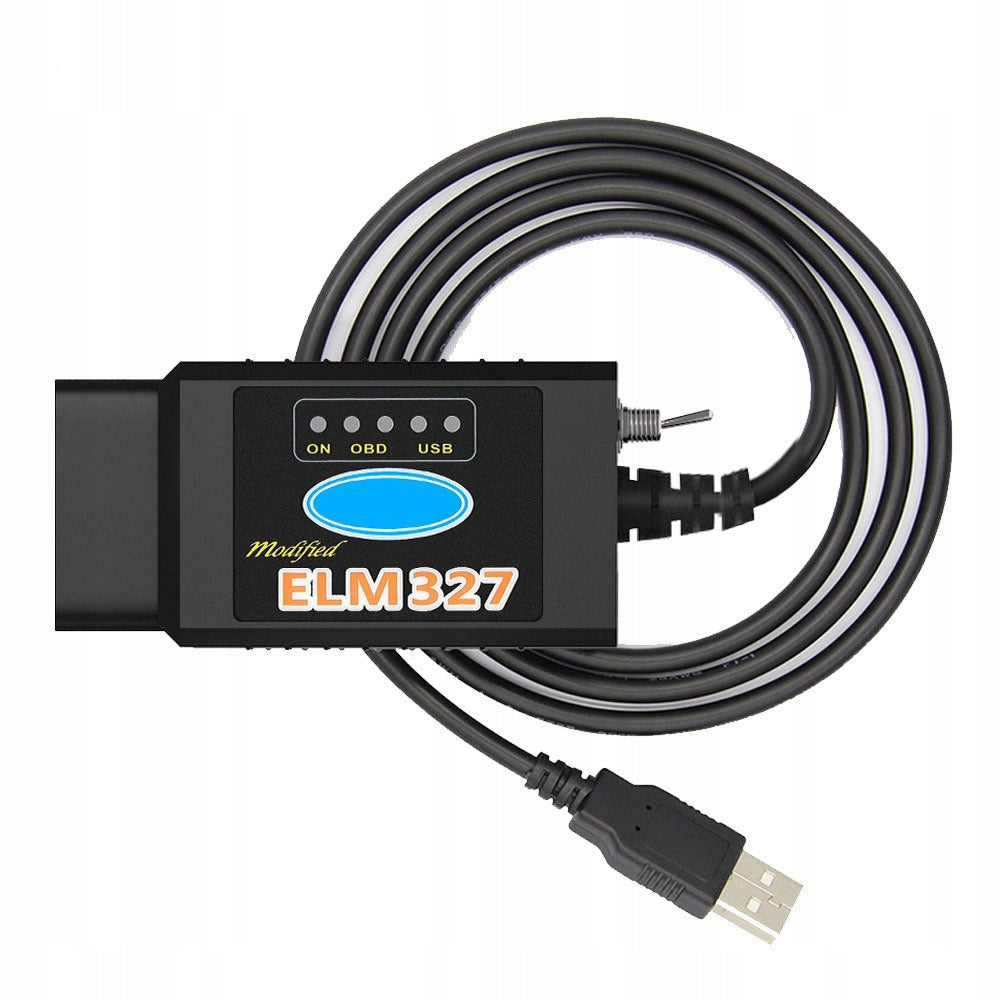

Kabelių sąsajos testeris ELM327 FORScan Ford Mazda ELMConfig su jungikliu

Trumpai apie prekę

Prekė: Kabelių sąsajos testeris ELM327 FORScan Ford Mazda ELMConfig su jungikliu. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: 742003511977

Diagnostic interface ELM327 USB

Thanks to the switch, it supports most cars. It has a switch that changes the way of communication so that it will connect to all modules of the Ford and Mazda cars

_________________________________________________

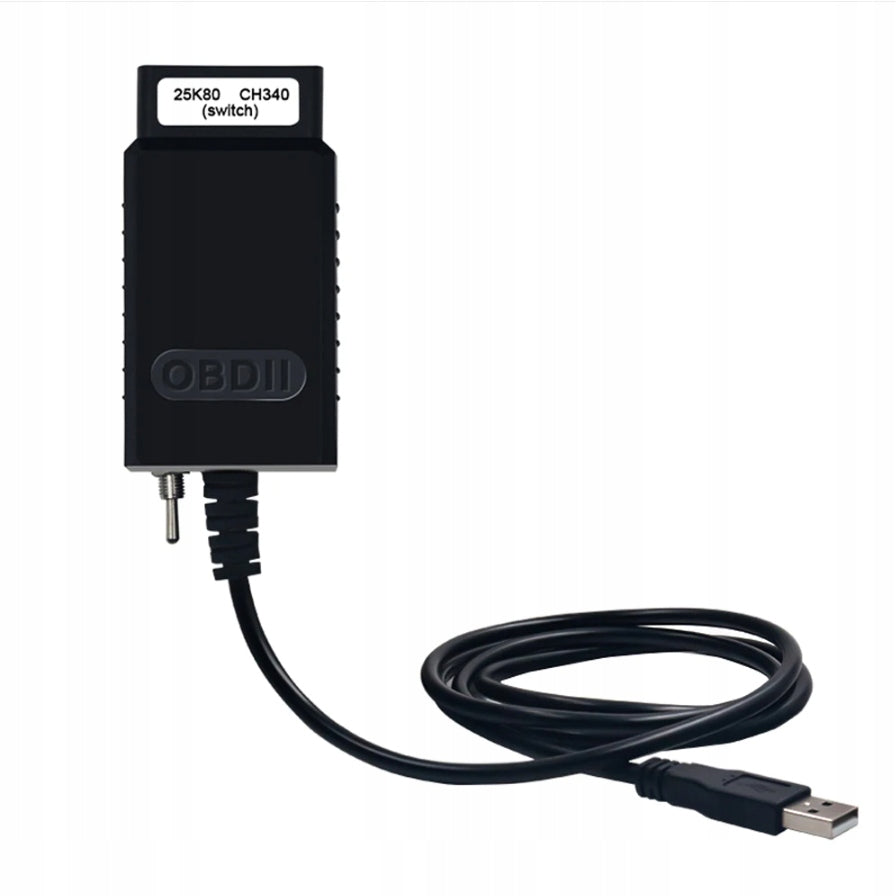

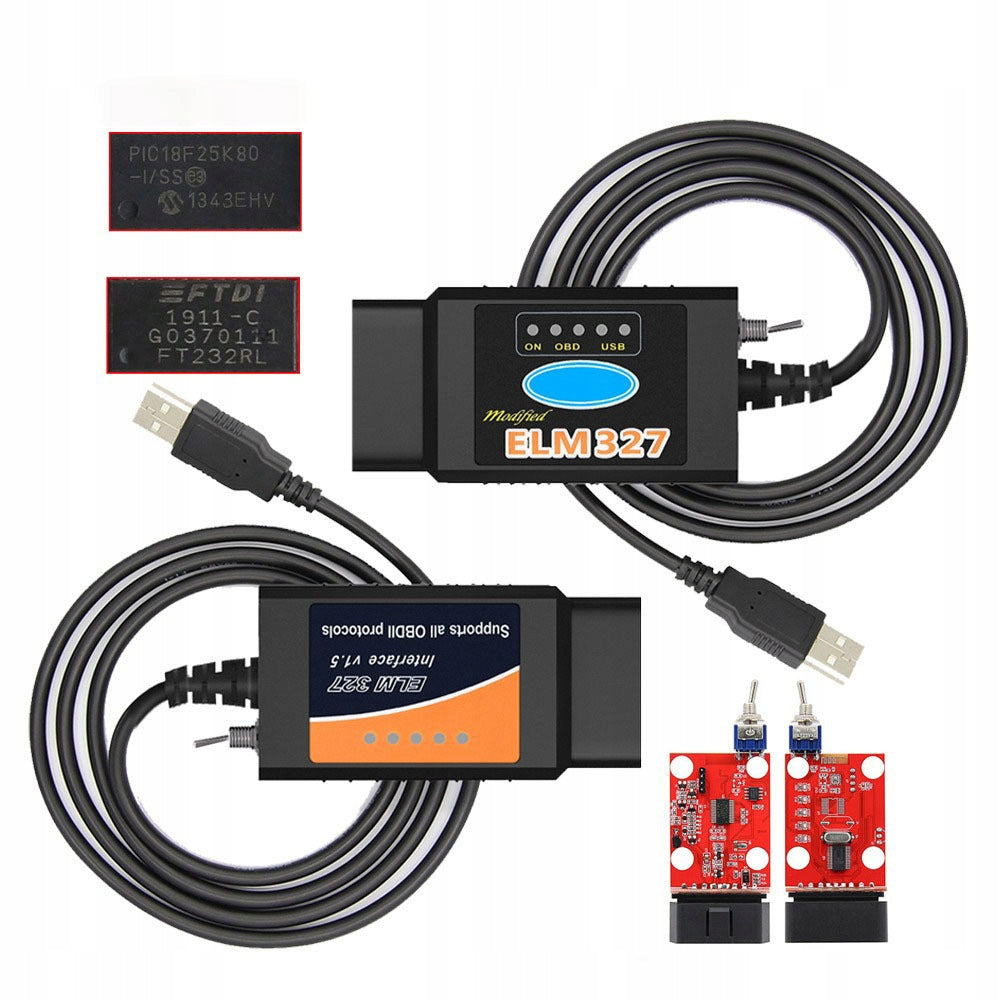

Based on the following chips: CH340 and PIC18F25K80

(comparable to those on FTDI chip)

supports J1850 VPW and PWM protocols

Runs under WIN 98, XP, Me, Vista, 7, 10 32 and 64 bit

_________________________________________________

The device supports both MS (middle speed) and HS (high speed) CAN.HS CAN - pins 6 and 14MS CAN - pins 3 and 11 (Ford or Mazda)

The switch allows access to modules such as: GEM, RCM, EATC, DDM, PDM, RDDM, RPDM, AHCM, PAM, ACU, SRM, BCM, PCM, TCM, HEC, EHPAS, HCM used by some car manufacturers.

Basic functions:

✔ Read error codes for each vehicle module

✔ Deleting error codes

✔ Monitoring of each module, including engine operating parameters

✔ Estimation of parameters such as power and acceleration

✔ Enabling hidden additional functions

✔ and many others. The program is constantly being improved, becoming more efficient and more vehicle models are being added.

Supported protocols:

• J1850 PWM (41.6 kbaud)
• J1850 VPW (10.4 kbaud)
• ISO 9141-2 (5 baud init, 10.4 kbaud)
• ISO KWP (5 baud init, 10.4 kbaud)
• ISO KWP (fast init, 10.4 kbaud)
• ISO CAN (11 bit ID, 500 kbaud)
• ISO CAN (29 bit ID, 500 kbaud)
• ISO CAN (11 bit ID, 250 kbaud)
• ISO CAN (29 bit ID, 250 kbaud)

Hardware Requirements:

➡ OBD-2 compliant car standard

➡ OBD II socket in the car

➡ Windows PC/laptop (recommended system is Windows XP)

➡ The list of supported cars through this interface is unlimited, you can read and delete errors in Audi, Alfa, Fiat, BMW, Citroen, Ford, VW, Mercedes, Dacia.....

The list of programs is also almost endless:

✅Multiecuscan, ScanTool, PCMSCAN, Forscan, Elmconfig (supports only transmission rate: 38400), OBD-II Scaner, ProScan, etc.

✅Works under any Windows (95, 98, Me, Xp, Vista, 8, 10 16 and 32 64 bit)

✅For Fords and Mazdas I recommend the Polish version of Forscan (continuously enriched with new features).

✅Tested personally on brands: Fiat, Ford, Mazda, Mitsubishi, Audi.

Example list of modules we have access to with FORScan and ELM327 2K80 HS CAN MS CAN:

• Powertrain Control Module (PCM)
• Anti-Lock Brake / Traction Control Module (ABS)
• Hybrid Electronic Cluster (HEC)
• Left High Intensity Discharge Lamp (LHID)
• Right High Intensity Discharge Lamp (RHID)
• Vehicle Dynamics Module (VDM)
• 4X4 Control Module (4X4M)
• Air Conditioning Control Module (ACCM)
• Audio Control Module (ACM)
• Audio Control Unit (ACU)
• Alternative Fuel Control Module (AFCM)
• Adaptive Front Lighting System / Auto Leveling Module (AFS/ALM)
• Adaptive Front Lighting System (AFS)
• Auxiliary Heater Control Module (AHCM)
• Audio Interface Module (AIM)
• Auto Leveling Module (ALM)
• Amplifier Module (AM)
• Accessory Protocol Interface Module (APIM)
• Automatic Ride Control (ARC)
• A-STOP System (No Idling System) (A-STOP)
• All Terrain Control Module (ATCM)
• All Wheel Drive Module (AWD)
• Battery Charger Control Module (BCCM)
• Battery Control Module (BCM)
• Body Control Module (BCMii)
• Body Control Module / Generic Electronic Module (BCM/GEM)
• Body Control Module B (BCMB)
• Battery Energy Control Module (BECM)
• Body Electronic Module (BEM)
• Bluetooth Phone Module (BPM)
• Security Module (CSM)
• Blind Spot Monitoring (Left) (BSML)
• Blind Spot Monitoring (Right) (BSMR)
• Remote Climate Control (RCC)
• Cruise-Control Module (CCM)
• Circuit Deactivation Ignition Module (CDIM)
• Compact Disc Player (CDP)
• Instrument cluster (INST)
• Column Lock Module (CLM)
• Camera Module Rear (CMR)
• Connectivity Master Unit (CMU)
• Cellular Phone Module (CPM)
• Central Timer Module (CTM)
• Convergence Telematics Module (CTMii)
• Digital Audio Broadcast Module (DABM)
• Digital Audio Control Module C (DACMC)
• DC to DC Converter Control Module (DCDC)
• Driver/Dual Climate-Control Seat Module (DCSM)
• Reductant Control Module (DCU)
• Driver Door Control Unit (DFDM)
• Drivers Door Module (DDM)
• Deployable Hood System (DHS)
• Driver's Seat Module (DSM)
• (Audio) Digital Signal Processing Module (DSP)
• Electronic Automatic Temperature Control (EATC)
• Rader Brake Support (EBS)
• Electronic Crash Sensor (ECS)
• Electric Parking Brake (EPB)
• Electronic-Controlled Power Steering (EPS)
• Anti-Lock Brake / Traction Control Module (ESOF)
• Front Body Control Module (F_BCM)
• Fuel Additive Control Module (FACM)
• Front Control/Display Interface Module (FCDIM)
• Front Controls Interface Module (FCIM)
• Front Display Interface Module (FDIM)
• Front Distance Sensing Module (FDSM)
• Transmission Control Module (TCM)
• Fuel Fired Coolant Heating Module (FFH)
• Passive Anti-Theft System (PATS)
• Front Electronic Module (FEM)
• Fuel Injection Control Module (FICM)
• Fuel Indication Module (FIM)
• Fuel Injection Pump (FIP)
• Front Lighting Control Module (FLM)
• Fuel Operated Heater (FOH)
• Forward Sensing Camera (FSC)
• Fire Suppression System Module (FSSM)
• Folding Top Control Module (FTCM)
• Generic Display Module (GDM)
• Generic Electronic Module / Smart Junction Box (GEM/SJB)
• Generic Electronic Module (GEM)
• Generic Function Module (GFM)
• Global Positioning System Module (GPSM)
• Gear Shift Module (GSM)
• Gateway Module A (GWM)
• Headlamp Control Module (HCM)
• Headlamp Control Module 2(B) (HCM2)
• Headlamp Leveling Module (HD_LVL)
• Instrument Cluster (IC)
• HVAC Integrated Module (HIM)
• Heated Steering Wheel Module (HSWM)
• Head Up Display (HUD)
• Heated Steering Wheel Module (HV)
• Heating Ventilation Air Conditioning (HVAC)
• Integrated Air Bag Module (IABM)
• Smart City Brake Support (ICA)
• Intelligent Cruise Control Module (ICCM)
• Information Center Module (ICM)
• Injector Control Unit (ICU)
• Interior Lighting Control Module (ILCM)
• Instrument Panel Control Module (IPC)
• Intelligent Power Distribution Module (IPDM)
• Image Processing Module A (IPMA)
• Image Processing Module B (IPMB)
• Lighting Control Module (LCM)
• Left Power Sliding Door Module (LPSDM)
• Liftgate / Trunk Module (LTM)
• Message Center (MC)
• Multifunction Steering Wheel (MFSW)
• Multi-Information Display (MID)
• Motor Pretensioner Module (MPM)
• Navigation Controller (NAV)
• Air Suspension (4WAS)
• Air Conditioning (AC)
• Cruise Control (CCM)
• Steering Column Locking Module (SCLM)
• 4 Wheel Steering (WS4)
• Next Generation Speed Control Module (NGSC)
• Battery Control Module (OBD_BCM)
• Fuel Injection Control Module (OBD_FICM)
• Occupant Classification System Module (OCS)
• Overhead Trip Computer (OTC)
• Parking Aid Module (PAM)
• Park Brake Control Module (PBM)
• Passenger Climate-Control Seat Module (PCSM)
• Passenger Climate-Control Seat Module 2 (rear) (PCSM2)
• Passengers Door Control Unit (PDM)
• Power Running Board (PRB)
• Power Steering Control Module (PSCM)
• Passenger Front Seat Module (PSM)
• Rear Body Control Module (R_BCM)
• Rear Audio Control Module (RACM)
• Remote Anti-Theft / Personality Module (RAP)
• Rear Air Suspension Module (RASM)
• Rear Air Temperature Control (RATC)
• Restraint Control Module (RCM)
• Audio Rear Control Unit (RCU)
• Rear Electronic Module (REM)
• Remote Emergency Satellite Cellular Unit Module (RESCU)
• Rear Seat Entertainment Module (RETM)
• Remote Function Actuator (RFA)
• Rear Gate/Trunk Module (RGTM)
• Retractable Hard Top (RHT)
• Rear Heating Ventilation Air Conditioning (RHVAC)
• Remote Keyless Entry (RKE)
• Rear Lighting Control Module A (RLCMA)
• Rear Left Door Control Unit (DRDM)
• Right Power Sliding Door Module (RPSDM)
• Rear Right Door Control Unit (PRDM)
• Tire Pressure Monitor (RTM)
• Rear Vehicle Monitoring (RVM)
• Steering Angle Sensor Module (SASM)
• Smart Brake Support/Mazda Radar Cruise Control (SBS/MRCC)
• Steering Column Control Module (SCCM)
• Steering Column/Instrument Panel/Lighting (SCIL)
• Seat Control Module E (SCME)
• Seat Control Module G (SCMG)
• Seat Control Module H (SCMH)
• Selective Catalytic Reduction (SCR)
• Satellite Digital Audio Receiver System (SDARS)
• Steering Effort Control Module (SECM)
• Secondary OBD Control Module A (SOBDM)
• Secondary OBD Control Module C (SOBDMC)
• Side Obstacle Detection Control Module - Left (SODL)
• Side Obstacle Detection Control Module - Right (SODR)
• Speech Recognition Module (SRM)
• Supplemental Restraint System (SRS)
• Smart Start Unit (SSU)
• Trailer Brake Control Module (TBC)
• Energy Management Module (EMM)
• Tracking and Blocking Module (TBM)
• Transfer Case Control Module (TCCM)
• Telematic Control Unit Module (TCU)
• Tire Pressure Monitor (TPM)
• Transmission Range Control Module (TRCM)
• Trailer Module (TRM)
• Variable Assist Power Steering (VAPS)
• Vehicle Emergency Messaging System (VEMS)
• Virtual Image Cluster (VIC)
• Vehicle Security Module (VSM)
