Izoliacijos varžos matuoklis Sonel MIC-2511 su kalibravimo sertifikatu

Trumpai apie prekę

Prekė: Izoliacijos varžos matuoklis Sonel MIC-2511 su kalibravimo sertifikatu. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMIC2511

Catalogue index WMPLMIC2511

Calibration certificate is a document issued by the manufacturer in the production process of the meter confirming the granting of metrological properties and maintaining measurement consistency. This is a document issued only for brand new measuring instruments.

On the calibration certificate there is a place to enter the date of commissioning, this is the date of sale of the meter. Another execution of the metrological confirmation (calibration) is recommended to be carried out within 12 months from the date of purchase, but not later than 24 months from the date of manufacture. When purchasing at our auctions, you are entitled to a 10% discount on the next calibration in our laboratory.

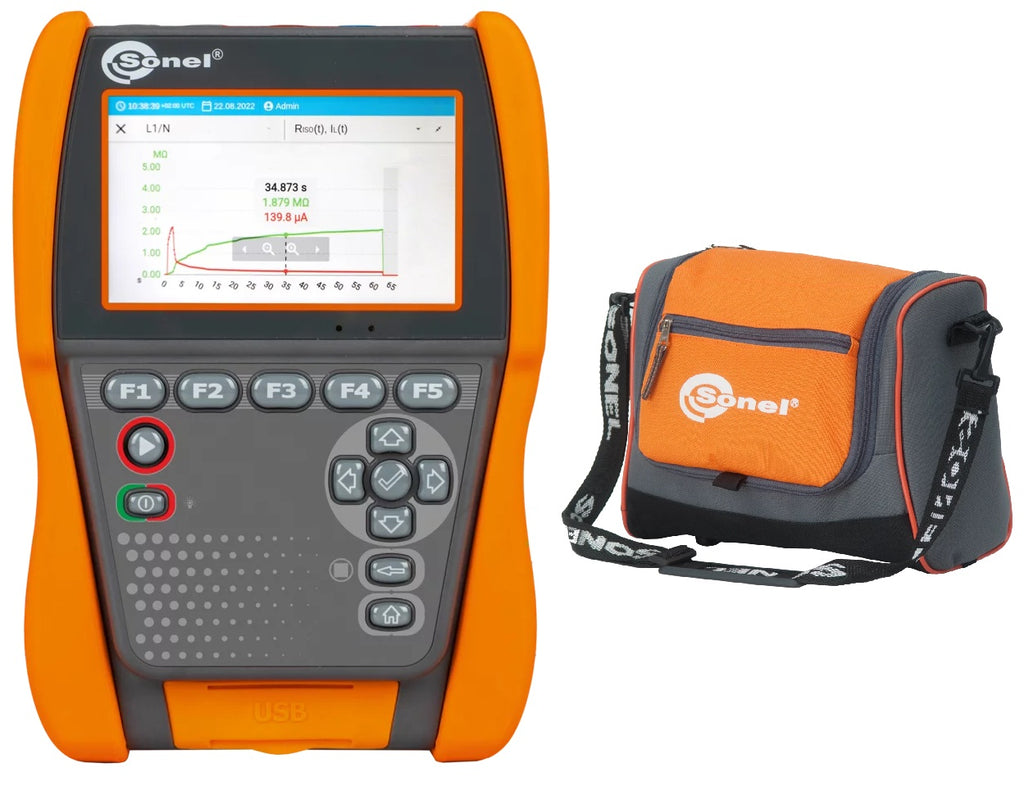

Equipment:

• calibration certificate
• 1,8m 5kV Cables (Black Shielded, Red, Blue)
• 11kV 32A Crocodiles (Black, Red, Blue)
• 5kV Blade Probes (Black, Red)
• USB Type-C Cable
• Li-Ion Battery Pack 10,8V 3,5Ah WAAKU29
• Power cable 230V (IEC C7 plug)
• Z-32 power supply
• USB-A/USB-C adapter
• Strap
• Case M-6

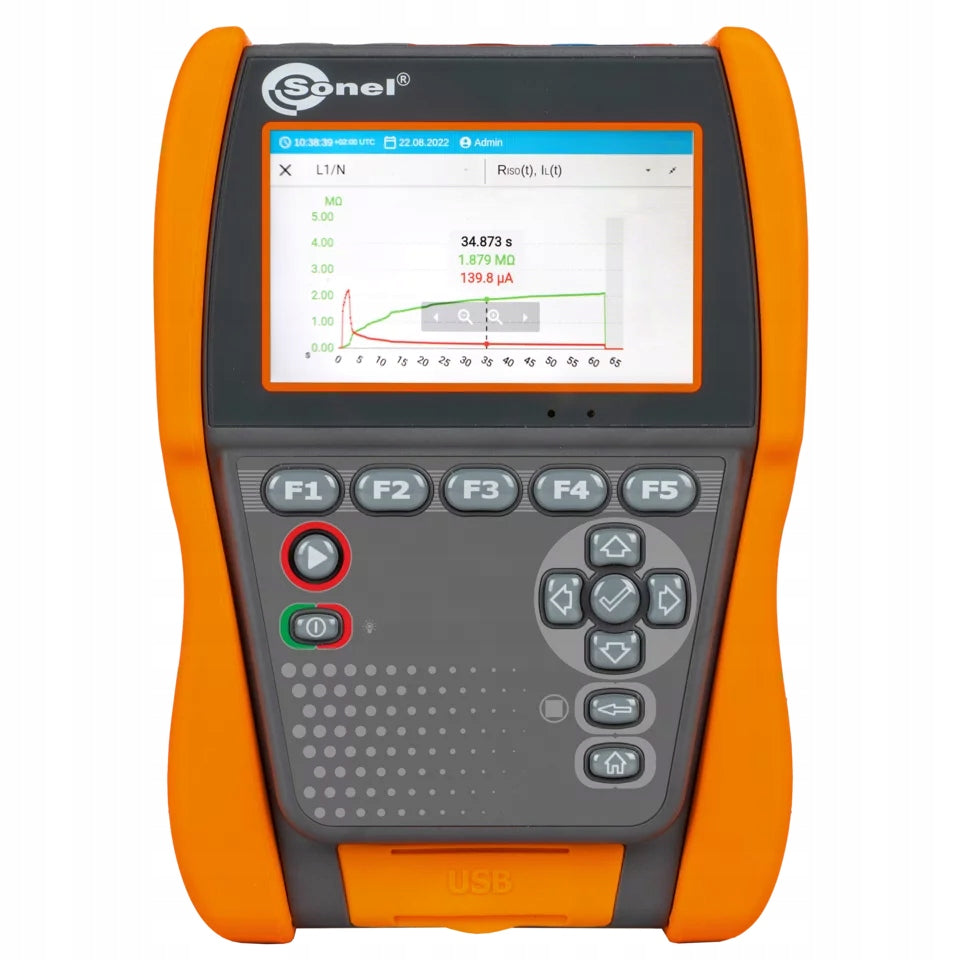

The functional insulation resistance meter Sonel MIC-2511 allows you to measure insulation resistance with a measuring voltage of up to 2500 V.

The meter is part of the Sonel MeasureEffect™ platform. It is a comprehensive system that allows you to take measurements, store and manage data, and provides multi-level control over your instruments.

Features

• Measuring voltage selected in the range of 10...2500 V: 10 V, 25 V, 100 V, 250 V, 500 V, 1000 V, 2500 V or 10...2500 V every 10 V,
• Measurements of insulation resistance with voltage 10 V surveillance loop of fire alarm systems (SAP, SSP)
• Surge arrestor tests (SPD)
• Drawing charts on the display during measurements
• Measurements in Static Electricity Protection Zones (EPA)
• Correction of insulation resistance result to reference temperature
• Continuous indication of the measured insulation resistance or leakage current
• Self-discharge of the capacitance of the measured object after the measurement of insulation resistance is completed
• Acoustic determination of five-second time intervals, facilitating the removal of time characteristics
• Measured measurement times T1, T2 and T3 for the measurement of one or two absorption coefficients (Ab1, Ab2 or DAR, PI) in the range of 1...600 s
• Automatic measurement of all combinations of 3-, 4-, 5-wire cable resistance and power cables using an additional AutoISO-2511 adapter
• Indication of the actual measuring voltage during measurement
• Measuring current ≤2 mA
• Protection against measurement of live objects
• Measurement of insulation resistance by two- and three-wire method

Additional features

• Measurement of leakage current during RISO measurement
• Capacity measurement during RISO measurement
• Low voltage measurement of circuit continuity and resistance
• Temperature measurement (using an additional ST-1 temperature probe)
• Measurement of constant and alternating voltages in the range 0...1500 V
• Memory 9999 entries, data transmission to PC via USB cable
• Battery powered
• Backlit Keyboard
• The instrument meets the requirements of EN IEC 61557

Application

Insulation resistance meter with a wide range of applications. It works great both in residential construction, as well as when checking industrial installations or transmission and traction networks. Due to its features – excellent parameters, low energy consumption from batteries and the possibility of recharging them during measurements, portability and a high degree of tightness of the housing – it is willingly used by electricians working in maintenance, testing motors, cables, street lighting or in the construction and maintenance of photovoltaic installations. It perfectly fits the needs of installers of telecommunications networks and operators of district heating networks, where it is required to control the alarm system of pre-insulated pipes.

Distinguishing features

The meter allows you to measure the insulation resistance with a measuring voltage of up to 2500 V. In the case of cable tests, it automatically discharges their capacity when the measurement is completed. Together with PRZ-2, i.e. a set for measuring resistance in zones protected against ESD, it is a comprehensive tool for coordinators dealing with the protection of plants against static electricity.

Thanks to the device, you can control home and industrial electrical installations in terms of safety. Measurements can be easily automated by using the AutoISO-2511 adapter to test the insulation resistance of 3-, 4- and 5-wire cables.

MIC-2511 will allow the user to measure the continuity of protective and compensatory connections with a current greater than 200 mA, in both directions. The meter has a built-in voltmeter of constant and variable voltages in the range of up to 1500 V.

Extensive memory of the instrument allows you to save and send to the computer nearly 10 thousand measurement results.

Built-in help system

The device has built-in help screens with measurement diagrams. Thanks to this, you can easily and quickly check how to connect a given system depending on the type of measurement performed.

Communication and software

Through the USB port, you can transfer measurement data to your computer. In order to generate a test report in the field of shock protection, use the Sonel Electrical Measurements program. Writing downloaded resources to the simplest formats and printing is provided by Sonel Reader.
