Ištraukiamas matuoklis 3 m x 16 mm su kompasu BMI

Trumpai apie prekę

Prekė: Ištraukiamas matuoklis 3 m x 16 mm su kompasu BMI. Kategorija: Matavimo priemonės.

• Gamintojas: BMI
• Modelis: 4007368065395
• Ilgis: 3 m

VISO 3 m x 16 mm Retractable Pocket Measure with Window and Circular – BMI

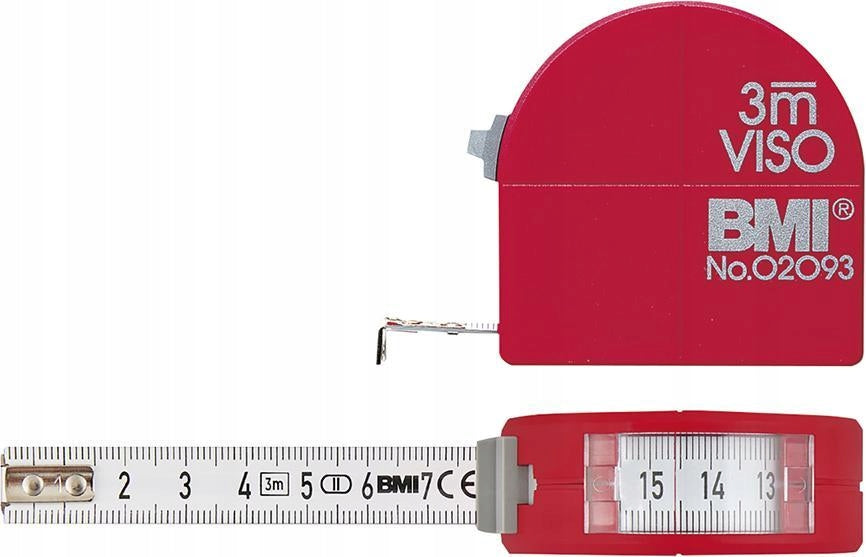

The BMI VISO 405 roll-up measure is a compact measuring tool designed for professional assembly, construction and workshop work. Combines three functions: length measurement, internal dimension measurement and circle determination.

The wide window allows direct reading of internal dimensions. The scale visible in the window is set in the correct direction, which makes it easy to quickly read the results. The movable initial hitch allows you to take internal and external measurements.

White tape with a length of 3 m and a width of 16 mm is made of hardened spring steel. The double-sided millimeter graduation is protected with a colorless varnish that reduces its abrasion during regular use.

The measure works in the Pull-Push system with pull-out and slide-in tape manually. The folding compass pin allows you to designate and draw circles up to 6 m in diameter. The polyamide housing has compact dimensions of 65 × 65 × 25 mm, so that the tool can be conveniently stored in a pocket or toolbox.

Product Features

• Product type: pocket roll-up measure
• Model: 405 VISO
• Functions: length measurement, internal dimension measurement and circle determination
• Tape length: 3 m
• Strip width: 16 mm
• Division: millimeter mm/mm, double-sided Duplex
• Accuracy class: II
• Strip material: convex, hardened spring steel
• Color of tape: white
• Scale protection: clear lacquer to protect against abrasion
• Strip mechanism: free Pull-Push system
• Automatic winding: no
• Reading window: yes
• Measurement of internal dimensions: yes, with direct reading in the window
• Initial attachment: movable, for internal and external measurements
• Circus shank: folding
• Maximum diameter of the drawn circle: 6 m
• Housing material: polyamide
• Housing dimensions: 65 × 65 × 25 mm
• Strap clip: no
• Scope of delivery: 1 piece
• Trade mark: VISO 16-103-30
• Manufacturer: Bayerische Maßindustrie A. Keller GmbH
• EAN: 4007368065395
• Manufacturer code: 405341030
• Brand: BMI

Application

• Measurements of the length of structural and assembly elements
• Direct measurement of internal dimensions
• Determination and drawing of circles up to 6 m in diameter
• Construction and finishing works
• Carpentry and furniture work
• Installation of installations and interior furnishings
• Workshop, locksmith and service measurements

Catalog No.: 24H_DRS_A1-405341030

EAN: 4007368065395

Specifications
