Išmanusis vartų valdiklis TUYA, WiFi, 230V/12V/24V

Trumpai apie prekę

Prekė: Išmanusis vartų valdiklis TUYA, WiFi, 230V/12V/24V. Kategorija: Kietieji diskai.

• Gamintojas: Atlo
• Modelis: ATLO-SW1C-TUYA

Included:

• ATLO-SW1C-TUYA controller - 1 pc;
• instruction.

INTELLIGENT SWITCH ATLO-SW1C-TUYA allows remote control of connected devices using the Tuya Smart mobile application. Requires connection to Wi-Fi network with Internet access.

• universal power supply: 230V AC, or 12...48V DC
• control via NC/NO relay – the relay in the module does not provide voltage. After the module is switched on by the application, the relay contacts short-circuit (if NO – normally open contact is used) or open (if NC – normally closed contact is used), depending on the method of connection. Thanks to this, the module can be used, e.g. to control the opening of the gate or other system that requires voltage-free control (so-called. Potential-free contact).
• control from the Tuya Smart mobile application - manage the device from anywhere using a smartphone - provided that you have access to the Internet
• Voice support via Amazon Alexa and Google Assistant (Internet access required)
• programming of schedules - possibility of automatic setting:

  ➖ turning the device on and off

  ➖ response to specific system events

• state setting after power failure ("Relay status"):

  ➖ ON – the device will turn on after power restoration,

  ➖ OFF – the device will remain off,

  ➖ Remember last status – the device will restore the state before power failure.

• additional features:

  ➖ timer

  ➖ setting scenarios according to different events

  ➖ bistable mode, monostable - configurable

  ➖ mode Outside the house - simulation of residents' presence by randomly turning on and off lighting

Connection to the Wi-Fi network with Internet access – it is necessary to:

• control of the device
• configuration of schedules
• voice control operation

The controller allows you to conveniently control devices using a dedicated TUYA application.

➡ operation of the device from anywhere on earth - provided that the Internet (WiFi) is available.

➡ the application is available for Android and iOS.

The driver works with Google Assistant and Alexa. Voice control is intuitive and simple.

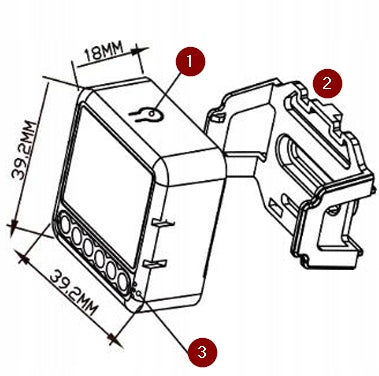

Legend:

1. RESET button
2. Handle
3. LED Indicator

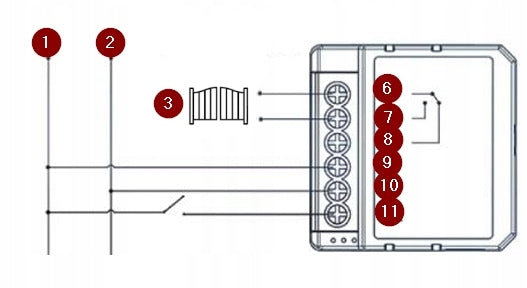

Connection diagram to the gate drive controller

Legend:

1. L - phase (input, 110-240V AC) or DC-
2. N - neutral or DC+ 12...48V DC cable
3. gate controller
4. lack
5. lack
6. com
7. YEAH
8. NC
9. L or DC-
10. N or DC+
11. S1 (contact for connecting a wired switch)

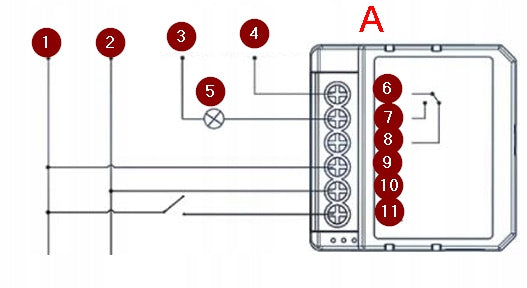

A - connection scheme with control of low voltage devices

Legend:

1. L - phase (input, 110-240V AC)
2. N - neutral cable
3. GND ( - power supply)
4. 12-24V DC ( + power supply)
5. Load (max. 150W)
6. com
7. YEAH
8. NC
9. L
10. N
11. S1 (contact for connecting a wired switch)

B - connection diagram for 230V mains voltage control

Legend:

1. L - phase (input, 110-240V AC)
2. N - neutral cable
3. Load (max. 150W)
4. com
5. YEAH
6. NC
7. L
8. N
9. S1 (contact for connecting a wired switch)

C - connection scheme with stair switch

Legend:

1. L - phase (input, 110-240V AC)
2. N - neutral cable
3. Load (max. 150W)
4. com
5. YEAH
6. NC
7. L
8. N
9. S1 (contact for connecting a wired switch)

✅ TECHNICAL SPECIFICATION:

• max. total load: 150W
• total max. current: 5A
• Number of channels: 1x NO/NC
• Connector Type: Twisted Clamps
• Wireless communication: Wi-Fi, 2.4 GHz - IEEE 802.11 b/g/n
• access from your mobile phone - free Tuya Smart app (Android, iOS)
• radio communication range: < 100 m (in open area)
• main features: local control of physical button, wide range of supported supply voltages
• Material: plastic
• degree of protection: IP20
• colour: blue
• Operating temperature: -10°C...+40°C
• permissible relative humidity of the environment: ≤ 80%
• power supply:

  ➖ 100...240V AC, 50 / 60 Hz,

  ➖ 12...48V DC

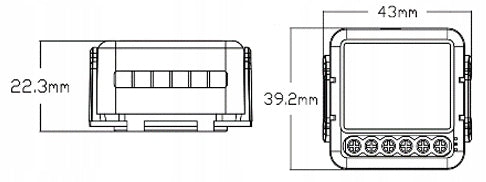

• dimensions: 43 x 39 x 22 mm
• net weight: 0,032kg
