Įrankių vežimėlis TORIN XL, su 10 stalčių

Trumpai apie prekę

Prekė: Įrankių vežimėlis TORIN XL, su 10 stalčių. Kategorija: Įrankių vežimėliai.

• Gamintojas: Torin
• Modelis: TBR5610-S
• Svoris: 118 kg
• Spalva: gray

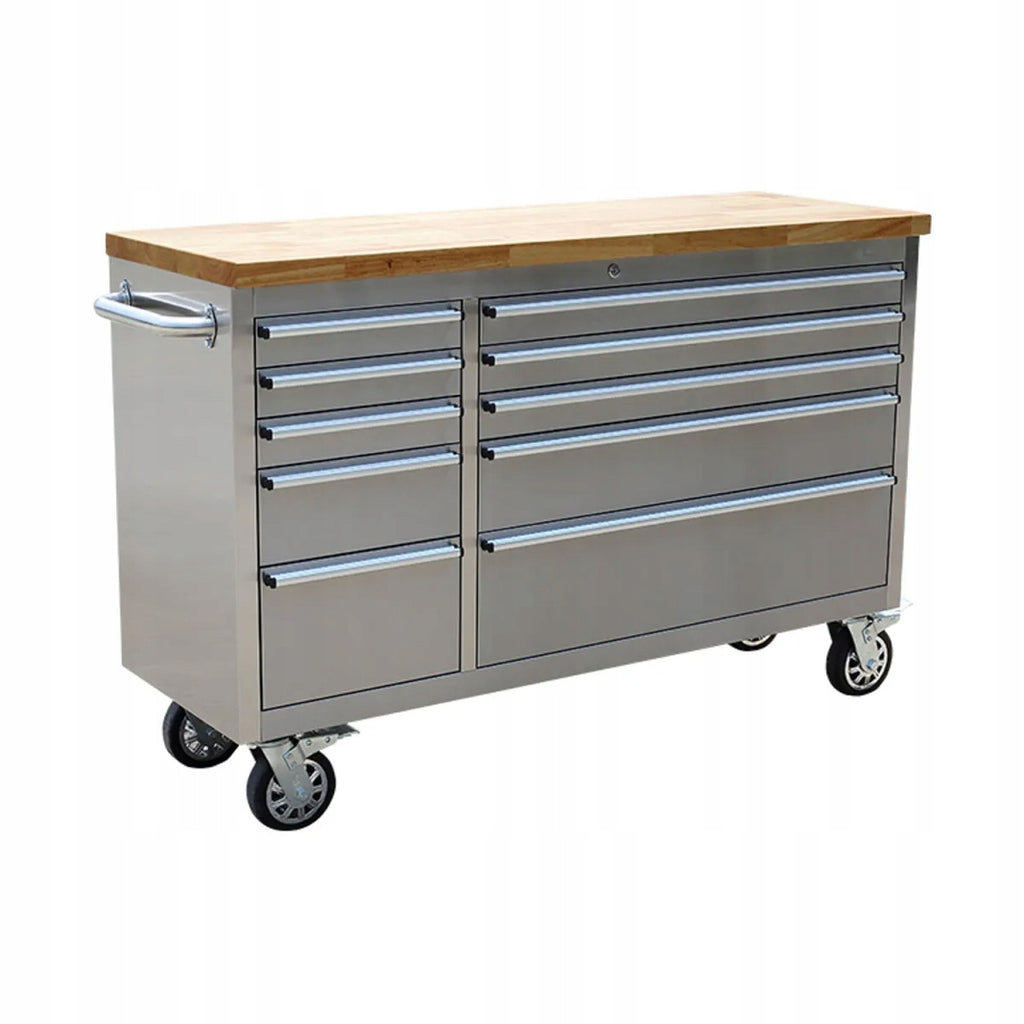

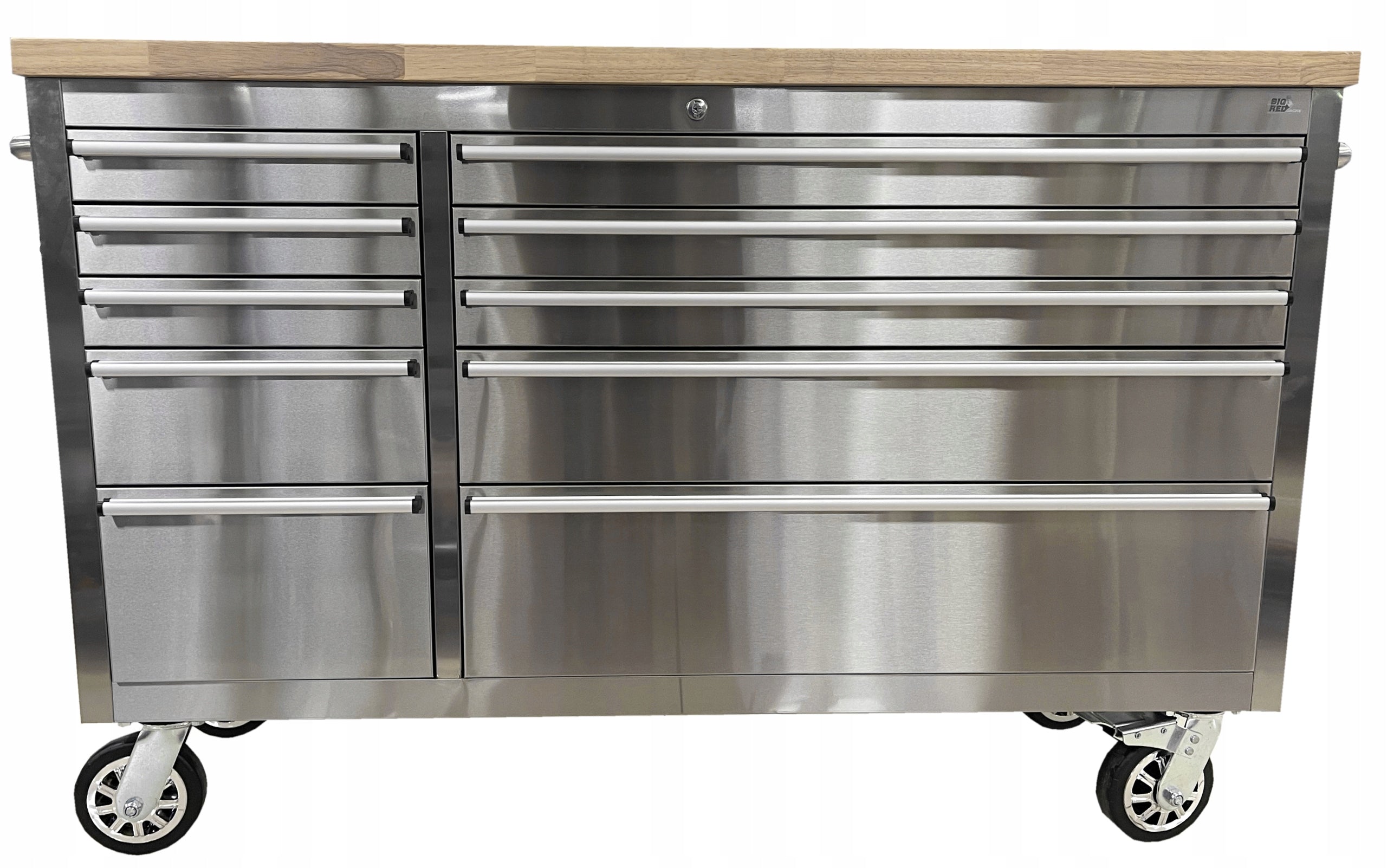

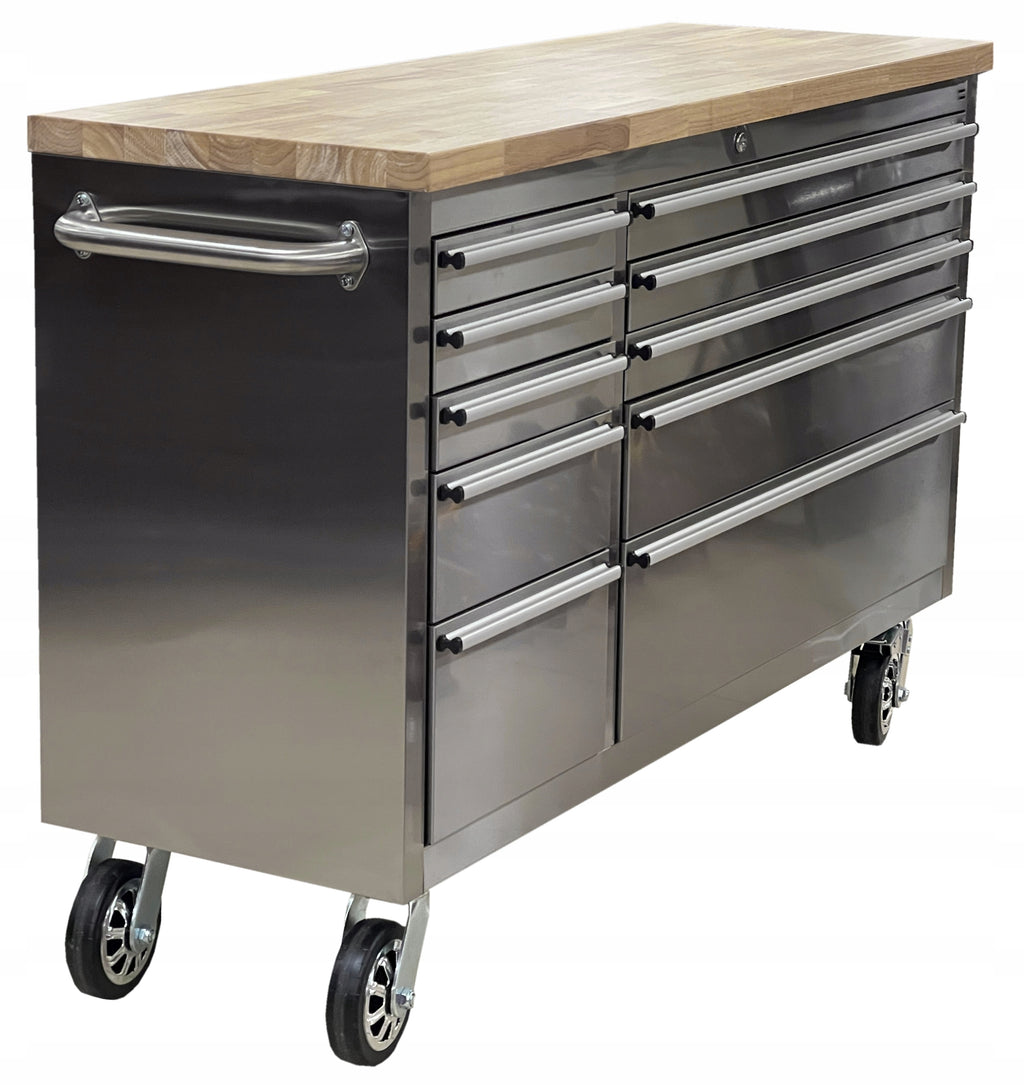

Tool trolley 10 drawers TORIN TBR5610-S

The professional workshop trolley TORIN TBR5610-S combines a massive steel structure with a large working surface with a wooden worktop. It was designed for intensive work in services, workshops, production halls and demanding hobby garages.

Technical specification

• Type: trolley / tool table on wheels

• Number of drawers: 10

  6 shallow drawers for small tools and accessories

  4 deeper drawers for larger keys, power tools and accessories

• Overall dimensions (H × W × D. ):

  950 × 1422 × 490 mm

• Body material: high-strength steel with grey finish

• Worktop: solid wood/wooden board with smooth sanded surface

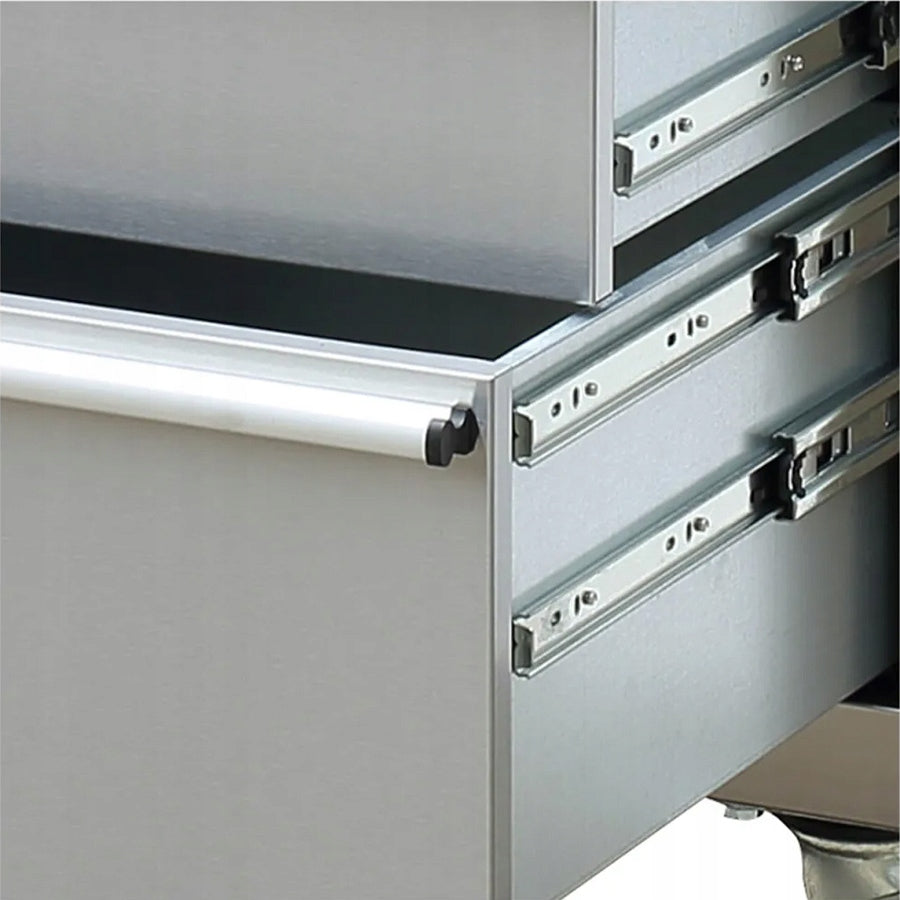

• Drawer guides: telescopic, ball, full extension

• Closing: central lock (one key locks all drawers)

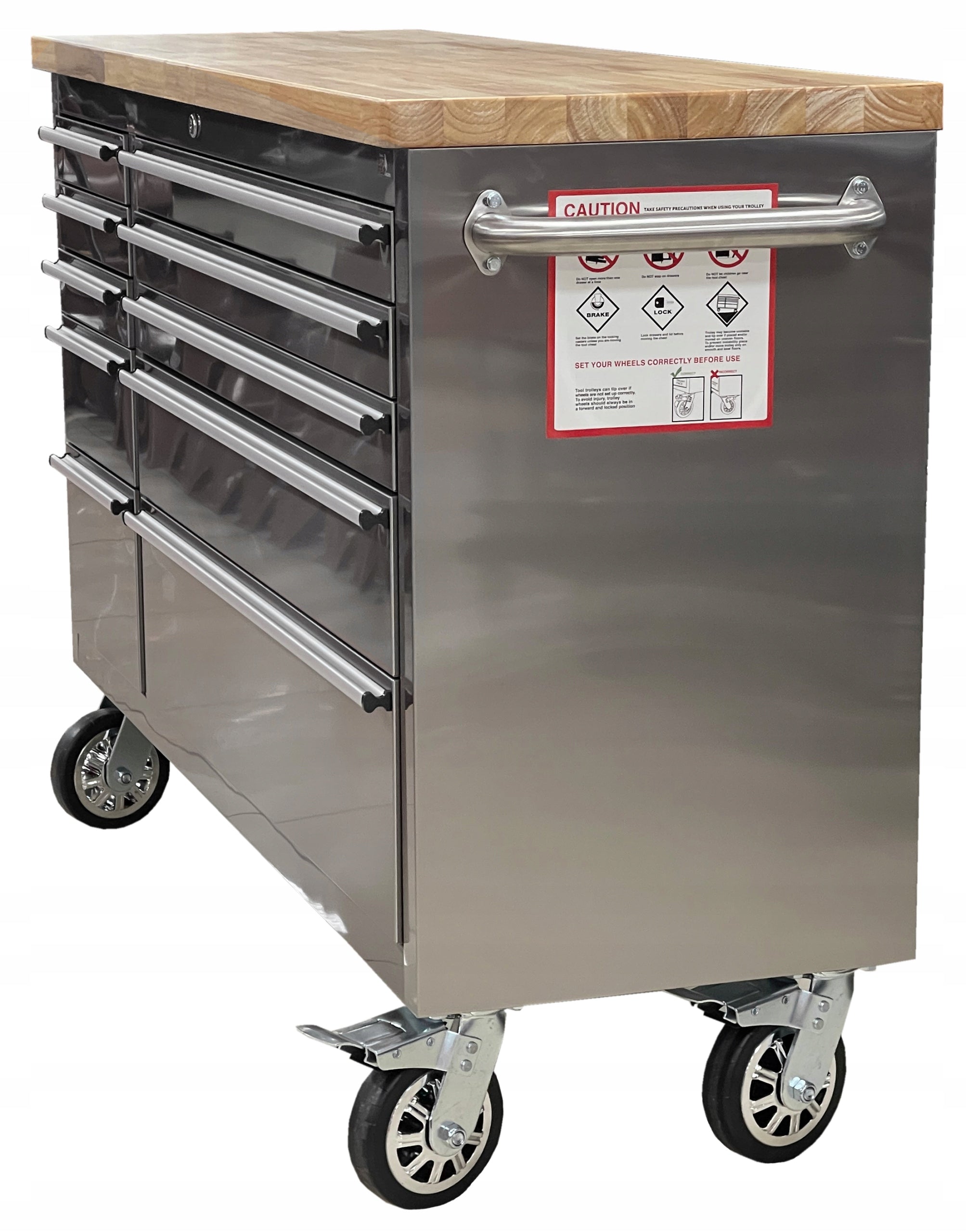

• Side handle: steel, for convenient maneuvering of the trolley

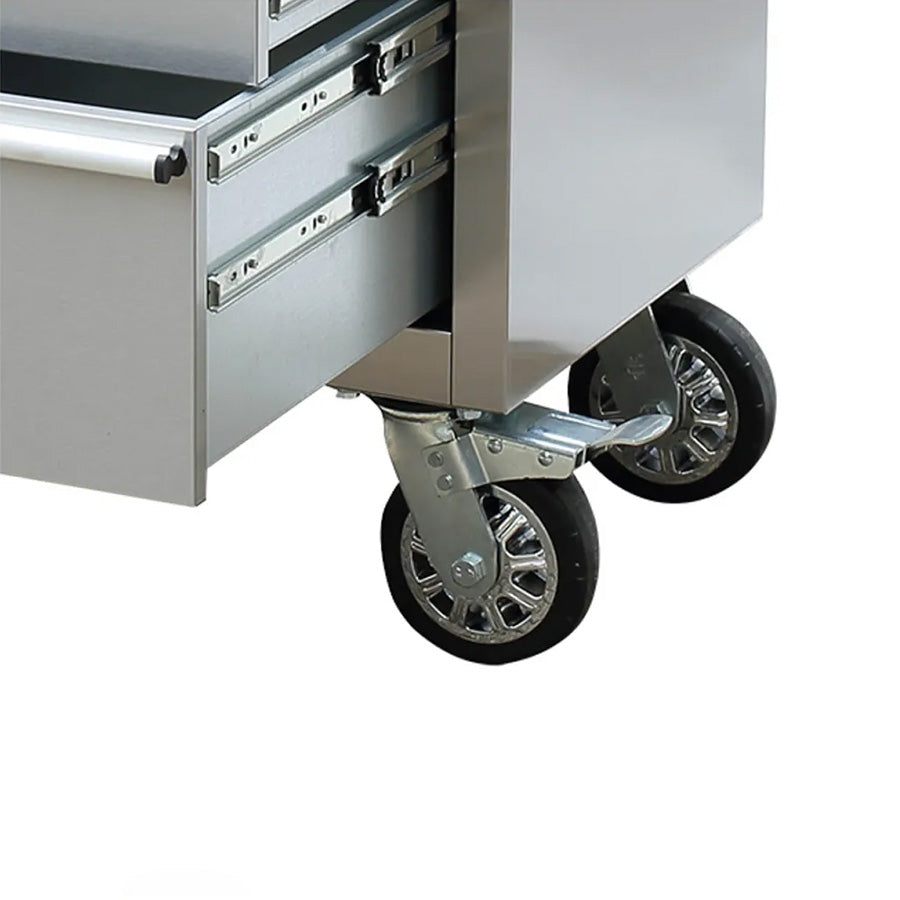

• Wheels:

  4 large diameter wheels

  metal housing, tread made of abrasion-resistant plastic

  minimum 2 wheels with foot brake (driving and rotation lock)

• Invented weight: approx. 118 kg

• Body color: grey (brushed steel/powder coating)

• Purpose: car workshops, services, production, garages, tool magazines

Application

• professional workshops and car services,

• technical positions in production plants,

• hobbies garages well-equipped DIYers,

• tool magazines, maintenance department.

TORIN TBR5610-S is a solution for users who expect from the trolley not only high capacity, but above all reliability and comfort of work for years.

Dimensions of the wooden table top

• Length: 1480 mm
• Width: 420 mm
• Thickness: 38 mm

Trolley height

• With wheels: 951 mm
• Without wheels: 760 mm

Wheels

• Diameter: 150 mm
• Width: 37 mm

Dimensions of drawers

Section A – narrow (left) – D × S × W

• Drawers 1 / 2 / 3: 395 × 342 × 60 mm
• Drawer 4: 395 × 342 × 139 mm
• Drawer 5: 395 × 342 × 216 mm

Section B – wide (right) – D × S × W

• Drawers 1 / 2 / 3: 395 × 910 × 60 mm
• Drawer 4: 395 × 910 × 139 mm
• Drawer 5: 395 × 910 × 216 mm

Description and advantages of the design

1. Solid, workshop construction

The body of the trolley is made of thick steel, resistant to deformation and mechanical damage. Rigid construction and high unladen weight (118 kg) guarantee stability even with heavily loaded drawers.

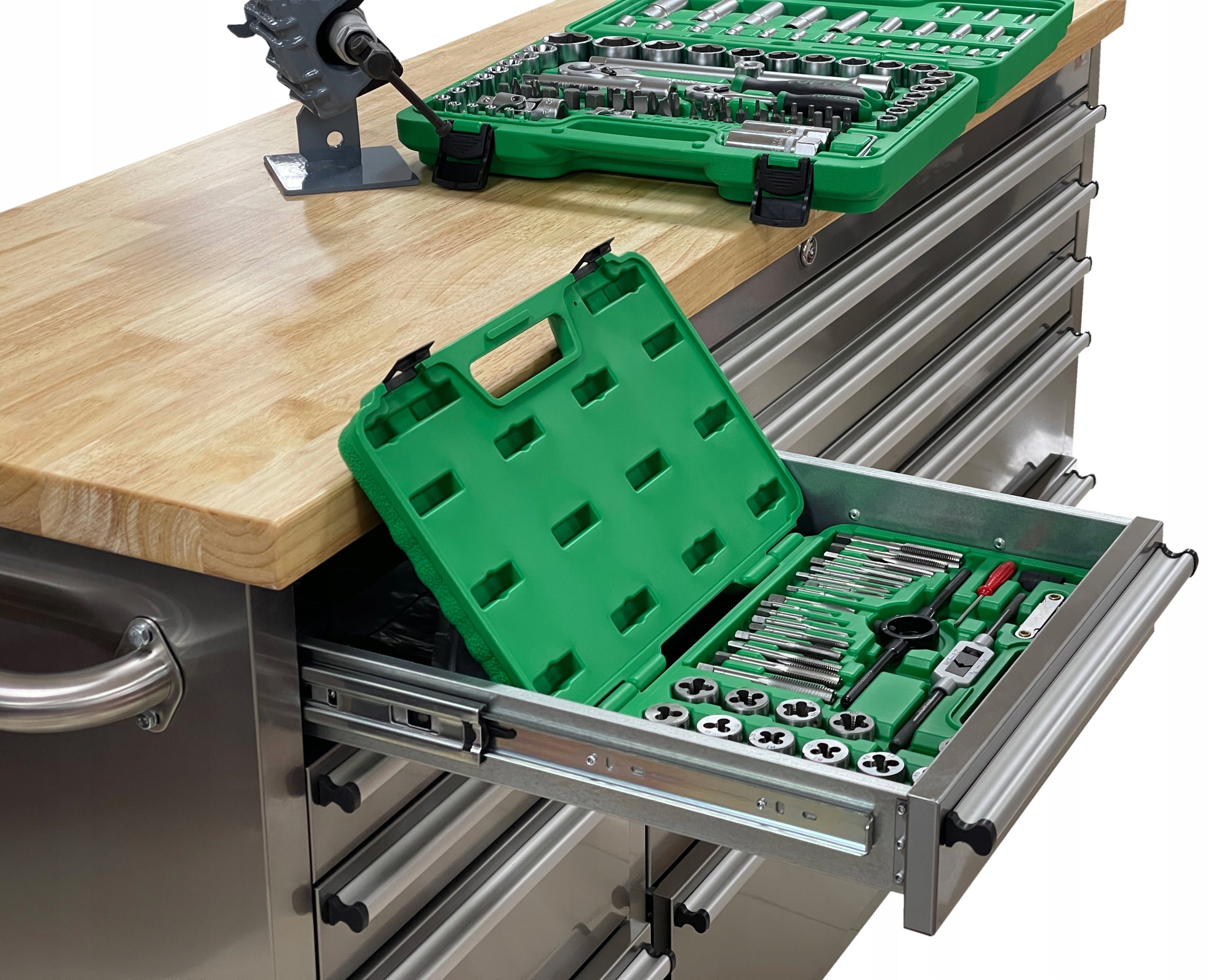

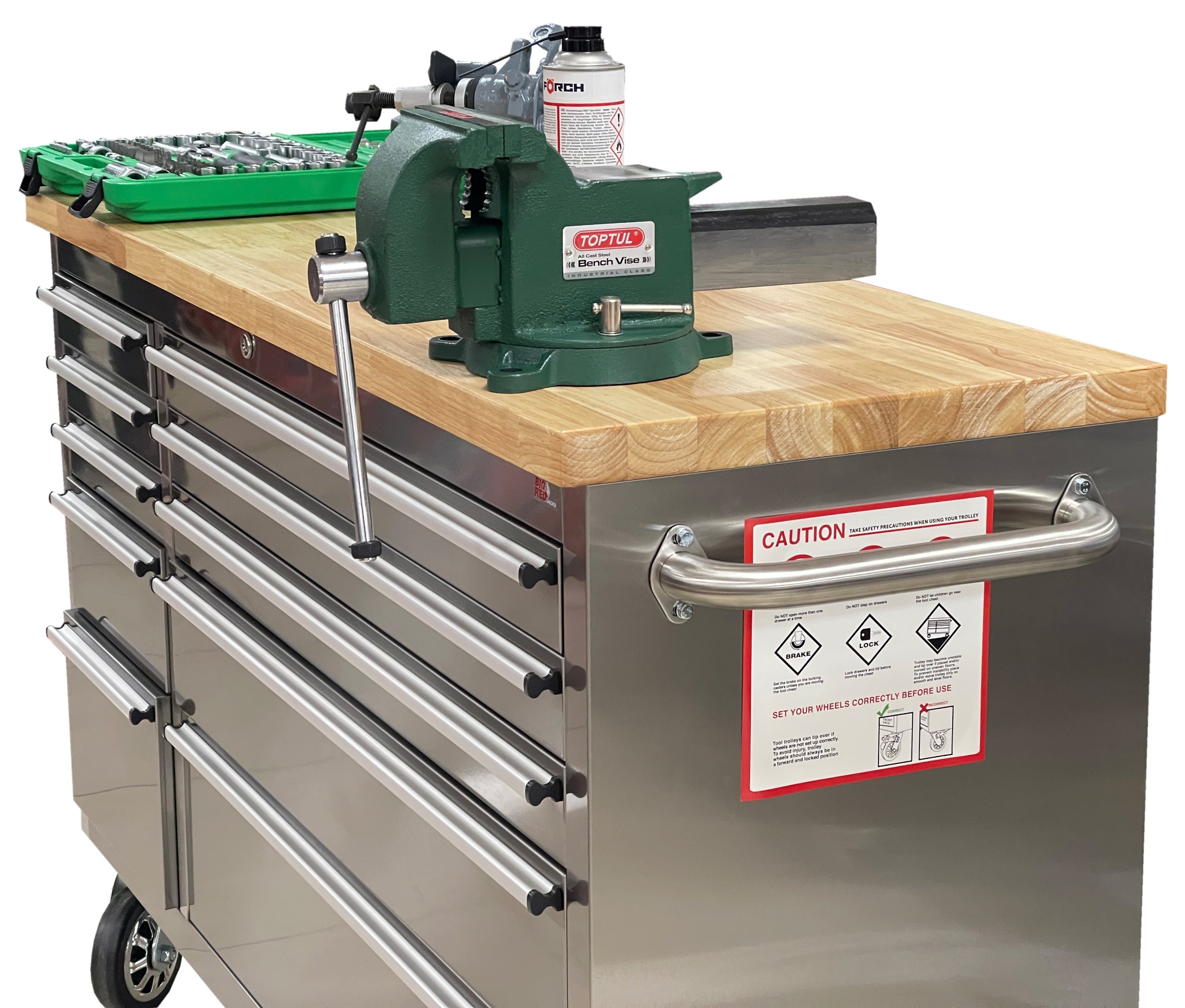

2. Large wood worktop

The upper table top creates a practical work surface – you can put tools, boxes, parts or perform light assembly work on it. The edges are smoothly finished, which increases the comfort of work.

3. Ten functional drawers

A set of 10 drawers of different heights allows logical sorting of:

• narrow drawers for bits, caps, eye wrenches, screwdrivers,
• Deeper drawers for power tools, impact wrenches, hammers or specialized sets.

Thanks to the ball guides, the drawers slide out slightly and smoothly to full length, which provides convenient access even to the elements hidden in the back.

4. Security – central lock

All drawers are locked with one turn of the key, which protects the contents from unauthorized persons and accidental opening during transport of the trolley.

5. Mobility with control

Four large wheels make it easy to move the trolley around the workshop, even on uneven floors. Two of them are equipped with foot brakes, which allow you to lock the trolley in the desired place and ensure stability during operation.

6. Handle for manoeuvring

The side steel handle makes it easy to drive the stroller – it can be conveniently pushed or pulled, even when the drawers are fully loaded.

7. Professional order in tools

The TBR5610-S allows you to organize your workstation so that every tool has its place. Reduces search time, improves ergonomics and safety in the workshop.

TORIN is a brand under which garage equipment is produced. The production of tools takes place in China, and the brand itself is a branch of the larger corporation "Changshu Tongrun Auto Accessory Co., Ltd", founded in 1954. TORIN products have gained popularity and are in stable high demand in 180 countries of the world (Asia, Europe and North America), which confirms the quality and durability of production. The company’s customers are both small and medium-sized enterprises, as well as the world’s largest brands such as Renault, GM, Ford. The highest level of customer service and the latest innovations are the main directions that TORIN has followed for many years.
