IP vaizdo įrašymo įrenginys BCS-V-NVR1602-A-4KE(3), 16 kanalų, iki 12MPx, 16TB, 16CH AI

Trumpai apie prekę

Prekė: IP vaizdo įrašymo įrenginys BCS-V-NVR1602-A-4KE(3), 16 kanalų, iki 12MPx, 16TB, 16CH AI. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: BCS
• Modelis: 1408

BCS

IP Network Recorder

Series: BCS View

Model: BCS-V-NVR1602-A-4KE(3)

BCS -V-NVR1602-A-4KE(3) network recorder is a modern IP monitoring device that supports up to 16 IP camera channels with a maximum resolution of up to 12 Mpx. Equipped with AcuSense technology and advanced intelligent image analysis functions, it provides effective motion detection, facial recognition and perimeter protection. It enables convenient remote access and recording on two hard drives with a total capacity of up to 16 TB.

Key benefits and features

• Supports 16 channels of high-resolution IP cameras up to 12 Mpx
• AcuSense technology for intelligent detection of people and vehicles
• Possibility to install two hard drives with a total capacity of up to 16 TB
• HDMI 4K and VGA video outputs for comfortable, high-quality viewing
• Pentaplex features: live viewing, recording, playback, archiving and remote access simultaneously
• Advanced H.265+ image compression to save disk space
• Support for up to 128 users and remote access via mobile apps and a web browser
• Alarm and audio inputs and outputs for advanced security systems
• Compliance with the ONVIF protocol – compatibility with cameras from other manufacturers
• Intuitive interface and stable operation in temperatures from -10°C to +55°C

Detailed technical specifications

Recording and archiving:

• Channels: 16 IP
• Maximum recording resolution: 12 Mpx
• Input/output bandwidth: 160 Mbps
• Video compression: H.265+, H.265, H.264+, H.264
• Drive support: 2 × HDD up to 16 TB
• Split display: 1/4/6/8/9/16 cameras simultaneously
• Playback: 1/4/9/16 cameras
• Archiving to external media: USB Flash, USB HDD

Network features and remote access:

• Protocols: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, HTTP, HTTPS and others
• Remote access: local, via web service, CMS BCS Manager (Windows/Linux/Mac) and mobile applications (iOS, Android)
• Number of users: up to 128

Intelligent functions (AI):

• Intelligent motion detection with people and vehicle recognition (SMD) on 16 4Mpx channels
• Perimeter protection (line crossing and intrusion detection) on 2 4Mpx channels
• Face detection and identification on 1 8Mpx channel and identification on 4 channels with a database of up to 20,000 images
• Advanced analytics: object recognition and classification

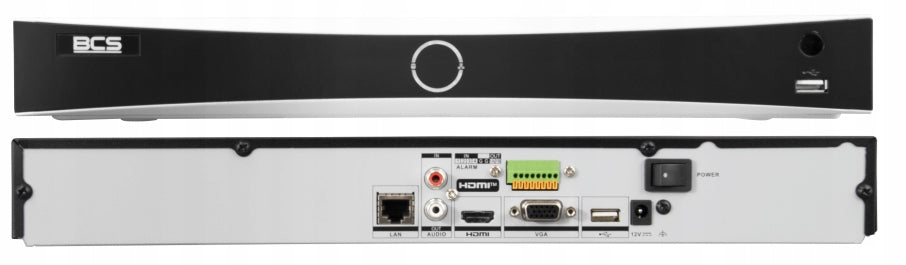

Connectors and interfaces:

• Video: 1 × HDMI 4K (3840×2160), 1 × VGA (1920×1080)
• Audio: 1 audio input and 1 audio output
• Alarm: 4 inputs, 1 output
• USB: 2 × USB 2.0
• Network: RJ-45 10/100/1000 Mbps
• ONVIF compliance – works with cameras from other brands

Physical parameters and power supply:

• Dimensions: 385 × 315 × 52 mm
• Weight: 1 kg (without disks)
• Housing: standard 1U rack mount
• Power supply: 12V DC
• Power consumption: max 15 W (without disks)
• Operating conditions: -10°C to +55°C, humidity max 90% RH

Explanation of abbreviations and technical terms

• AI (Artificial Intelligence) – artificial intelligence, enables the recorder to analyze the image and intelligently recognize objects (people, vehicles).
• Bitrate – the amount of data transferred per second, affects the quality and size of the recording.
• P2P (Peer to Peer) – technology enabling easy connection to the recorder via the Internet without complicated network configuration.
• PoE (Power over Ethernet) – powering cameras via a network cable (does not apply to the recorder itself, but is often used in IP systems).
• H.265 / H.265+ – modern video compression standards that allow you to record high-quality images while using less disk space.
• Playback – function of playing recordings from the archive.
• ONVIF – a standard ensuring compatibility between devices from different manufacturers in IP systems.

4K recorder

Works with high-resolution cameras

A characteristic feature of the "4KE" series recorders is the ability to cooperate with high-resolution IP cameras . This allows them to be used in monitoring systems that require the highest standards of image quality. They work great in places such as: currency exchange offices, jewelry stores, bank branches, post offices or railway stations. The input bitrate of the recorder is 160 Mb/s , so you can connect a high-resolution camera to each channel. The output bitrate is 128 Mb/s .

Powerful processor and Linux OS

Stable operating parameters and high functionality

The recorder is built using a high-performance processor with the Linux operating system. Thanks to them, it is characterized by stable parameters of continuous operation and high functionality, adapted to the requirements of modern CCTV systems. Linux OS also provides an intuitive user interface, thanks to which everyday operation of the system and changing any of its settings should not cause any major problems.

An additional advantage of the recorder is the ability to work with the so-called Pentaplex mode, which allows simultaneous and independent:

• Recording images from cameras
• Playing recordings from hard drives
• Displaying live camera images
• Remote viewing via the Internet
• Backup via USB or network

IP recorder

Possibility of remote operation of the monitoring system

The recorder has a built-in WEB server and a dual gigabit Ethernet network interface (10 / 100 / 1000 Mb/s). Thanks to them, the user can establish a remote connection to the recorder and remotely operate the monitoring system. While working remotely, the user can, for example: view live camera images or play back recordings stored on hard drives. If he or she has administrator rights, he or she can also remotely change the operating parameters of the CCTV system. Remote connection to the recorder can be achieved using:

• A web browser from which the user has access to full functionality and can freely configure operating parameters
• Dedicated BCS Manager computer software for building an advanced monitoring system management center
• An application for mobile devices ( Android / iOS ) that provides access to basic functionality

BCS Manager

Monitoring Management Center

The manufacturer provides free BCS Manager software for building an advanced monitoring management center. From this level, the user has access to the full functionality of the system and can freely change its operating parameters. Additionally, the software provides an intuitive user interface that makes operating the CCTV system relatively simple. The biggest advantages of BCS Manager software include:

• Support for up to 1000 connections
• Live preview of 256 channels (max. 64 windows per card)
• Creating alarm schemes
• Synchronous playback of recordings from up to 36 cameras simultaneously (remote and local)
• Remote device configuration, device group creation and management
• PTZ camera control
• Audio support
• TV WALL support

Working in the cloud

A convenient way to change settings

A major advantage of BCS Point system is the ability to work in the cloud . From there, you can establish a remote connection to the system and freely change the operating parameters of both the recorder and the cameras. A characteristic feature of working in the cloud is that the user connecting through it can fully configure the system - exactly as if he or she was physically connected to the same network. Additional advantages of working in the cloud include:

• Ability to create device arrays of virtually any size. Then, when you connect to the cloud from another device, the entire board is already in the app and you don't have to create it again
• Possibility of remote adjustment of the illuminator power
• Possibility to generate a 1-day password

P2P function

Easy remote viewing from mobile devices

The recorder also supports the P2P function, which eliminates the need to use an external IP address. All the user has to do is scan the QR code to get remote viewing from their phone or tablet. This is an extremely convenient way to establish a remote connection that requires virtually no configuration.

Intelligent analysis features

Possibility to implement advanced recording scenarios

A major advantage of the recorder is its support for basic intelligent image analysis functions. Thanks to them, it is possible to create advanced recording scenarios that improve the surveillance capabilities of the CCTV system. They also enable it to be adapted to the specific nature of the facility and the client's requirements. Intelligent analysis functions supported by the recorder include:

• Face detection
• Intelligent intrusion prevention
• Intelligent motion detection

In addition, the recorder also supports intelligent camera functions such as:

• Face detection
• Vehicle detection
• SIP (intrusion, crossing the line, entering/exiting the area)
• Intelligent motion detection
• Counting people

An example of using the functionality could be e.g. increasing the number of recorded frames in the event of an intruder entering a restricted area. This saves space on the hard drive and the recordings of the intruder's presence are of the highest quality.

HDMI and VGA video outputs

Compatible with most monitors

The recorder has built-in standard HDMI and VGA video outputs that work simultaneously. Thanks to them, the recorder can be connected to virtually any modern monitor or TV. The resolution of the displayed image depends on the output to which the monitor is connected and is as follows:

• HDMI - 3840 x 2160 / 1920 x 1080 / 1600 x 1200 / 1280 x 1024 / 1280 x 720 / 1024 x 768
• VGA - 1920 x 1080 / 1600 x 1200 / 1280 x 1024 / 1280 x 720 / 1024 x 768

USB ports

Cooperation with devices that increase functionality

The recorder is also equipped with 3 USB ports - 2x USB 2.0 and 1x USB 3.0. Thanks to them, external devices can be connected to the recorder, which increase functionality and facilitate the daily operation of the system. You can connect e.g. a USB device to the USB port. a computer mouse that facilitates navigation through the recorder's on-screen menu. The USB port can also be used to connect an external memory and copy selected fragments of video material.

H.265 compression

Effective remote viewing and high-quality recordings at the same time

The recorder uses advanced H.265 image compression, which is the successor to the H.264 compression popular in CCTV systems. The new version enables up to twice as much data compression, with virtually no reduction in image quality. This makes it possible to archive recordings from a much longer period of time. Compression also reduces internet bandwidth requirements during remote viewing.

Supported image compressions:

• H.265+
• H.265
• H.264+
• H.264

The BCS -V-NVR1602-A-4KE(3) recorder is an advanced and reliable solution for modern IP monitoring systems. Thanks to its support for 16 channels, high-resolution recording and intelligent image analysis functions, it guarantees effective protection and ease of use. Remote access and extensive archiving capabilities make this device ideal for both companies and demanding individual users who value security and ease of use.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	1408
Parametry	Brand	BCS
Parametry	Model	1408
Parametry	Number of supported cameras	16
Parametry	Maximum recording resolution	12 Mpx
Parametry	Installed disk capacity	0 TB
Parametry	Maximum number of supported drives	2
Parametry	Maximum capacity of drives	32 TB
Parametry	Technology	IP
Parametry	Video compression	H.265+
Parametry	EAN (GTIN)	4580534611584
Parametry	Batteries included	no
Parametry	Functions	phone app,motion detection,advanced search,digital zoom
