Invertorius suvirinimo aparatas POWERMAT MIG/MAG FLUX MMA TIG-LIFT SYNERGISTIC 15-180A

Trumpai apie prekę

Prekė: Invertorius suvirinimo aparatas POWERMAT MIG/MAG FLUX MMA TIG-LIFT SYNERGISTIC 15-180A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Powermat
• Modelis: PM-IMGTS-180L
• Ilgis: 410 mm
• Plotis: 190 mm
• Aukštis: 290 mm

Model: PM-IMGTS-180L

The Powermat welder is a compact IGBT migomat for MIG/MAG, MMA, TIG and FLUX welding with synergy function, automatic wire feeder, easy-to-read LCD and cooling system. It provides a stable arc, energy savings and precise welds while maintaining mobility and safety.

⚫ POWERMAT - INNOVATION AND RELIABILITY IN ONE

🟠 TECHNICAL DATA

• Power supply: 230 V / 50 Hz
• MIG/MAG power consumption: 6,7 kVA
• TIG power consumption: 5 kVA
• MMA power consumption: 7,9 kVA
• Welding methods: MIG-MAG FLUX / MMA / TIG-LIFT
• MIG-MAG welding current range: 30 - 180 [A]
• MMA welding current range: 25 - 180 [A]
• TIG welding current range: 15 - 180 [A]
• Welding current duty cycle 100%: (MIG-MAG - 138,6 A)
• Welding current duty cycle 60%: (MIG-MAG - 180 A)
• Welding current duty cycle 100%: (MMA - 138,6 A)
• Welding current duty cycle 60%: (MMA - 180 A)
• Welding current duty cycle 100%: (TIG-LIFT - 138,6 A)
• Welding current duty cycle 60%: (TIG-LIFT - 180 A)
• Supported wire diameters: 0,6 / 0,8 / 0,9 / 1,0 [mm]
• Supported electrode diameters: 1,6 mm - 5 mm
• MIG-MAG welding voltage: 15 - 27,2 [V]
• Operating modes: manual/ semi-automatic / synergistic
• Supported wire spools: max. up to 5 kg
• Insulation class: F
• Network protection: 29 A (MIG), 34,3 A (MMA), 21,7 A (TIG)
• Degree of protection: IP21S
• Dimensions: 41 x 19 x 29 [cm] (L / W. / H )
• Net weight: 7,5 kg

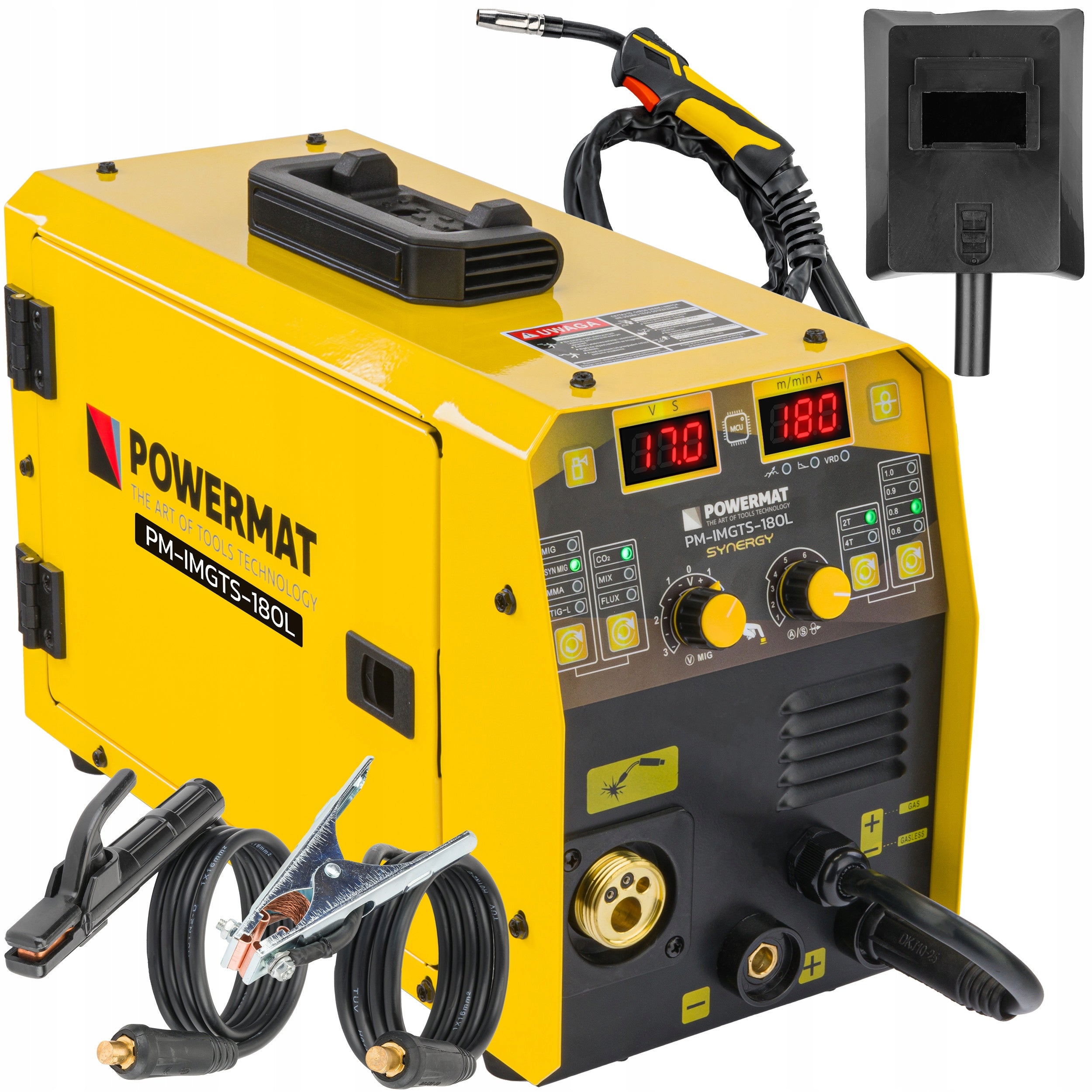

🟠 CONTENTS OF THE SET

• Bulk holder (-): 200 cm
• MMA electrode holder (+): 210 cm / plug diameter 9 mm 12-25
• EURO MIG / MAG holder: 295 cm
• Current terminal: 1x 0,8 [mm]
• Wire-operating roller (double-sided): 0,8 mm and 1,0 mm; type U
• Welding mask
• Brush with hammer
• User manual in Polish and English

🔸IGBT TECHNOLOGY

The device uses modern IGBT transistors, combining high energy efficiency with interference resistance and stable arc characteristics, which translates into lower energy consumption and greater reliability.

🔸 SYNERGY FUNCTION

Synergistic welding enables automatic selection of parameters to the type of material and gas, ensuring the highest quality of welds without the need to manually set each parameter.

🔸MULTIFUNCTIONALITY

The welder supports MIG/MAG, MMA, TIG and FLUX welding methods, making it a versatile tool for working with many types of metals, including aluminum and stainless steel.

🔸INTUITIVE CONTROL PANEL

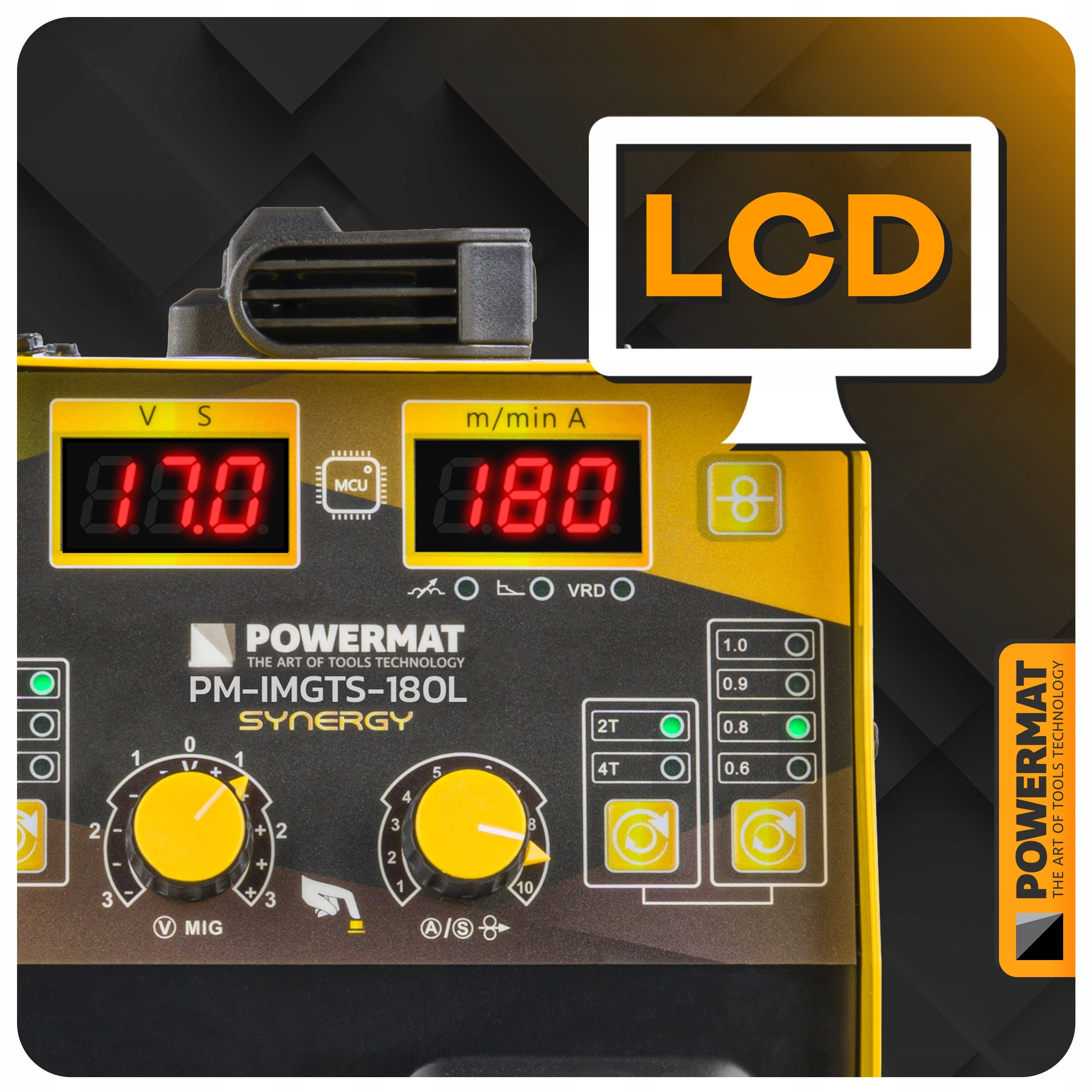

Two LCD displays and knobs integrated with buttons allow quick and precise setting of parameters, which makes it easier to work even less experienced users.

🔸ADVANCED SUPPORTING FUNCTIONS

HOT START, ANTI STICK, ARC FORCE and VRD functions improve welding comfort and safety by facilitating arc ignition, eliminating short circuits and stabilizing its length.

🔸EFFECTIVE COOLING

The built-in bearing turbo fan and thermal sensor ensure effective cooling of the device, protecting it from overheating even during intensive work.

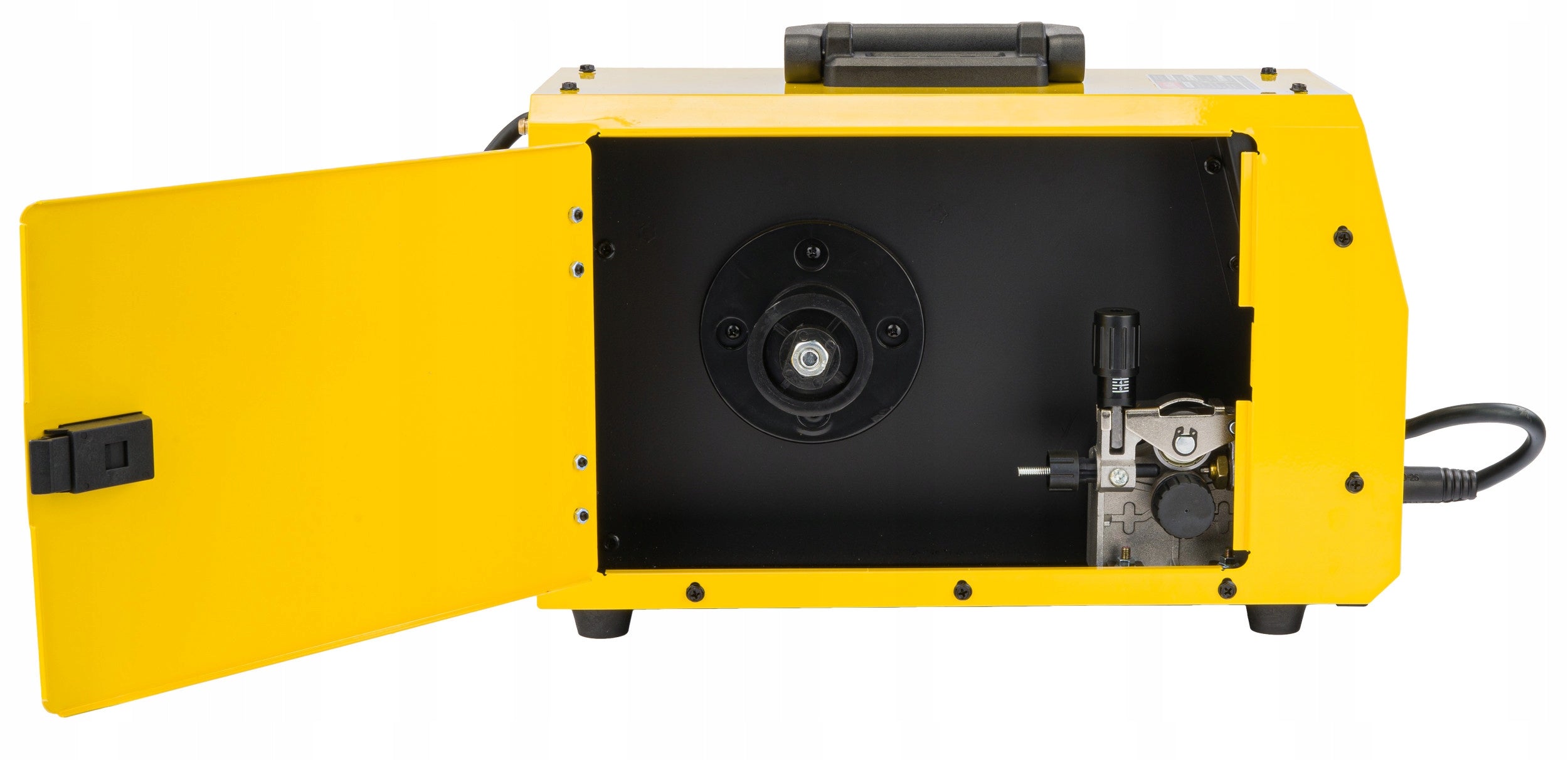

🔸PRECISION WIRE FEEDING SYSTEM

The 2-roll feeder ensures stable and accurate wire feeding without slipping, resulting in better weld quality and repeatability.

🔸LIGHT AND MOBILE DESIGN

The compact housing and aluminum handle allow for easy transport and convenient operation in various conditions, both in the workshop and in the field.

Semi-automatic welding machine has a very wide range of use. It enables efficient welding of various types of material groups in a wide range of material thicknesses. The IGBT transistors used have a beneficial effect on lower electricity consumption, greater resistance to interference and voltage drops, and good arc characteristics.

The control panel is now even easier to operate, and the operator has quick access to all functions. This has a positive effect on ergonomics and work efficiency in the plant.

The device has a synergic welding function, thanks to which it is possible to obtain the highest quality weld when welding any weldable materials - especially those made of stainless steel and aluminum.

The electronics of the device are based on IGBT transistors combining the advantages of two types of transistors, the ease of control of field transistors and high breakdown voltage and the switching speed of bipolar transistors. The welding current is very stable, which guarantees a perfect weld. Thanks to IGBT technology, the device is lighter and more energy-efficient.

The PM-IMGTS-180L is a welding machine based on high-performance IGBT transistors. It is equipped with 2 readable LCD displays indicating the current welding current set by knobs, one of which is also a function selection button. Migomat is equipped with a cooling fan, electronic systems and other components, as well as a thermal sensor to protect the device from overheating.

🟠 PERFORMANCE AND CAPABILITIES

◾ High efficiency and efficient cooling

Thanks to the use of IGBT transistor technology, the efficiency of the device is up to 60%.

Fully automatic wire feed.

◾ BUILT-IN FUNCTIONS TO FACILITATE WORK

• HOT START (automatic), popularly known as hot start, allows by temporarily increasing the welding current above the value set by the welder. HOT START works at the moment of arcing and is designed to prevent the electrode from sticking to the material. It is a great convenience when lighting the electrode.
• ANTI STICK (automatically) cuts off/minimizes welding voltage and current in case of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.
• ARC FORCE (0 - 10) stabilizes the arc regardless of its length. By reducing the value of the function, it gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. At the highest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through.
• VRD (ON/OFF) This function reduces the output voltage to about 20V in the discharge state to a safe level, eliminating the risk of electric shock.

🟠 SYNERGY TECHNOLOGY

◼ Additional comfort and advantages are provided by:

• Manual mode (MIG) - function allows manual setting of welding parameters when welding in FeC/Co2/308 Ar98 carbon dioxide gas shield, or in FeC/ArCo2E308 shield
• Synergic mode (SYN MIG) - a function that allows you to set automatic parameter selection
• No need for shielding gases with FLUX function - convenient when using self-shielding wires
• Manual selection of wire thickness for relevant parameters and automatic ranges
• Manual selection of welding control (two-bar - 2T / four-bar - 4T)
• Selection of automatic welding parameters for gas type, no shielding gas and for welding aluminum
• FLUX function - for welding with self-shielding wires E308 Ar98
• Inductance adjustment (-10 - (+10) allows you to optimize the arc characteristics depending on the thickness of the welded sheet metal and welding methods and conditions. The function is useful when welding thin steel sheets, preventing them from burning out and when soldering galvanized sheets. Changing the inductance value also reduces the amount of welding chips

🟠 LATEST GENERATION IGBT PICKUPS

◾ The distinguishing feature of this welding machine from competing machines are the latest generation of IGBT transducers, which ensure low weight of the device and high reliability.

◾ The high-end IGBT transistors used in the converter allow to achieve a smooth weld and significantly reduce the amount of chipping.

🟠 WELDING CAPABILITIES

◾ MIG/MAG WELDING

MIG/MAG welding is one of the most widely used welding processes. But what exactly is behind it? It all depends on the choice of matching shielding gases and binders, up to the properties of different types of welding arcs.

MIG/MAG welding is also known as arc welding of metals.

◾ Where is this welding method used?

MIG/MAG welding processes can be used extremely universally. They are used, among others, in the metalworking industry, in the construction of steel structures and tanks, shipbuilding and in the automotive industry. MIG/MAG processes allow welding of elements from different materials, with different thicknesses and geometries. MIG welding is particularly suitable for non-ferrous metals: aluminium, magnesium, copper and titanium. The MAG method is mainly used for welding non-alloy, low-alloy and high-alloy steels.

◾ Advantages of MIG/MAG welding:

• high melting efficiency,
• lack of slag,
• easy ignition of the welding arc,
• good suitability for mechanized and automated welding,
• high welding speed with good weld quality,
• good suitability for use in forced and difficult positions,
• low cost of binders.

◾ MMA WELDING

Arc welding with a wrapped electrode is also called the MMA (Manual Arc Welding) method and it is the oldest and most universal method of arc welding.

In the MMA method, a wrapped electrode is used, which consists of a metal core covered with a compressed sheath. An electric arc is produced between the end of the electrode and the welded material. The arc glow is contact by touching the end of the electrode to the welded material. The electrode melts and drops of molten metal electrodes are transferred through the arc to a liquid lake of welded metal forming a weld after cooling. The welder pushes the electrode as it melts into the welded object to maintain a constant-length arc and at the same time moves its melting end along the welding line. The melting sheath of the electrode emits gases that protect the liquid metal from the influence of the atmosphere and then solidifies and forms a slag on the surface of the lake, which protects the solidifying metal of the weld from the influence of the environment. After moving the electrode away from the welded object, the electric arc stops and the welding process is interrupted. After laying one stitch, the slag should be mechanically removed.

The main difference from other welding methods is that in the MMA method the electrode is shortened. In the TIG and MIG/MAG method, the length of the electrode remains unchanged at all times and the distance between the handle and the welded element is constant at all times. In the MMA method, in order to maintain a constant distance between the electrode and the welding lake, the electrode holder must be moved towards the welded element at all times, which means that the welder's skills play a special role.

◾ TIG LIFT WELDING

TIG welding is a method that allows to obtain the highest quality welds. The welding arc glows between a high temperature resistant, non-melting tungsten electrode and a welded element. The inert gas from which the method is named produces an anaerobic atmosphere and prevents the chemical reactions of the liquid welding lake. As a result, smooth, even and non-porous welds are created. The binder is supplied manually or from a wire feeder.

TIG welding is possible for all weldable metals. The largest range of applications are stainless steels and non-ferrous metals, such as aluminium, copper and brass. TIG is primarily used to make the weld ridge layer, because the welds are clean and pore-free, and thus tolerate dynamic loads well.

🟠 DIMENSIONS OF WIRES (HANDLES)

🟠 POWERMAT - QUALITY | INNOVATION | RELIABILITY

Following technological progress and cooperation with innovative factories invested in modern solutions for the future needs of the 21st century, we present the brand POWERMAT. Discover innovation, design and reliability in one – choose POWERMAT as your partner in technological exploration for the future!

⚙ RELIABILITY OF POLISH QUALITY:

Invest in confidence by choosing a product from a Polish manufacturer!

💰 BEST VALUE FOR MONEY:

By choosing POWERMAT, you are investing wisely! Our tool offers the highest quality without overpaying. It is an ideal choice for any customer who values high quality but also wants to save.

👷 ♂ IDEAL DESIGN FOR PROFESSIONALS AND HOBBYISTS:

Advanced Design forProfessionals and Hobbyists: Whether you are a professional with high demands or a hobbyist who values reliability – our migomat will certainly meet your expectations. It is precisely designed to meet a variety of needs.

🔧 FULL WARRANTY AND POST-WARRANTY SERVICE:

By choosing POWERMAT, you will gain access to the comprehensive service, which will take care of your needs at every stage. We guarantee support when needed, providing you with peace of mind and confidence.

🛠 EASY ACCESS TO PARTS AND COMPONENTS:

With POWERMAT, maintenance and repairs become easy and convenient. We guarantee instant access to all parts and components, eliminating unnecessary delays. With us your tool will always be ready for action.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Powermat
Parametry	Welding methods	MIG/MAG
Parametry	Power consumption	7.9 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	7.5 kg
Parametry	Welding range	15–180 A
Parametry	Height	290 mm
Parametry	Length	410 mm
Parametry	Width	190 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	295 cm
Parametry	Product weight with unit packaging	12 kg
Parametry	Manufacturer code	PM1337
Parametry	EAN (GTIN)	5904067449275
Parametry	Model	PM-IMGTS-180L
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
