Trumpai apie prekę
Prekė: Inverterinis TIG/MMA suvirinimo aparatas MAGNUM TIG 238P AC/DC PRO-X, aliuminiui. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: U I THF238PRO-X ZESTAW#2
- Ilgis: 503 mm
- Plotis: 152 mm
- Aukštis: 307 mm
| Manufacturer: Magnum | Welding methods: TIG AC/DC, MMA, TIG HF, TIG Point, TIG Lift | Welding current: 200 A | Power supply: 230 V | IGBT | | PULS |
❇ Standard equipment:

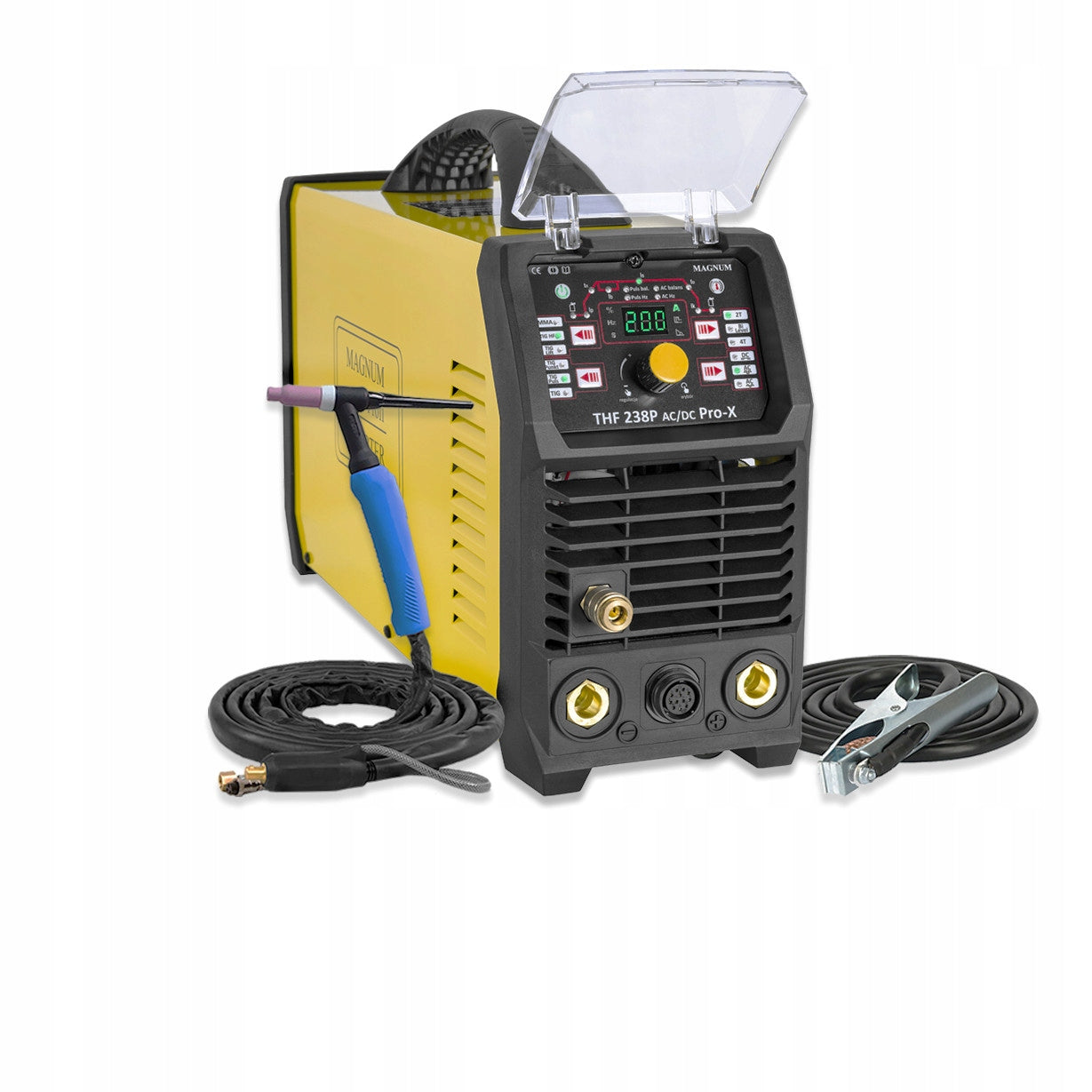

- Welder Magnum TIG THF 238P AC/DC PRO-X
- TIG cable SR-26 / 4 m
- mass cable / plug 35-50 mm2 / 3 m
- instruction manual in Polish

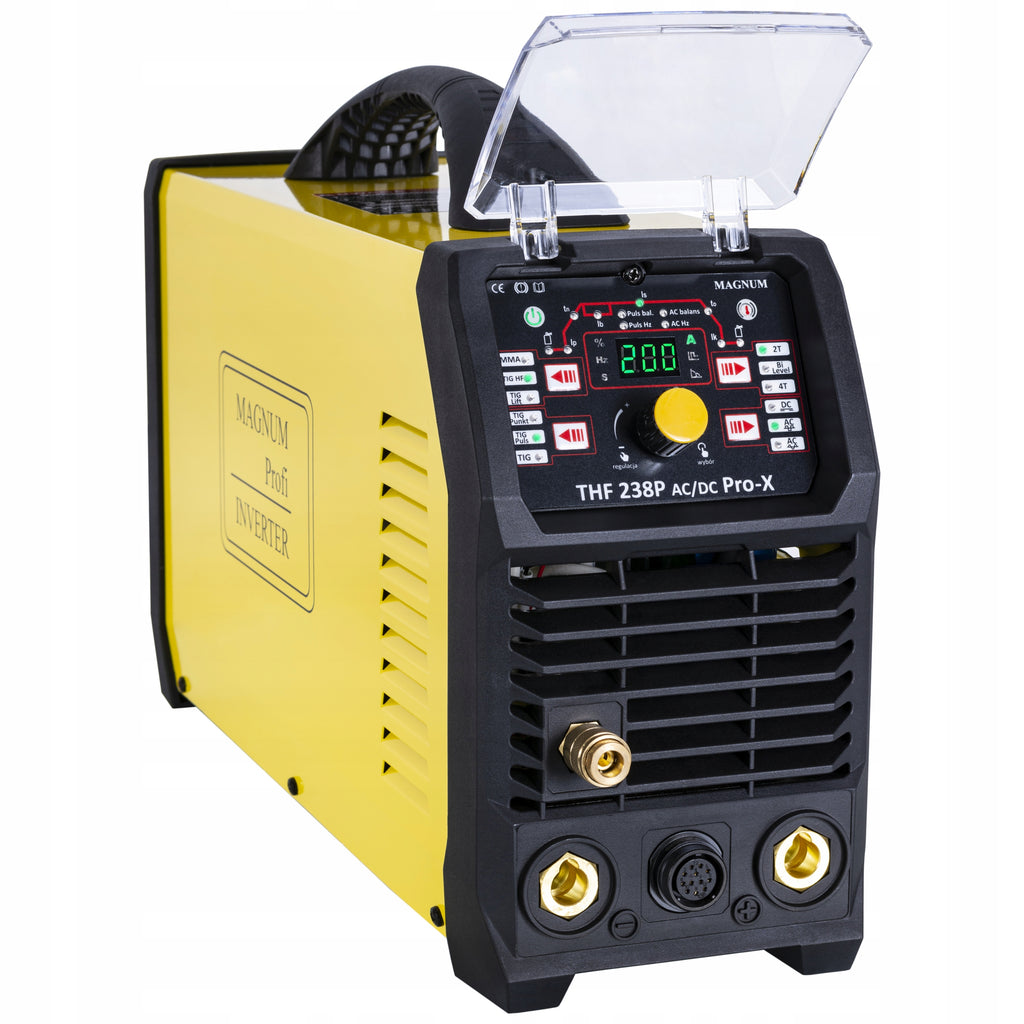

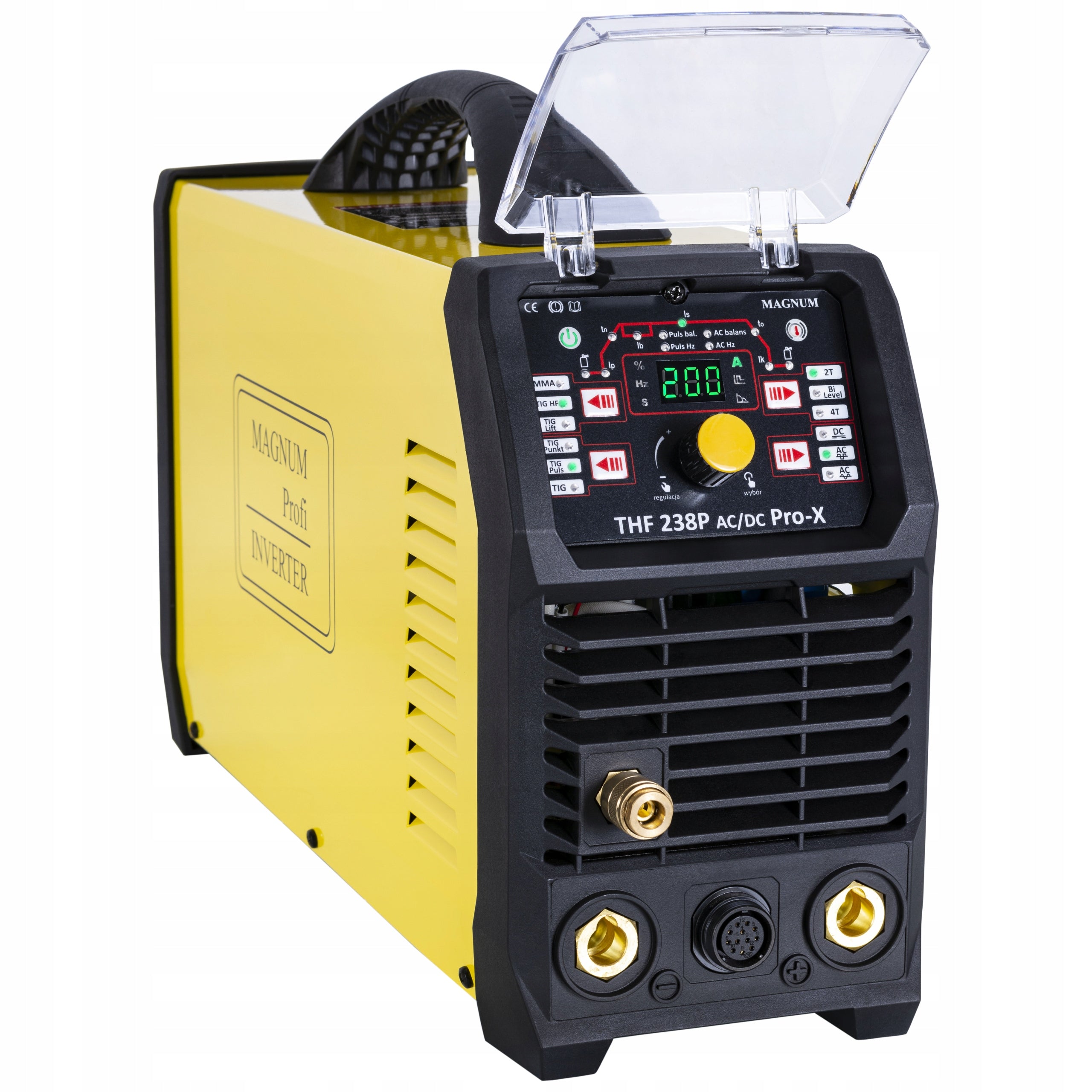

❇ The Magnum THF 238P AC/DC PRO-X welding machine is a professional, light inverter welding machine designed for welding using the TIG HF method (with contactless arc welding) with AC alternating current and constant DC.
❇ Versatile use. The welder provides excellent performance in welding materials such as:
- aluminium
- aluminium alloys
- non-alloy steel
- low-alloy steel
- high-alloy steel
- titanium
- other weldable metals and alloys
❇ The device can also be welded using the MMA method using hot melt coated electrodes.
❇ It is powered from a single-phase 230 V network, has a high 60 % duty cycle at current 200 A, which allows it to be used in various industrial segments.
❇ TIG DC
❇ TIG AC
❇ TIG PULSE
❇ TIG HF - Arc glow in touchless mode
❇ TIG Lift - contact arc ignition
❇ TIG Point - spot welding
❇ MMA DC
❇ MMA AC
❇ The power source is based on IGBT (Insulated Gate Bipolar Transistor) transistors, which provide a minimum of electromagnetic interference, small power losses in basic systems, enabling increased efficiency and reliability of the power source.
❇ Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.
❇ The welding machine has an intuitive, easy to use control panel, which allows for fast and precise selection of individual welding parameters.
❇ It is equipped with a multifunctional display with taking the values of individual parameters, the adjustment of which is carried out with a single knob.
❇ The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in factories, industrial plants, locksmith workshops, repair workshops, etc.
- Weight: 10 kg
- Power supply [V]: 230
- Max. welding current [A]: 200
- Welding current: AC/DC
- Cooling: with gas
- Pulse function: Yes
- Processes: TIG / MMA
- Welding current range [A]: TIG AC: 10 - 200; TIG DC: 10 - 200; MMA: 10 - 200
- Current [A] / duty cycle [%]: 200 A/ 60%
- Security [A]: 25
- Power consumption: 7 [kW]
- Idle voltage [V]: 70
- Current adjustment: smooth
- Arc glow: HF - contactless
- 2T/4T function
- Anti Stick function
- Arc Force function
- Hot Start
- Additional Features: BiLevel, TIG Point, TIG Lift
- Degree of protection: IP23
- Welding range from [A]: 10 to [A]: 200

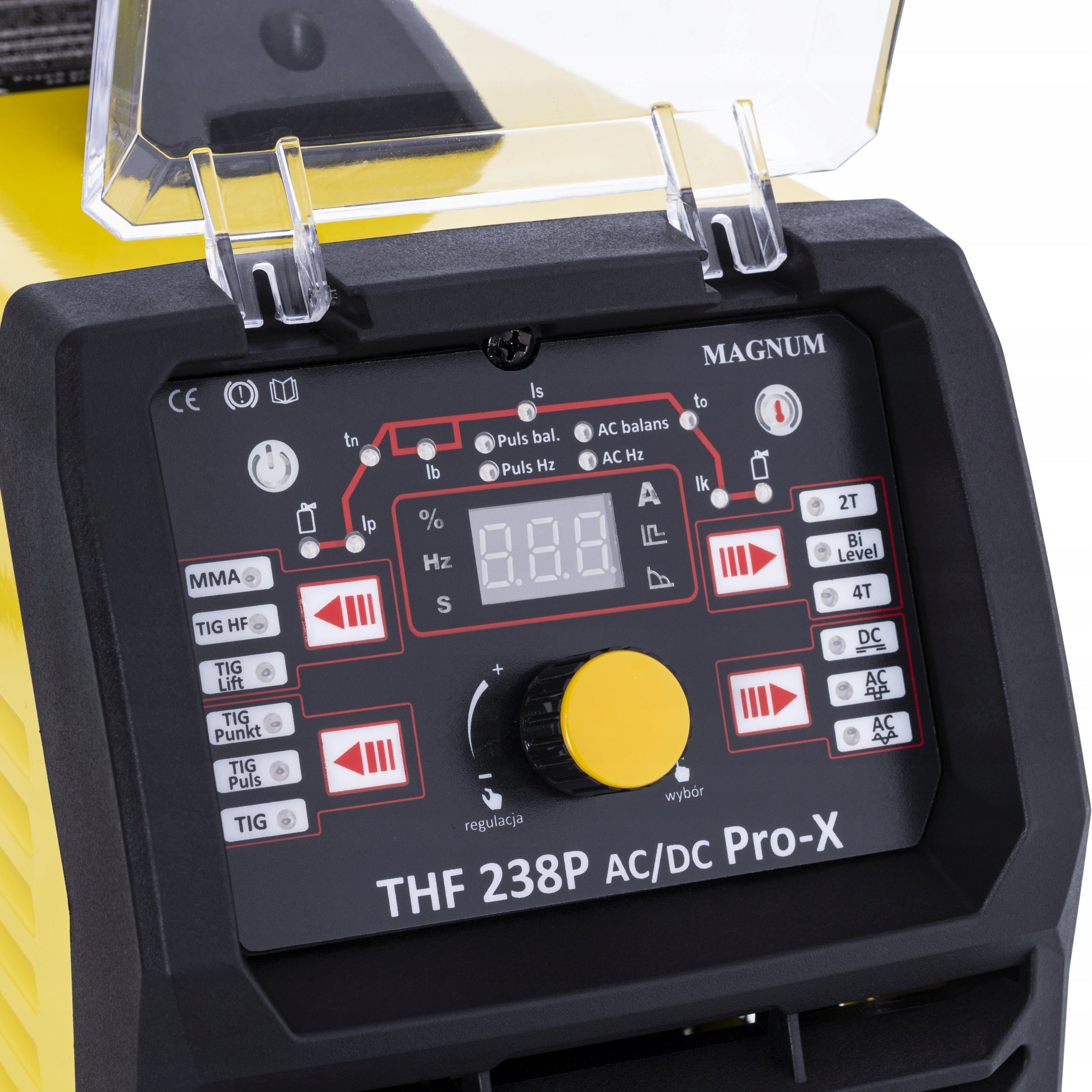

❇ Digital function panel enables precise control of all the most important welding parameters for TIG AC/DC method:
- graph of TIG process
- choice of waveform when TIG AC welding - sine wave, rectangular
- balance AC
- AC current frequency
- Bi-LEVEL - the ability to switch between two welding current values
- gas flow before welding
- start current
- time of electricity build-up
- welding current
- current drop time
- final current (extinguishing)
- gas flow after welding
- TIG PULS: peak current, base current, pulse frequency, pulse width
- 2T/4T operating mode
- TIG Lift contact arc ignition
- TIG HF
- TIG Point - spot welding
❇ Settings of the most important parameters for the MMA AC/DC method:
- welding current
- Hot Start – easier electrode glow
- Arc Force – stabilizes the welding arc and eliminates short circuits, facilitated welding in forced positions
✔ The Magnum TIG THF 238P AC/DC PRO-X welder is a versatile and lightweight TIG AC/DC that will meet your expectations!
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 8 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 10 kg |
| Parametry | Welding range | 5–200 A |
| Parametry | Height | 307 mm |
| Parametry | Length | 503 mm |
| Parametry | Width | 152 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Additional features | infinitely adjustable welding current |
| Parametry | Product weight with unit packaging | 15 kg |
| Parametry | Manufacturer code | U I THF238PRO-X ZESTAW#2 |
| Parametry | EAN (GTIN) | 5905214999308 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MMA,TIG |
