Inverterinis suvirinimo aparatas MIGOMAT IDEAL Expert MIG 201 LCD TIG DC MMA Synergy

Trumpai apie prekę

Prekė: Inverterinis suvirinimo aparatas MIGOMAT IDEAL Expert MIG 201 LCD TIG DC MMA Synergy. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Spawarka Ideal EXPERT MIG 201 LCD
• Ilgis: 465 mm
• Plotis: 190 mm
• Aukštis: 360 mm

MANUFACTURER: IDEAL || WELDING METHODS: MIG/MAG, MMA, FLUX, TIG DC || SELECTED ADVANTAGES: Synergy, 2T/4T, Spot welding || POWER SUPPLY: 230V 1ph

Power supply parameters:

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Current taken from the mains: 25A
• Power: 7,5kW
• Degree of protection: IP 21S
• Dimensions: 465x190x360 mm
• Weight: 11kg

MIG/MAG welding parameters:

• MIG/MAG welding current: 25 - 200A
• MIG/MAG duty cycle: 60% 200A, 100% 127A
• MIG/MAG welding voltage: smooth adjustment
• Wire feed speed: smooth adjustment
• Spool with wire: max 5kg (D200)

• Diameter of aluminum wire: 0,8 - 1,2 mm
• Wire diameter for soldering: 0,8 - 1,0 mm
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,8 - 1,0 mm

• MIG/MAG welding polarity change: YES
• Welding Inductance Adjustment: YES

TIG welding parameters:

• TIG welding current: 10 - 200A
• Output Current: DC Constant
• Arch ignition: contact - Lift
• TIG duty cycle: 60% 200A
• TIG welding current regulation: smooth
• Two operating modes: 2T/4T
• Gas after (post gas): YES from 0,1 to 5,0s

MMA welding parameters:

• MMA welding current: 10 - 200A
• Electrode diameter: 1,6 - 5,0 mm
• MMA Welding Current Adjustment: Smooth

▶ MIGOMAT PERFECT FOR A VARIETY OF APPLICATIONS - FROM MAINTENANCE WORK TO AUTOMOTIVE REPAIRS

EXPERT MIG 201 LCD is the perfect solution for a wide range of applications: from maintenance work to car body repairs. Thanks to its flexibility, it can weld various types of materials: steel, stainless steel, aluminum or solder galvanized and constantly high-strength bodies.

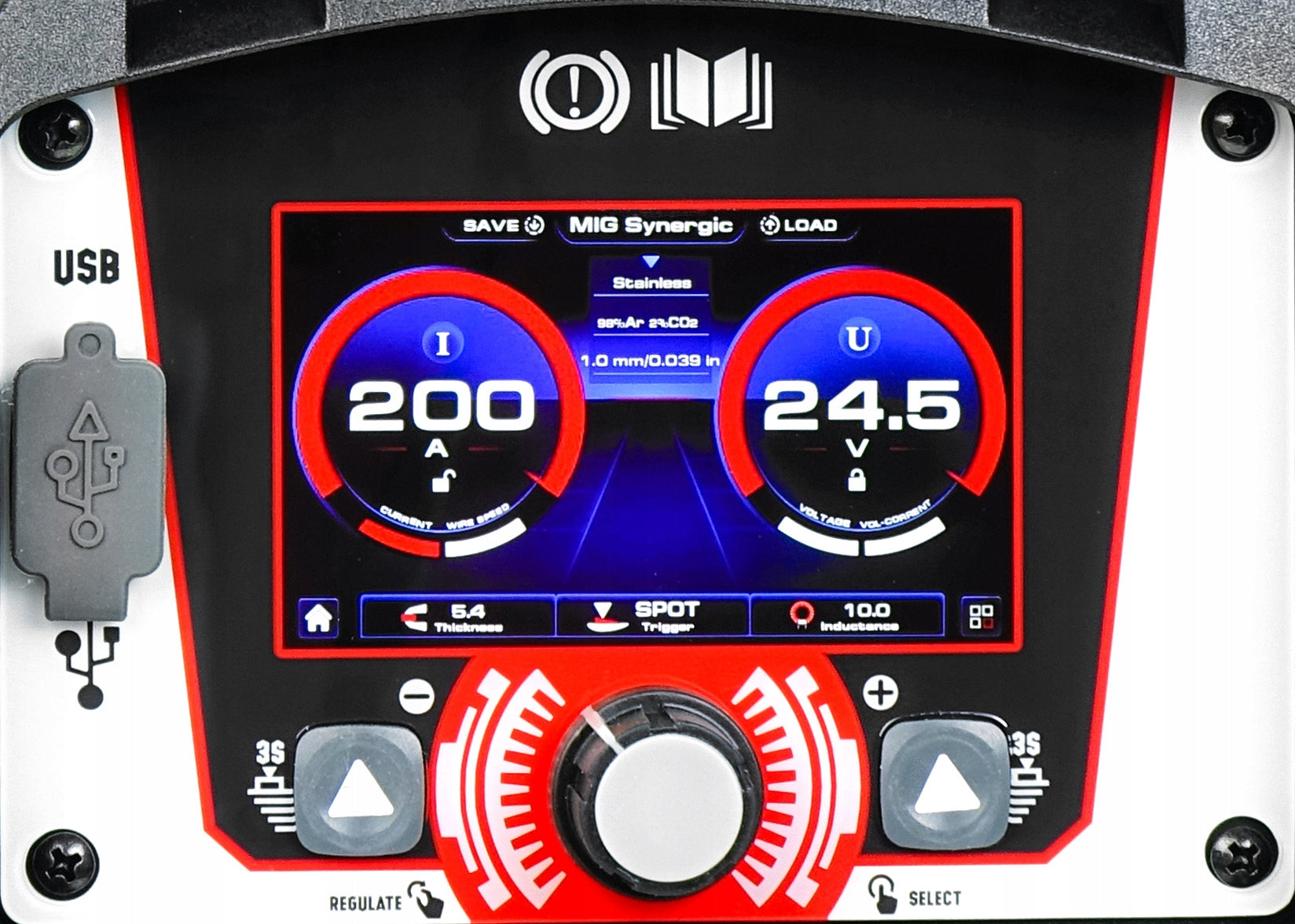

Quick synergistic adjustment of welding parameters via LCD display, makes the device very easy to use. All you need to do is set basic parameters such as the type of material or wire diameter so that the device selects the optimal values before welding. The user can also manually set the length of the welding arc and adjust the appearance of the weld to suit their needs.

In addition to the synergistic mode, the source also has a manual mode. In it, you can set the wire feed speed and arc voltage in full range.

With the MIG/MAG method, we can choose the button function in the handle, between 2T mode (without button lock), 4T (button lock for long welds), S2T (2T mode with current rise/fall setting and time), S4T (4T mode with current rise/fall setting) and SPOT (point welding).

ADVANTAGES OF THE DEVICE:

• smooth adjustment of all welding parameters,
• synergy - the device has synergistic programs,
• Euro socket- the possibility of using any MIG holder equipped with a EURO plug,
• 2T/4T operating modes - weld as standard in 2T mode or switch to 4T mode when you have a lot of work and long welds to position,
• accurate adjustment of the length of the welding arc,
• regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the work you are currently doing, thanks to the MIG/MAG welding inductance adjustment,
• readable LCD display, showing all parameters,
• possibility of TIG DC Lift welding,
• point welding MIG,
• solid, durable housing.

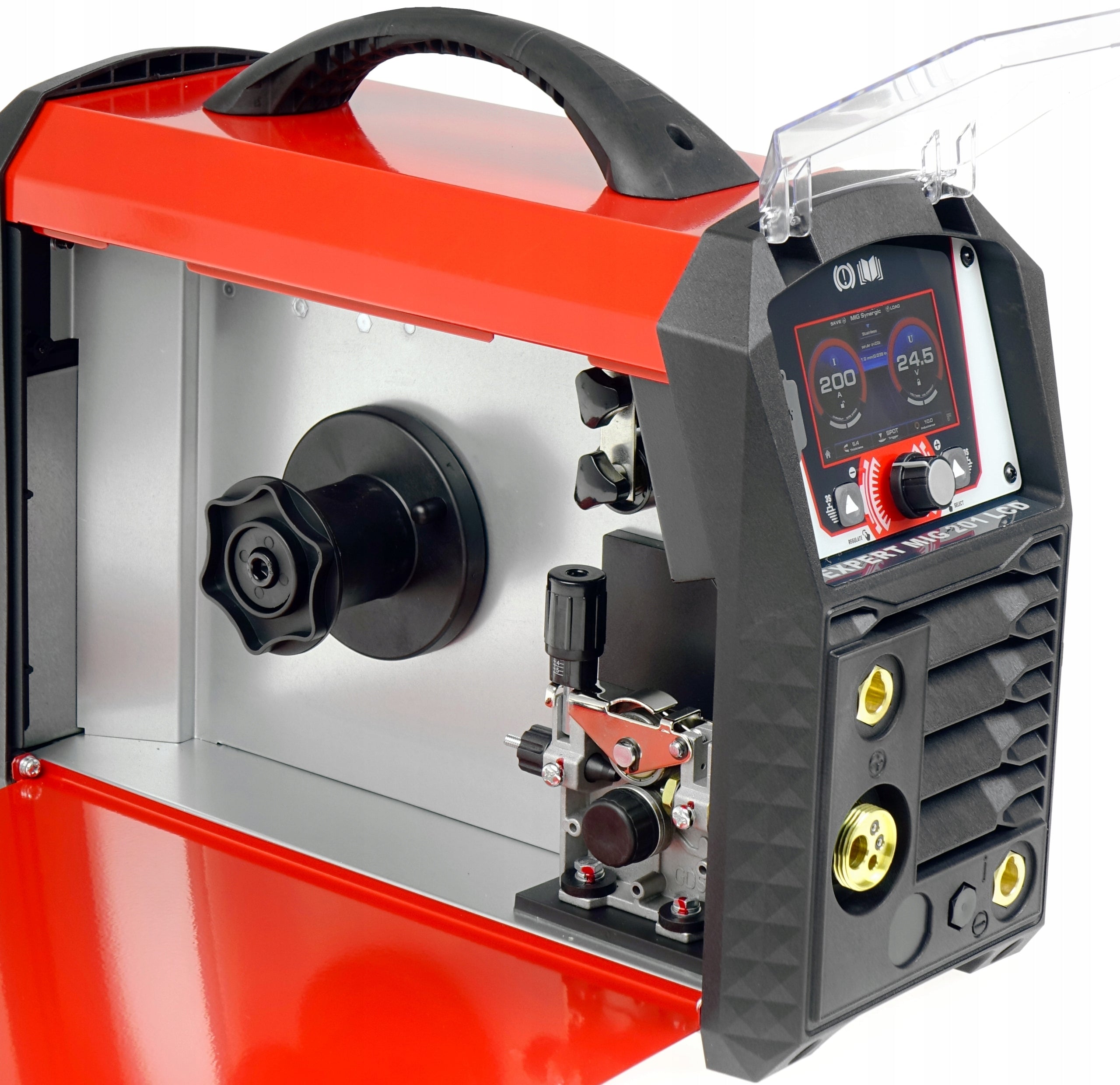

Professional Wire Feeder

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

Solid workmanship

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. The transport handle makes it easy to carry the device.

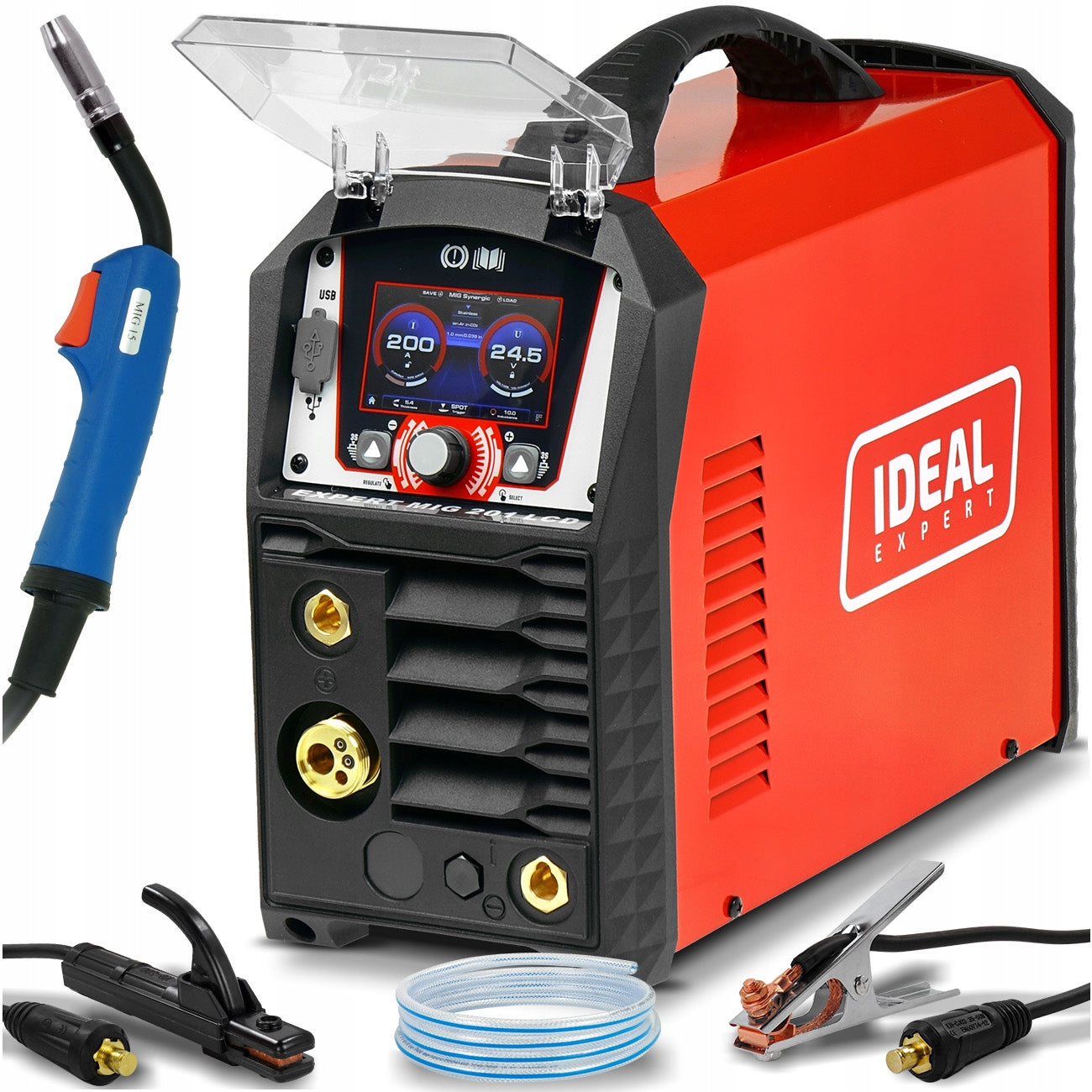

• Ideal EXPERT MIG 201 LCD
• Welding torch MIG MB-15/3m
• MMA electrode cable
• Bulk cable
• User manual in Polish
