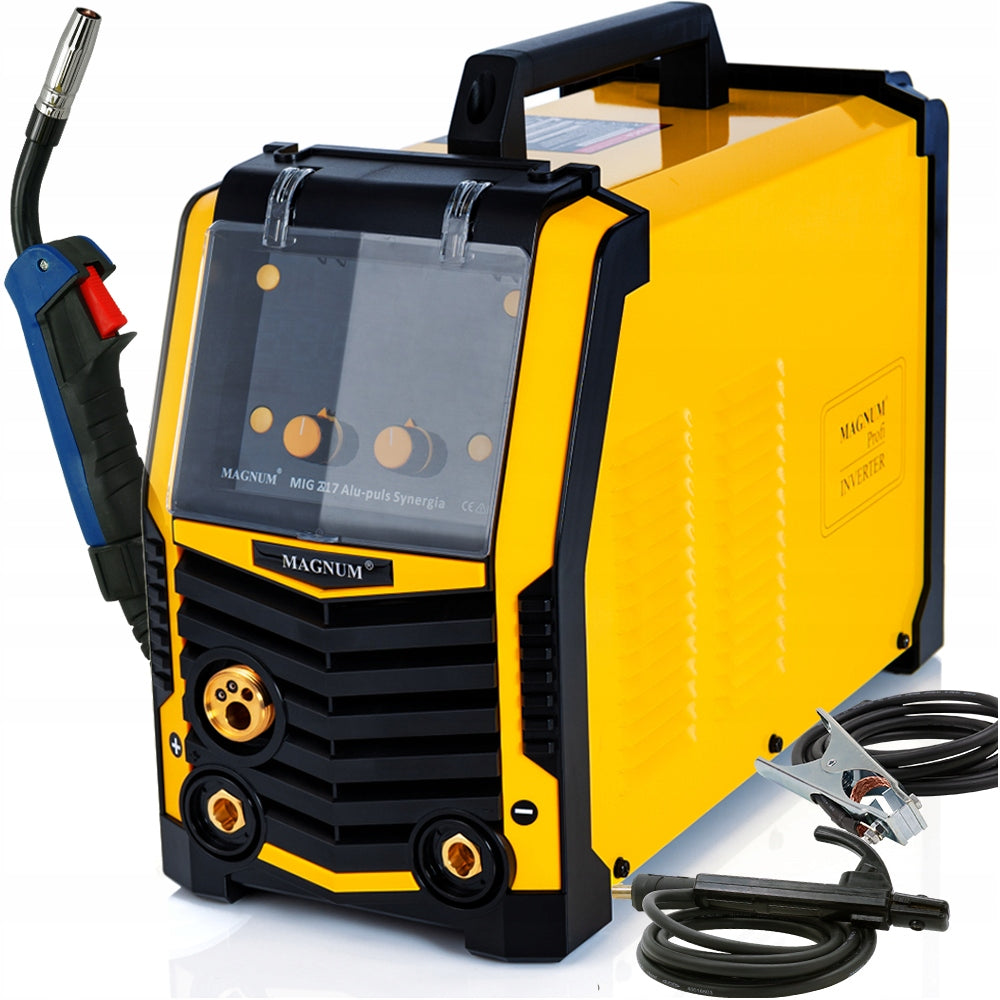

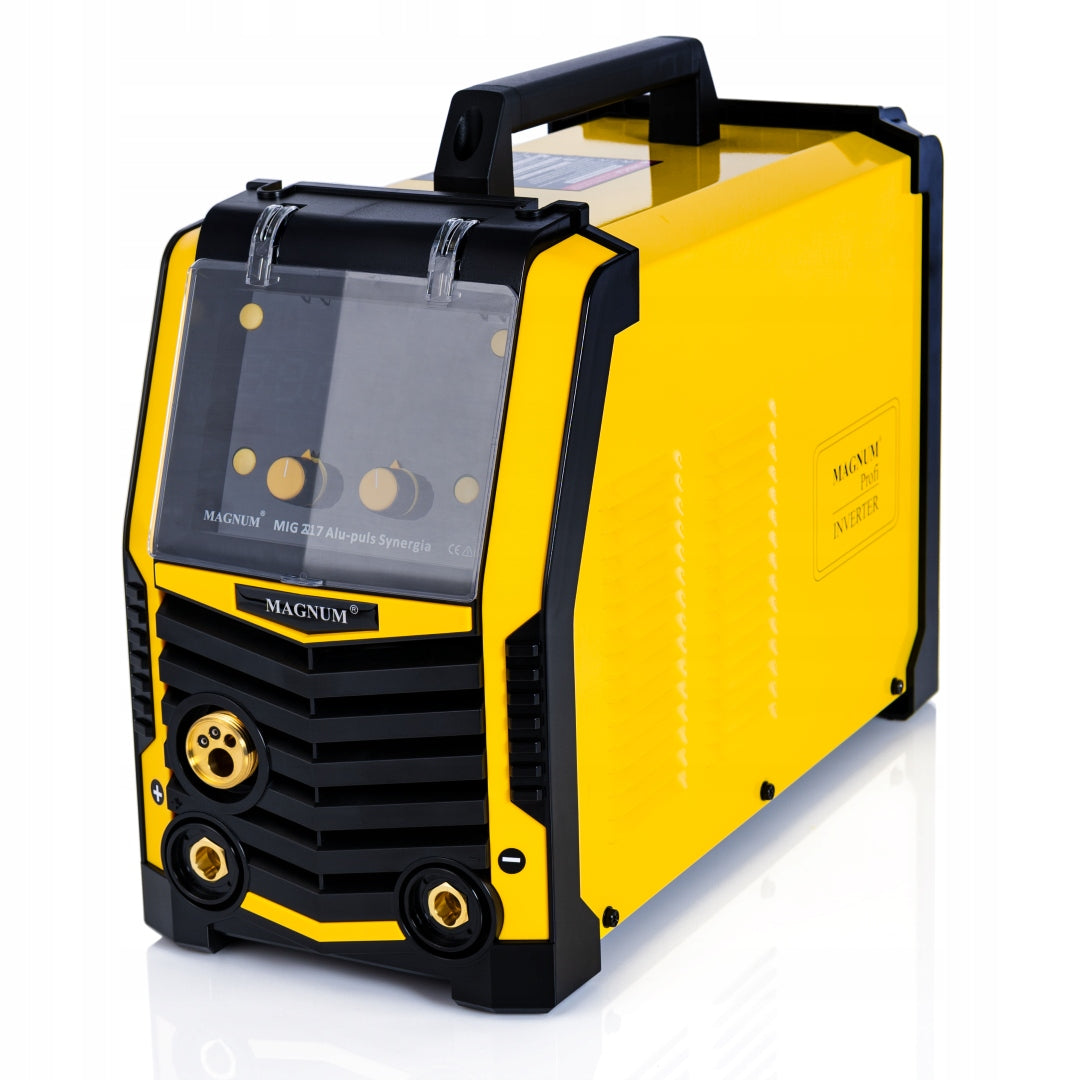

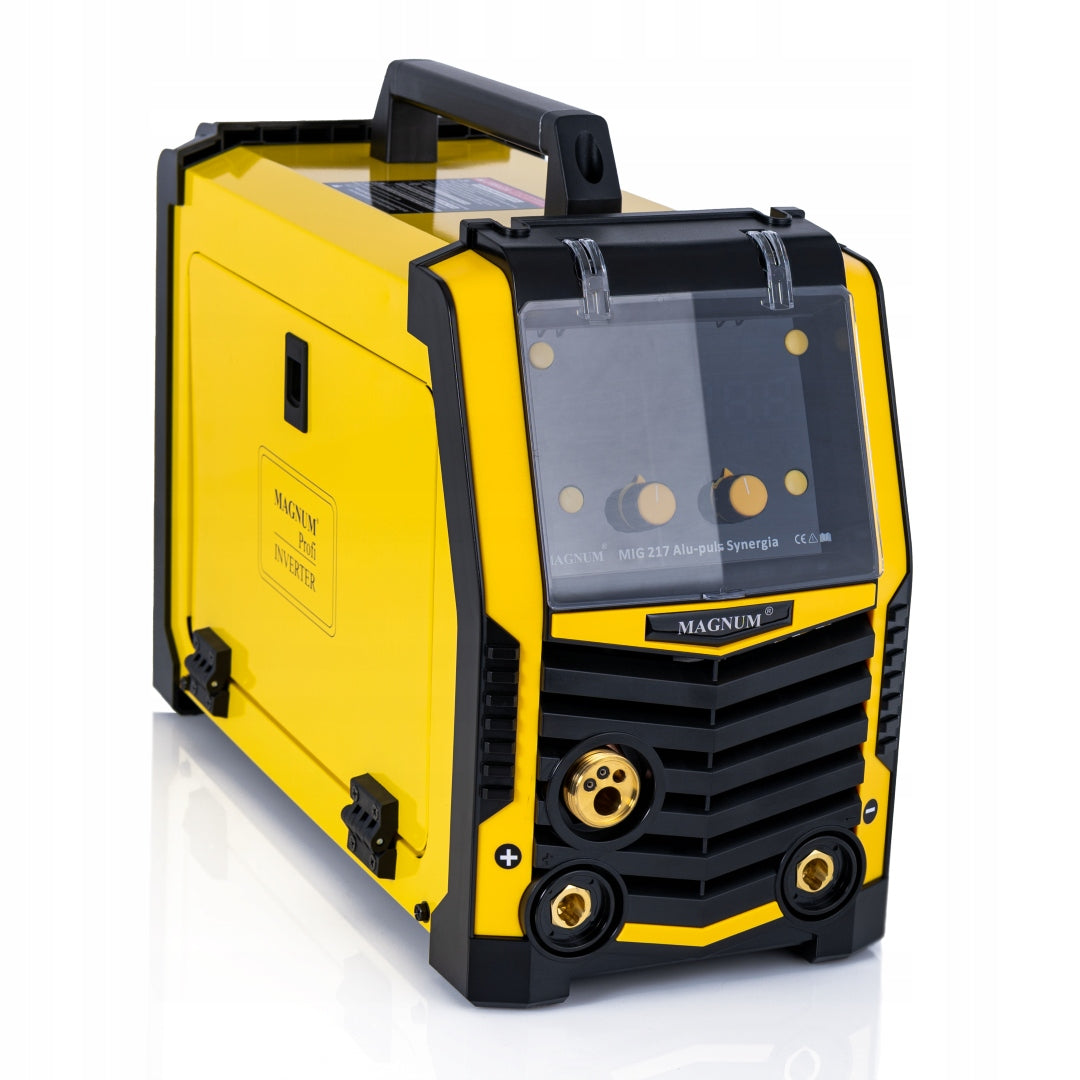

Inverterinis suvirinimo aparatas Magnum MIG 217 Synergy PULS 2T 4T TIG MMA ALU

Trumpai apie prekę

Prekė: Inverterinis suvirinimo aparatas Magnum MIG 217 Synergy PULS 2T 4T TIG MMA ALU. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: 217 ALSY

MIG, MAG, FLUX, TIG DC| Power supply: 230V | Synergy | Manufacturer: Magnum

MAGNUM MIG 217 ALU-PULS SYNERGY designed for welding steel and stainless steel. It is an ideal solution for both professionals and amateurs who value quality and comfort.

⏩Fe-CO2 - 0.6/0.8/0.9/1.0 - Welding of carbon steels, non-alloy steels.

⏩Fe-Ar+CO2 - 0.6/0.8/0.9/1.0 - Welding of carbon steels, non-alloy steels.

⏩SS-Ar - 0.8/0.9/1.0 - Welding of alloy steels, stainless steels.

⏩Flux-No Gas - 0.8/0.9/1.0 - Self-shielded wire welding.

⏩Al-Ar - 1.0/1.2 - Welding of aluminium and its alloys.

⏩CuSi-Ar - 0.8/1.0 - Copper welding and soldering.

⏩Al-Ar - 1.0 - Welding of aluminium and its alloys with a single current pulsation.

The device provides excellent control of welding parameters thanks to a synergistic program and the possibility of welding in MIG/MAG, MMA and TIG LIFT modes. Thanks to IGBT technology, welding machine is characterized by high efficiency and energy efficiency.

In MIG welding with so-called. With a pulsating arc, the end of the electrode wire melts accelerated, forming and peeling off metal droplets. The resulting welding arc and metal flow characteristics from the end of the wire to the welding lake, ensure better quality of the welded joint and less chipping. Pulsed MIG welding also reduces thermal deformations caused during welding.

• VRD (Voltage Reduction Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.
• Arc Force: facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.
• Hot Start: facilitates the ignition of the electrode by providing more welding current with each arc.

The power source was built on IGBT transistors providing a minimum of electromagnetic interference, small power losses in basic systems, enabling increased efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. The transport handle makes it easy to carry the device.

Stable feeding of welding wires of various types. Ability to work with longer MIG handles. Good welding parameters - better weld quality.

The device is equipped with a proven wire feeding mechanism that has been working in MIG/MAG devices for many years.

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Welding methods: MIG, MAG, MMA, FLUX, TIG DC LIFT
• Current taken from the mains: 20A (C)
• Idle Voltage: 64V
• Degree of protection: IP21
• Weight: 10kg

MIG/MAG welding parameters:

• Welding Current: 40 - 200A
• Welding voltage: 16 - 24V - smooth adjustment,
• Wire diameter: 0,6/0,8/0,9/1,0/1,2mm
• Wire spool weight: max 5kg
• 2T/4T welding mode: YES
• Wire Feeder: Professional 2R
• MIG/MAG welding polarity change: YES
• Synergy: Yes

MMA welding parameters:

• Welding Current: 30-160A Liquid Adjustment
• Idle Voltage: 68V

TIG welding parameters:

• Output Current: DC Constant
• Arch ignition: contact - Lift

• Welding machine MAGNUM MIG 217 Alu Pulse Synergy
• MIG MB 15 3m holder
• MMA Electrode Cable
• Bulk cable
• User manual
