Infraraudonųjų spindulių pirometras su termoporiniu jutikliu, -50+650°C

Trumpai apie prekę

Prekė: Infraraudonųjų spindulių pirometras su termoporiniu jutikliu, -50+650°C. Kategorija: Termometrai, pirometrai.

• Gamintojas: Wintact
• Modelis: WT323C

⭐ Original product: Pyrometer WT323C ⭐

⭕ Model: WT232C

⭕ Measurement range: -50~650°C

⭕ Emissivity regulation: 0.10 - 1.00

⭐⭐⭐⭐⭐

The device is equipped with a laser sight that allows precise targeting of the test point. The device uses good quality materials, and the ergonomic design improves the comfort of using the thermometer.

The backlit display allows you to work with your device in the dark. The pyrometer is equipped with an automatic shutdown function increasing savings in battery consumption. Additionally, it has UV backlighting to detect leaks of fluorescent substances

The pyrometer has an emissivity adjustment. Emissivity is the ability of a material to reflect an infrared signal emitted by a pyrometer. This allows you to measure more precisely.

➡ Multi-point laser pointer

➡ UV Backlight

➡ Temperature and humidity measurement

➡ Measurement of thermocouple type K

When choosing a full-fledged product, it is important that the purchased device comes from a reliable source. The multitude of offers of this type of devices on various services does not facilitate easy selection - what's more: It generates the impression that all devices are similar. When you choose an item from this offer, you are guaranteed:

✴ 100% originality – Our products come straight from the factory, without intermediaries. .

✴ New, full-value goods – Factory packed, directly from the in Poland, under full warranty.

✴ Calibration certificate on request – possibility to order a device with an official certificate confirming the accuracy of measurements.

✴ You buy without risk – guarantee of satisfaction, possibility of return.

✴ Professional advice and technical support – we know the product inside out and will be happy to help you choose or use it.

✴ The most important features of our pyrometer

• Original non-contact infrared thermometer with a temperature range of -50 to 650 degrees Celsius.
• Laser indicator - thanks to the laser sight, it is even easier to accurately measure the temperature of the surface we are interested in.
• Measurements of level - humidity, dew point along with detection of mold.

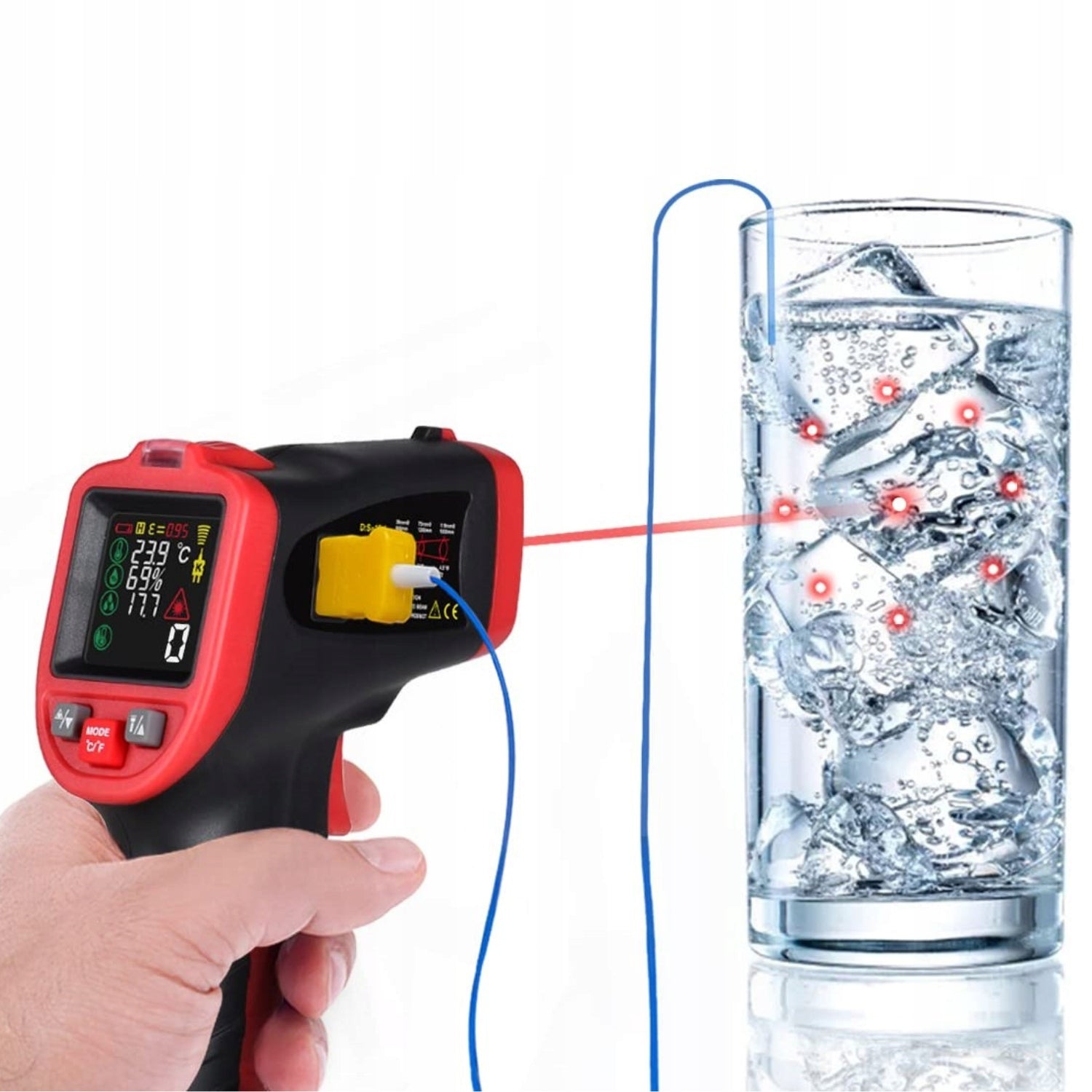

• Includes a handy thermocouple type K for contact measurements.
• The device has the function of recording up to 30 measurement results. This allows you to perform the analysis yourself without having to manually save the results every time.
• Emissivity - high conductivity materials, such as copper or aluminum, give off heat differently than insulators, so the device allows to set the appropriate emissivity in order to determine how the most accurate result.
• Ergonomic housing - facilitates comfortable work, while the good quality materials ensure durability of the housing and stable reading.
• Authorized distribution on Polish territory - full after-sales service, and assistance in the selection of the appropriate device.
• Instruction in Polish

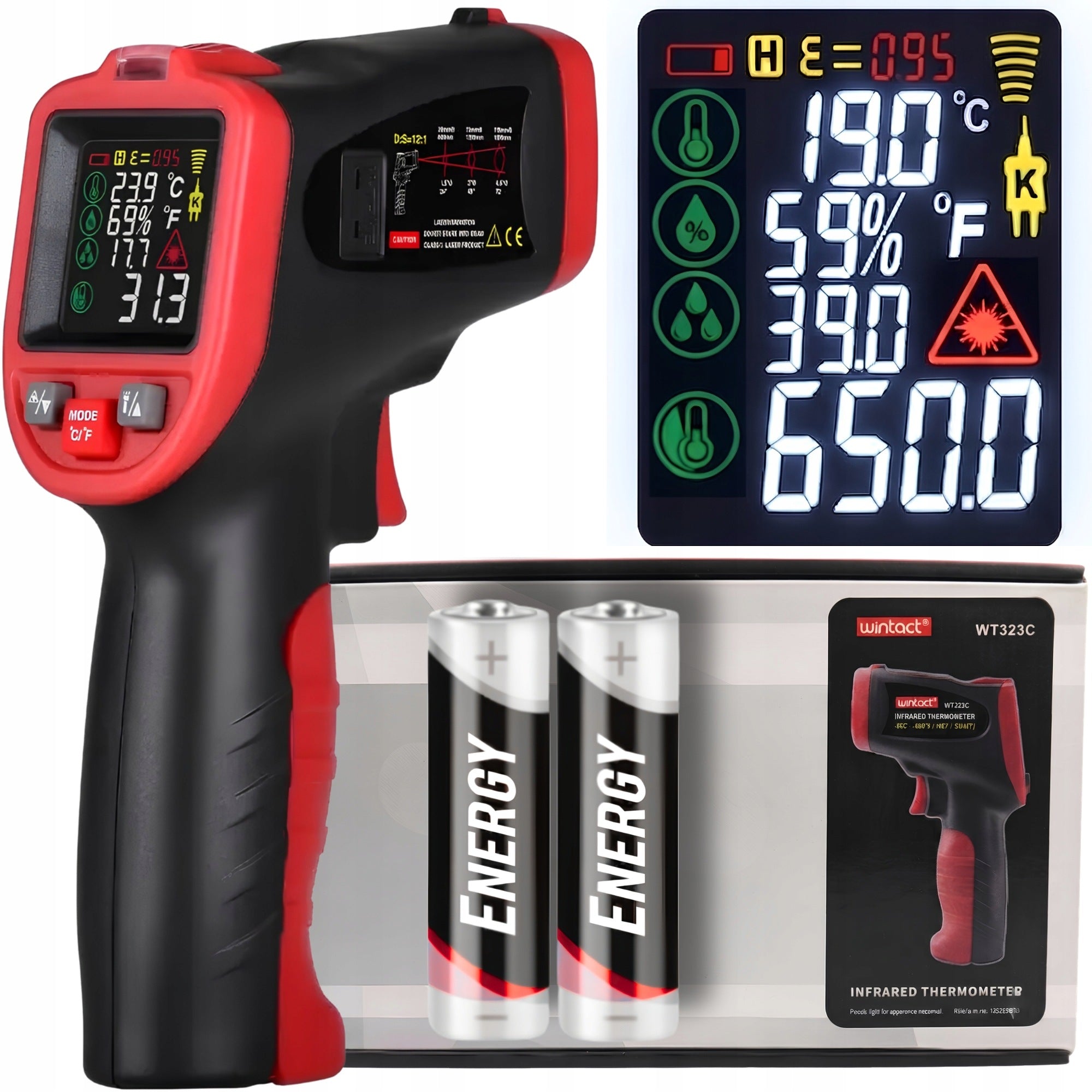

✴ Display (LCD)

• Type: digital LCD display with backlight, readable even in low light – bright numbers without the need for an additional lamp.
• Screen elements: m.in is displayed. SCAN symbol during measurement and HOLD after trigger release, low battery icon and other functions icon.
• Hold function: allows you to stop the result after releasing the trigger – you do not need to remember the value, because it stops on the screen itself.

Additional functions and operating modes of the device:

• MODE 1: mode for detecting potential mold points.
• MODE 2: Temperature difference measurement mode.
• MODE 3: Temperature measurement mode with thermocouple type K.
• MODE 4: Setting the emissivity.

In addition, the pyrometer offers a reading of maximum, minimum measured values. It is equipped with an automatic shutdown function after 30 seconds. without use.

✴ Application of the device

1. Automotive and machinery industry
2. Construction
3. Refrigeration industry
4. Food industry
5. Gastronomy industry

⚠ ATTENTION

The pyrometer is not a medical device, it is not designed to measure body temperature. The values indicated by him show the surface temperature, which in the case of the skin is different from the internal temperature of the body.

✴ Emissivity regulation – precision in all conditions

Many cheaper pyrometers have a constant emissivity, which causes errors when measuring on glossy or metal surfaces. WT323C allows for full adjustment from 0,10 to 1,00, so you can adjust the device to the test material.

This means that you will get a reliable result both on painted metal, as well as on raw aluminum or ceramic surfaces.

✴ Features of the device

• High quality.
• Ease of use.
• Proven brand.
• Precision of measurements.
• Ergonomic design.
• Illuminated display.
• Laser pointer.
• Auto off function (automatic shutdown).
• Good value for money.

✴ Power Source: 2 × AAA

✴ Unlimited laser range

What does that mean? You can measure the temperature of objects located very far away from you, maintaining a safe distance from threatening health or life of hot or cold objects. It is enough to direct the pyrometer towards the test object, the device will measure the temperature based on the infrared radiation emission of this object, and then read the measurement.

✴ Differences in measurements

Such differences are not unusual. It should be remembered that the greater the distance from the test object, the more difficult it is to aim at the object and keep the laser at one point. Objects have different emission capacity of infrared radiation, therefore, with pyrometers with such a function, the appropriate emissivity value should be set.

✴ Measurements of atmosphere and rooms

The pyrometer measures, reaching the stratosphere, showing a lower temperature. When directed to the clouds, the temperature rises because they reflect infrared radiation.

The air, warming up, becomes lighter and stays up. For this reason, when measuring rooms, the temperature at the floor will be lower than that at the ceiling.

When measuring, pay attention to the distance from the measured object. As the distance (D) from the measurement site increases, the test surface (S) increases. The ratio of distance to measurement area is 12:1. 2.

Field of view: Make sure the target is larger than the unit’s measurement location. The smaller the distance, the closer the target to the center. When accuracy is optimal, make sure the target is at least twice the measurement area.

a. Enabling the laser positioning status indicator

b. Temperature measurement unit

c. Thermocouple type K

d. Data Reading Indicator

e. Emissions

f. Data storage rate

g. Low power indicator

h. Ambient temperature value

i. Ambient humidity value

j. Dew point temperature value

k. Surface temperature value (infrared temperature measurement)

✴ Description of buttons

(1) - Measuring switch (trigger)

• Pull the trigger to display the temperature value, and “SCAN” will appear on the screen at the same time; when the trigger is released, a temperature reading is displayed and the data is automatically preserved. The device turns off automatically after about 30 seconds of operation.

(2) - Laser switch/button down

(3) - Mode - change mode

• Mode change button/temperature unit change button Press the MODE button to switch between four modes: MODE 1, MODE 2, MODE 3, MODE 4.
• E. Switching temperature units Press and hold the trigger, then press this button to switch units.

(4) UV light button / up button

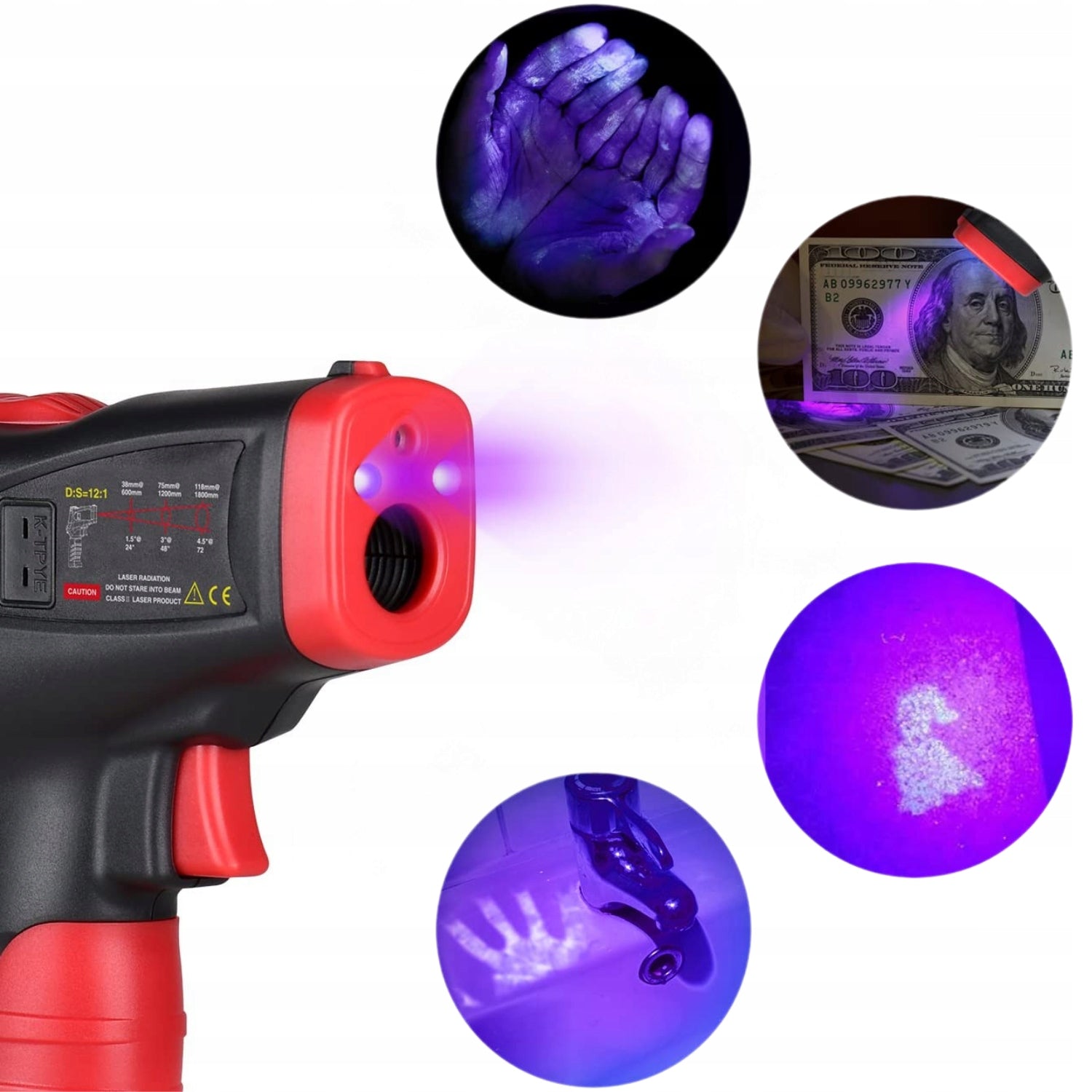

• Press this button to turn on/off the UV light that can be used for fluorescent leak detection.

(5) Alarm light indicator

(6) UV light

(7) Thermocouple socket type K

(8) Infrared temperature measurement area

(9) Laser (assisted positioning)

(10) Temperature / moisture measurement area

(11) Battery door

A. MODE 1: Mold alarm mode In this mode, the current ambient temperature, humidity, surface temperature are displayed. Pull the trigger to measure the surface temperature. NOTE: The instrument decides whether the measured object is easy to mold based on the surface temperature of the object and the dew point temperature of the current environment. The indicator light turns green, which means normal condition. If the measured object tends to mold, the lamp turns yellow; if mold already appears, it turns red.

B. MODE 2: Temperature difference alarm mode In this mode, press the trigger to display the current ambient and surface temperature of the measured object. When the surface temperature of the object is close to the ambient temperature, the indicator light turns green; if it is much higher or lower than the ambient temperature, the indicator light turns red. Otherwise, the lamp will turn yellow.

C. MODE 3: Type K thermocouple temperature measurement mode In this mode, the temperature of the type K thermocouple is measured and the thermocouple icon is displayed. Before measuring, insert the thermocouple probe into the socket. Pull and hold the trigger, the thermometer displays both surface temperature and tupu K thermocouple temperature.

D. MODE 4: Emissivity setting mode In this mode, press the up/down button to set the emissivity in the range of 0,10~1,00, reducing or increasing the value.

✴ Technical parameters:

1. Temperature measurement

• Scope: -50°C ~ +650°C (-58°F ~ +1202°F),
• Resolution: 0,1°C,
• Accuracy: 0ºC ~ 650ºC : +/- 1.5ºC or +/- 1.5%; -50ºC ~ 0ºC : +/- 3ºC

2. Ambient temperature measurement and dew point:

• Ambient temperature measurement range: -20°C~ 60°C (-4°F~ 140°F)
• Accuracy of temperature measurement. Ambient: +/- 1ºC (1ºF)
• Dew point temperature measurement range: -10°C~ 50°C (14°F~ 122°F)
• Accuracy of temperature measurement dew point: +/- 1ºC (1ºF)

3. Temperature measurement with thermocouple probe:

• Measurement range of the probe included in the set: 0 ~250°C (300°C for instantaneous readings)
• Maximum measuring range using another thermocouple: 40°C ~500°C (40°F ~ 932°F)
• Measurement error: maximum +/- 2,5 °C (or 0,75% of measured value)
• Response time: < 10s

4. Measurement of relative humidity:

• Accuracy: +/- 5% RH

5. Other technical parameters of the pyrometer:

• Repeatability: 1% or 1°C
• Response time: 500mSec
• Spectral response: 5~14um
• Emissivity: 0.10 ~1.00 adjustable (0.95 default)
• Measurement distance ratio: 12:1
• Working temperature: 0°C ~ +40°C (32 ~ 104°F)
• Working humidity: 10~95% RH
• Storage temperature: -20°C ~ +60°C (-4 ~ +140°F)
• Power supply: 3V (2x 1.5V AAA battery)
• Laser indicator: multipoint (exactly indicates the area and diameter of the measurement,
• Light: 2 x UV diode (facilitates the location of leaks).
• Laser: 9 points (center point + 8 around the circumference of the measuring cone)
• Dimensions: 108 x 49 x 177 mm
• Weight: 202 g (including batteries)

✴ Contents of the set:

1. Benetech Wintact WT323C,

2. thermopara probe,

3. User manual in Polish!

4. Original packaging,

5. 2 x 1.5V AAA batteries.

✴ Certificates of calibration / Certification

At the customer’s request, we also provide a factory calibration certificate*, translated into English. In order to avoid delay in the execution of the order, the certificate is sent within about 7 working days in electronic form.

All offered devices of the Benetech Wintact brand, meet the relevant standards and directives necessary for their introduction into use in the EU.

*Calculation certificate, is a free, optional document and therefore is not sold in this offer.
