Hidraulinis automobilio domkratas REDATS LS-320, 2 t

Trumpai apie prekę

Prekė: Hidraulinis automobilio domkratas REDATS LS-320, 2 t. Kategorija: Dėmių valikliai (varlytės).

• Gamintojas: Redats
• Modelis: 07-01-90

• Producer: REDATS
• Max. Lifting capacity: 2 tons
• Height at rest: 11,5 cm
• Working height: 30 cm
• Handle length: 37,5 cm
• Weight: 6,8 kg
• 360° swivel saddle
• Metal wheels
• Swivel casters
• Compliance with Directive 2006/42/EC
• Dimensions (L x W x H): 42 cm x 19 cm x 13,5 cm
• Catalogue Index: 07-01-90

This frog lift is ideal for working with passenger cars - its lifting capacity (2T) will allow for safe and comfortable operation with most passenger cars.

Ease of work

The parameters of this lift allow you to easily place it under the chassis of your vehicle.

Comfort of action

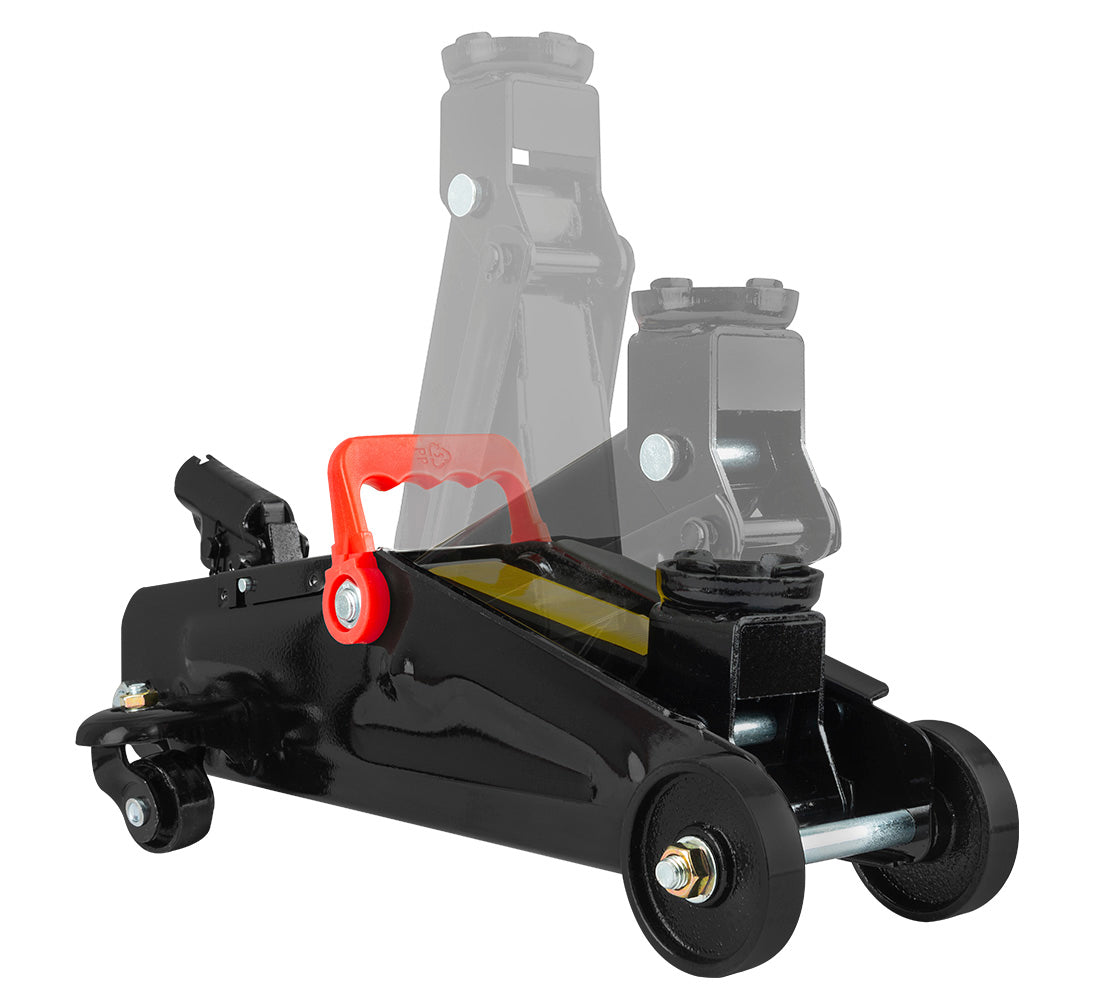

Lifting in the range of 115-300 mm will allow for comfortable operation with most passenger cars.

Sturdy construction

The structure of this lift is based on thick steel, which provides it with excellent resistance during many years of use - there is no risk of rust or damage.

Practical use

Light weight and practical handle will allow you to easily position the lift in any place.

Remember about safety

The device uses a single-acting actuator. It is designed exclusively for lifting the load up/pressure one way. The actuator does not have safety latches that could support the weight.

What does this mean for you?

Once the load is lifted, additional support should be provided as soon as possible. The device cannot be used as a support for weight.

Why shouldn't the weight rest on the actuator?

The weight of the lifted element held in the raised position will lead to inevitable wear of the actuator. This can lead to the actuator leaving. Pick up the car and support it on the mare.

Freedom of manoeuvring

With properly designed wheels, this lift can be easily positioned at any point under the car. Their design makes it much easier to maneuver this tool. Their large diameter makes it easy to control the lift even on rough surfaces.

Durability for years

The lift is equipped with durable metal wheels that will not break under the weight of the car, even during long workshop operation.

Better than market proposals

The frog lift from REDATS is based on a solid frame, thanks to which it can easily withstand even many seasons in your workshop / vulcanization.

FAQ

Will I slide this lift under a lower passenger car?

Yes, the minimum lift height is 115 mm. Thanks to this, you can easily drive it to most people.

Is the 2T lifting capacity enough to lift the front or rear of the car?

Yes, the 2 ton load capacity is enough to work with most passenger cars. This is a model for these cars.

Will it be difficult to maneuver on a rough floor?

There shouldn't be a problem with that. The lift has metal swivel casters, so you can easily position it where you need it. However, remember to use it on a hard, even ground.

Can I leave the car raised on the frog itself?

No, this lift is only for lifting. Once the car is up, immediately support it on the mare.

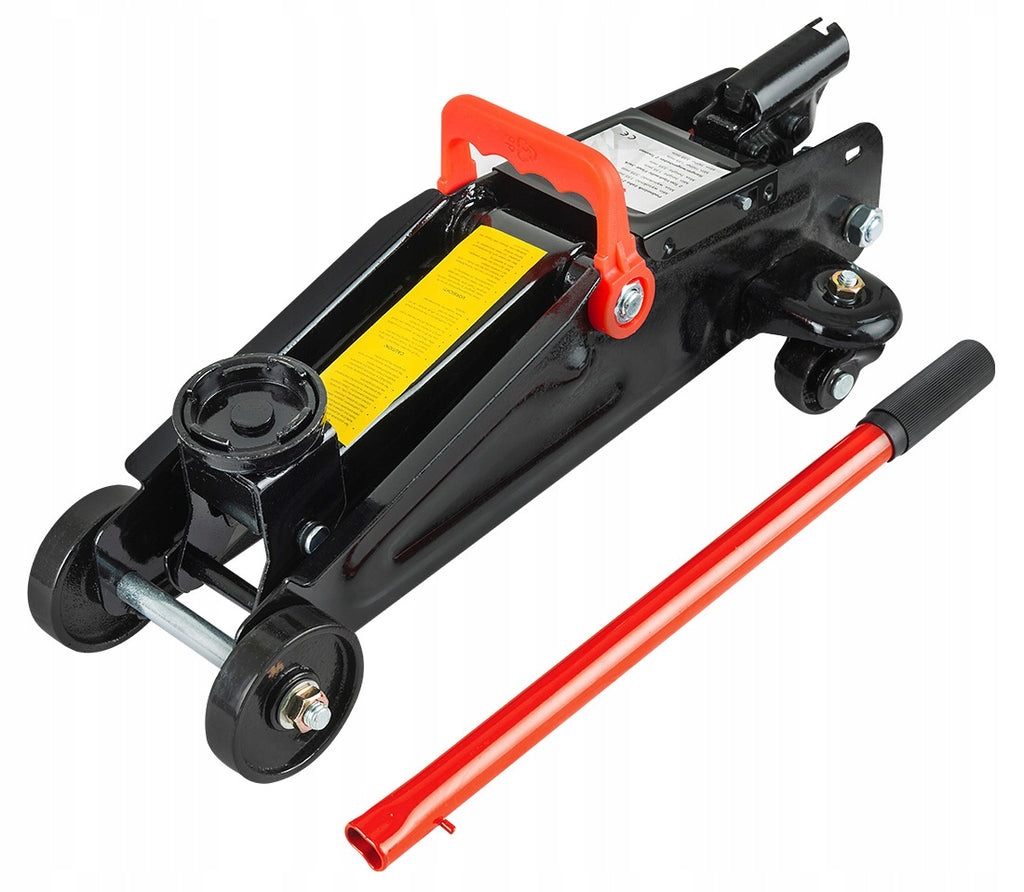

Can the lever be removed?

Yes, the lever is removable. This makes it easier to hide the lift after work and takes up less space.

Do I need to change or add oil?

Yes, the oil should be changed once a year. For replenishment or replacement, we recommend using hydraulic oil - use HL-15, HL-32 or HL-46 hydraulic oils. It is forbidden to use engine oil, ATF, overworked oils, brake fluids, solvents or water. Do not mix the oil with other liquids.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	6.8 kg
Parametry	Brand	Redats
Parametry	Manufacturer code	07-01-90
Parametry	EAN (GTIN)	5902730115151
Parametry	Customs tariff code	84254200
Parametry	Lifting capacity	2000 kg
Parametry	Minimum lifting height	115 mm
Parametry	Maximum lifting height	300 mm
