Guminis 6 mm saviklijuojantis garso izoliacijos kilimėlis

Trumpai apie prekę

Prekė: Guminis 6 mm saviklijuojantis garso izoliacijos kilimėlis. Kategorija: Garso izoliacijos elementai.

• Gamintojas: Bitmat
• Modelis: K6s

Self-adhesive waterproof foam, soundproofing rubber K6s from Bitmat

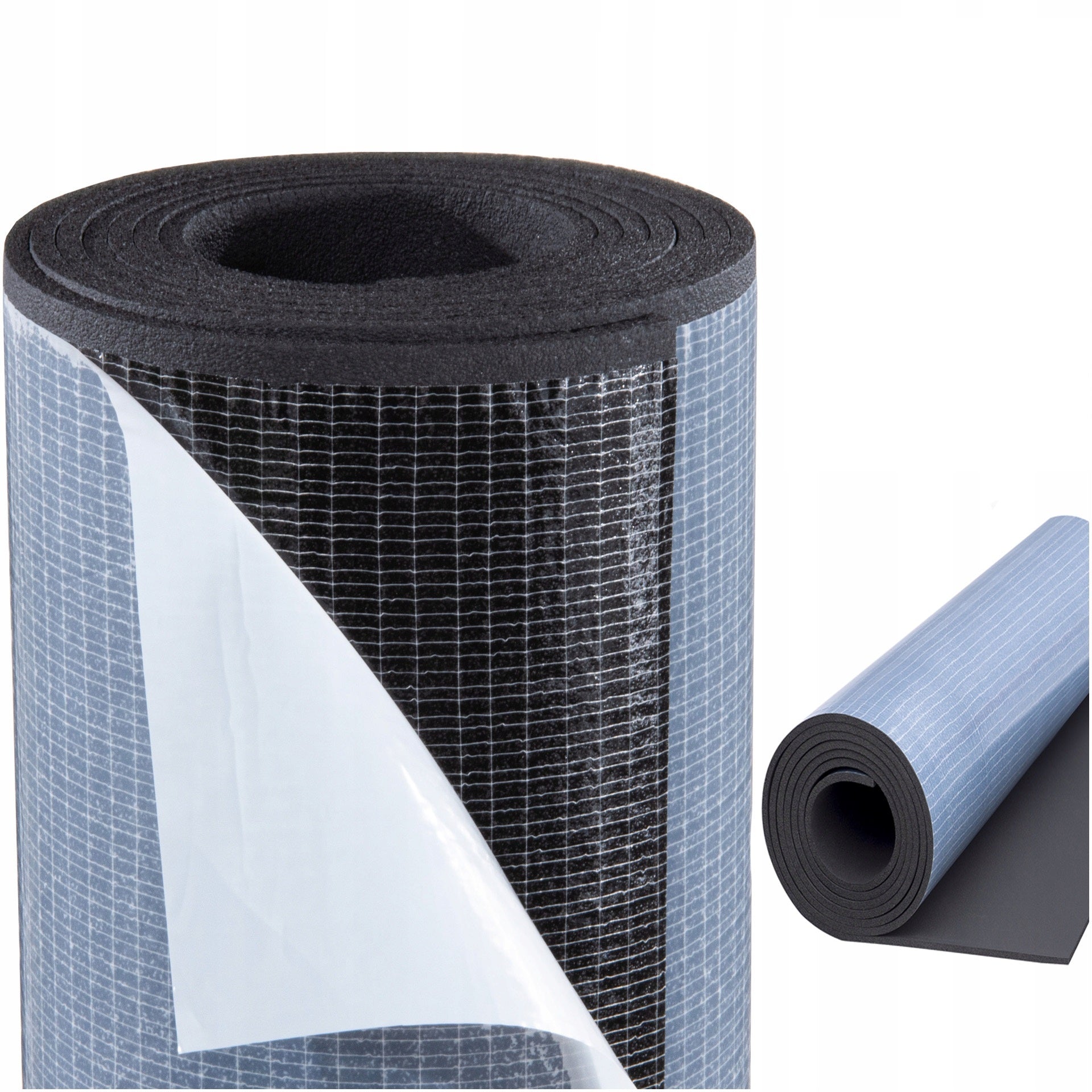

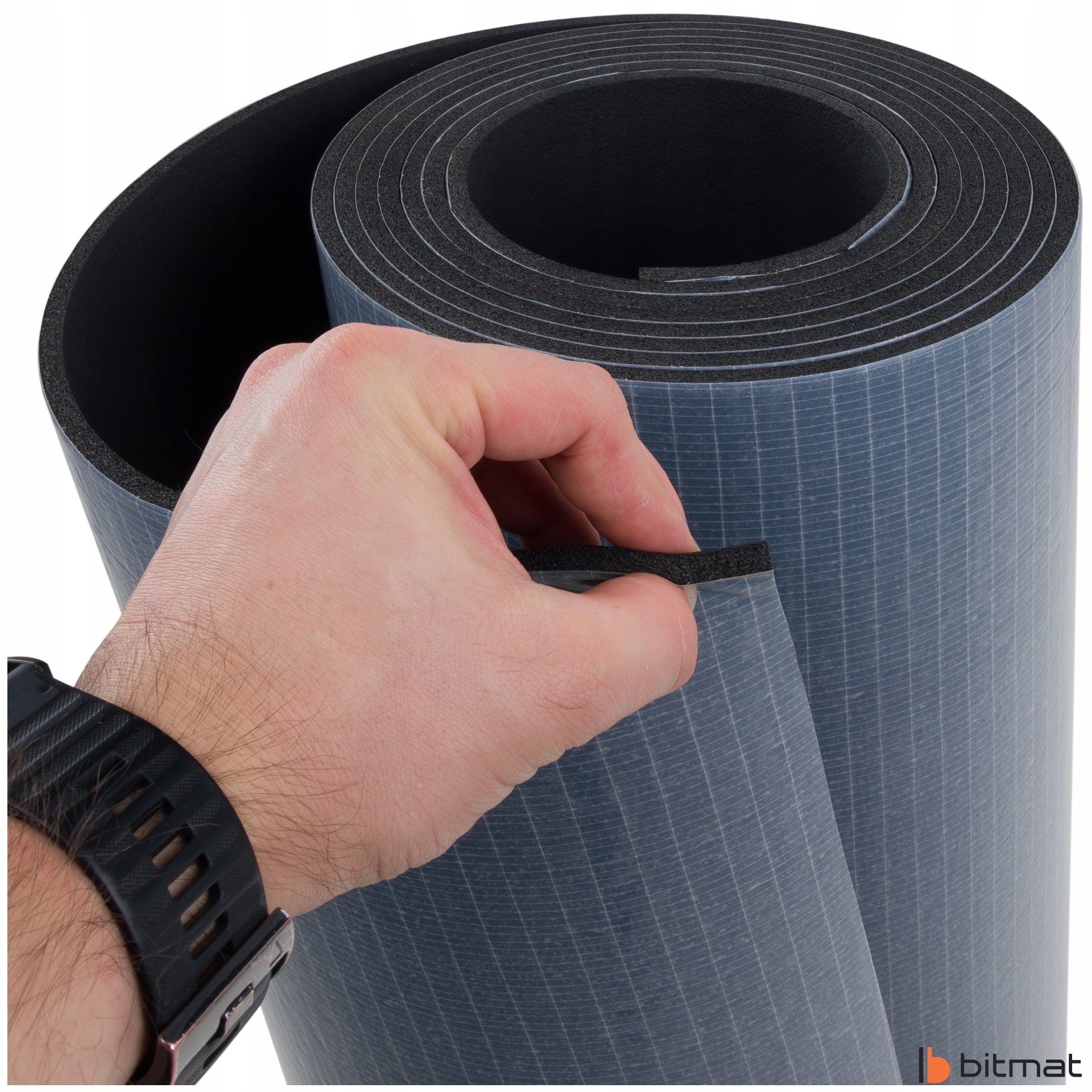

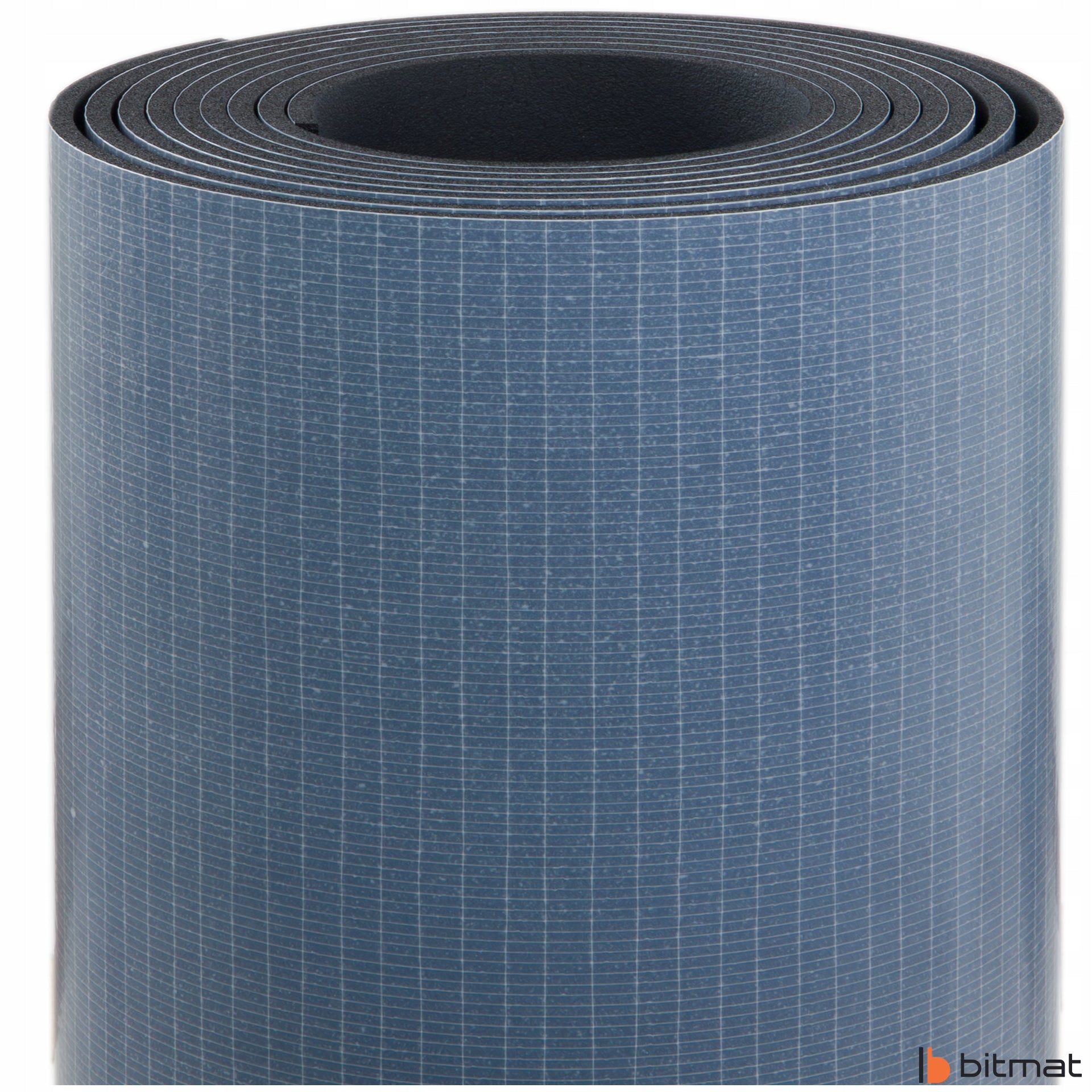

K6s Bitmat soundproofing mat – rubber insulation foam with closed cell structure with the highest quality layer of strong adhesive, has high acoustic and insulation properties.

The material does not absorb moisture, is resistant to chemicals, creates an acoustic barrier and perfectly absorbs noise and isolates from temperature (thermal).

Thickness: 6 mm

Raw material tested by PIMOT — Automotive Industry Institute

1 piece = 50 × 100 cm

2 pieces = 100 × 100 cm = 1 m2

3 pieces = 150 × 100 cm

4 pieces = 200 × 100 cm = 2 m2

5 pieces = 250 × 100 cm

6 pieces = 300 × 100 cm = 3 m2

7 pieces = 350 × 100 cm

8 pieces = 400 × 100 cm = 4 m2

9 pieces = 450 × 100 cm

10 pieces = 500 × 100 cm = 5 m2

11 pieces = 550 × 100 cm

12 pieces = 600 × 100 cm = 6 m2

13 pieces = 650 × 100 cm

14 pieces = 700 × 100 cm = 7 m2

16 pieces = 800 × 100 cm = 8 m2

.....

28 pieces = 1400 × 100 cm = 14 m2

30 pieces = 1500 × 100 cm = 15 m2

We sell foam from a roll with a width of 100 cm.

Application:

• Construction: ventilation ducts, insulation of buildings, silencing of walls and ceilings.
• Automotive: car silencing, car audio, thermal insulation, boats, planes.
• Industry: soundproofing of machines, compressors, aggregates.

High damping foam designed for use in a wide temperature range from -50 to 85°C

It does not shrink or oxidize unlike polyurethane materials. It has the best insulation properties and loss of acoustic waves.

Adequate density and cell structure provides a wide spectrum of suppressed frequencies, and the material from which it is made retains its damping parameters at both low and high temperatures.

No heating required for installation.

Rubber mat with a layer of strong adhesive K6s with a closed cell structure, can be used in places where moisture is present (does not absorb water), has the best acoustic and insulation properties.

The material is resistant to oils and creates a thermoacoustic barrier, which excellently absorbs noise.

Advantages of soundproofing foams:

• High sound insulation
• High thermal insulation
• High resistance to external factors, salts and bases, oils and some acids
• Easy installation, strong adhesive
• High density provides a wide spectrum of attenuated frequencies
• Does not oxidize, does not emit harmful substances for health
• Has additives to reduce flammability
• The structure of foamed rubber also provides excellent insulation

What characterizes our marshmallows?

• They have the highest quality strong adhesive on the technical mesh, so that the adhesive does not dry out and lasts longer higher temperatures
• Manufactured are in the EU and have the necessary research and documents m.in. CE
• The composition of the foam after many years of testing is optimally selected for the most effective silencing
• Only our foams are signed with the Bitmat brand
• They do not emit toxic and unpleasant odors
• The product has a hygiene certificate!
• They have been tested in PIMOT for noise isolation

First, you should stick on the sheet butyl mat from the AB series, mapping the shape of the sheet. Butyl mats absorb vibration and create a barrier to noise. The second layer is K6s foam from Bitmat — soundproofing rubber rubber with a strong adhesive that insulates and absorbs noise.

Example number of butyl mats and rubber foams needed to soundproof the car*:

• Front pair of doors: 2 m2 butyl mat and 1 m2 rubber foam 6 mm
• Rear pair of doors: 1,5 m2 butyl and 1 m2 rubber foam 6 mm
• Luggage compartment with wheel arches: 3 m2 butyl mat and 3 m2 rubber foam 6 mm
• Floor with engine compartment: 3,5 m2 butyl mat and 3,5 m2 pieces of 6 mm rubber foam
• Roof: 2 m2 butyl mat and 2 m2 pieces of 6 mm rubber foam

*Quantities may vary depending on the type/model of the car.

The pictures show how the mat can be used.

Technical data:

• Thickness: 6 mm
• Weight 1 m2: Not more than 1 kg
• Density: 50-60 kg/m3
• Water absorption: maximum 0.1 %
• Temperature range: -50 °C to 85 °C
• Flammability class: B s3 d0, UL94 V-0
• Meets ISO3795 standard
• Acoustic insulation: ~ 40 dB
• Closed cell structure
• Color: Black
• pH: Neutral
• Reaction to fire: Self-extinguishing, non-creating burning drops, non-spreading fire
• Corrosion resistance (DIN 1988): Meets the requirements
• Compliant with CE standards
• Resistance to fungi and bacteria (VDI 6022): Meets requirements
• Hygienic Certificate No. 149/322/149/2025
• Health Aspects: Does not contain dust or fibers. Does not contain heavy metals (cadmium and lead)

Assembly in cars:

• Surface should be cleaned and degreased
• Cut the right piece of mat
• Peel off the adhesive protection film and press against the soundproofed surface. Before applying the foam, a butyl mat should be applied.

The price is for 1-piece K6s rubber foam (with glue) with dimensions:

length 50 cm, width 100 cm, thickness 6 mm
