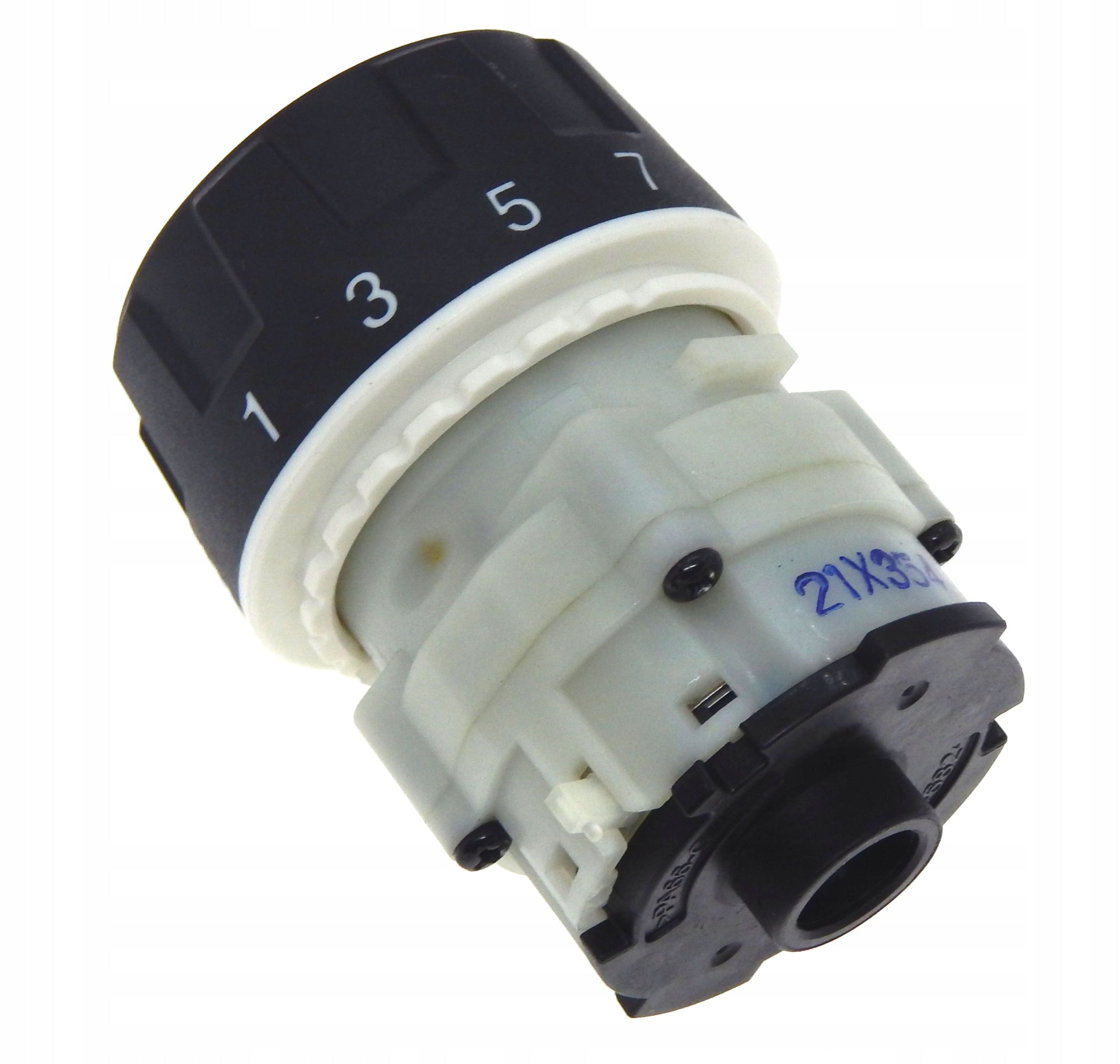

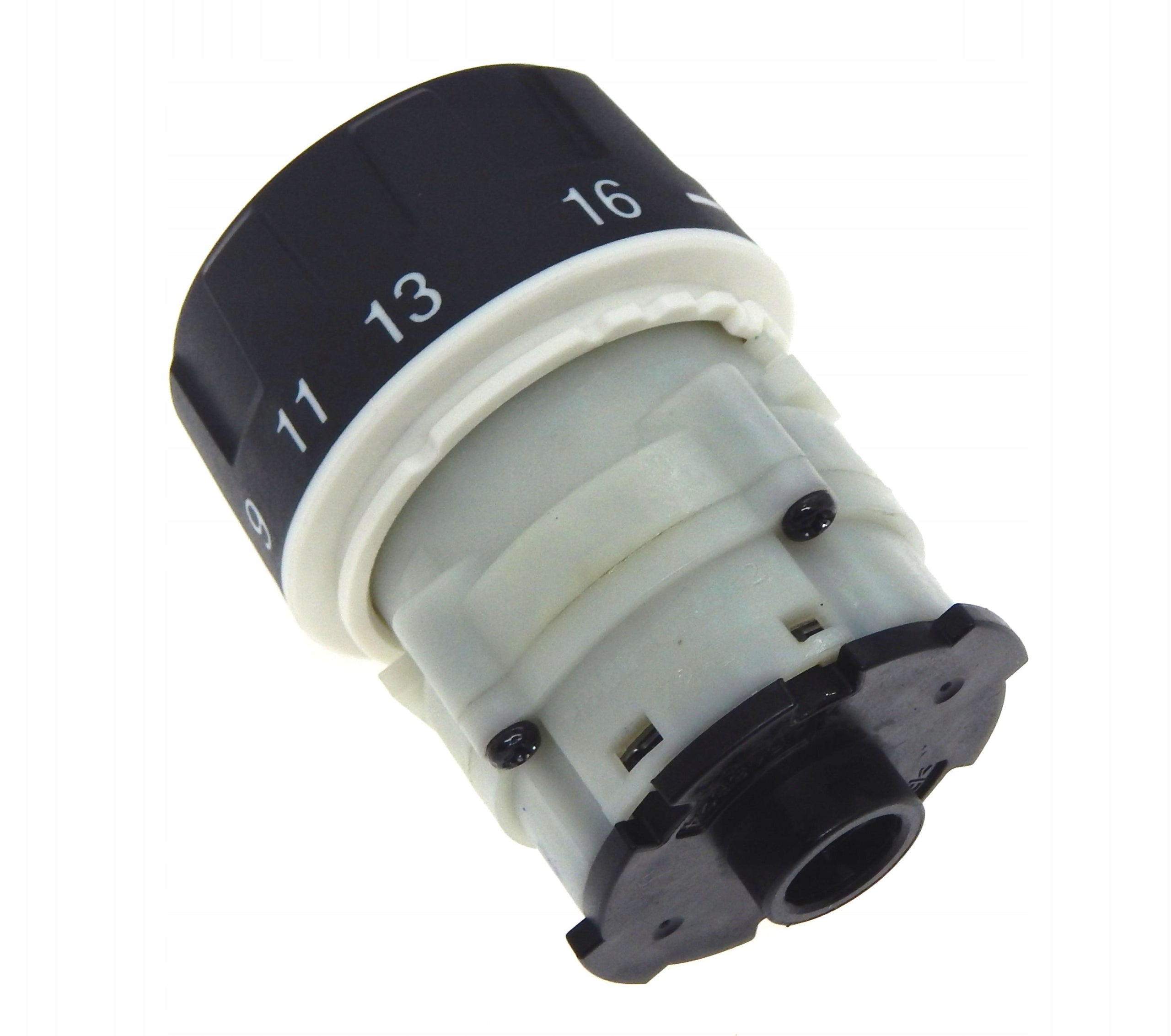

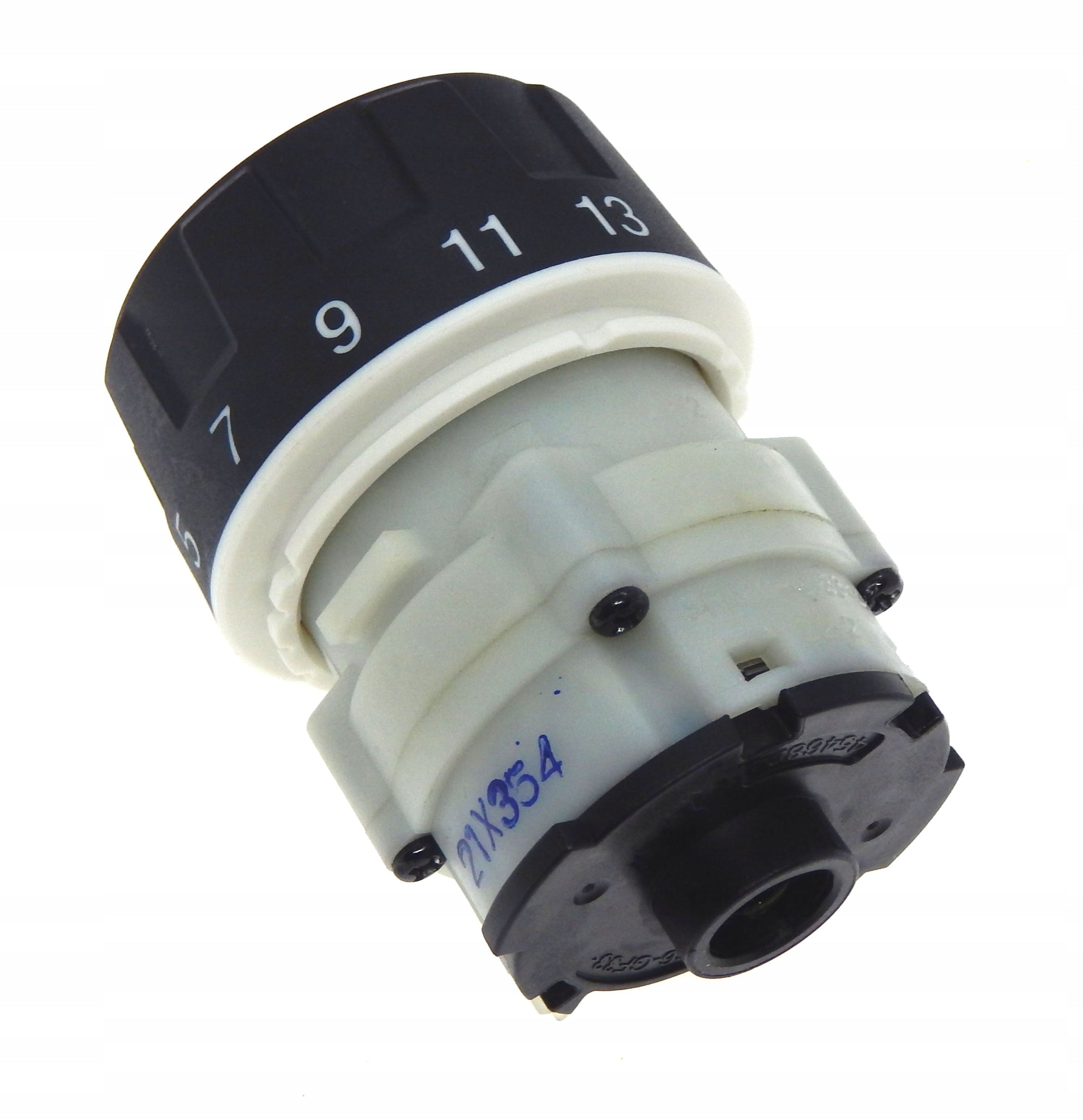

Gręžtuvo Makita DDF480 DDF470 transmisija

Trumpai apie prekę

Prekė: Gręžtuvo Makita DDF480 DDF470 transmisija. Kategorija: Įrankių rinkiniai.

• Gamintojas: Makita
• Modelis: 126354-8 d

/ Makita transmission for cordless drill - screwdriver DDF480

• Manufacturer: Makita
• Manufacturer code: 126354-8
• Position in diagram: 14 - DDF480

Application

Battery drill/driver

• DDF480
• DDF470

Table of parts for DDF480

Item in diagram, Catalog No., Description, Quantity

001 ; 187714-9 Housing set. ; 1

C10 ; 263005-3 Rubber stick 6 ; 2

002 ; 814X02-2 Nameplate DDF480 ; 1

003 ; 266429-2 Self-tapping screw with thick head 3X16 ; 9

004 ; 419250-0 Leverage ; 1

005 ; 650710-5 Switch C3JW-4B ; 1

006 ; 619331-2 Shredding blade ; 1

007 ; 629999-6 Stayon ; 1

008 ; 620244-2 Led circuit ; 1

009 ; 643860-3 Clamp ; 1

010 ; 126180-5 Leverage ; 1

C10 ; 233438-6 Pressure spring 4 ; 2

011 ; 232182-2 Plate spring ; 1

012 ; 251468-5 Flat countersunk screw with groove M6X22 ; 1

013-1 ; 766027-7 Self-clamping drill chuck 13 ; 1

014 ; 126354-8 Transmission unit ; 1

015 ; 266786-8 Self-tapping screw with flat-lens head 2X10 ; 4

016 ; 620245-0 Controller ; 1

017 ; 687464-1 SUPPORT ; 1

018 ; 424517-3 CUSHION ; 1

019 ; 142263-3 Indicator panel set. ; 1

021 ; 187714-9 Housing set. ; 1

C10 ; 263005-3 Rubber stick 6 ; 2

A01 ; 251314-2 Mushroom head screw M4X12 ; 1

A02A ; 346317-0 Hook ; 1

A02B ; 346317-0 Hook ; 1

A02C ; 346449-3 Hook ; 1

A03 ; 784637-8 +- BIT 2-45 ; 1

A04A ; ***DC18RC DC18RC FAST CHARGER ; 1

A04C ; ***DC18RC DC18RC FAST CHARGER ; 1

A05-2C ; 197254-9 Rechargeable battery set BL1820B ; 2

A05-3A ; 197265-4 Rechargeable battery set BL1840B ; 2

A06A ; 450128-8 Battery cover ; 1

A06C ; 450128-8 Battery cover ; 1

A07A ; 158597-4 Plastic housing set ; 1

C10 ; 324679-6 SHAFT ; 1

C20 ; 417724-5 Latch ; 2

C30 ; 419216-0 Handle ; 1

A07C ; 158597-4 Plastic housing set ; 1

C10 ; 324679-6 SHAFT ; 1

C20 ; 417724-5 Latch ; 2

C30 ; 419216-0 Handle ; 1
