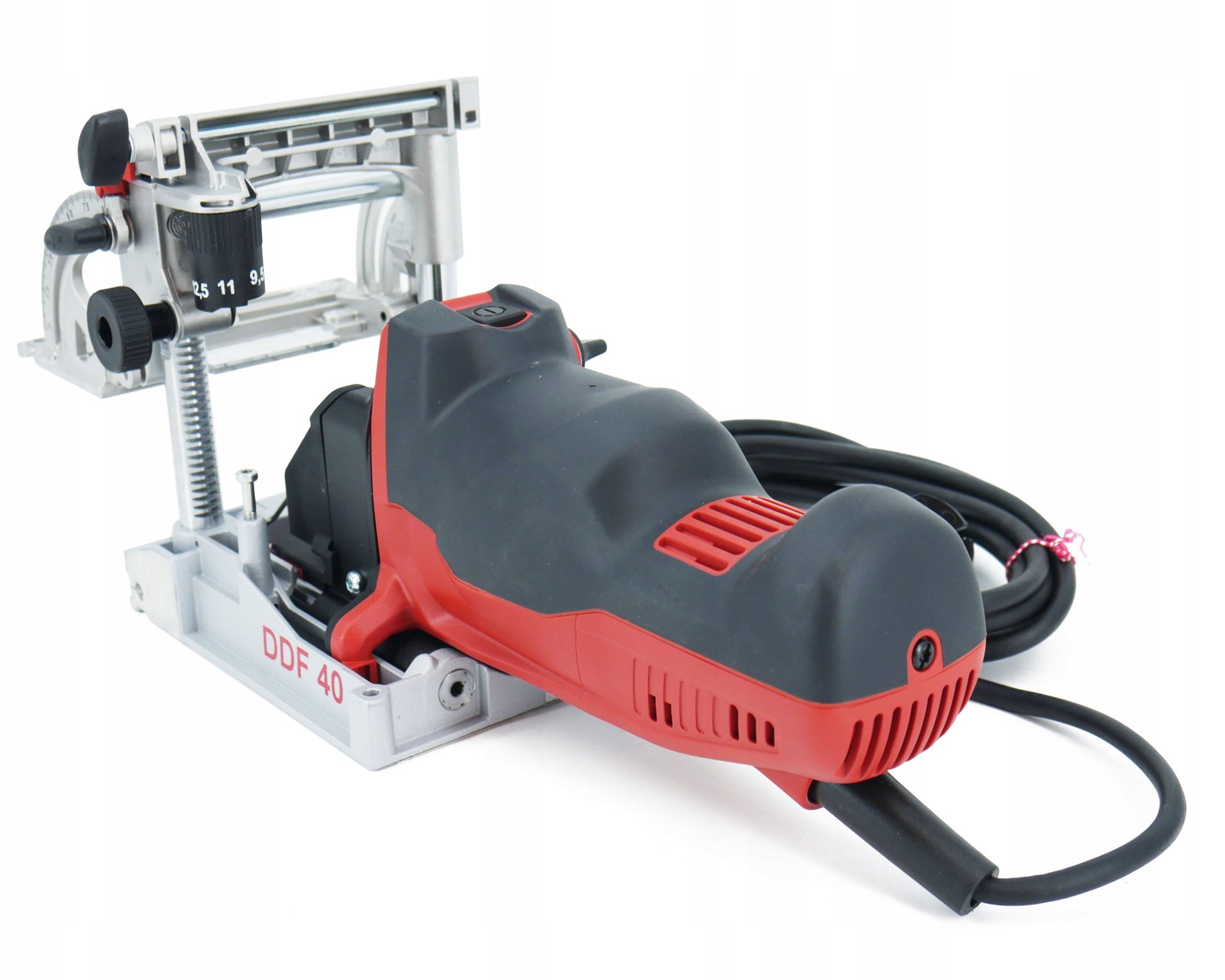

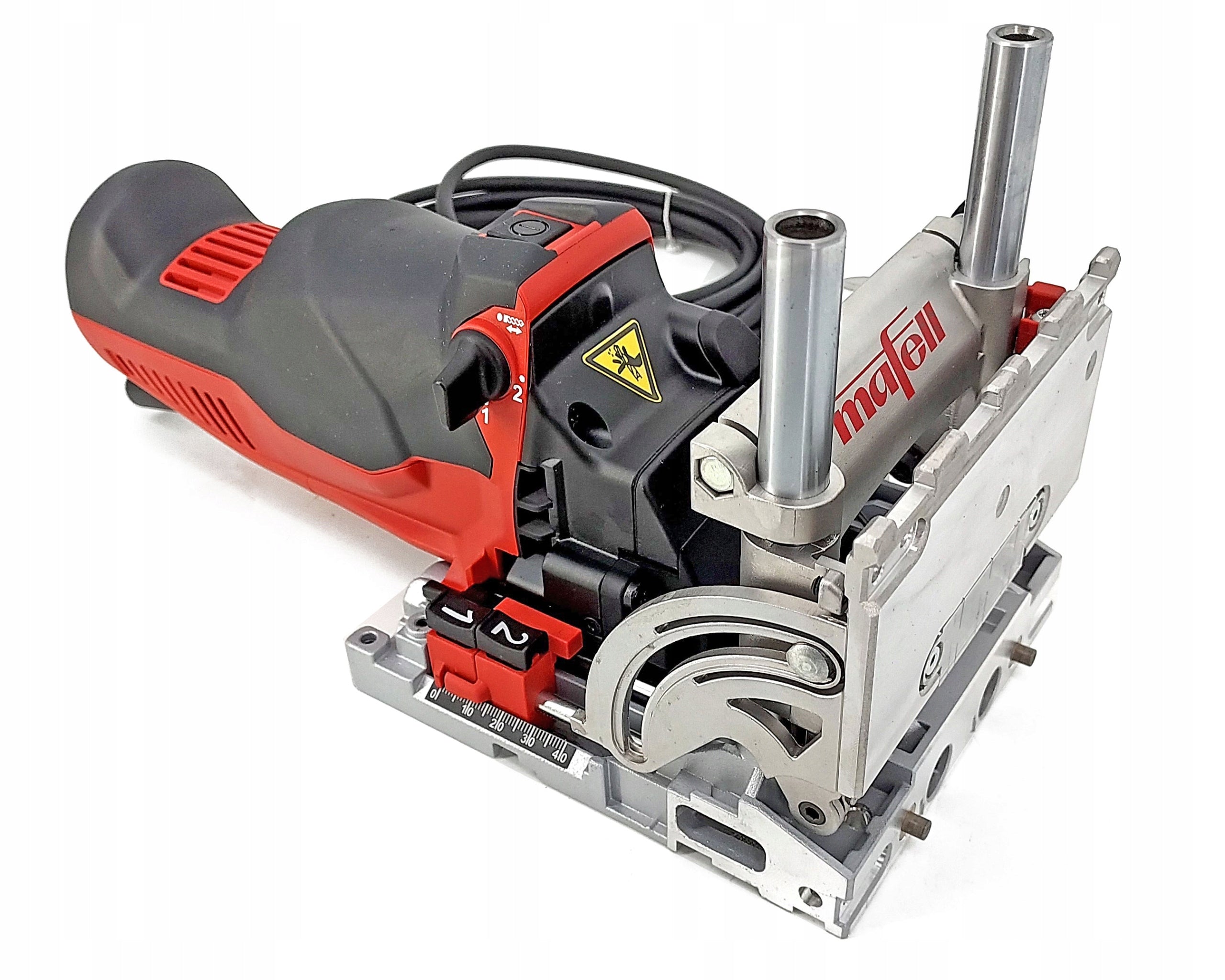

Gręžtuvas DDF 40 MaxiMAX, T-MAX sistema

Trumpai apie prekę

Prekė: Gręžtuvas DDF 40 MaxiMAX, T-MAX sistema. Kategorija: Frezavimo staklės.

• Gamintojas: Mafell
• Modelis: 918626

The subject of the sale is:

DDF 40 MaxiMAX, 918626

Technical data:

• Universal motor 230 V~, 50 Hz
• Power consumption (normal load) 900 W
• Drilling depth 0 – 40 mm
• Drill bit spacing 32 mm
• Angle range 0 – 90°
• Max drill diameter 12,2 mm
• Min drill diameter 3 mm
• Tool holder diameter 8 mm
• speed idling speed 8000 1/min
• Diameter of the chip extraction nozzle 29 mm
• Weight without power cord 2,8 kg
• Dimensions (W) x . debt. x H ) 145 x 300 x 164 mm

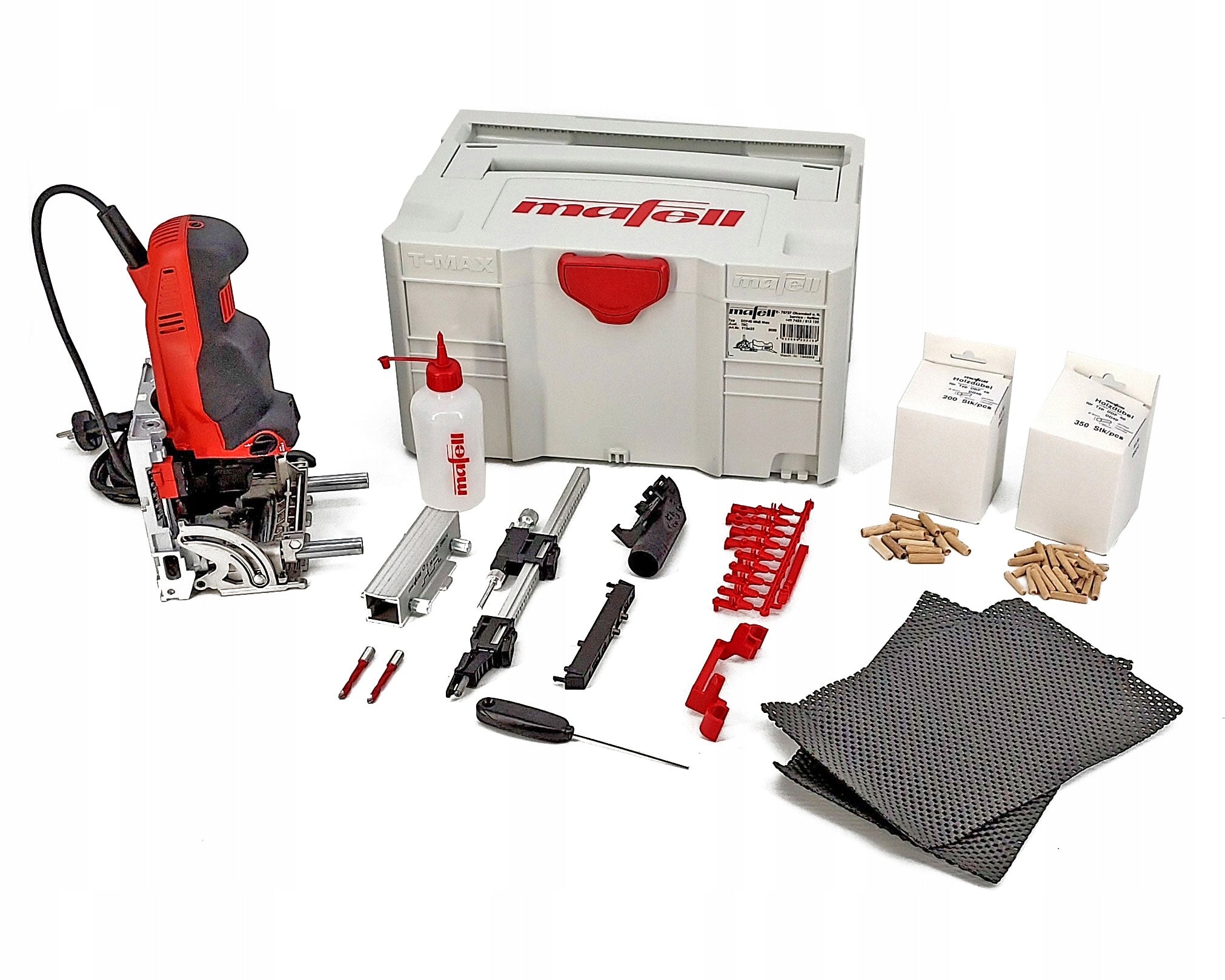

Contents of the set:

• 2 drill bits HM d. 6 mm, 2 drill bits HM d. 8 mm
• 1 pack pins 6 x 30 mm, 350 pcs, 1 pack pins 8 x 30 mm, 200 pcs
• 1 additional support ZA
• 1 set of additional ZAG bumpers, 1 chip extraction connection
• 1 side sampler SA 320, 1 additional bumper for LA strips
• 1 PAZ position indicator, 2 anti-slip mats
• 1 Allen key with handle, 1 glue bottle + 1 glue nozzle d. 8 mm
• 1 T-MAX systener, 1 power cable 4 m

Description

When making corner joints, partitions or rows of holes, the DDF 40 offers not only the precision of a stationary machine, but also the cost savings associated with the use of standard wooden pegs. In addition, the double doweling technique allows you to achieve exceptional stability already at the stage of dry assembly.

The user-friendly design of the DDF 40 becomes obvious as soon as you look at its ergonomic handle and flat base plate. All its improvements and first-class precision of machining are revealed upon closer knowledge - preferably in everyday use.

Smart accessories make the DDF 40 a convenient, multifunctional machine. Thanks to the variety of m.in limiters / examples in most cases, you do not need to use a template or route the material beforehand. Want to know more? Our videos show many different ways to use DDF 40. Simply scan the QR code to find out more.

By buying at our Allegro auction, you choose confidence and professionalism!

We are an authorized seller, offering original products of the highest quality. We have our own service and full access to original spare parts, which guarantees reliability and support after purchase.

Bet on a proven partner – with us you can be sure that you buy the best!

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Mafell
Parametry	Series	ddf40
Parametry	Milling machine type	specialized
Parametry	Power supply	mains
Parametry	Tool holder (mm)	8
Parametry	Maximum no-load speed	8000 RPM
Parametry	Maximum milling depth	40 mm
Parametry	Additional information	transportation box included
Parametry	Device weight	2.8 kg
Parametry	Manufacturer code	918626
Parametry	EAN (GTIN)	4032689213675
