Baldų lankstų gręžimo šablonas su 35 mm freza ir priedais

Trumpai apie prekę

Prekė: Baldų lankstų gręžimo šablonas su 35 mm freza ir priedais. Kategorija: Gręžimo karūnos.

• Gamintojas: no brand
• Modelis: 6HG1533901

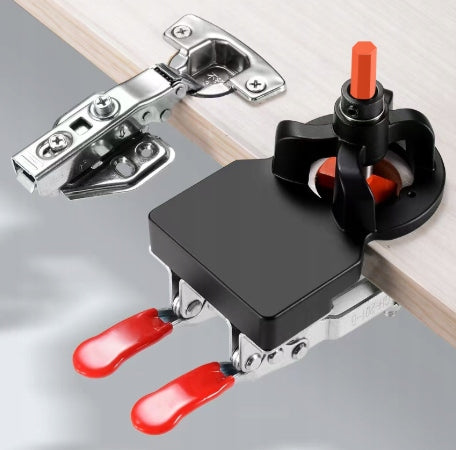

The precision template for drilling holes for can hinges is an indispensable tool during the assembly and production of furniture. It enables fast, accurate and repeatable execution of mounting holes in furniture doors, eliminating the risk of errors and inaccuracies. It will work both in the carpentry workshop and during home assembly work.

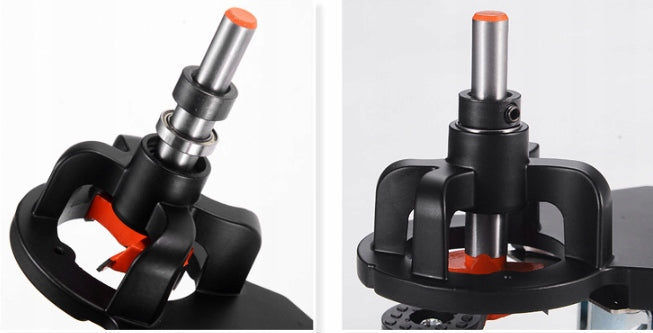

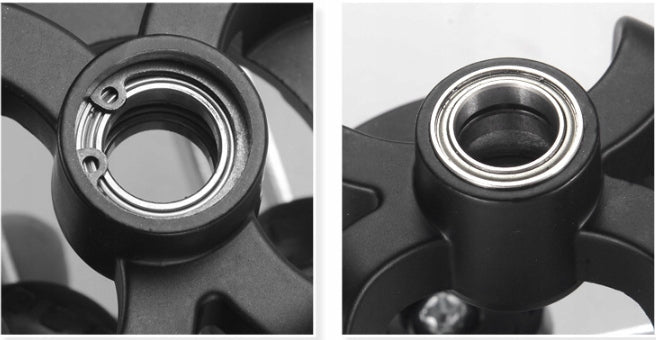

⭐ GUIDANCE SYSTEM – 3-BEARING DRILL SLEEVES ⭐

✔ The upper, middle and lower set of 3-bearing guide sleeves ensures stable cutter guidance without beating.

✔ The total height of the sleeve assembly is 2 cm, which minimizes the axial deviation of the drill.

✔ This solution guarantees low rotational clearance and precise, clean opening of the hole without fraying the edges.

⭐ ADJUSTABLE HOLE POSITIONING ⭐

✔ The hole margin can be adjusted from 4 to 6 mm, allowing you to adjust the position of the hinge to different furniture systems.

✔ Adjustment allows precise positioning of the can axis relative to the edge of the front.

✔ Ideal for working with various hinge manufacturers.

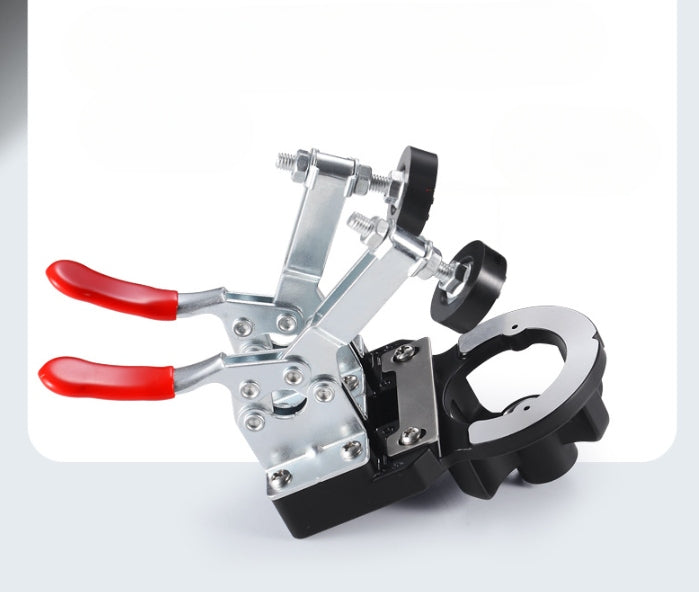

⭐ DOUBLE CLAMPING SYSTEM – SECURE PANEL MOUNTING ⭐

✔ The single-click clamp mechanism allows you to quickly and securely immobilize the plate.

✔ The tool is suitable for panels with a thickness of 15 to 25 mm.

✔ Double clamp design with rubber pressure head protects varnished and veneered surfaces from damage.

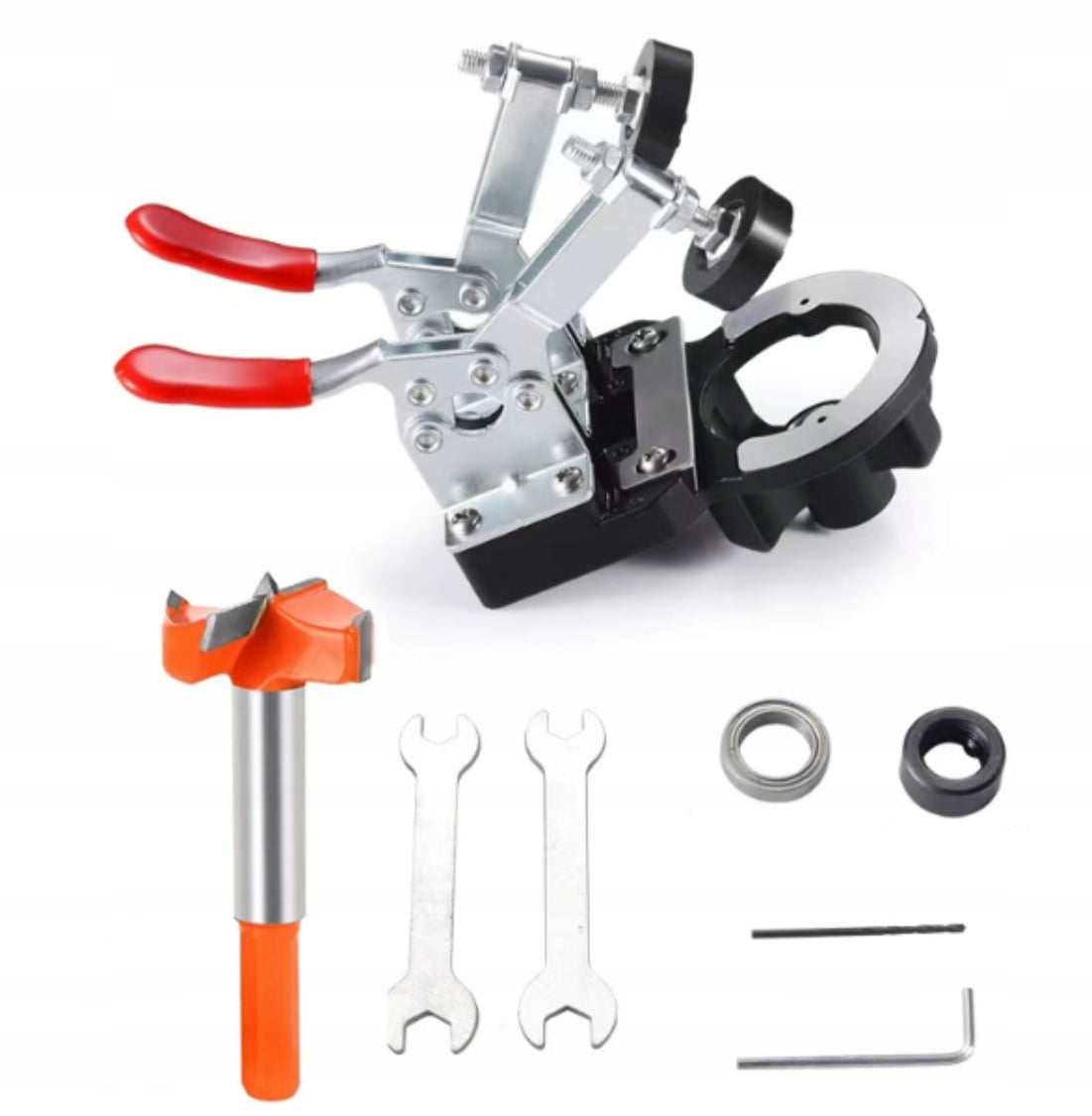

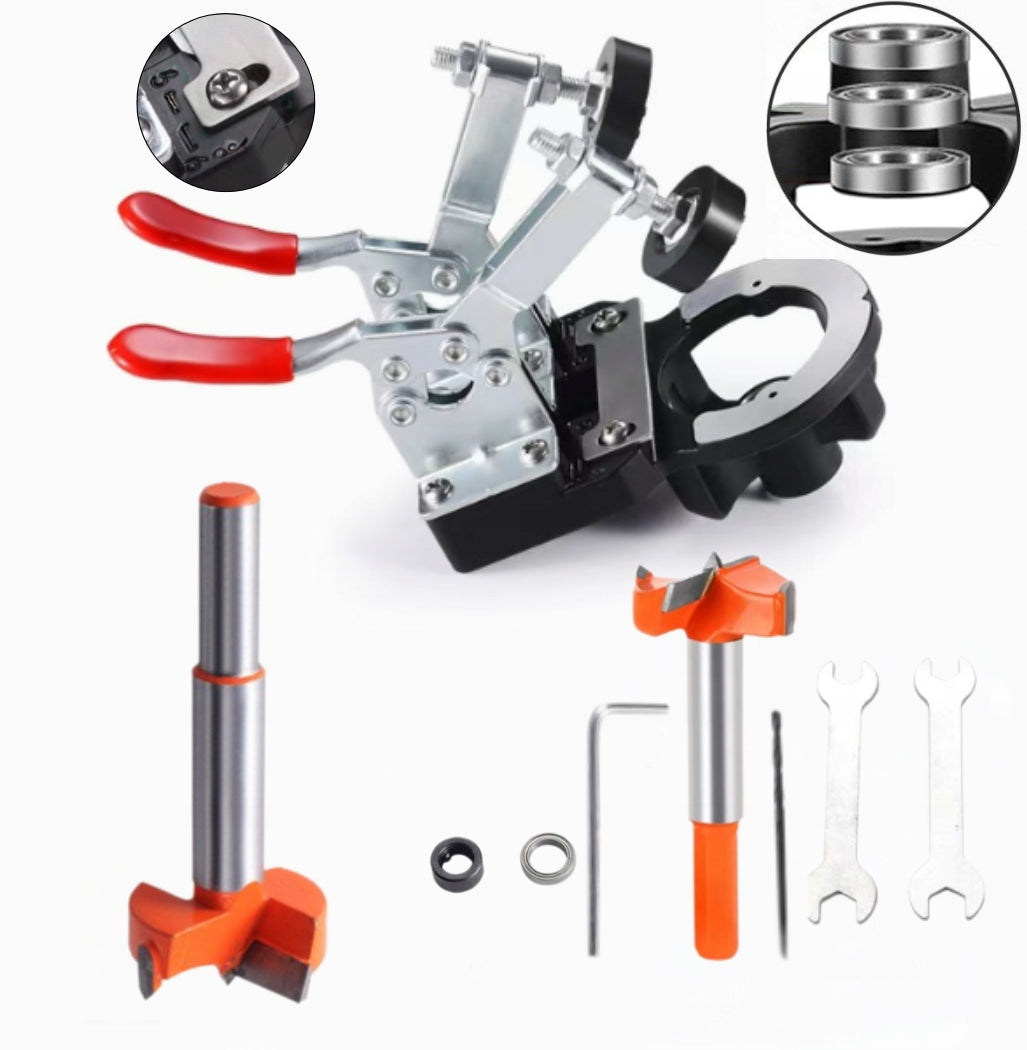

⭐ CONTENTS OF THE SET ⭐

➡ Drilling template – 1 pc.

➡ Cutter 35 mm – 1 pc.

➡ Allen key – 1 pc.

➡ Wrench 8 – 10 mm – 1 pc.

➡ Drill bit 2 mm – 1 pc.

➡ Drilling limiter – 1 pc.

➡ Additional bearing – 1 pc.

➡ User Manual

⭐ ALUMINIUM BASE – IDEAL DRILLING VERTICALITY ⭐

✔ The lower surface is made of aluminum alloy, which ensures perfect parallelism of the contact surface.

✔ The hole is made exactly in the vertical axis, without tilts.

✔ Spray painted surface increases resistance to corrosion and mechanical wear.

In accordance with good e-commerce practices, we would like to inform you that the visual materials included in our offers (including thumbnails and arrangements) could be modified or co-created using AI algorithms. We guarantee the compliance of the physical product with the attached technical description.
