Grandininis pjūklas NAC CST61-50AC, 3,9 AG, 51 cm juosta

Trumpai apie prekę

Prekė: Grandininis pjūklas NAC CST61-50AC, 3,9 AG, 51 cm juosta. Kategorija: Grandininiai pjūklai.

• Gamintojas: NAC
• Modelis: NAC-CST61-50AC

Diesel Saw

NAC CST61-50AC

The NAC CST61-50AC diesel saw with a 20″ guide has been equipped with a 61,5 cm 3 engine with a maximum torque of 3,3 Nm, which can handle any work in the garden, on the farm, on the plot and on the construction site.

• Device model - CST61-50AC
• Type of engine - two-stroke combustion engine
• Engine capacity - 61,5 cm
• Maximum engine power - 3,88 hp
• Rated power of the machine - 2.85 KW at 8500 rpm
• Maximum motor speed - 10 300 rpm
• Maximum torque - 3,3 Nm at 6500 rpm
• Cylinder type - chrome plated
• Guide length - 50,8 cm (20" )
• Guide manufacturer - NAC
• Chain manufacturer - NAC
• Chain and Guide Size - .325" inch
• Width of guide groove - 1.5 mm
• Number of chain links - 76 pieces
• Chain speed - about 19,3 m/s
• Fuel tank capacity - 550 ml.
• Oil tank capacity - 260 ml.
• Oil pump - automatic with adjustable dosage
• Fuel - a mixture of gasoline and oil
• Mixture ratio - 40:1
• Weight of saw - 6,7 kg
• Sound power level guaranteed - 117 dB (A)
• Housing - plastic
• Manufacturer - NAC

The NAC CST61-50AC chainsaw is equipped with a durable internal combustion engine with a chrome cylinder with a maximum power of up to 3,9 hp and a capacity of 61,5 cm. The device uses the highest quality cutting chain and guide with a length of 50,8 cm (20") from NAC.

A very precise carburetor with a suction system reduces combustion and an additional fuel pump ensures that starting the device does not cause any problems to the user.

The saw has a metal resistance comb, an automatic lubrication system with the possibility of its adjustment and built-in shock absorbers that minimize vibrations generated during normal operation.

The guide included in the set is equipped with needle bearings mounted on the rotary tip, thanks to which its service life is significantly increased and the design of lubrication holes allows it to be reversed, which extends the service life.

The main handle is coated with a non-slip material to make it more secure in the hand. The device is also equipped with a safety guard (anti-reflection) with a brake acting immediately in the event of the operator's hand slipping from the main handle.

• Type of saw - chain
• Power supply - exhaust
• Engine capacity - 61,5 cm
• Rated engine power - 2,85 KW at 8500 rpm
• Maximum engine power - 3,88 hp at 8500 rpm
• Maximum engine speed - 10 300 rpm
• Maximum torque - 3,3 Nm at 6500 rpm
• Guide length - 50,8 cm ( 20" )
• Guide manufacturer - NAC
• Chain manufacturer - NAC
• Chain split - 325 "
• Chain width - 1,5 mm
• Number of chain links - 76 pieces
• Oil tank capacity - 260 ml
• Fuel tank capacity - 550 ml
• Chain lubrication - automatic
• Service in the system - "door to door"

• Automatic suction
• Additional booster pump
• Floating chain drive wheel
• Reusable air filter
• Comfortable main handle
• Automatic chain lubrication with adjustable oil dosage
• Safety brake
• Metal resistance fangs
• Metal drive wheel
• Possibility of reversing the guide for even wear
• LOW KICKBACK anti-reflection system - The special shape of the chain cutting tooth protects against guide reflection during cutting.
• Chain guide equipped with needle bearing

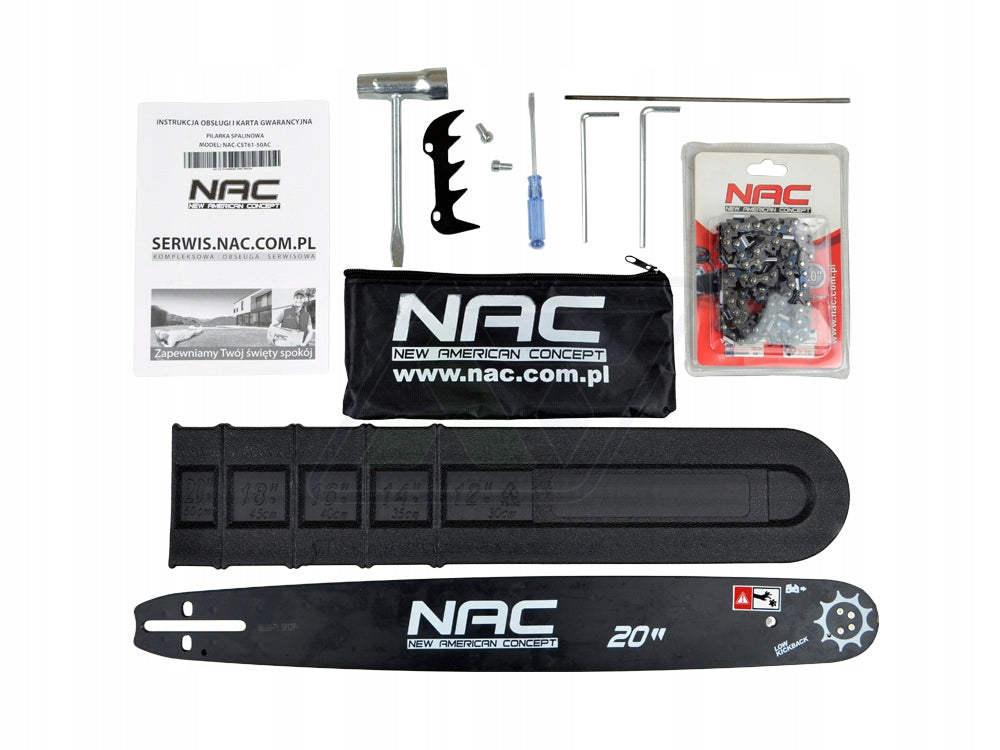

• The set includes a guide guard and a handy toolbox with a candle wrench, service keys and a chain sharpening file.
