Grandininis pjūklas NAC, 1,02 kW, 25 cm juosta, lengvas

Trumpai apie prekę

Prekė: Grandininis pjūklas NAC, 1,02 kW, 25 cm juosta, lengvas. Kategorija: Grandininiai pjūklai.

• Gamintojas: no brand
• Modelis: 40009

• Type of saw - chain
• Power supply - exhaust
• Engine capacity - 25,4 cm
• Rated engine power - 1,02 HP (0,75 KW) at 8500 rpm
• Maximum engine speed - 10 500 rpm
• Maximum torque - 1 Nm at 6500 rpm
• Guide length - 25 cm (10")
• Guide manufacturer - NAC
• Chain manufacturer - NAC
• Chain split - 3/8"
• Chain width - 1,3 mm
• Number of chain links - 40 pieces
• Oil tank capacity - 160 ml
• Fuel tank capacity - 230 ml
• Chain lubrication - automatic
• Service in the system - "door to door"

• Automatic suction
• Additional pump to help start the cold engine
• Reusable air filter
• Comfortable main handle
• Automatic chain lubrication with adjustable oil dosage
• Safety brake
• Metal resistance fangs
• Metal drive wheel
• Possibility of reversing the guide for even wear
• LOW KICKBACK anti-reflection system - The special shape of the chain cutting tooth protects against guide reflection during cutting.
• Chain guide equipped with needle bearing
• The set includes a guide guard and a handy toolbox with a candle wrench, service keys and a chain sharpening file.

The design of the saw makes it ideal as a trimmer. It is equipped with a hanging handle on the belt and a special handle that allows you to operate the device with one hand.

It is equipped with a durable internal combustion engine with a chrome cylinder with a maximum power of 1,02 hp and a capacity of 25,4 cm. The device uses the highest quality cutting chain and guide with a length of 25 cm ( 10" ) from NAC, which guarantees a long time of their use.

A very precise carburetor with suction system reduces fuel combustion and an additional booster pump ensures that starting a cold device does not cause any problems to the user.

The saw has a metal resistance comb, an automatic lubrication system with the possibility of its adjustment and built-in shock absorbers that minimize vibrations generated during normal operation.

The guide included in the set is equipped with needle bearings mounted on the rotary tip, thanks to which its service life is significantly increased and the design of lubrication holes allows it to be reversed, which extends the service life.

The main handle is coated with a non-slip material to make it more secure in the hand. The device is also equipped with a safety guard (anti-reflection) with a brake acting immediately in the event of the operator's hand slipping from the main handle.

• Device model - CST25-25AC
• Type of engine - two-stroke combustion engine
• Engine capacity - 25,4 cm
• Rated engine power - 1,02 HP
• Rated power of the machine - 0,75 KW at 8500 rpm
• Maximum motor speed - 10 500 rpm
• Maximum torque - 1 Nm at 6500 rpm
• Cylinder type - chrome plated
• Guide length - 25 cm ( 10" )
• Guide manufacturer - NAC
• Chain manufacturer - NAC
• Chain and Guide Size - 3/8" inch
• Width of guide groove - 1,3 mm
• Number of chain links - 40 pieces
• Chain speed - about 19 m/s
• Fuel tank capacity - 230 ml.
• Oil tank capacity - 160 ml.
• Oil pump - automatic with adjustable dosage
• Fuel - a mixture of gasoline and oil
• Mixture ratio - 40:1
• Weight of saw - 3,6 kg
• Sound power level guaranteed - 117 dB (A)
• Housing - plastic
• Manufacturer - NAC

1. Simple chain tensioning system without having to remove the side guard
2. Equipped with metal resistance fangs for easy cutting
3. Comfortable handle to hold the device equipped with a safety brake acting immediately in the event of the operator's hand slipping off the handle.
4. It has a special handle that allows you to hang it on the belt
5. The saw has a anti-reflection system LOW KICKBACK - The special shape of the chain cutting tooth protects against the reflection of the guide when cutting.
6. Easy access to fuel tank and oil
7. Saw equipped with suction function
8. Convenient handle with easy access to the ignition switch allowing you to operate the device with one hand
9. Includes NAC guide and chain, chain guard and toolbox with keys

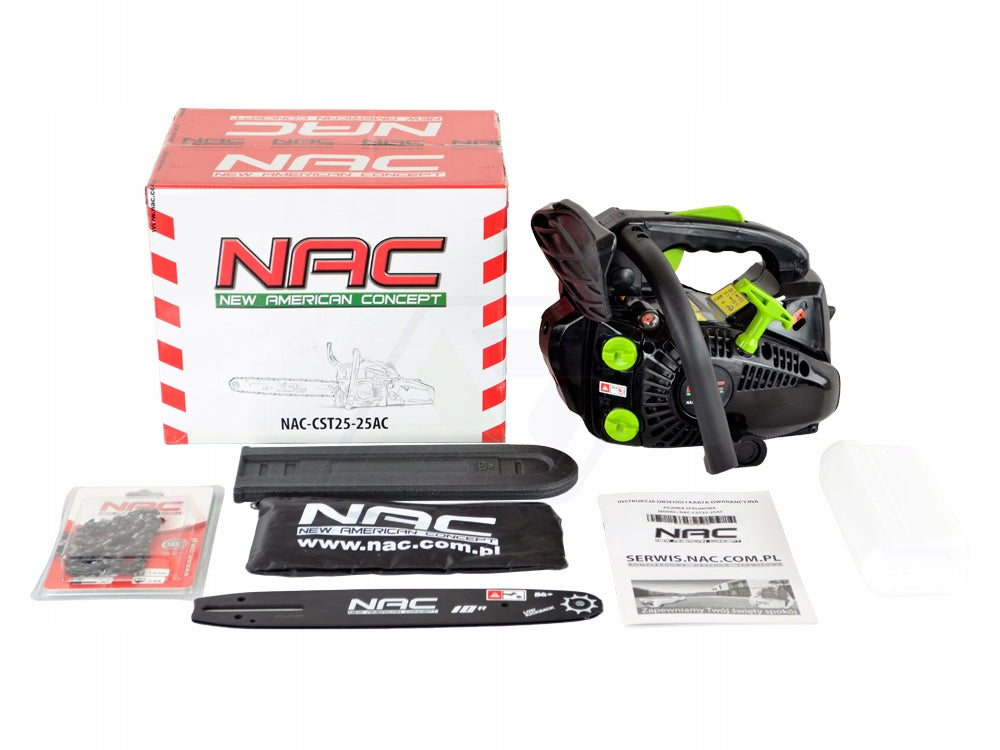

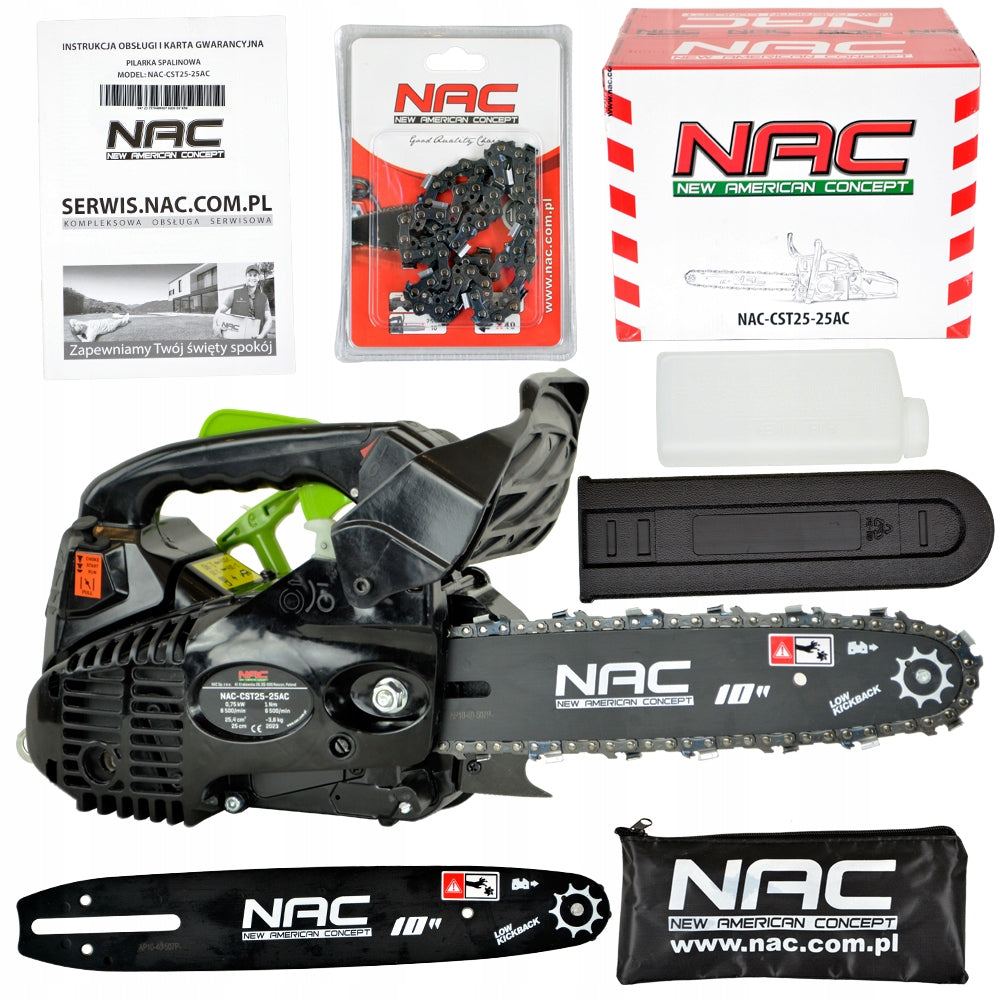

• Diesel Saw
• Chain guide
• Cutting chain
• Metal resistance fangs
• The Key to the Candle
• Container for making a fuel mixture
• Universal screwdriver
• Mounting Wrenches
• Chain Sharpening File
• Guide guard
• Mounting screws
• EC declaration of conformity
• Instruction in Polish
• Original packaging
