Grandinėlių komplektas Shimano CUES FC-U4010-2 170 mm 40/26T su BB-UR400 laikikliu

Trumpai apie prekę

Prekė: Grandinėlių komplektas Shimano CUES FC-U4010-2 170 mm 40/26T su BB-UR400 laikikliu. Kategorija: Priekiniai žvaigždžių blokai.

• Gamintojas: Shimano
• Modelis: EFCU40102CX06C
• Svoris: 985 g
• Spalva: black

Shimano CUES FC-U4010-2 170mm 40/26T with BB-UR400 bottom bracket

8766 74B

Shimano CUES FC-U4010-2 170mm 40/26T with BB-UR400 bottom bracket

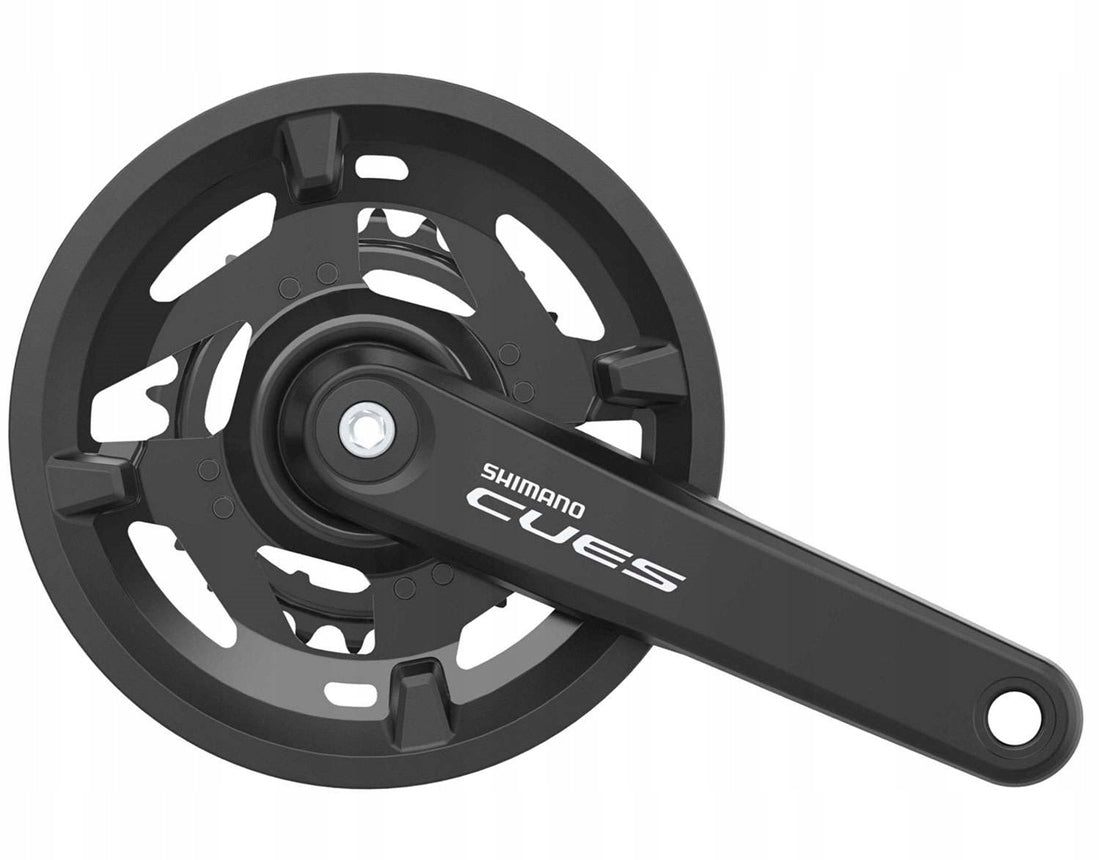

The crankset has 170 mm long arms and chainrings in a 40/26T configuration. Shimano 2-PIECE CRANKSET design is a solution designed for drives with two front chainrings.

The set is compatible with Shimano LINKGLIDE 2x9, 2x10 and 2x11 drivetrains. The included BB-UR400 bottom bracket is designed for a 68mm wide BSA threaded shell.

Features of Shimano CUES FC-U4010-2 kit

• Shimano CUES double-disc crankset,
• 40/26T disc configuration,
• crank arm length 170 mm,
• 2-PIECE CRANKSET design,
• outer disc cover,
• Compatible with LINKGLIDE 2x9, 2x10 and 2x11 drives
• Shimano BB-UR400 bottom bracket included,
• threaded BSA standard,
• designed for a 68 mm wide bottom bracket shell.

Details Shimano CUES FC-U4010-2

• brand: Shimano ,
• series: CUES U4000,
• crank model: FC-U4010-2,
• bottom bracket model: BB-UR400,
• number of shields: 2,
• number of teeth: 40/26T,
• arm length: 170 mm,
• chain line: 48.8 mm,
• Q-Factor: 180 mm,
• compatible chain: LINKGLIDE and HG 11-speed,
• bottom bracket standard: threaded BSA, BC 1.37″ × 24T,
• bottom bracket shell width: 68 mm,
• color: black.

Destiny

The set is designed for bikes equipped with a Shimano LINKGLIDE 2x9, 2x10 or 2x11 drivetrain and a 68 mm wide BSA threaded bottom bracket shell.

Material

The crank arms are made of aluminum and the gear discs are made of steel. The BB-UR400 bottom bracket cups are made of aluminum, while the spacer is made of plastic.

Size and dimensions

• crank arm length: 170 mm,
• chainrings: 40/26T,
• chain line: 48.8 mm,
• Q-Factor: 180 mm,
• compatible sleeve width: 68 mm,
• Bottom bracket thread: BSA 1.37″ × 24T.

Contents of the set

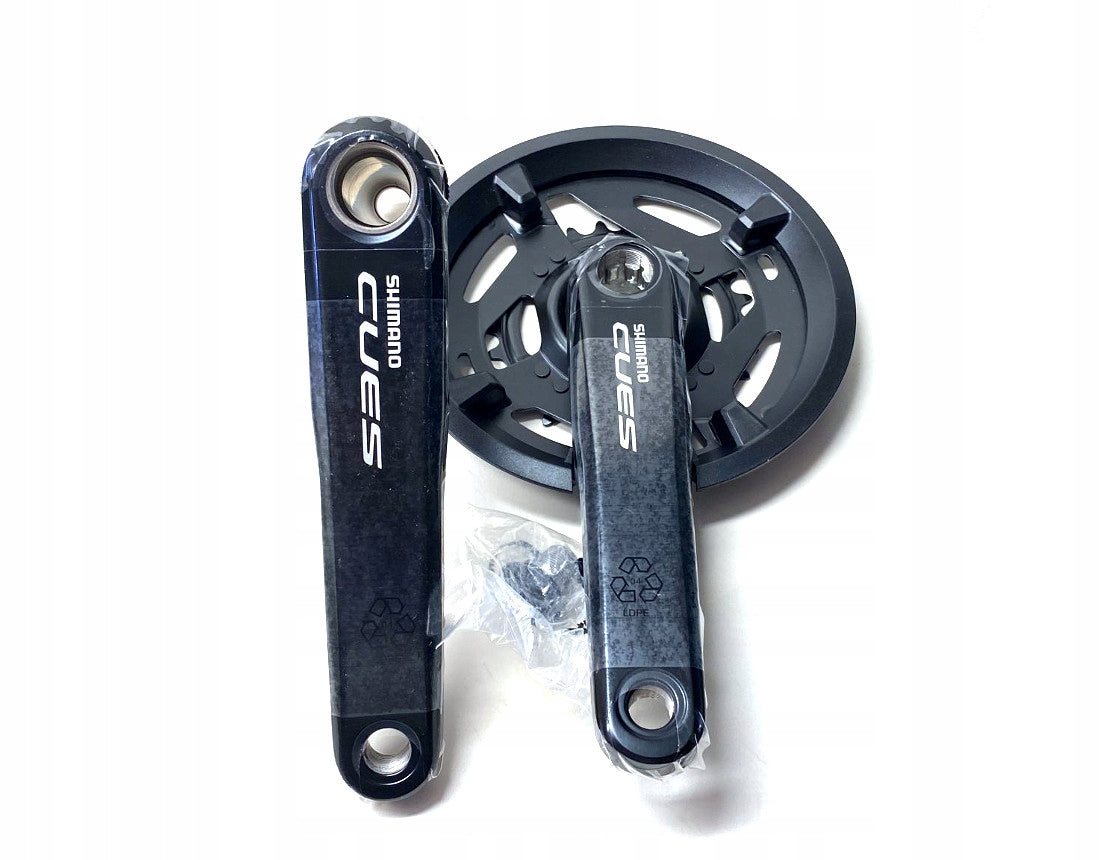

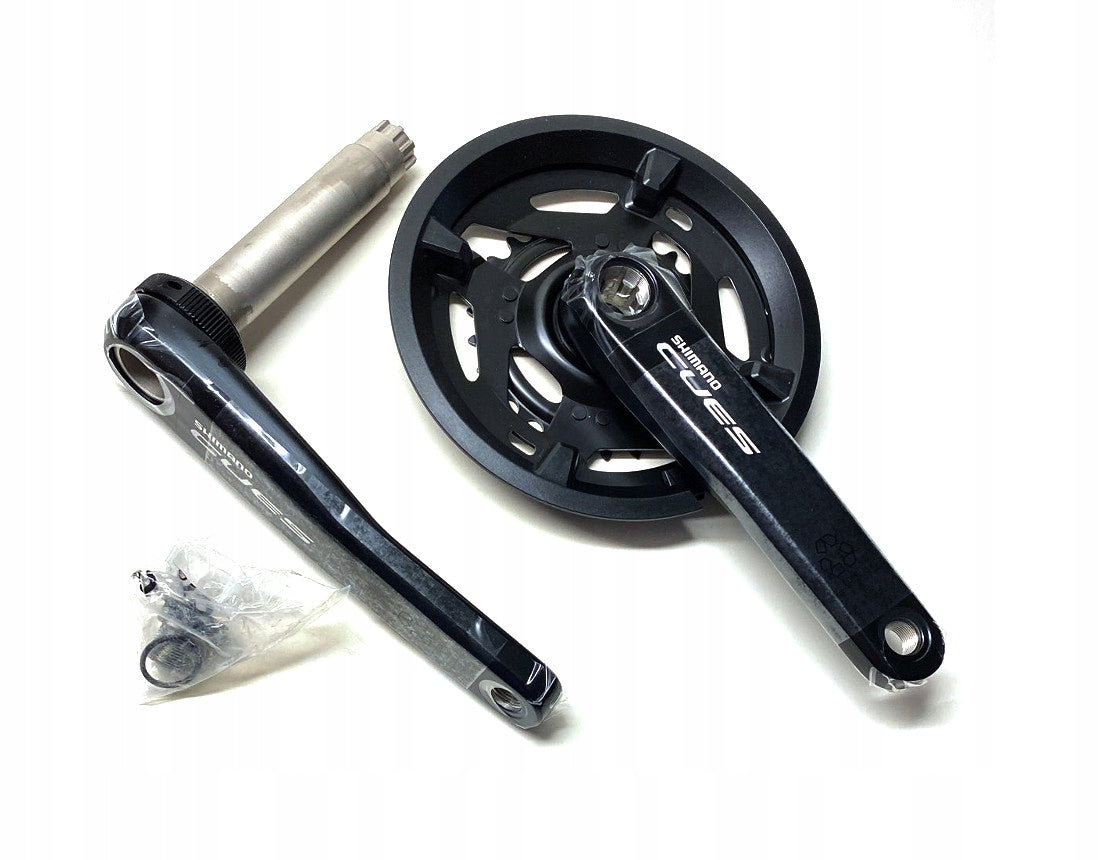

• Shimano CUES FC-U4010-2 crankset 170 mm 40/26T,
• outer disc cover,
• Shimano BB-UR400 bottom bracket,
• right and left bottom bracket shell,
• bottom bracket inner sleeve,
• spacer,
• crank mounting element,
• other elements visible in the photos.
