Trumpai apie prekę
Prekė: Generatorius LONCIN LC6500D-AS, 400/230V. Kategorija: Elektros generatoriai.
- Gamintojas: Loncin
- Modelis: LC6500D-AS
- Įtampa: 230 V
PAJM is an authorized distributor of CEDRUS in Poland
Generator set Loncin LC6500D-AS 6,5kVA
The aggregate uses a reliable and proven engine with a capacity of 389 cm³, a nominal power of 5kW and a starting power of 5,5kW
Aggregate with a total net weight of 77 kg. Specially designed generator with copper winding guarantees reliability of operation.
The AVR system provides voltage stabilization to protect powered receivers from voltage fluctuations.
The oil sensor will turn off the unit at low oil levels, protecting the engine from seizure.
- Brand Loncin
- Engine type single cylinder; 4-stroke; air-cooled; OHV
- THD 12 % TO 8,3 %
- Continuous operation time (with rated power) 7,0 h
- Capacity of oil pan 1,1 l
- Dimensions (L. x width x H ) 681x546x566 mm
- Nominal power 400V- 5000 W
- Starting power 400V- 5500 W
- Starting power 400V- 6500kVA
- Starting power 230V - 2100 W
- Engine capacity 389 cm³
- Engine manufacturer Loncin
- Engine model G390F
- Battery charging socket Yes
- Power sockets 230V - 1
- Power sockets 400V - 1
- Automatic shutdown at low oil level Yes
- Starter manual + electric from the battery supplied with the unit
- Voltage/Frequency 400/230V / 50Hz
- Type of fuel Petrol
- Capacity of fuel tank 25,0 l
- Capacity of oil bowl 1,1 l
- Transport kit: optional
- Burning (load 100% / load 75%): 3,5 l/h / 2,8l/h
- Working time at full tank (load 100% / load 75%): 7h / 9h
- Noise dB/LpA/LwA/K: 97 dB(A) / at a distance of 4 meters from the unit, at 3/4 load this value drops to 75dB(A)
- Net weight 77 kg

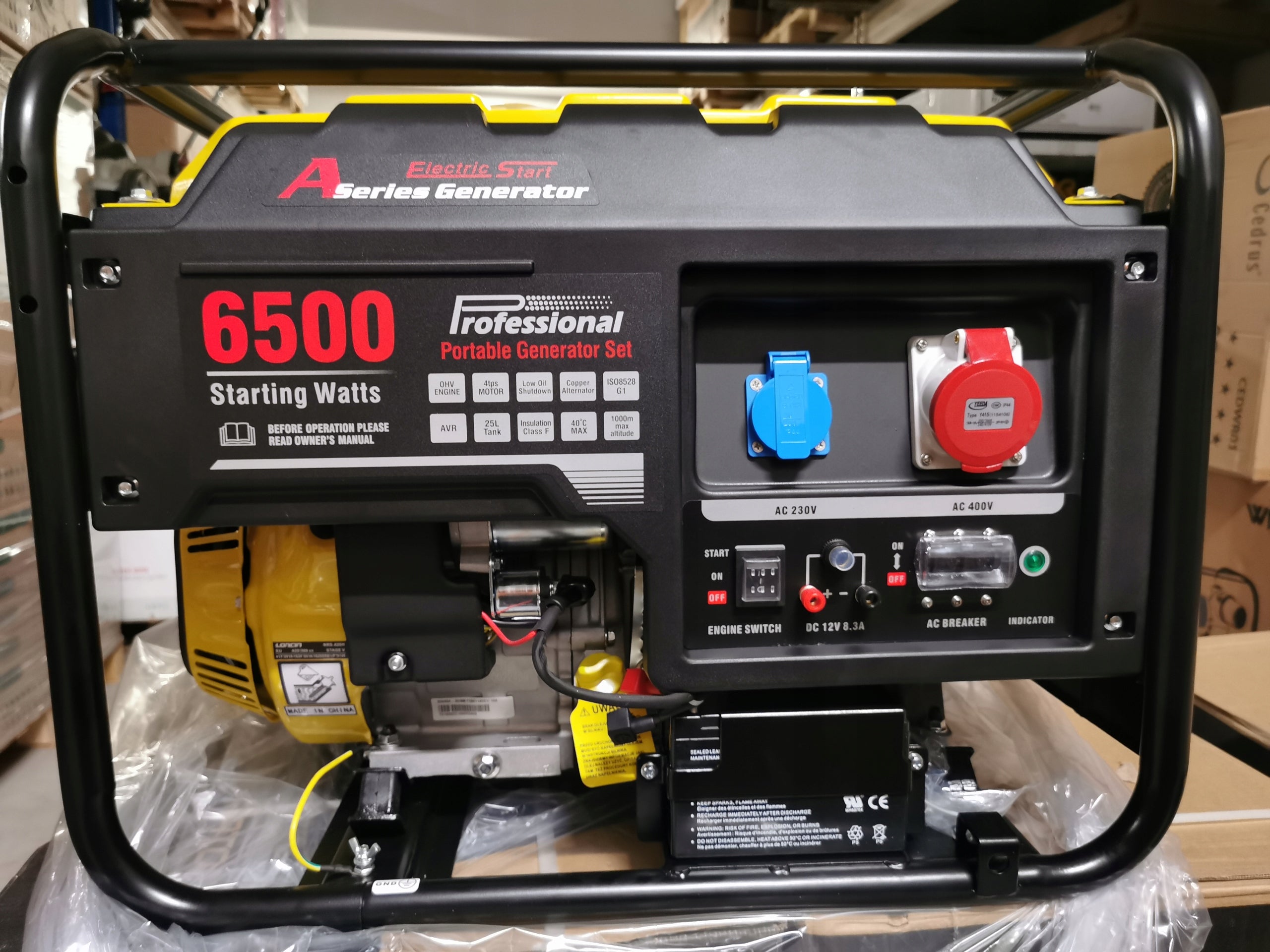

Equipment
(1) Fuel Level Indicator
(2) Suction valve
(3) Fuel valve lever
(4) Starter handle
(5) Air filter
(6) Handle (optional)
(7) Footer
(8) Ground Clamp
(9) Oil Drain Screw
(10) Oil filler cap
(11) Battery as standard
(12) Wheel (optional)
(13) Motor switch
(14) DC output
(15) Output power indicator
(16) AC fuse
(17) AC Output
(18) Panel
(19) Fuel filler cap
(20) Fuel tank
(21) Rear cover of the unit
(22) Silencer
(23) Cylinder head
(24) Carburetor
(25) Spark plug
Optional equipment:
- Transport kit (view photo)
The delivery includes:
1 x Complete unit
1 x User manual in Polish
1 x Warranty Card
The delivery does NOT include the oil necessary for the first flooding of the engine compartment aggregates, (aggregates we send "dry") select the set with oil available above (click show all sets) , and choose the set that suits you best. Any type of oil displayed in these kits can be used for this generator set.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Loncin |
| Parametry | Model | LC6500D-AS |
| Parametry | Kind | portable |
| Parametry | Generator type | three-phase |
| Parametry | Engine | 4-stroke |
| Parametry | Maximum power | 5500 W |
| Parametry | Nominal power of the alternator | 5000 W |
| Parametry | Engine power | 13 KM |
| Parametry | Gasoline tank capacity | 25 l |
| Parametry | Device weight | 79 kg |
| Parametry | Fuel type | petrol |
| Parametry | Frequency | 50 Hz |
| Parametry | Lc IEC noise level | 97 dB |
| Parametry | Product height | 57 cm |
| Parametry | Product width | 55 cm |
| Parametry | Product depth | 68 cm |
| Parametry | Average combustion | 3.3 l/h |
| Parametry | Number of 1-phase outlets | 1 |
| Parametry | Number of 3-phase outlets | 1 |
| Parametry | European emissions standard | EURO 5 |
| Parametry | Supply voltage | 230 V |
| Parametry | Manufacturer code | LC6500D-AS |
| Parametry | Product weight with unit packaging | 80 kg |
| Parametry | Packaging status | original |
| Parametry | Startup | electric,manual |
| Parametry | Additional information | voltage regulation (AVR),12 V outlet |
