Trumpai apie prekę
Prekė: Generatoriaus statorius 85 mm 230V, 1 fazės generatoriui. Kategorija: Elektros generatoriai.
- Gamintojas: Barracuda
- Modelis: 851FAL
- Įtampa: 230 V

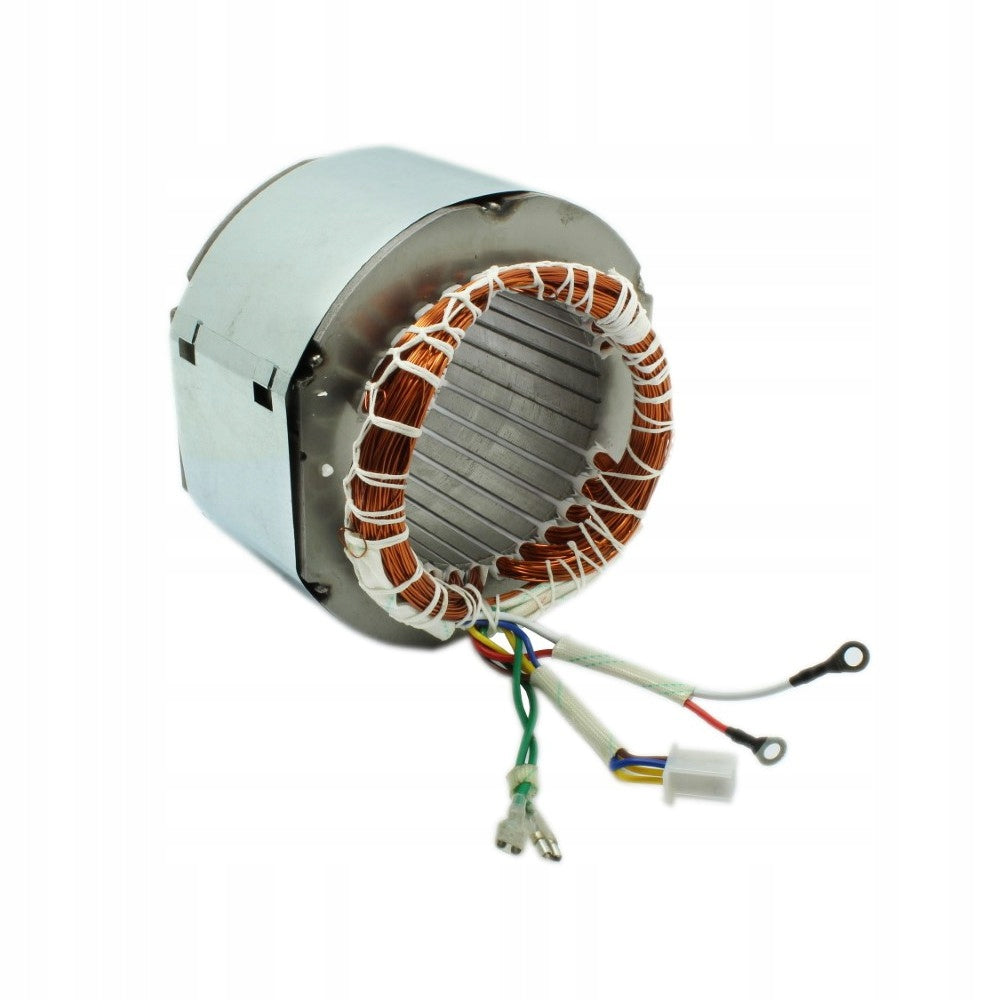

Stator generator package length 85 mm for aggregates
Stator generator package length 85 mm for single phase generator sets 230V 12V Aluminum
Stator for single-phase generator set 230V and 400V
Technical data:

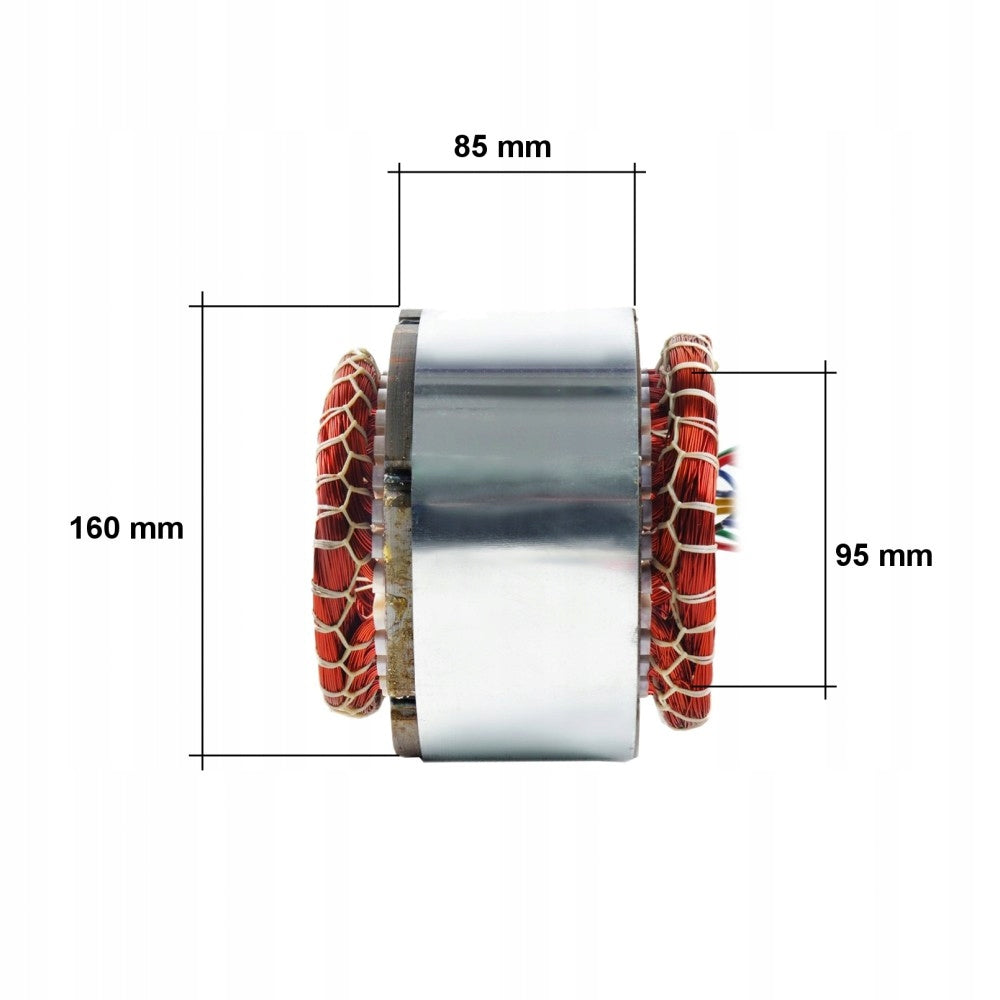

- Package height 85 mm (metal element)
Fits rotor dimensions:
- Diameter 95 mm
- Bearing 35 mm

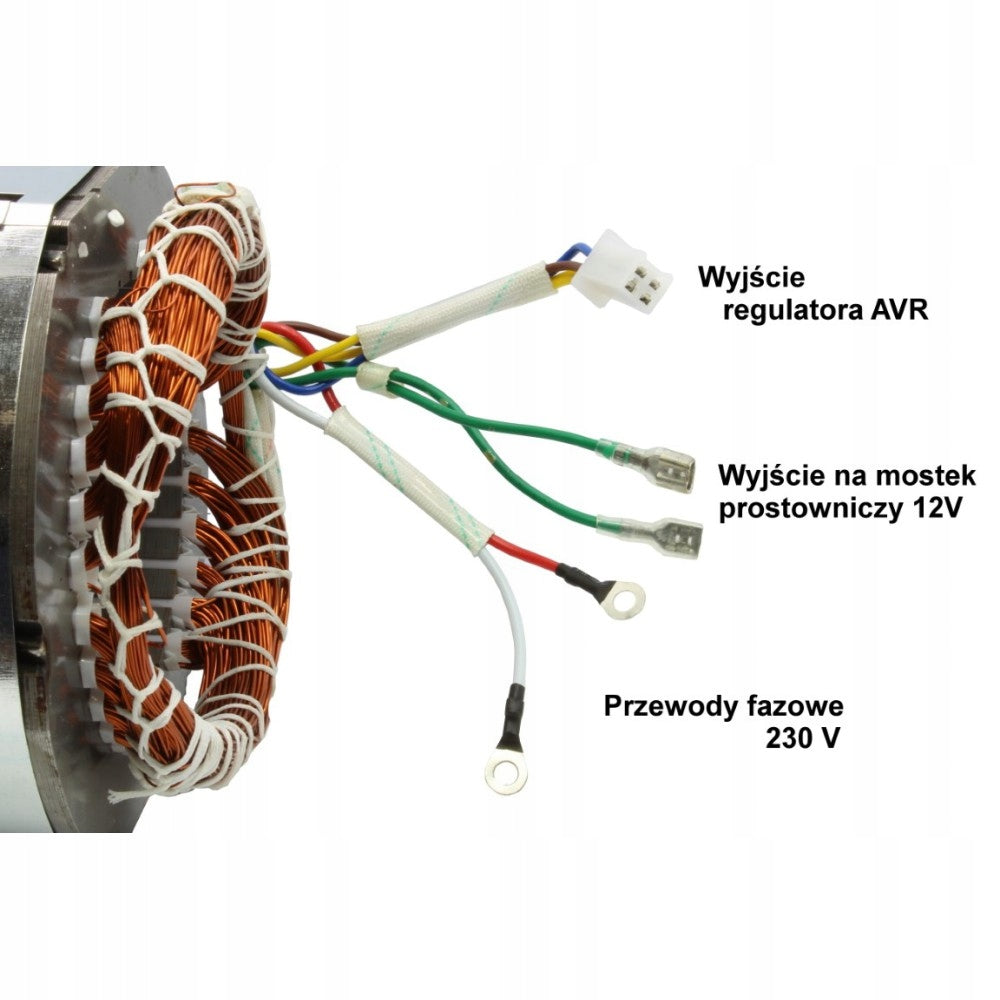

Wire colors may vary depending on the batch produced. In order to determine the phase conductors, a measurement with a meter must be made.
Important!
Installation and connection of the stator and measurement can only be made by a qualified person with appropriate permissions.
The stator offers the perfect combination of strength and cost-effectiveness, thanks to which the stator operates for years at the highest speed with exceptional longevity. Easily fits directly on the engine. It is fully compatible with engines from different manufacturers. When designing this stator, we focused on quality and versatility, thanks to which our product stands out from the competition!
The stator fits (Honda, Barracuda, Kraftwelle, Nupower and others)
Barracuda are subject to strict production supervision, which gives confidence and reliability in operation and the highest quality of workmanship.
Stator generator package length 85 mm for single-phase generator sets 230V 12V
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Barracuda |
| Parametry | Model | 851FAL |
| Parametry | Kind | portable |
| Parametry | Generator type | single-phase |
| Parametry | Engine | 4-stroke |
| Parametry | Maximum power | 1700 W |
| Parametry | Nominal power of the alternator | 1700 W |
| Parametry | Fuel type | petrol |
| Parametry | Product height | 0 cm |
| Parametry | Product width | 0 cm |
| Parametry | Product depth | 0 cm |
| Parametry | Supply voltage | 230 V |
| Parametry | Manufacturer code | 851FAL |
| Parametry | Packaging status | original |
