Trumpai apie prekę
Prekė: Generatoriaus statorius 70 mm, 230V, varinis vijimas. Kategorija: Elektros generatoriai.
- Gamintojas: Barracuda
- Modelis: 701FCU
- Įtampa: 230 V

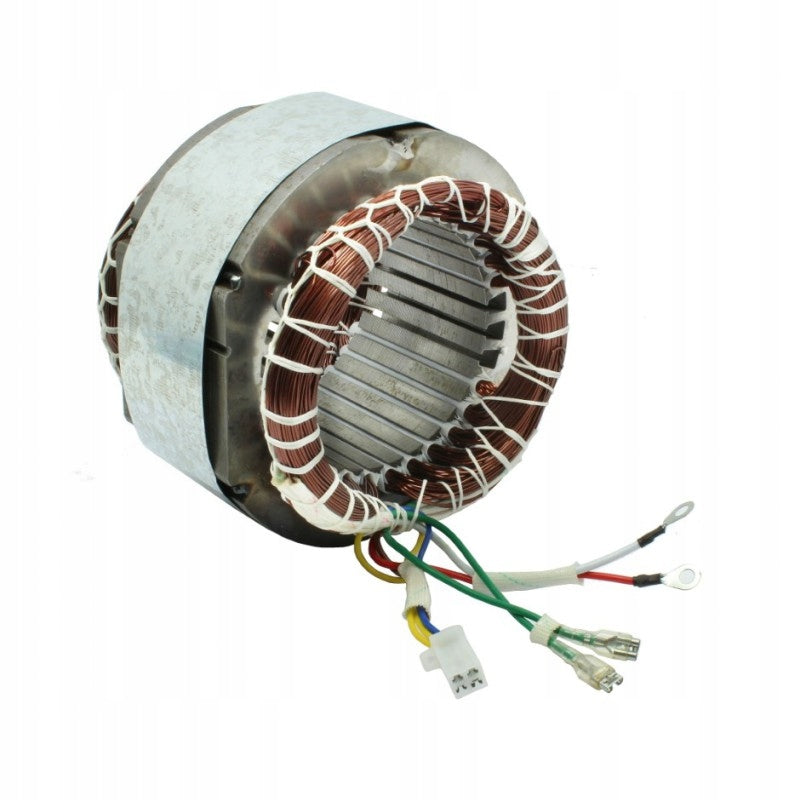

Stator generator package length 70 mm for single-phase generator set 230V

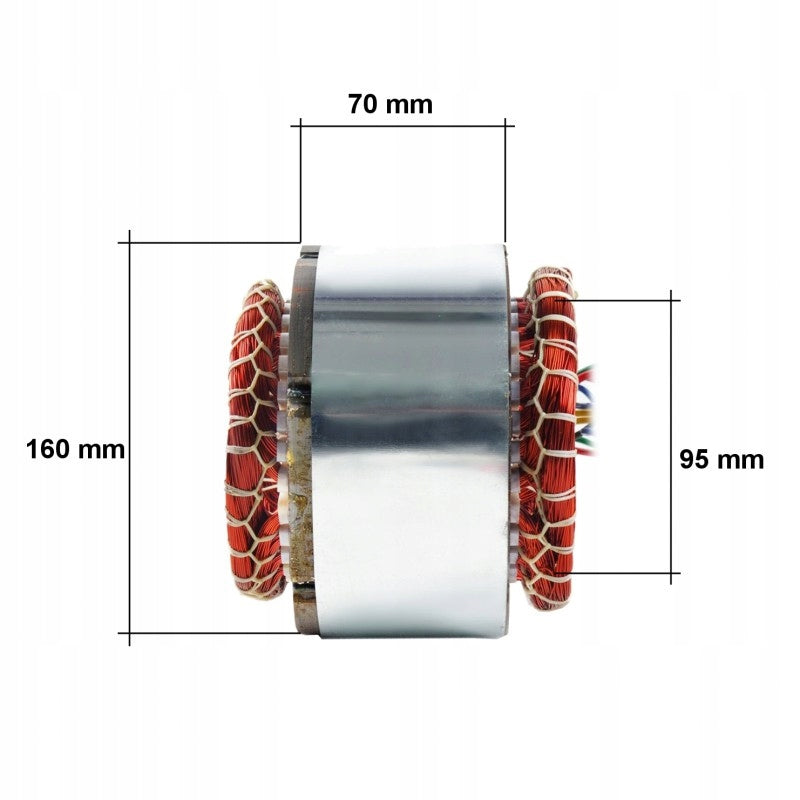

Dimensions:
- package height 70mm (metal element)
Suitable for rotor with dimensions:
- diameter 95 mm
- package height 70mm
Fits most aggregates on the market.

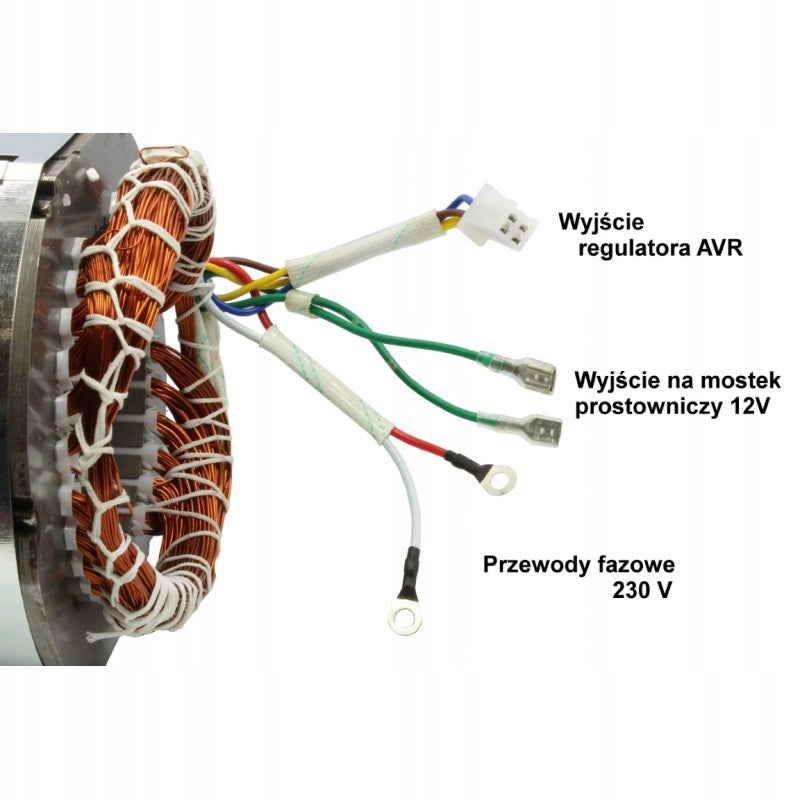

Wire colors may vary depending on the batch produced. In order to determine the phase conductors, a measurement with a meter must be made.
Important!
Installation and connection of the stator and measurement can only be made by a qualified person with appropriate permissions.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Barracuda |
| Parametry | Model | 701FCU |
| Parametry | Kind | portable |
| Parametry | Generator type | single-phase |
| Parametry | Engine | 4-stroke |
| Parametry | Maximum power | 1400 W |
| Parametry | Nominal power of the alternator | 1400 W |
| Parametry | Engine power | 1400 KM |
| Parametry | Fuel type | petrol |
| Parametry | Product height | 0 cm |
| Parametry | Product depth | 0 cm |
| Parametry | Supply voltage | 230 V |
| Parametry | Manufacturer code | 701FCU |
