Garso izoliacinė akustinė putplasčio lipni 6 mm arka, durims, bagažinei

Trumpai apie prekę

Prekė: Garso izoliacinė akustinė putplasčio lipni 6 mm arka, durims, bagažinei. Kategorija: Garso izoliacijos elementai.

• Gamintojas: Bitmat
• Modelis: K6s

We sell foam from a roll with a width of 100 cm.

1 piece = 100 × 100 cm = 1m2

2 pieces =200 × 100 cm = 2m2

4 pieces = 400 × 100 cm = 4m2

8 pieces = 800 × 100 cm = 8m2

...

10 pieces = 1000 × 100 cm = 10m2

...

15 pieces = 1500 × 100 cm = 15 m2

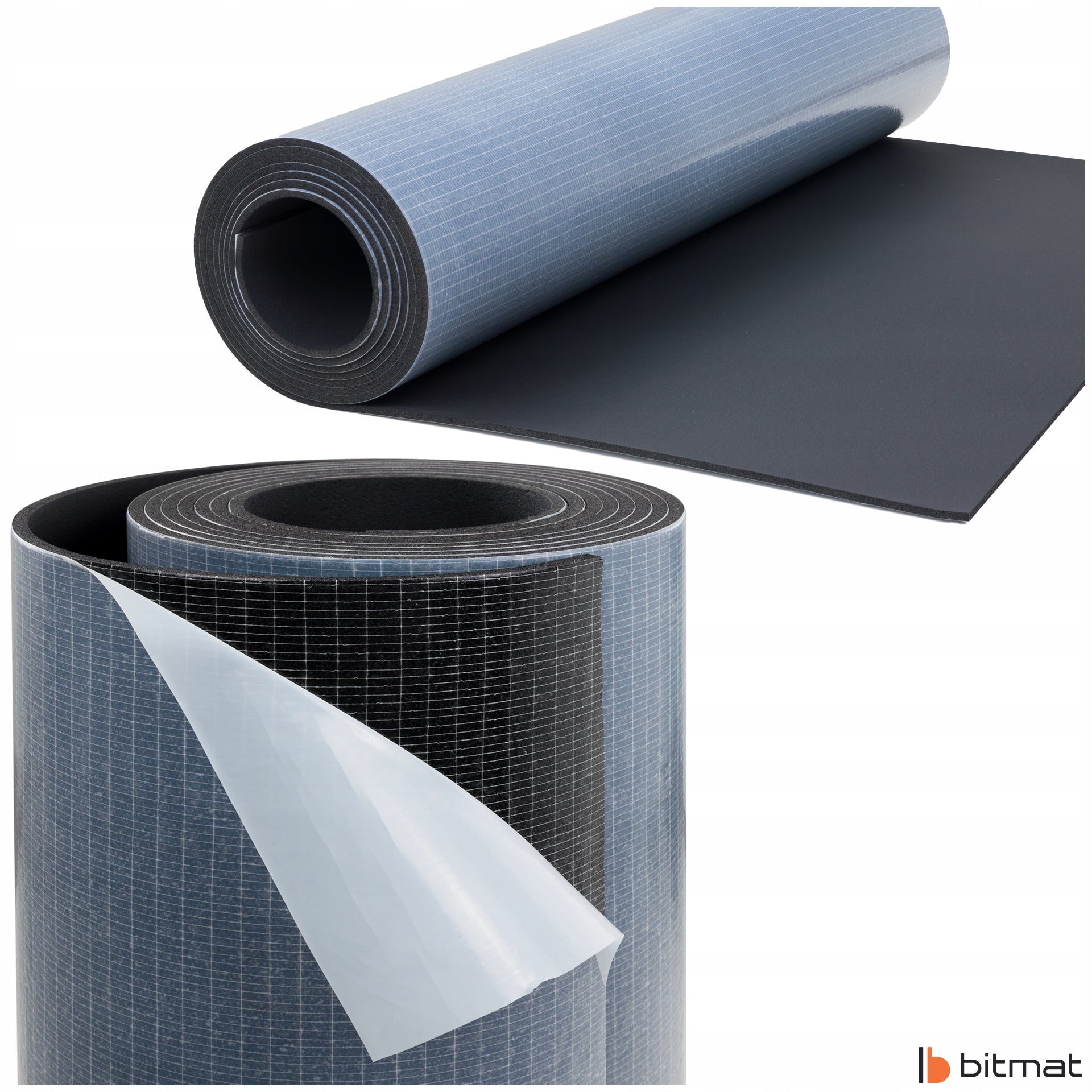

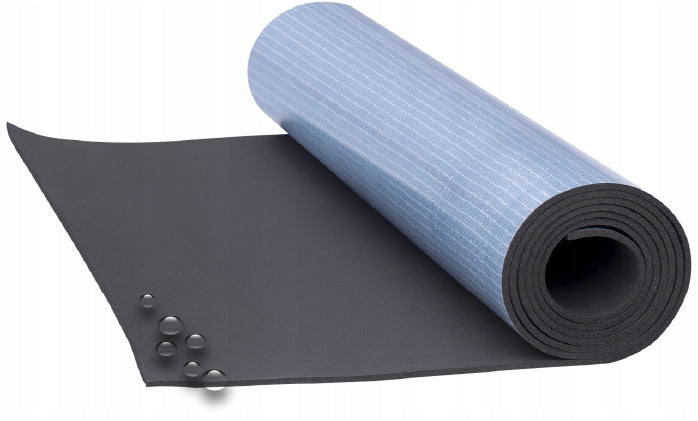

K6s Bitmat soundproofing mat (thickness 6 mm) — rubber insulation foam with closed cell structure with a layer of strong adhesive, has high acoustic and insulation properties.

The material does not absorb moisture, is resistant to chemicals, creates an acoustic barrier and perfectly absorbs noise and isolates from temp.

Symbol: 100X100CM K6S

Raw material tested by PIMOT — Automotive Industry Institute

Rubber foam mats not only perfectly insulate, but also show high resistance to moisture and chemicals (m.in. do not absorb odors). Type K rubber silencing foam by Bitmat with a high damping coefficient, designed for use in a wide range of temperatures. -50 to 85 degrees C. It does not shrink or oxidize unlike polyurethane materials. It has the best insulation properties and loss of acoustic waves.

What characterizes our marshmallows?

• They have the highest quality strong adhesive on the technical mesh, so that the glue does not dry out and lasts longer at a higher temperature.
• They are manufactured in the EU and have the necessary research and documents m.in. CE
• The composition of the foam after many years of testing is optimally selected for the most effective silencing
• Only our foams are signed with the Bitmat brand
• They have been tested in PIMOT for noise isolation
• They do not emit toxic and unpleasant odors

The product has a hygienic certificate and a certificate issued by PIMOT.

Properties:

• Does not absorb water and odors
• Resistant to chemicals
• Low weight
• Very strong adhesive
• Flexible – easy installation
• Medium isolation and high frequency absorption
• High thermal insulation
• High density provides a wide spectrum of attenuated frequencies
• Does not oxidize, does not emit harmful substances for health
• Self-extinguishing, non-proliferative fire, non-forming burning drops
• The foamed rubber structure also provides excellent insulation

Application:

• Construction: ventilation ducts, insulation of buildings, silencing of walls and ceilings.
• Automotive: car silencing, car audio, thermal insulation, boats, planes.
• Industry: soundproofing of machines, compressors, aggregates.

Thanks to their noise-reducing properties, as well as their dust-free and fibre-free structure, Bitmat K-foams are suitable for use in public, industrial and commercial buildings.

They can also effectively improve noise reduction inside vehicles (cars, agricultural machinery, planes, boats).

Advantages of rubber foams type K from Bitmat :

• High sound and thermal insulation
• High resistance to external factors, salts and bases, oils and some acids
• Does not oxidize, does not emit harmful substances for health
• It has additives to reduce flammability
• The foamed rubber structure also provides excellent insulation

Advantages of K-type rubber foams from Bitmat

The appropriate density and structure of cells provides a wide spectrum of suppressed frequencies, and the material from which it is made retains its damping parameters at both low and high temperatures. what cannot be said about polyurethane or polyethylene materials.

The advantage of this material is also its ease of installation: the mats are self-adhesive, and their structure is composed of the so-called. closed cells, which guarantees a strong hold.

The best results can be achieved by using butyl mats AB-2 (2 mm) or AB-25 (2,5 mm) in combination with rubber foams to create a two-layer acoustic barrier against hum and noise.

First, you should apply a butyl mat from the AB series, mapping the shape of the sheet metal (they absorb vibrations and create a barrier to noise). The second layer is type K foam from Bitmat – soundproofing rubber with a strong adhesive (insulates and absorbs noise).

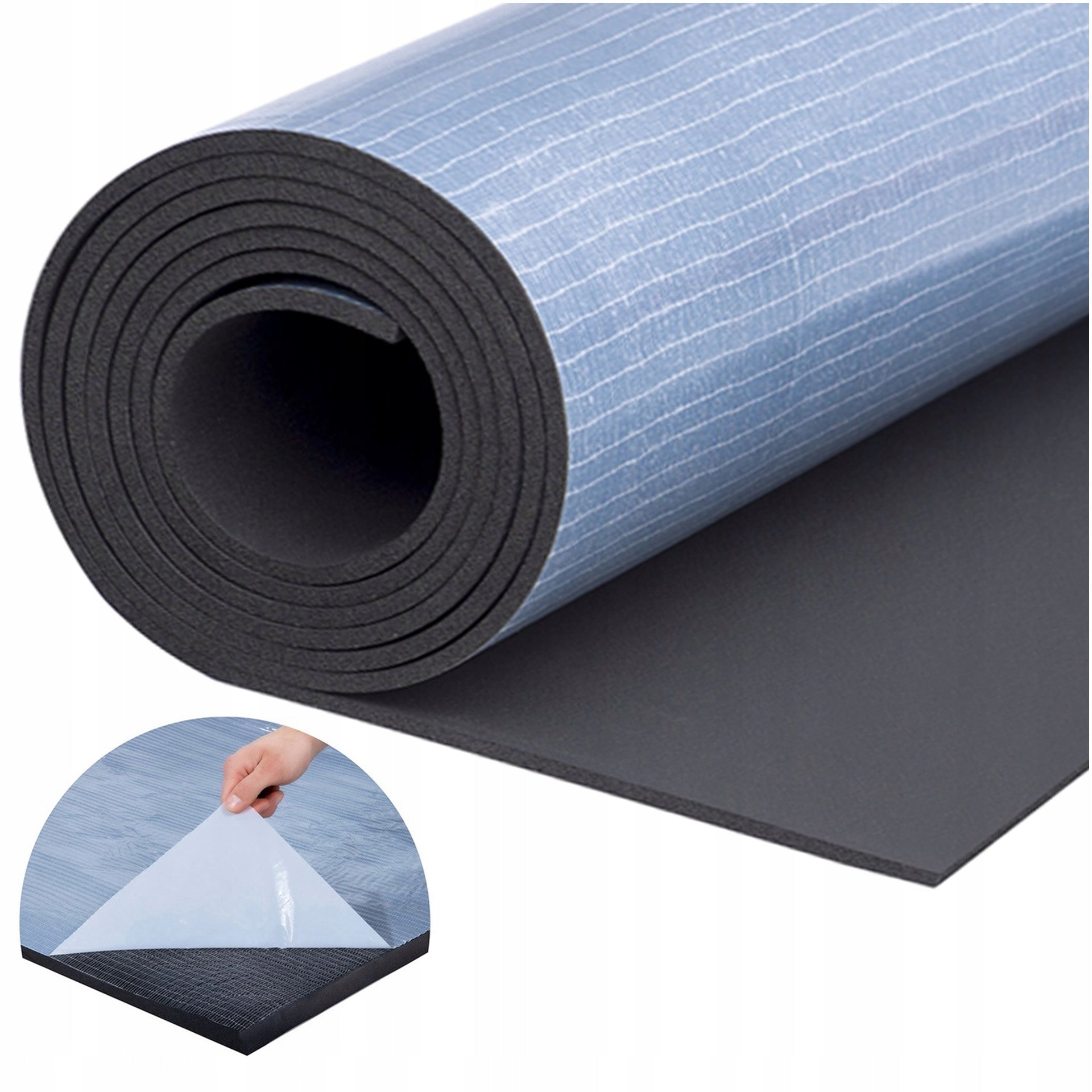

*The pictures show how the mat can be used.

Technical data:

• Thickness: 6 mm
• Weight 1 m2: Not more than 1 kg
• Density: 50-60 kg/m3
• Water absorption: maximum 0.1 %
• Temperature range: -50 °C to 85 °C
• Flammability class: B s3 d0, UL94 V-0
• Meets ISO3795 standard
• Acoustic insulation: ~ 40 dB
• Closed cell structure
• Color: Black
• pH: Neutral
• Reaction to fire: Self-extinguishing, non-creating burning drops, non-spreading fire
• Corrosion resistance (DIN 1988): Meets the requirements
• Compliant with CE standards
• Resistance to fungi and bacteria (VDI 6022): Meets requirements
• Hygienic Certificate No. 149/322/149/2025
• Health Aspects: Does not contain dust, fibers and heavy metals (cadmium and lead)
• PIMOT Certificate No. CW/34/20

The price is for 1-piece K6s rubber foam with dimensions:

length 100 cm, width 100 cm, thickness 6 mm
