Garsiakalbių stiprintuvas SMSL A100, Bluetooth 5.0, USB, klasė D, žemų dažnių garsiakalbiui

Trumpai apie prekę

Prekė: Garsiakalbių stiprintuvas SMSL A100, Bluetooth 5.0, USB, klasė D, žemų dažnių garsiakalbiui. Kategorija: Stiprintuvai.

• Gamintojas: S.M.S.L
• Modelis: A100
• Spalva: black

SMSL A100

Bluetooth amplifier

• New class D power amplifier system from German company Infineon with efficiency up to 92% and reduced energy consumption.

• USB audio input and driverless operation.

• Built-in 2 sets of subwoofer signal output, for easy connection to an active subwoofer system in a 2.1 or 2.2 configuration.

• Bluetooth 5.0 receiver, great sound quality, longer transmission distance.

• Built-in low-noise dedicated high-power switching power supply for continuous power supply.

• A large number of audiophile-grade components are used to enhance the audio experience.

• High-quality gold-plated input and output terminals.

• Excellent protection circuit against overheating, overcurrent, etc.

• High-quality power supply specifically designed for audio equipment.

Bluetooth 5.0 with apt-X and AAC support

Thanks to the modular Bluetooth solution with a built-in antenna, it was possible to improve signal stability and transmission quality in all directions.

Connecting an active subwoofer

Your active subwoofer must have a “Subwoofer in” or “LFE in” input in order to connect it to the A100. When connected from the main speaker and subwoofer, the bass signal will come out simultaneously, with richer low frequencies and the original delicate treble. The A100 has two output ports for basses with exactly the same function. You can choose one to connect the subwoofer.

Support without drivers

The set includes a USB cable dedicated to the A100, which can be directly connected to your computer to play music. It supports many popular music file formats such as MP3, SBC, WAV and FLAC.

Infineon MA12070

The MA12070 system uses a new MERUS power amplifier architecture, which is completely different from the traditional Class D power amplifier. In this design, each half-bridge uses four mosfets (M1-M4), and the capacitor “flys” between them as an additional power rail, thus generating a three-level output signal on the output switching node.

Simple operation

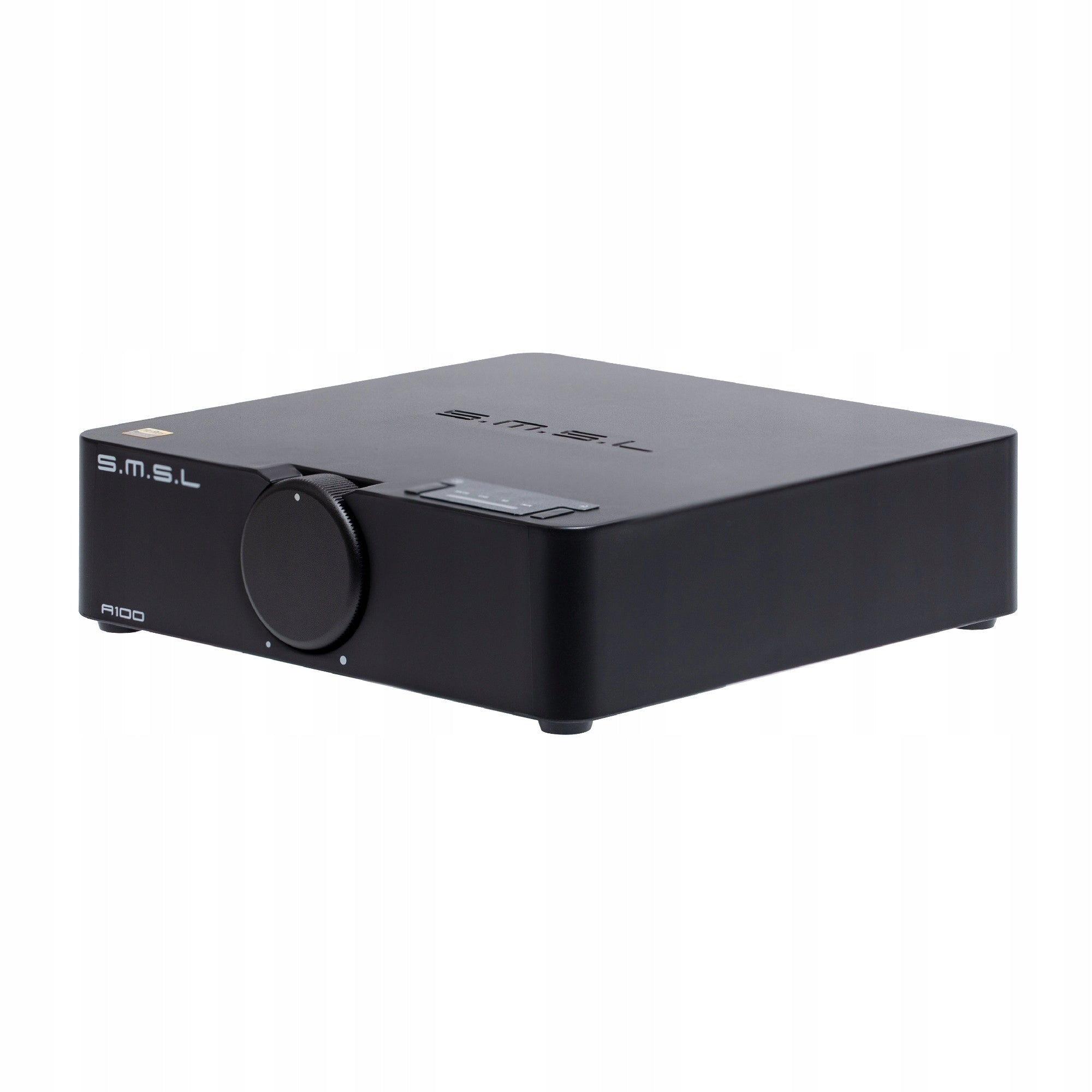

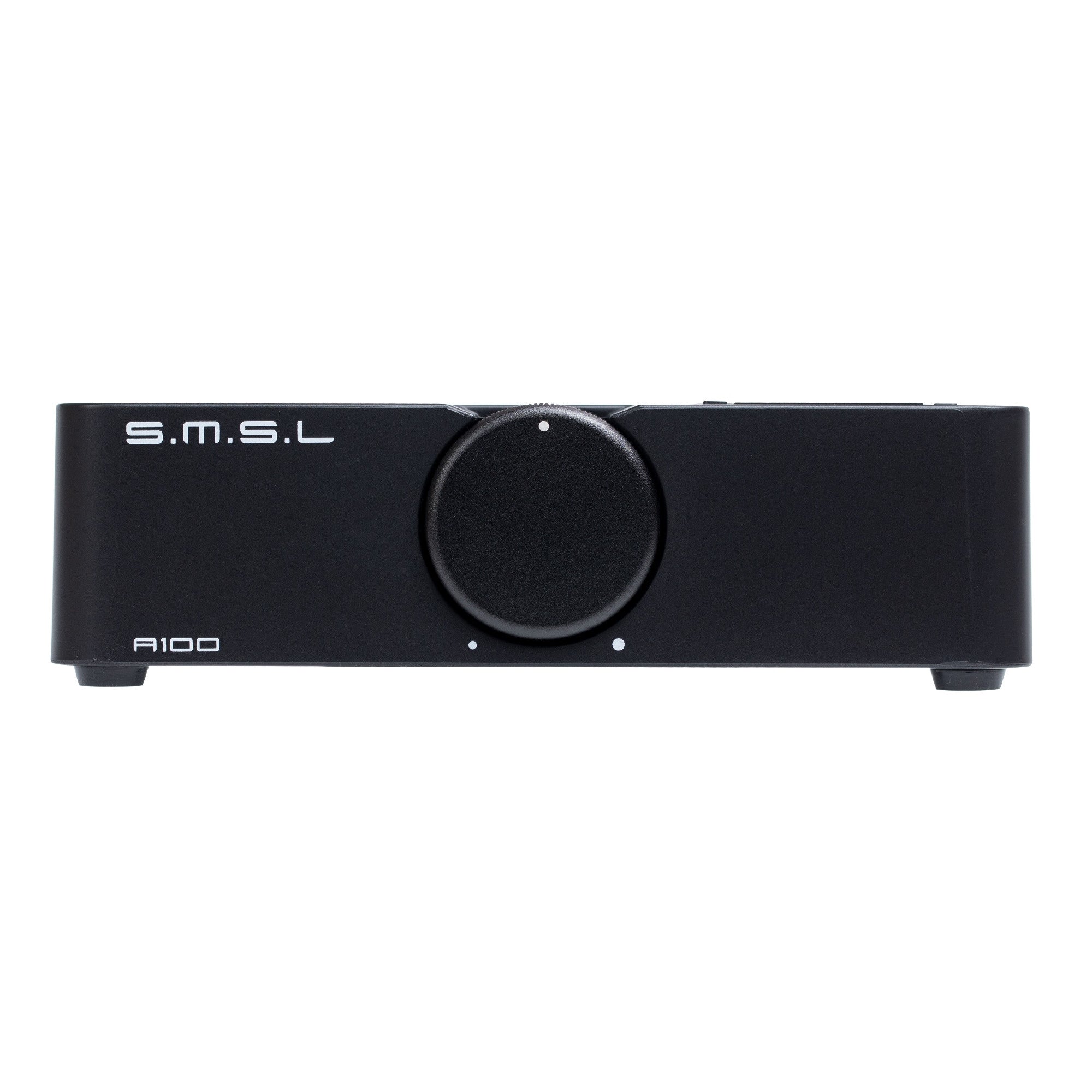

There is a mute button and an input switch button at the top, and a large volume control knob at the front. Easy, intuitive operation is a definite advantage of the device.

Specification:

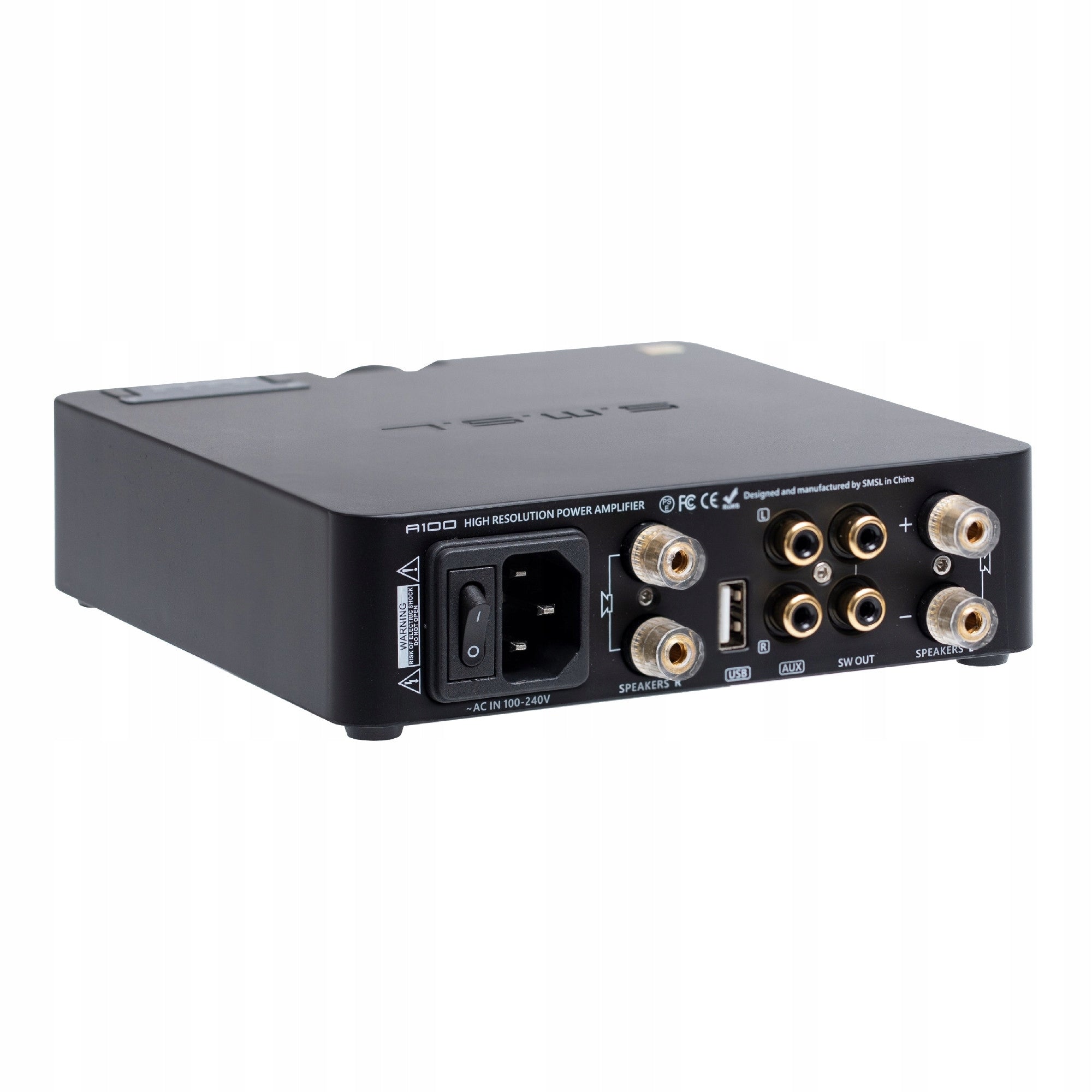

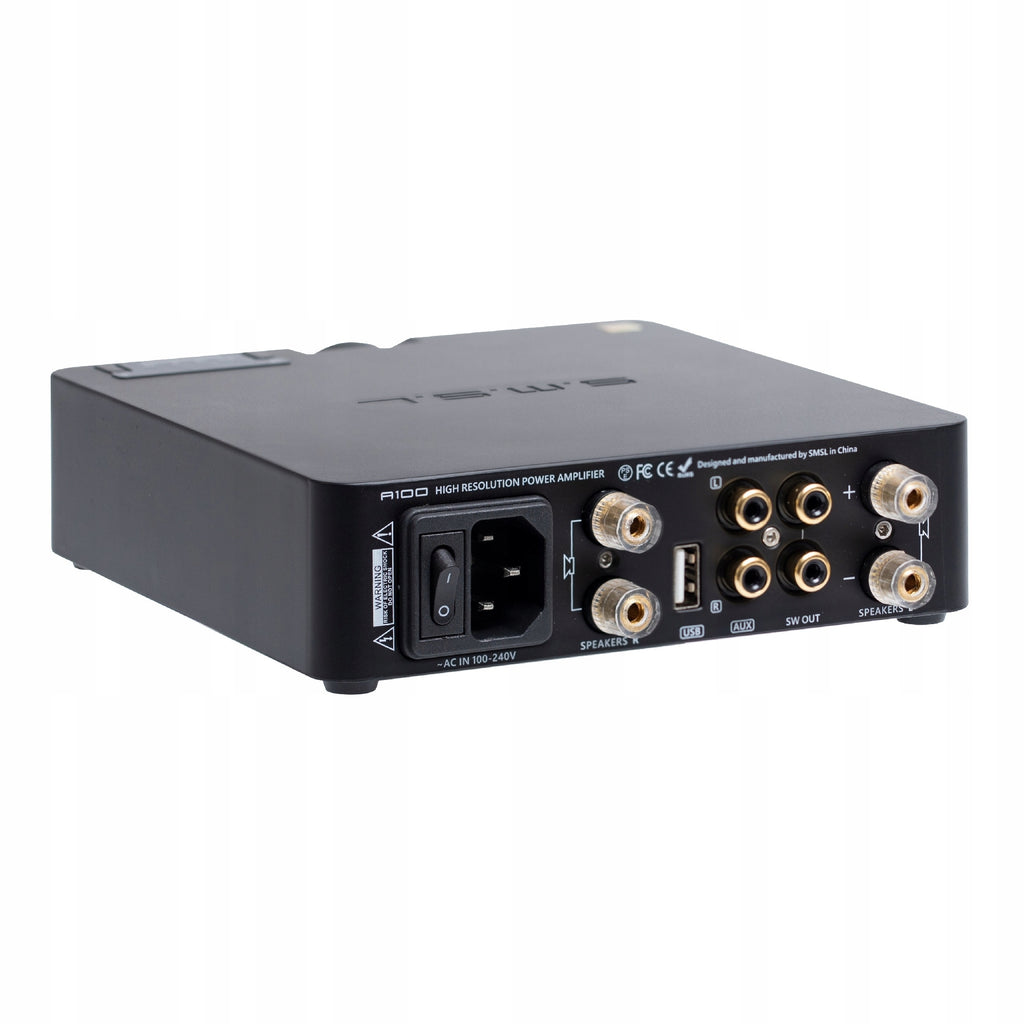

Inputs: USB, Bluetooth, RCA

• THD+N: 0,005%

• SNR: 103dB

• Channel Separation: 88dB

• Output power: 80Wx2 (4Ω) / 40Wx2 (8Ω)

• Input sensitivity/input impedance: 180mV / 22kΩ

• Power consumption: 35 W (normal volume)

• Dimensions: 150x43x165mm

• Weight: 0,6 kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	S.M.S.L
Parametry	Model	A100
Parametry	Product width	15 cm
Parametry	Product height	4.3 cm
Parametry	Product depth	16.5 cm
Parametry	Product weight	0.6 kg
Parametry	Color	black
Parametry	Number of channels	2
Parametry	4Ω output power	80 W
Parametry	8Ω power output	40 W
Parametry	Number of analog audio inputs	1
Parametry	Communications	Bluetooth
Parametry	Functions	none
Parametry	THD distortion	0.01%
Parametry	Signal-to-noise ratio	103 dB
Parametry	EAN (GTIN)	6970141854869
Parametry	Manufacturer code	A100
Parametry	Other connectors	USB,subwoofer output
