Trumpai apie prekę
Prekė: Garažo vartų pavara FORCE BEST 600, tinka iki 12 m². Kategorija: Kietieji diskai.
- Gamintojas: Force
- Modelis: best600

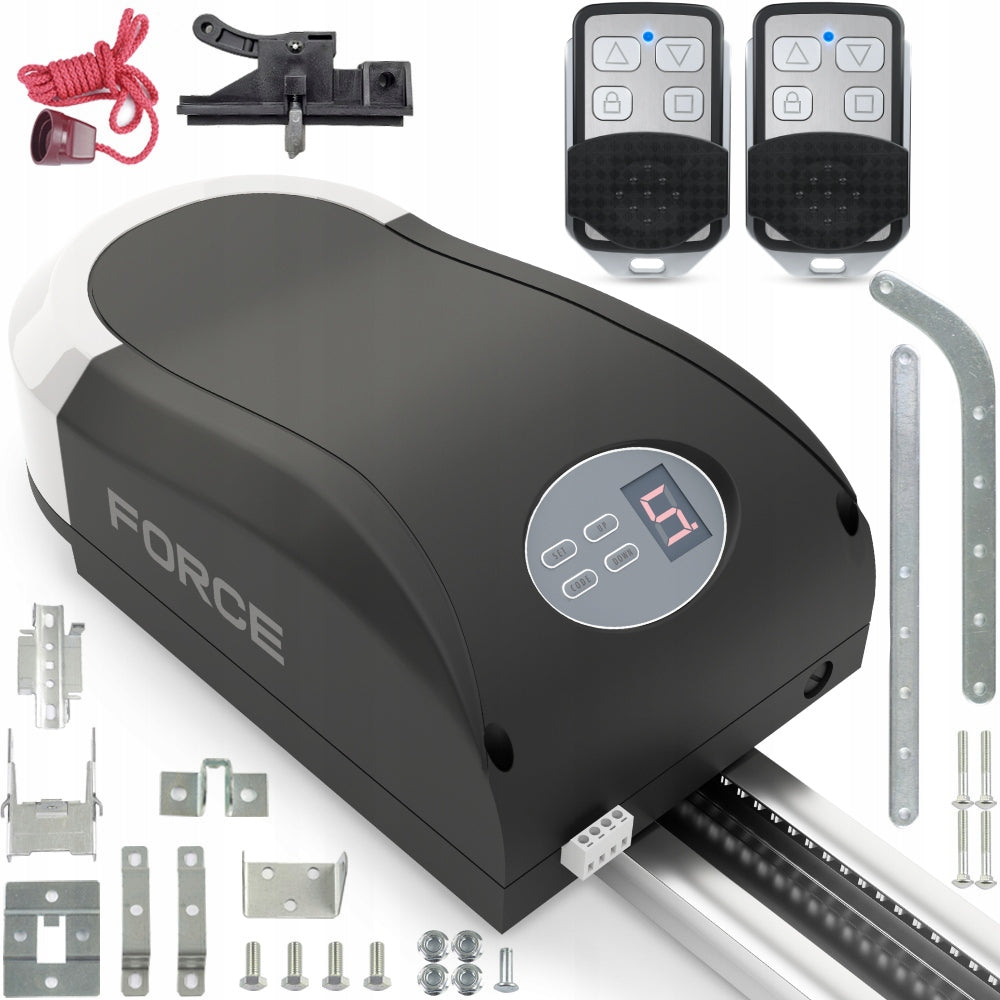

The BEST 600 set includes:

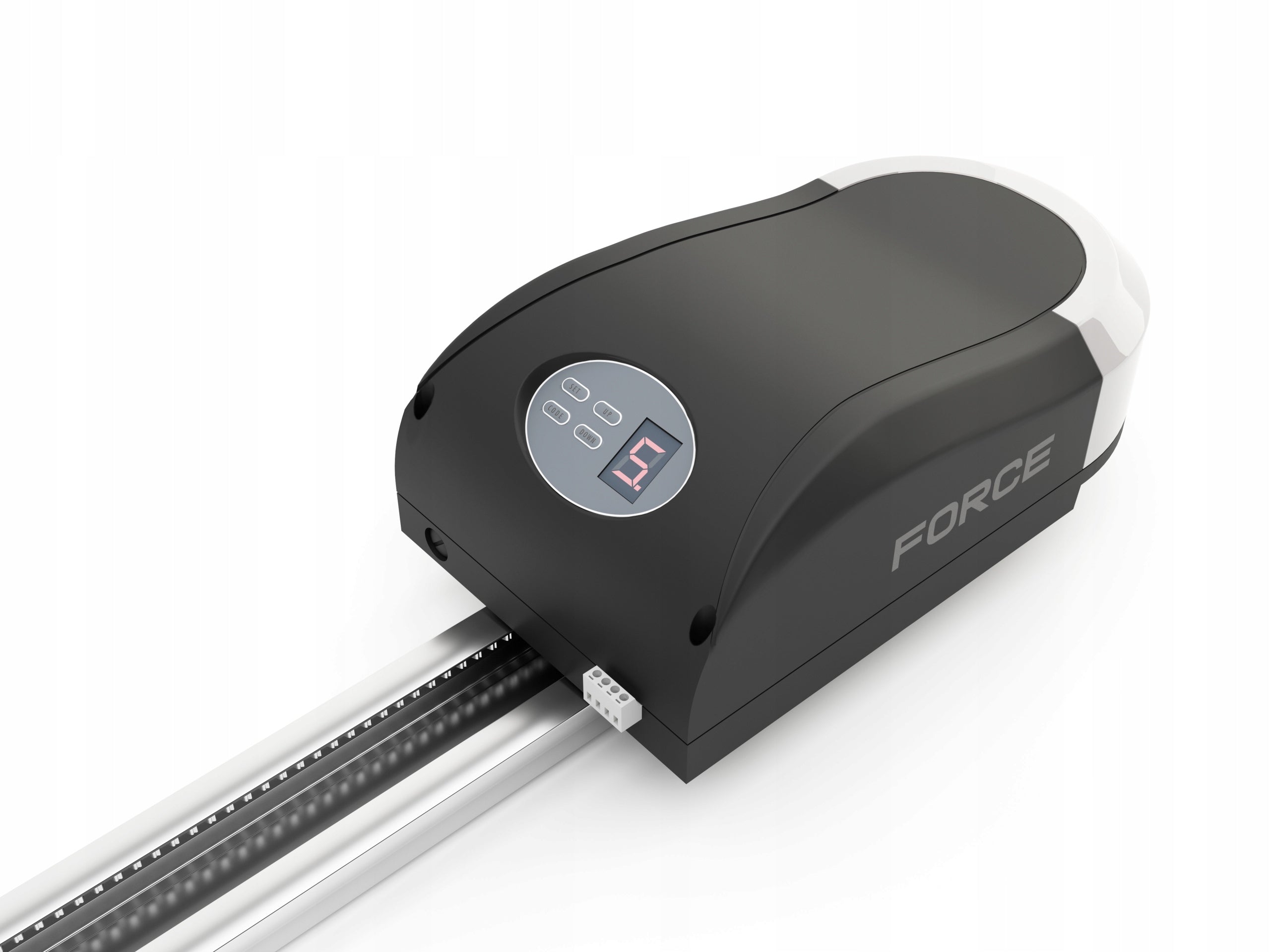

- BEST 600 drive with thrust 600 N!
- 2X 4-channel remote control
- Control panel built into the drive head
- Built-in garage lighting - 25W

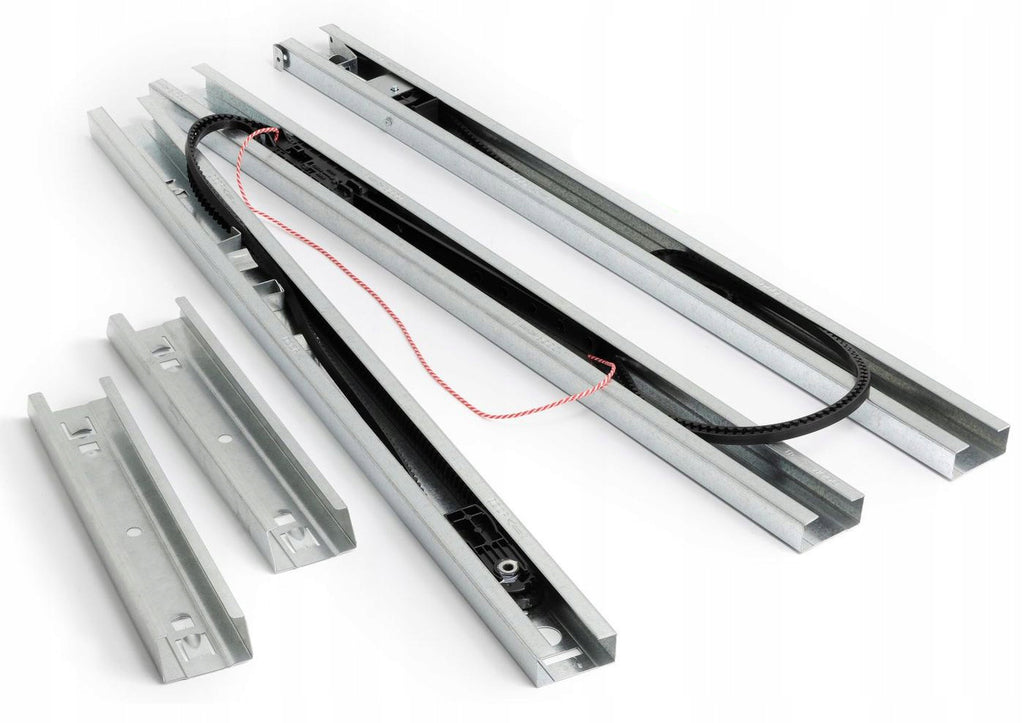

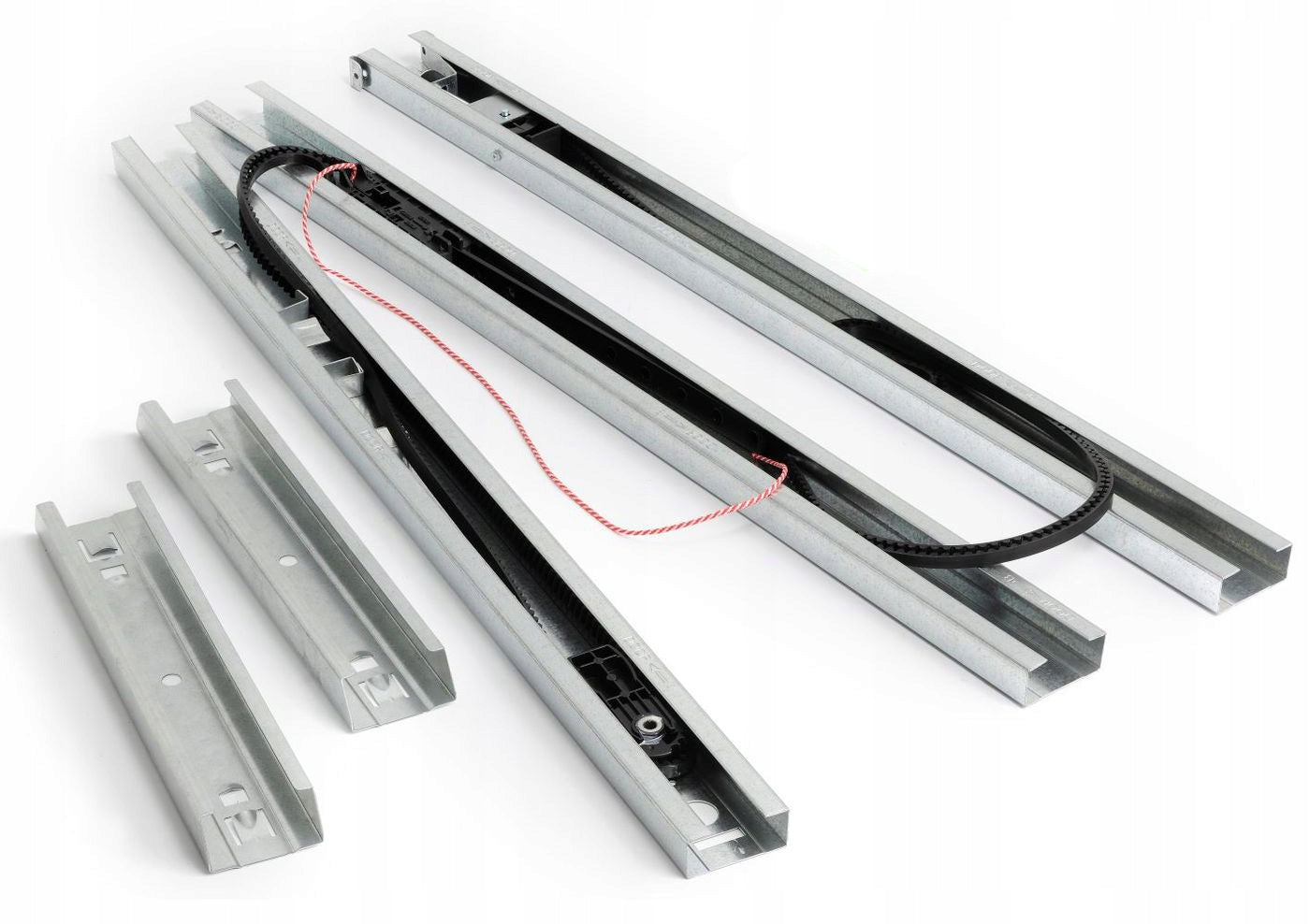

- Driving rail 3,3m with Kevlar strap (supports gates up to 2,7m high)
- Driving trolley with unlock function

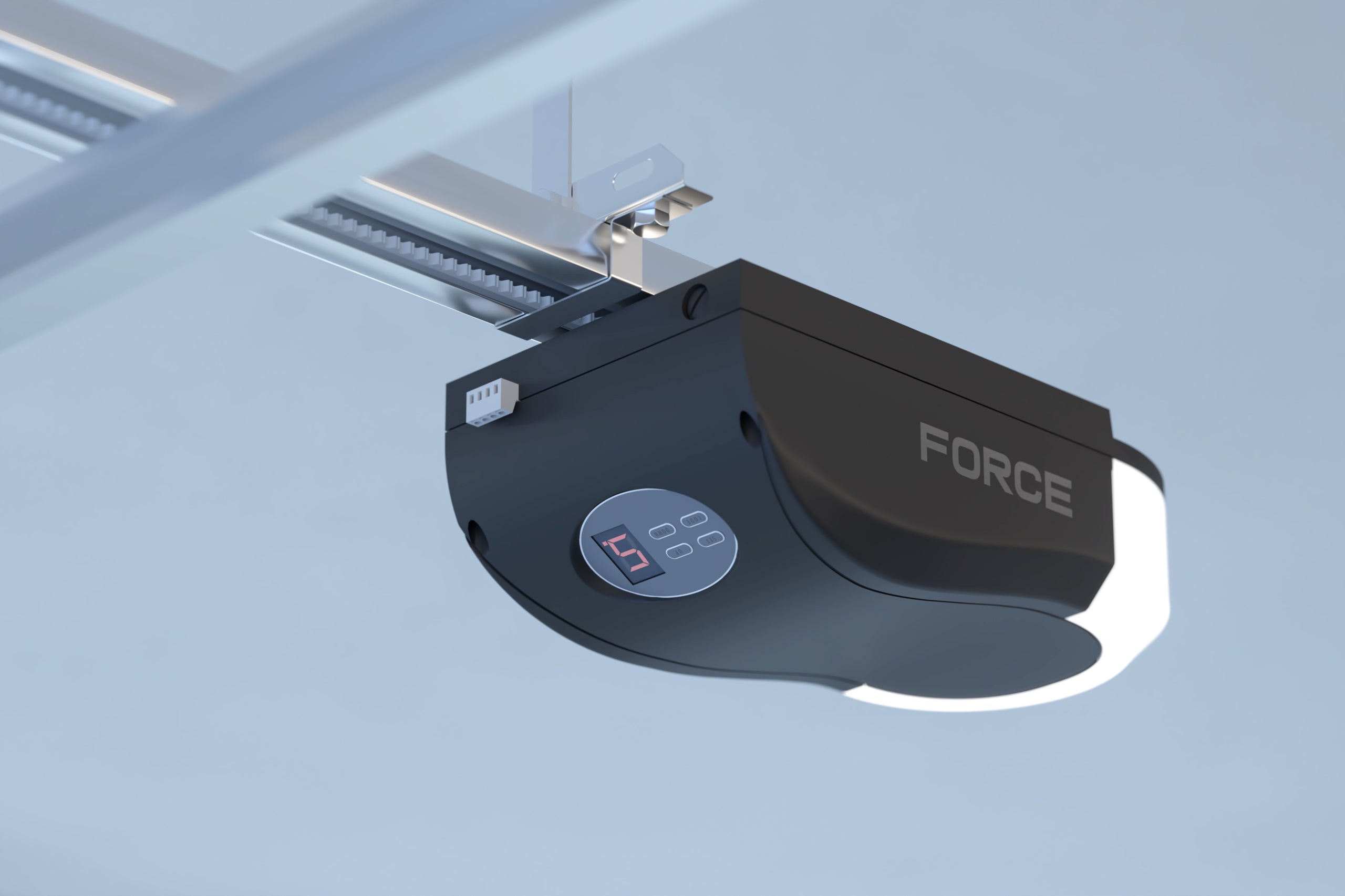

- Mounting console for the head - quick installation

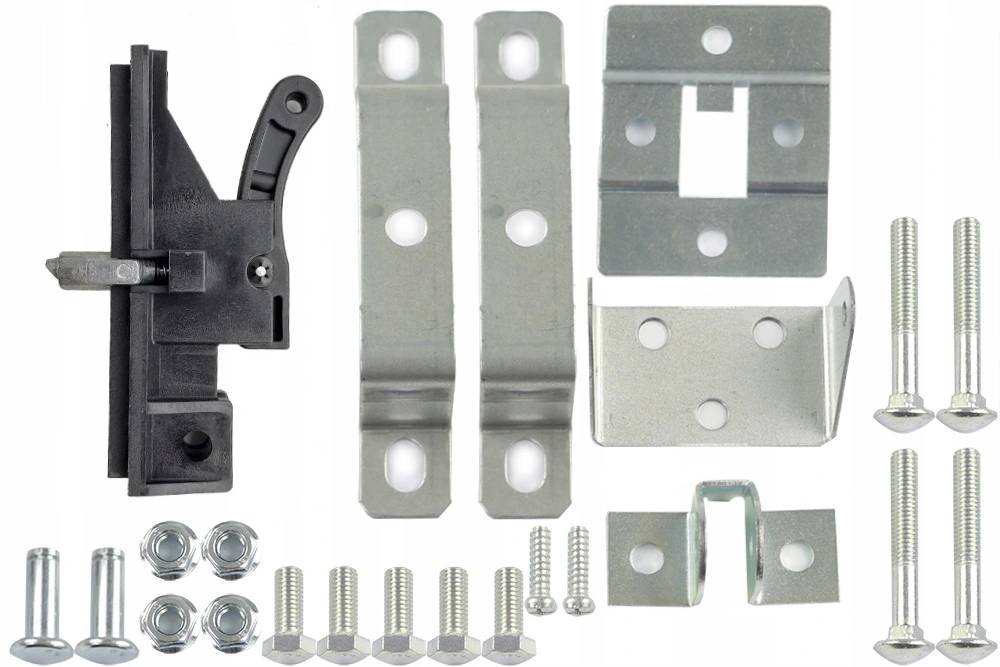

- Set of mounting elements
- Two yokes fixing to the ceiling
- Radio receiver built into the control board
- Assembly instructions in Polish download
- Telephone assistance with assembly.
- Characteristic for this drive is high thrust of up to 600 N! For this reason, this drive can support gates with an area of up to 12 m2. Thus, it can support single-station and double-station garage doors, e.g. with dimensions of 3m wide x 2,5m high.
- smooth soft start "Soft Start" and gentle closing of the gate "Soft Stop"
- built-in anti-crush encoder - when the gate encounters an obstacle during movement, it automatically stops and retracts
- programmable marginal positions
- control via the control input (possible connection of the control button (e.g. classic bell switch, code keyboard, magnetic card reader, etc. ) If the gateway is in the WiFi area you can connect the WiFi driver to the drive (optional) and control the gateway from your mobile phone from anywhere in the world
- operation of photocells protecting against closing the gate in case of intersection of photocell light by an obstacle
- engine power regulation
- illumination of the garage for 3 minutes from the start of operation of the drive
- work in the basic mode. Each press of the remote control results in the next step at work (opening – stopping – closing)
- auto closing – after the programmed time, the gate will automatically close
- Power Supply: 230V (50Hz)
- Motor Type: DC Motor with Permanent Magnet
- Pulling force: 600 N
- Torque on the motor shaft: 7 Nm
- Lifting height: 3 m
- Auto-closing time: 45 s.
- Weight: 7 kg
- Dimensions: 400x210x160 mm
- Opening speed: 5,77 m/min
- Operating temperature: -20°C +50°C
- Remote control range: > 30 m
- Power: 120 W
2 x 4K 4-Channel Door Remote Control in Steel Housing
Remote control for 4-channel gate, with dynamically randomly variable code with a frequency of 433.92 MHz. Gate remotes will help you manage your home automation. Each gate remote has its own identity code – so that the remotes can be copied to the remote control. FORCE drive remotes are not compatible with other 433,92 MHz gate remotes.
- supports gates up to 2,7 m high
- equipped with emergency unlocking in the event of an interruption in the supply of electricity, just pull the "pump" and the gate unlocked
- high working culture - the rail with kewlar belt is characterized by quiet operation

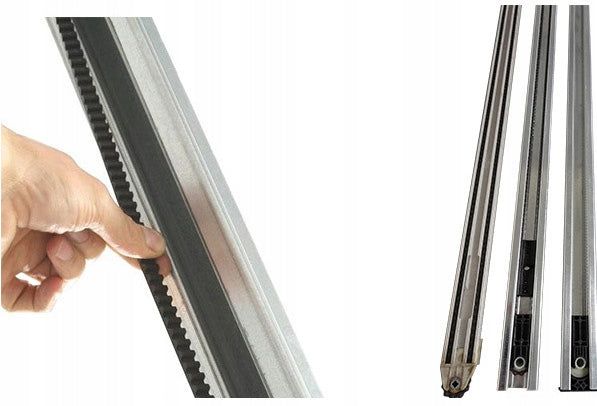

- Kevlar strap reinforced with six steel cords
- mounting accessories

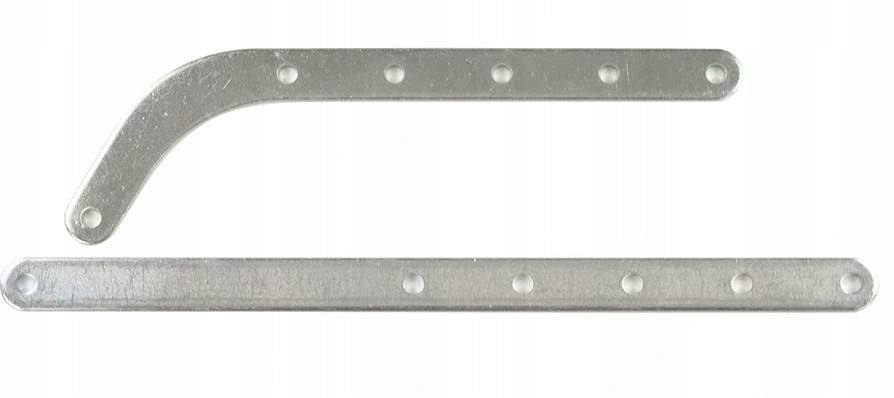

- handles for connecting the trolley to the gate
- trolley
- mounting hardware
- set of screw-offs
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Force |
| Parametry | Product weight with unit packaging | 15 kg |
| Parametry | Drive type | for garage doors |
| Parametry | Maximum wing length | 5 m |
| Parametry | Manufacturer code | best600 |
