Galinio vaizdo kamera su LED, IP67, naktinis režimas, universali

Trumpai apie prekę

Prekė: Galinio vaizdo kamera su LED, IP67, naktinis režimas, universali. Kategorija: Automobilio vaizdo registratoriai.

• Gamintojas: Blow
• Modelis: BVS-546

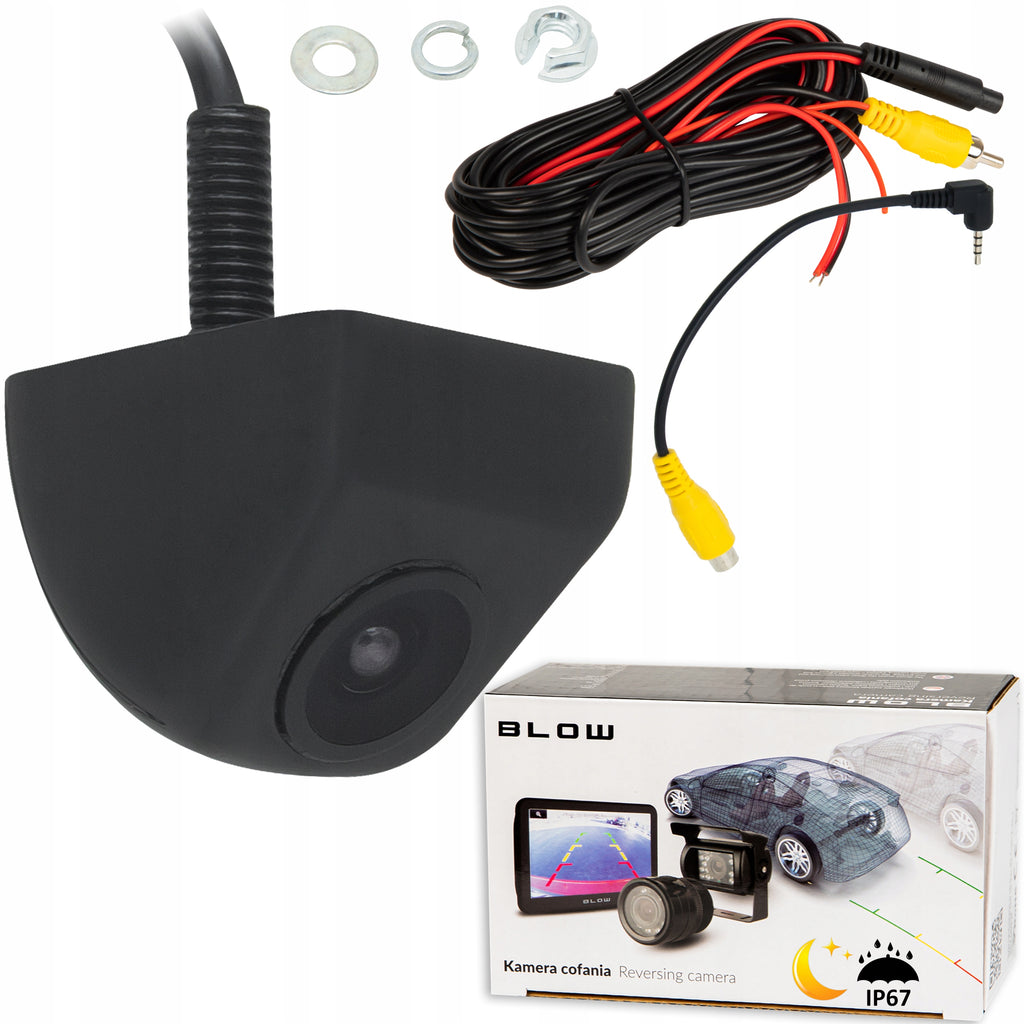

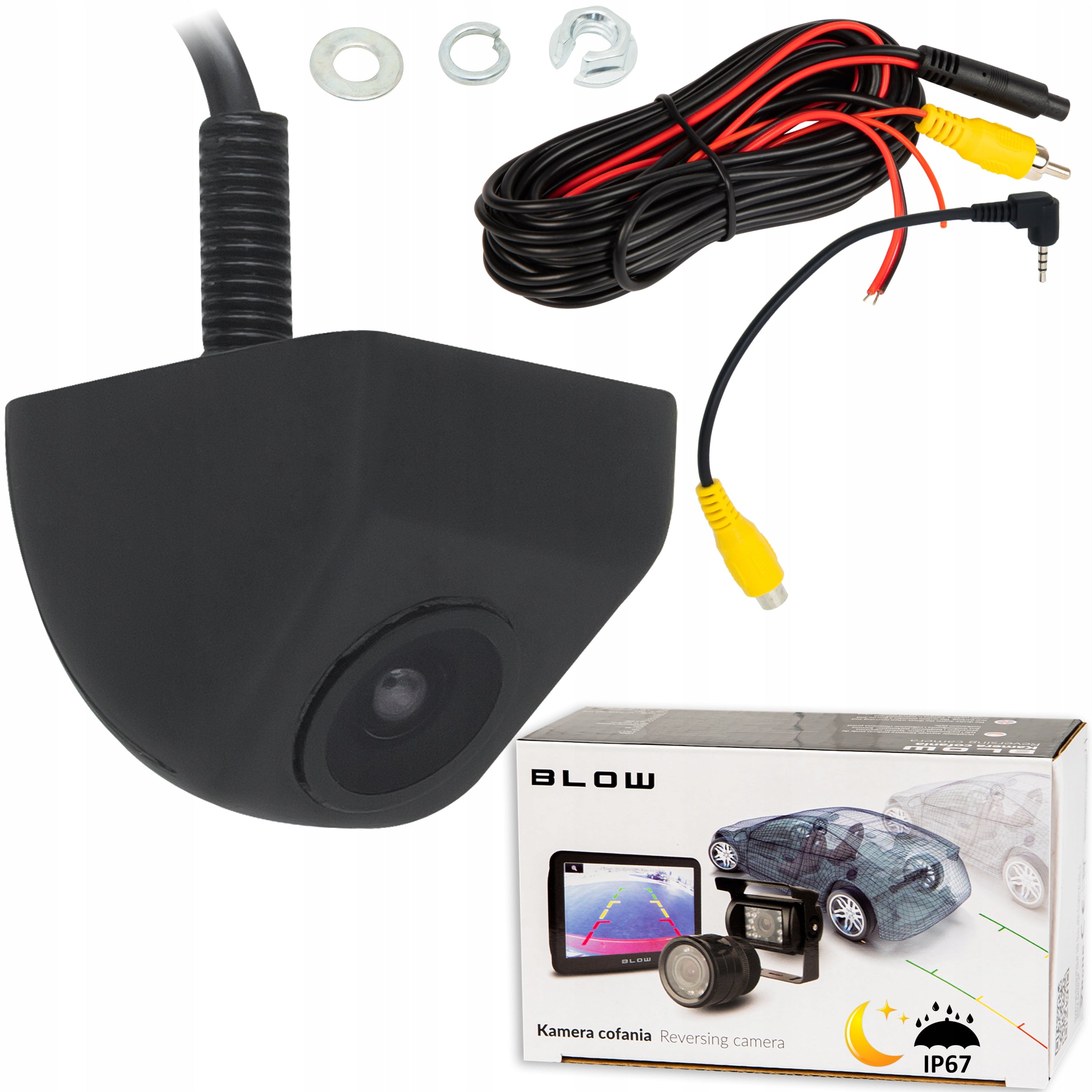

Wired reversing camera brand Blow designed to be installed in both passenger cars and vans. The task of the camera is to transmit the current image behind the vehicle, which will definitely facilitate parking and reversing in places with limited visibility. In a simple way, we can avoid hitting an obstacle invisible to the naked eye, but also better observe the lines of the designated parking space.

An additional advantage is a simple and aesthetic way of vertical mounting – the camera has a released thread, and the set includes a nut, which allows for quick and stable attachment of the device without the need for visible screws or additional handles.

Bet on the highest quality

The parameters of the device ensure good fulfillment of their basic tasks which is the transmission of the image behind the vehicle - in a special way it is necessary to emphasize the very wide viewing angle of the image sensor and horizontal vision. The device has an IP67 waterproof rating ensuring continuity of operation even in rainy conditions. In addition, it is possible to gently change the angle of the camera itself in order to better adjust visibility. In addition, the kit also has necessary wires to mount the camera.

Resistant to harsh weather conditions

The Blow reversing camera is designed for reliable operation all year round – regardless of the weather. With its robust construction and high resistance class, it is suitable for both heavy rainfall, snow, and low and high temperatures. This guarantees safe reversing and parking even in the most demanding weather conditions.

Fits most monitors and universal multimedia stations and car radios equipped with the function of connecting a reversing camera, which ensures wide compatibility.

The device assists when reversing, but does not relieve the driver of the special attention required during this manoeuvre.

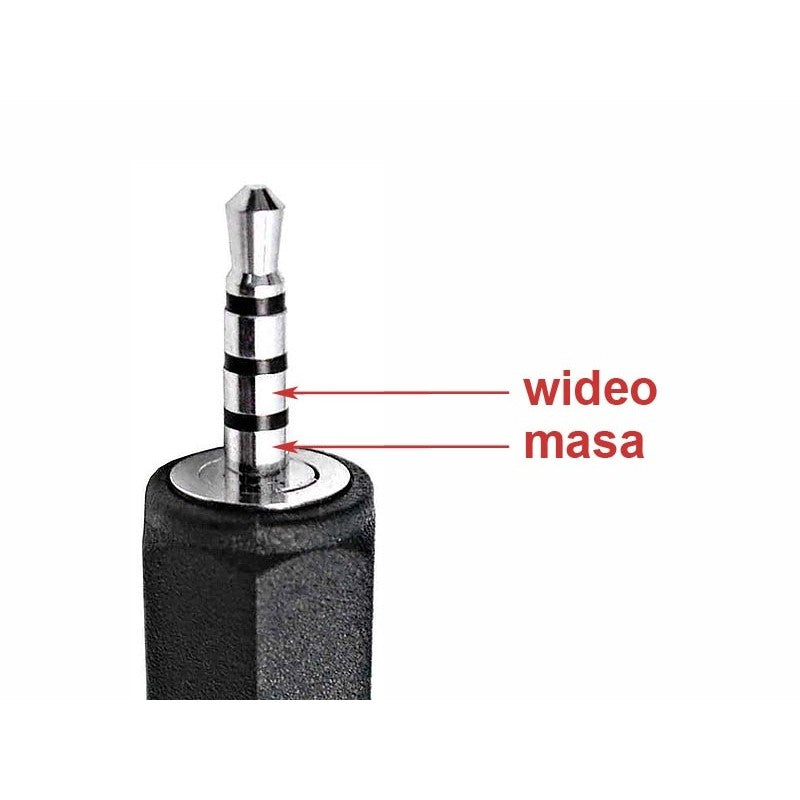

The camera can be connected using the included RCA cable to the AV input of the radio with a built-in display, monitor or to navigation with AV input. You can also use a wireless image transmitter to remotely transfer the image to a device with a screen.

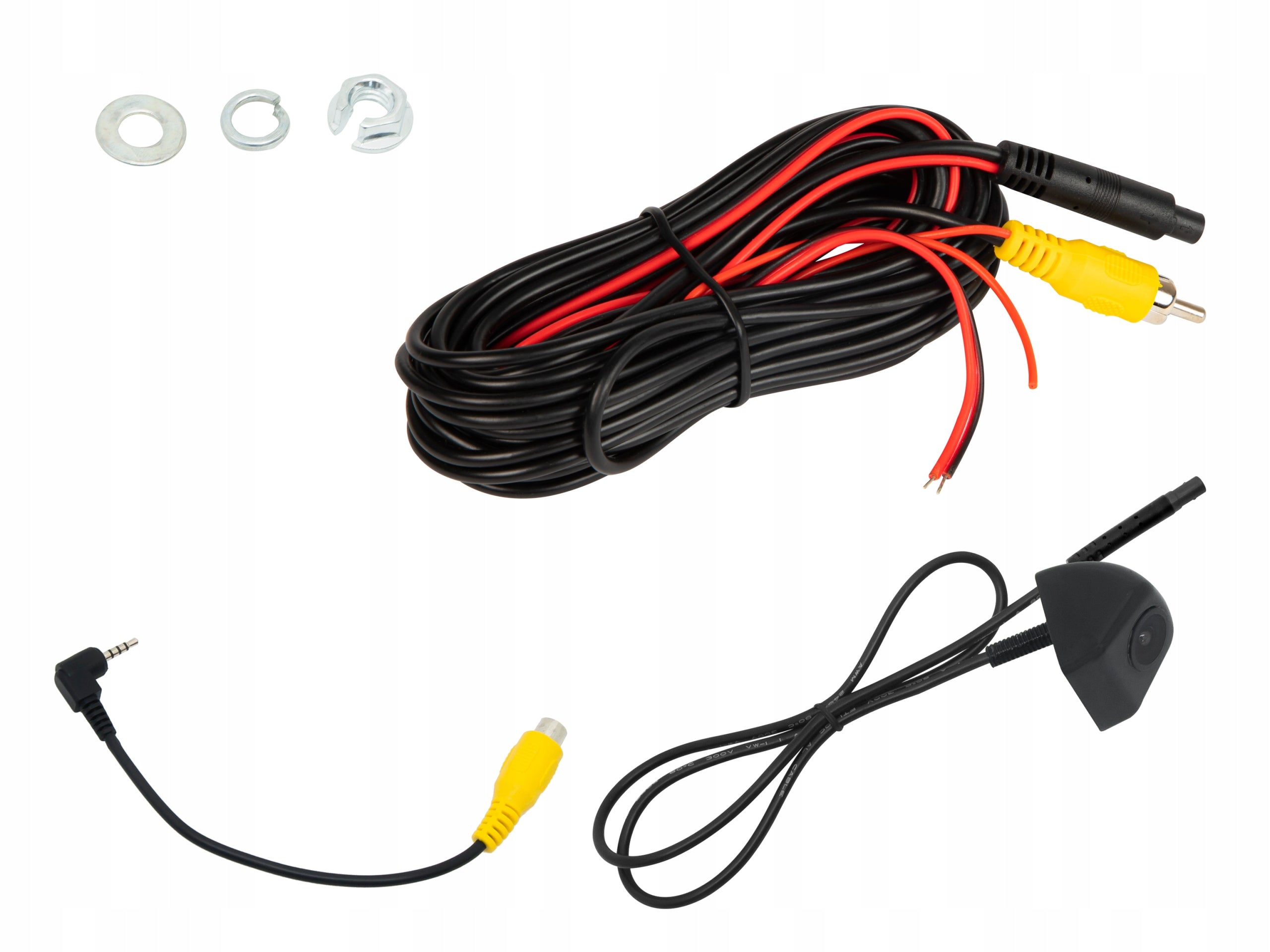

Comes with all necessary connection cables.

Specification:

• Image sensor: 1/3,6 inch CMOS
• Resolution: 648x488
• Measurement area: 4.9 x 3.7
• Lens: F = 1,9 mm / F = 2,0
• Signal System: PAL
• Horizontal synchronization (kHz): 15625/15734
• V-Sync (Hz): 50/60
• Automatic gain adjustment and backlight adjustment: YES
• Horizontal definition: 480 TV lines
• Minimum lighting: 0,01 lux
• Signal/noise: < 48,0 [dB]
• Image sensor viewing angle: 170 degree
• Horizontal viewing angle: 120°
• Vertical Viewing Angle: 90°
• Diagonal viewing angle: 165°
• Waterproof Class: IP67
• Voltage Range: DC 9-15V
• Video Output: 1.0Vp-p / 75 Ω
• Operating temperature: -20 ~+70°C, RH 95% Max
• Storage temperature: -30 ~+80°C, RH 95% Max
• Cable length at the camera: 50 cm
• Power cord length: 90 cm
• Length of video cable for monitor: 580 cm

BLOW products are CE and RoHS certified. These certificates confirm compliance with fully stringent European Union standards regarding, among others, health safety and environmental protection.
