Frezeris OF 1010 REBQ-FS-Set LED Festool 578051

Trumpai apie prekę

Prekė: Frezeris OF 1010 REBQ-FS-Set LED Festool 578051. Kategorija: Frezavimo staklės.

• Gamintojas: Festool
• Modelis: 578051

Lighting ensures maximum precision.

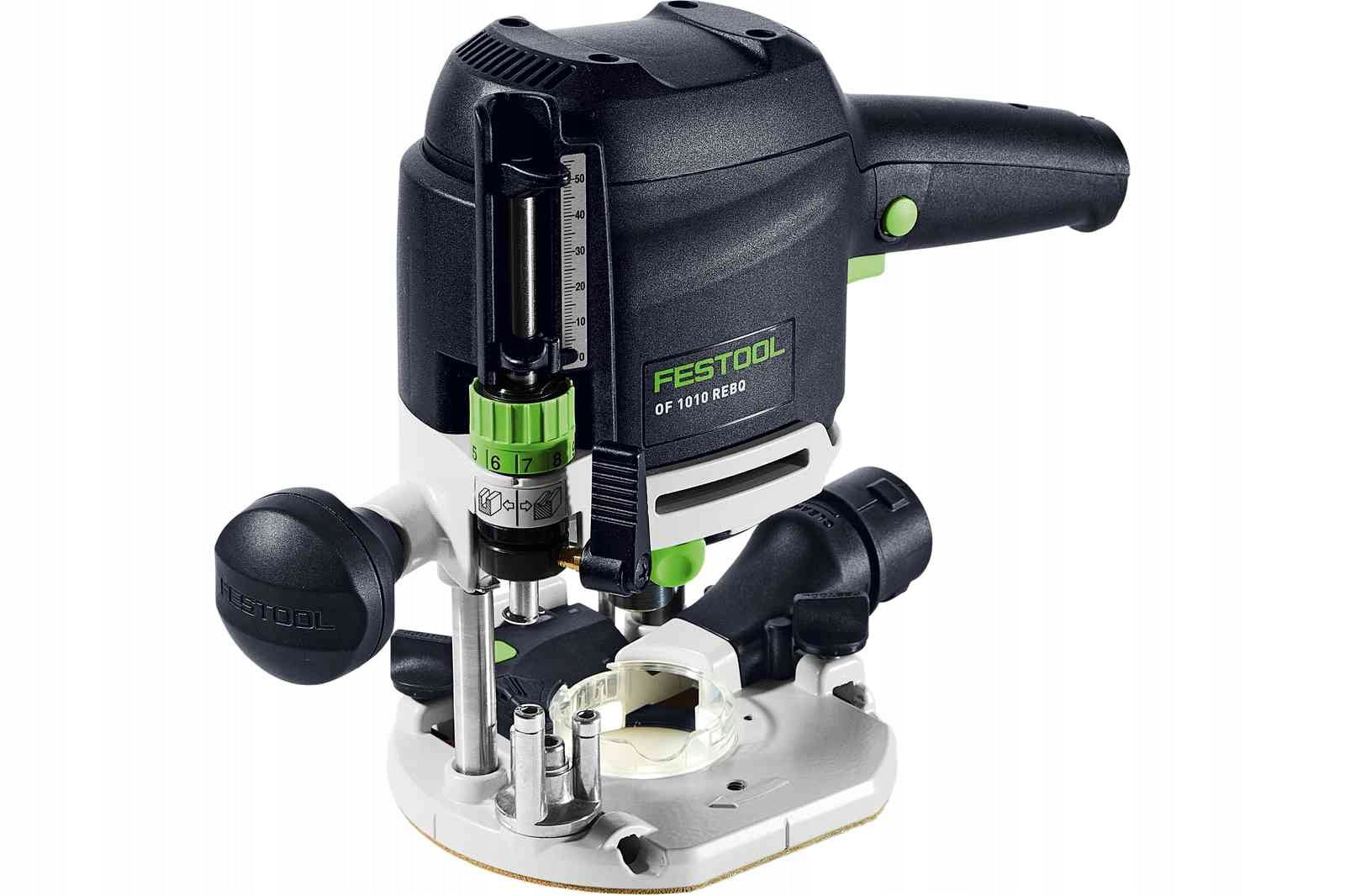

The OF 1010 R spindle milling machine enables maximum precision. The double-sided mounting of the columns makes it extremely resistant to deformation, and the positioning of the side guide is accurate and does not require the use of tools. An easily accessible work area with ring-shaped LED lighting provides excellent visibility of the workpiece. The ring is located directly next to the workpiece, providing illumination without shading effect. All in order to achieve the highest precision milling results. Thanks to a wide range of equipment, the possibilities of using the OF 1010 R milling machine are almost unlimited.

• Handy operation: thanks to its compact design and light weight
• Good visibility: perfectly visible milling area
• Good lighting: thanks to the rechargeable LED work light mounted in the base plate
• In no time: easy and quick cutter replacement
• Precision: Easily and accurately set milling depths with 1/10 mm accuracy
• Stability: non-deformable milling table thanks to double-sided crimped guide columns

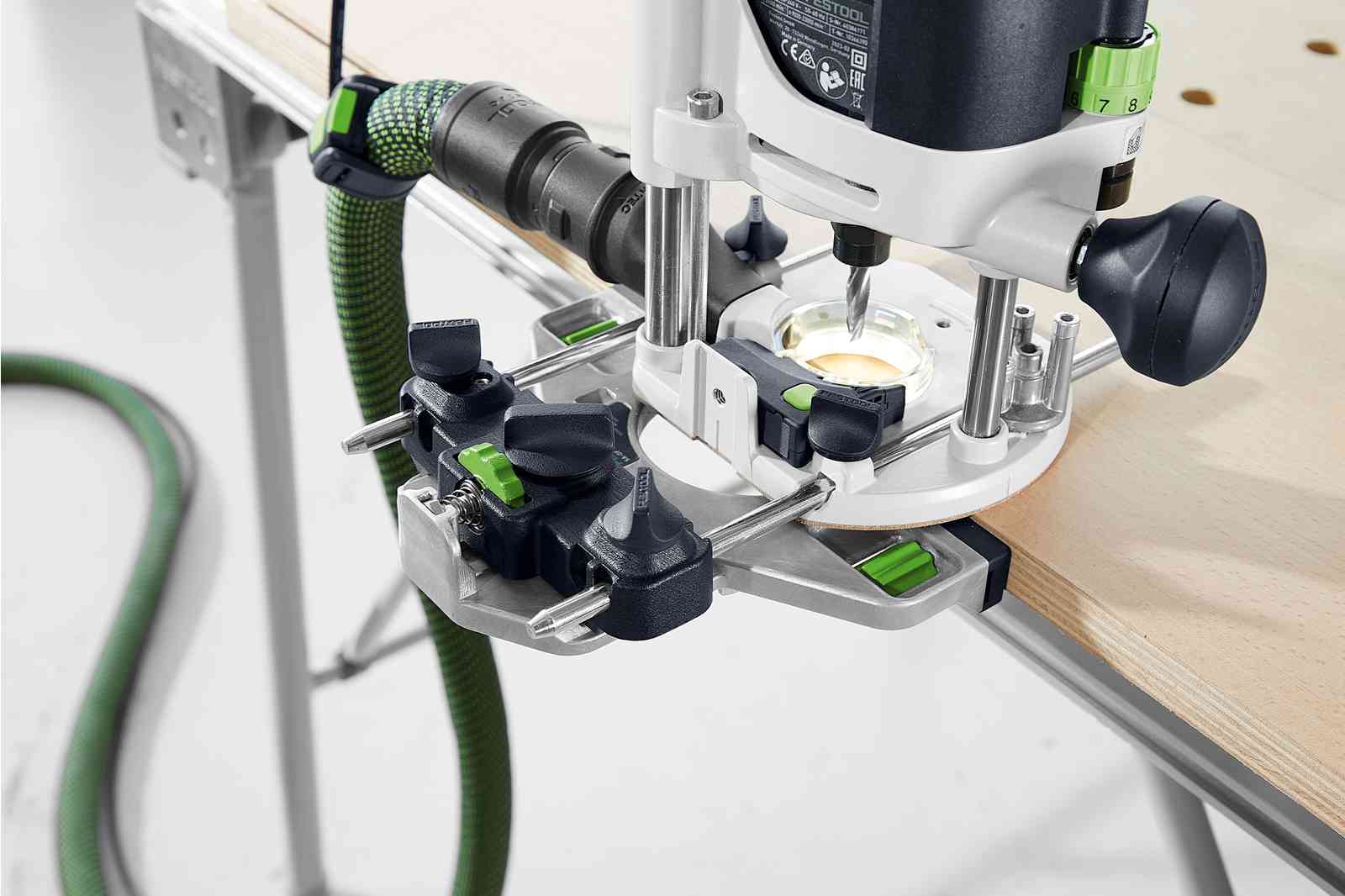

• Side guide: accurate and precise positioning thanks to the central clamp with precise adjustment and tool-free sliding guide jaws
• Increased safety: With its quick brake and reboot protection
• Material Adaptation: MMC Electronic enables optimal operation and temperature control
• Integration: chip extraction built directly into the milling table adapted to hoses with diameters D 27 and D 36

Key applications

• Edge rounding, chamfering, frame making and profiling
• Recessing fittings
• Drains in the back walls, letting in the slats or milling gypsum boards.-cardboard. - with guide system
• Rows of holes in furniture using the LR 32 hole row system
• Making connections of wooden elements with VS 600

Technical data

• Power consumption - 1 010 W
• Idle speed - 9 500 - 23 000 min⁻¹
• Clamp holder diameter - 6 - 8 mm
• Quick setting of milling depth - 55,00 mm
• Precise setting of milling depth - 8,00 mm
• The opening in the table - 50,00 mm
• Dust extraction connection Ø 27/36 mm
• Cable length - 4,00 m
• Product weight without equipment - 3,20 kg
• Type of drive -Network

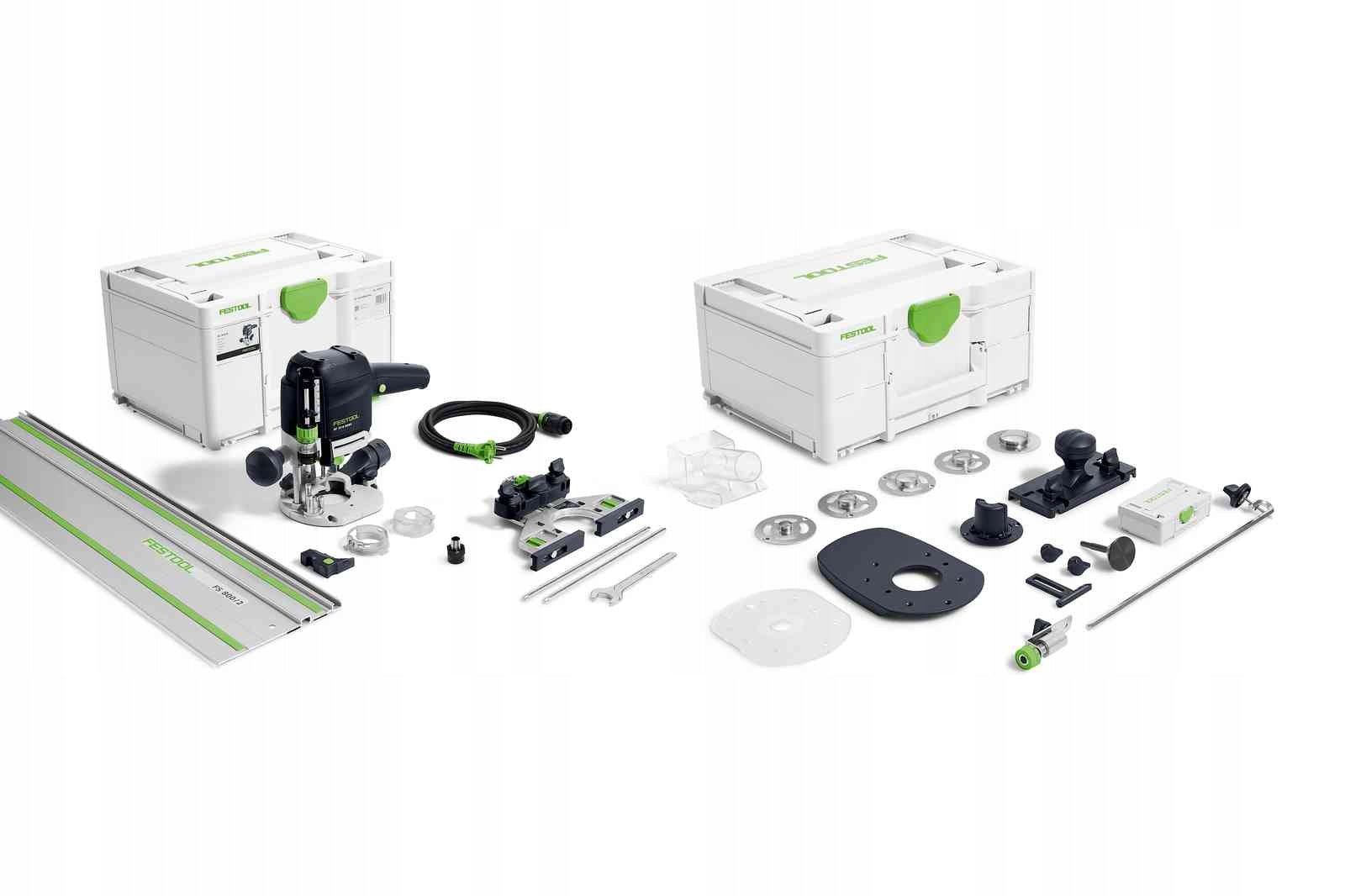

Scope of delivery 578051:

• Festool OF 1010 REBQ-FS-Set spindle milling machine
• SW 19 Flat Wrench
• Lighting module LM-OF 1010 R
• Side guide with precise adjustment SA-OF 1010/MFK
• Plug it network cable (4 m)
• Systainer SYS3 M 237
• Guide rail FS 800/2
• Clamp holder fi 8 mm
• Equipment set ZS-OF 1010 M
