Frezavimo staklės Proxxon FF 250/BL, 230V

Trumpai apie prekę

Prekė: Frezavimo staklės Proxxon FF 250/BL, 230V. Kategorija: Frezavimo staklės.

• Gamintojas: Proxxon
• Modelis: 4006274241145
• Įtampa: 230 V

Manufacturer: Proxxon / Product number: 3306503 / Product weight: 16.25kg / EAN: 4006274241145

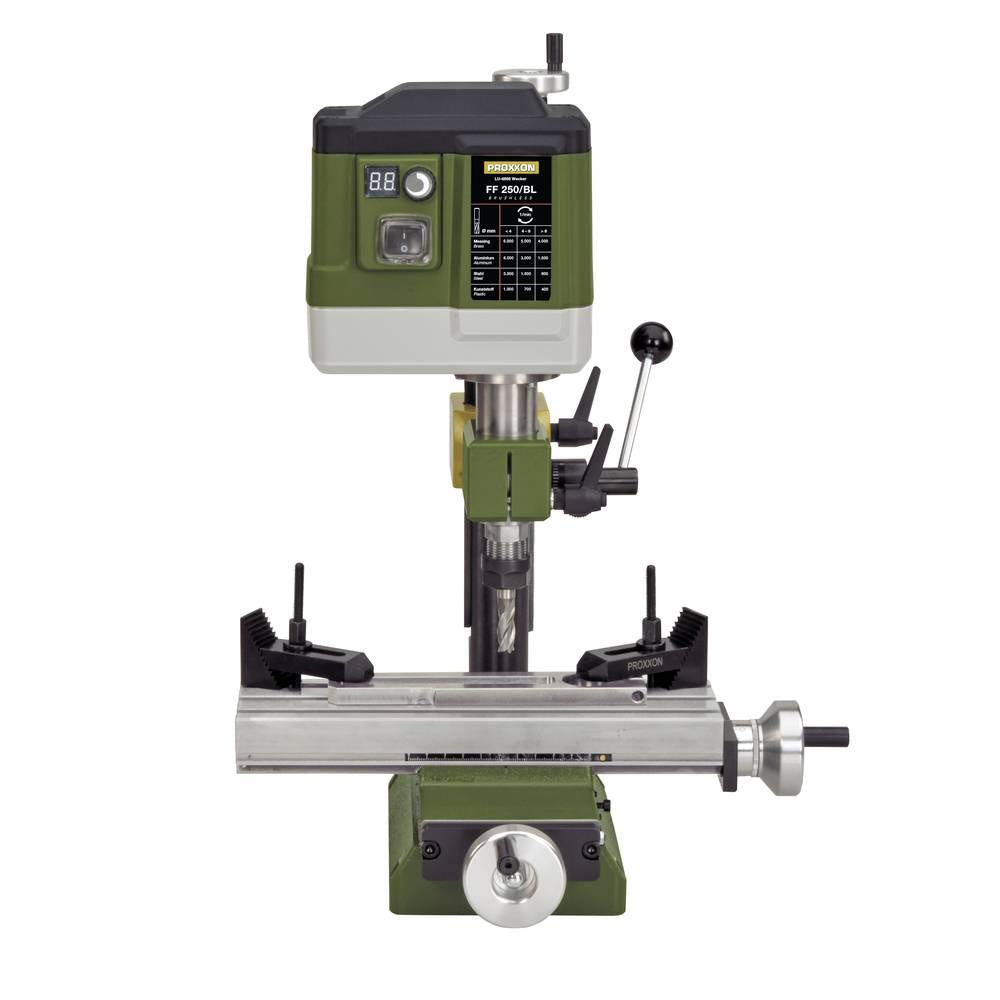

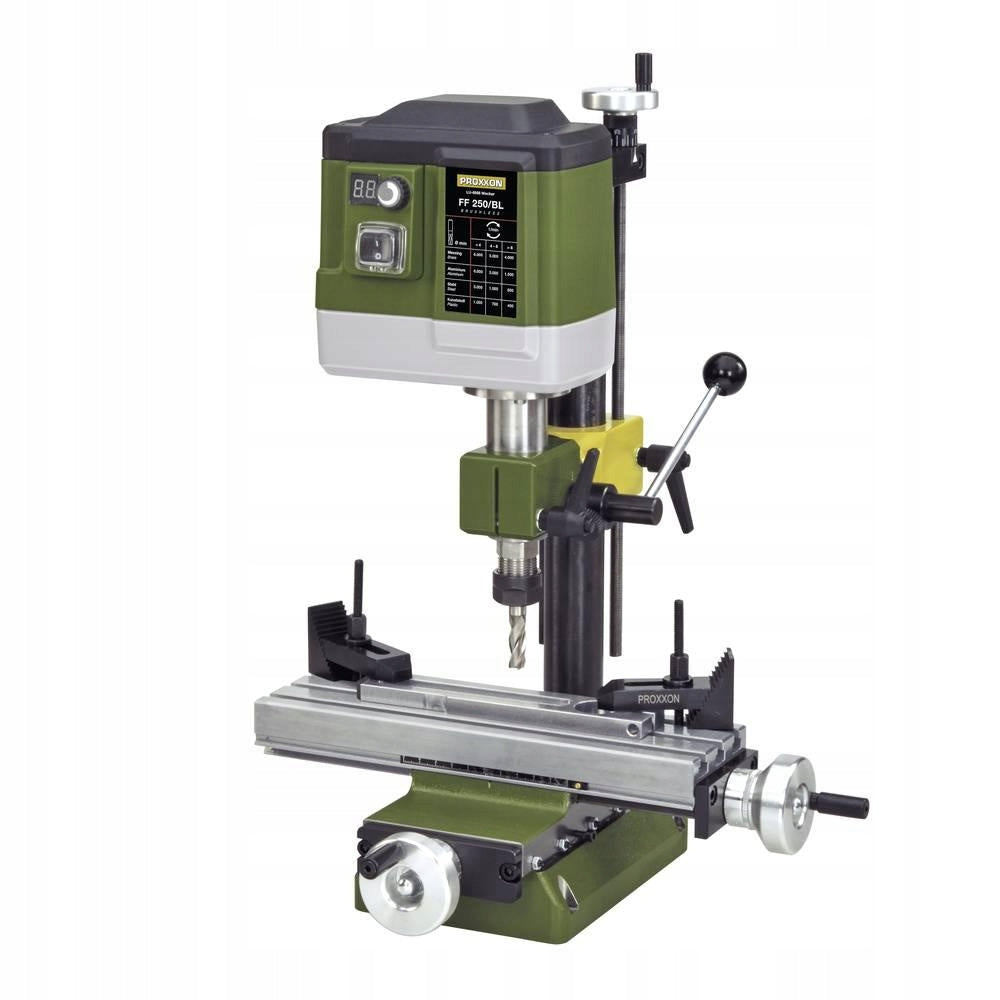

Precision milling machine FF 250/BL

With a direct supply of 230 V. Comprehensive control via rotor position and rotational speed sensors enables high torque when using large cutters in the lower speed range. Tool holder using ER 16 collets (included 1 diameter 6, 8 and 10 mm). Steel cross table with 3 T-grooves. Attention! The description of this product has been translated automatically.

Special features

• Dimensions Table

Characteristics

• Stepless speed selection from 400 to 6000/min
• Digital speed display. Drill head rotated 360° (with scale)

Technical data

• Further technical data: Reach 65 mm
• Spindle sleeve feed 30 mm
• Column Ø 35 x 400 mm
• Table 270 x 80 mm
• Stroke X (transverse) 170 mm, Y (longitudinal) 65 mm
• Mounting area 180 x 130 mm
• Total height approx. 500 mm
• Weight: approx. 17 kg
• Operating Voltage: 230 V
• Idle speed range: 400 - 6000 U/min

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Proxxon
Parametry	Milling machine type	plunge
Parametry	Power supply	mains
Parametry	Supply voltage	230 V
Parametry	Manufacturer code	4006274241145
Parametry	EAN (GTIN)	4006274241145
Parametry	Certificates of conformity	CE
