Prekė: Frezavimo staklės OF 1400 EBQ-Plus SYS3 M 337 Systainer Festool. Kategorija: Frezavimo staklės.
- Gamintojas: Festool
- Modelis: 578940
Spindle milling machine OF 1400 EBQ-Plus SYS3 M 337 Systainer Festool
Festool
Catalog No: 578940
The perfect combination of power and comfort
OF 1400 is a handy and versatile spindle milling machine: with a weight of only 4,5 kg and a cutter stroke of 70 mm, it is ideal for letting in fittings and precise work using milling templates. The LED light ring in the suction cover ensures optimal visibility of the workpiece. Thanks to thoughtful details, extensive equipment and versatile accessories, you can perform almost any milling task – accurately and efficiently.
Stability: deformation-resistant design thanks to double-sided crimped guide columns ensures optimal milling results
Practical solution: tool-free replacement of copy rings and feet for various applications
Comfortable and quick cutter replacement: thanks to the ratchet spindle lock, it is not necessary to move the spade wrench
Optimal visibility: thanks to the suction cover with integrated LED light ring
Precision: easy and precise setting of milling depths up to 1/10 mm – with a large adjustment range of 20 mm
Purity: suction efficiency up to 99% with chip catcher and suction guard for edge milling
Safety: MMC high-speed brake and electronics allow work adapted to the material properties and speed control
Key applications:
- Edge rounding, chamfering, framing and profiling
- Milling circles and cutouts using a multifunctional template
- Inlets in the back walls, letting in the slats - from the system. the host
- Channels in the edges of the door for gaskets - with an auxiliary template
- Milling of mineral materials (max. cutter diameter Ø 45 mm)

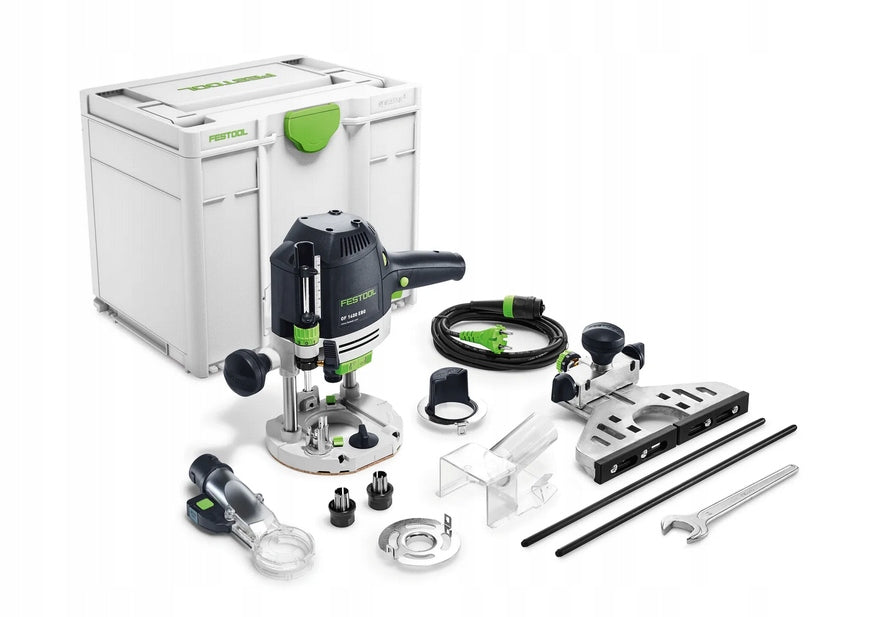

Scope of delivery:
Spindle milling machine OF 1400 EBQ-Plus Festool - 1x
SZ-D 8,0/OF 1400/2000/2200 Terminal bushing - 1x
SA-OF 1400 Side guide - 1x
suction cover on top - 1x
SW 24 - 1x flat wrench
SYS3 M 337 Systainer - 1x
H05 RN-F-4 Plug it cable - 1x
KSF-OF 1400 Chip Catcher - 1x
KR-D 30,0/OF 1400 Copy ring - 1x
SZ-D 12,0/OF 1400/2000/2200 Terminal bushing - 1x
LM-OF 1400 Suction cover with lighting module - 1x
Technical data:
Power consumption - 1 400 W
Idle speed - 10 000 - 22 500 min⁻¹
Diameter of clamping bracket - 6 - 12,7 mm
Quick setting of milling depth - 70,00 mm
Precise setting of milling depth - 8,00 mm
The opening in the table - 63,00 mm
Dust extraction connection Ø - 27/36 mm
Cable length - 4,00 m
Product weight without equipment - 4,60 kg
Transport weight with accessories -9,30 kg
Type of drive - Network
Noise and vibration values
Milling machines: Error tolerance (vibration) K - 1,50 m/s²
Milling machines: Error tolerance (noise) K - 1,50 dB
Milling machines: Total vibration average ah -2,50 m/s²
Milling machines: A number of EN -62841-2-17 standards
Milling machines: Pressure level. akust. (A) LpA -98,00 dB(A)
Milling machines: Acust power level. (A) LWA - 106,00 dB(A)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Festool |
| Parametry | Series | OF 1400 |
| Parametry | Milling machine type | plunge |
| Parametry | Power supply | mains |
| Parametry | Power cord length | 4 m |
| Parametry | Manufacturer code | 578940 |
| Parametry | EAN (GTIN) | 4014549474181 |
| Parametry | Batteries included | no |
