Frežavimo šablonas rankenoms Schuco Peka Gola L ir C 14/30

Trumpai apie prekę

Prekė: Frežavimo šablonas rankenoms Schuco Peka Gola L ir C 14/30. Kategorija: Trafaretai, šablonai.

• Gamintojas: no brand
• Modelis: 3DEK

Template for milling outlets for trough holders Schüco / Peka – strip L and C | 3DEK

Professional milling template for making outlets for Schüco / Peka trough holders. Designed for fast, repeatable and precise work with a manual spindle milling machine.

It is an original design developed on the basis of real carpentry work – it eliminates manual measurements and allows you to make a perfectly matched groove in a few minutes.

In the message when purchasing, please enter the diameter of the cutter, the diameter of the copy ring and the type of handle. In the order without this information, a set of templates for peka schuco, 14mm cutter, 30mm copy ring will be sent. The shipping time for this template is up to 24 hours (usually the same day), while a template with a different specification will be sent within a maximum of three business days.

What the template allows

The template allows you to make precise inlets under:

• trough strips Peka Schüco

On request other slats for the goal handleless system:

• Sevroll
• Zobal
• GTV
• EMUCA
• other

Designed for milling in the sides of furniture bodies.

Supports:

• strip L
• strip C

Dedicated C-strip positioner

The template is equipped with a special positioner that allows you to quickly and accurately set the milling.

Positioner has three squeegees:

• middle — determines the axis of the strip
• upper — determines the upper edge of the outlet
• lower — determines the lower edge of the groove

Eliminates the need for manual measurement.

Parameters of work

Standard version adapted to:

• cutter Ø14 mm
• copy ring Ø30 mm
• Manual spindle milling machine

Possibility of making versions for other cutters and rings on request.

Construction and execution

Material: PETG

Technology: FDM 3D printing

Color: Orange

Elements of the set:

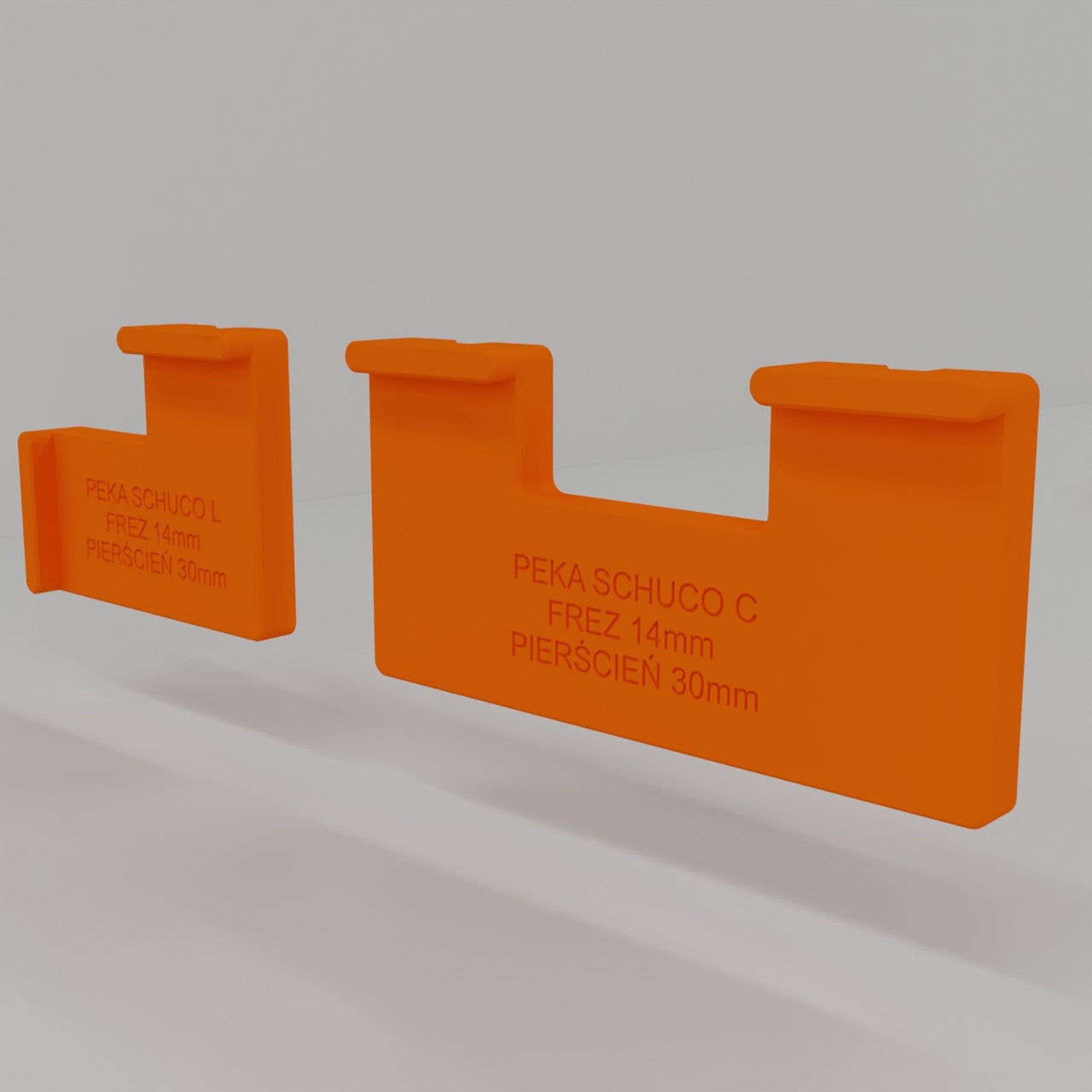

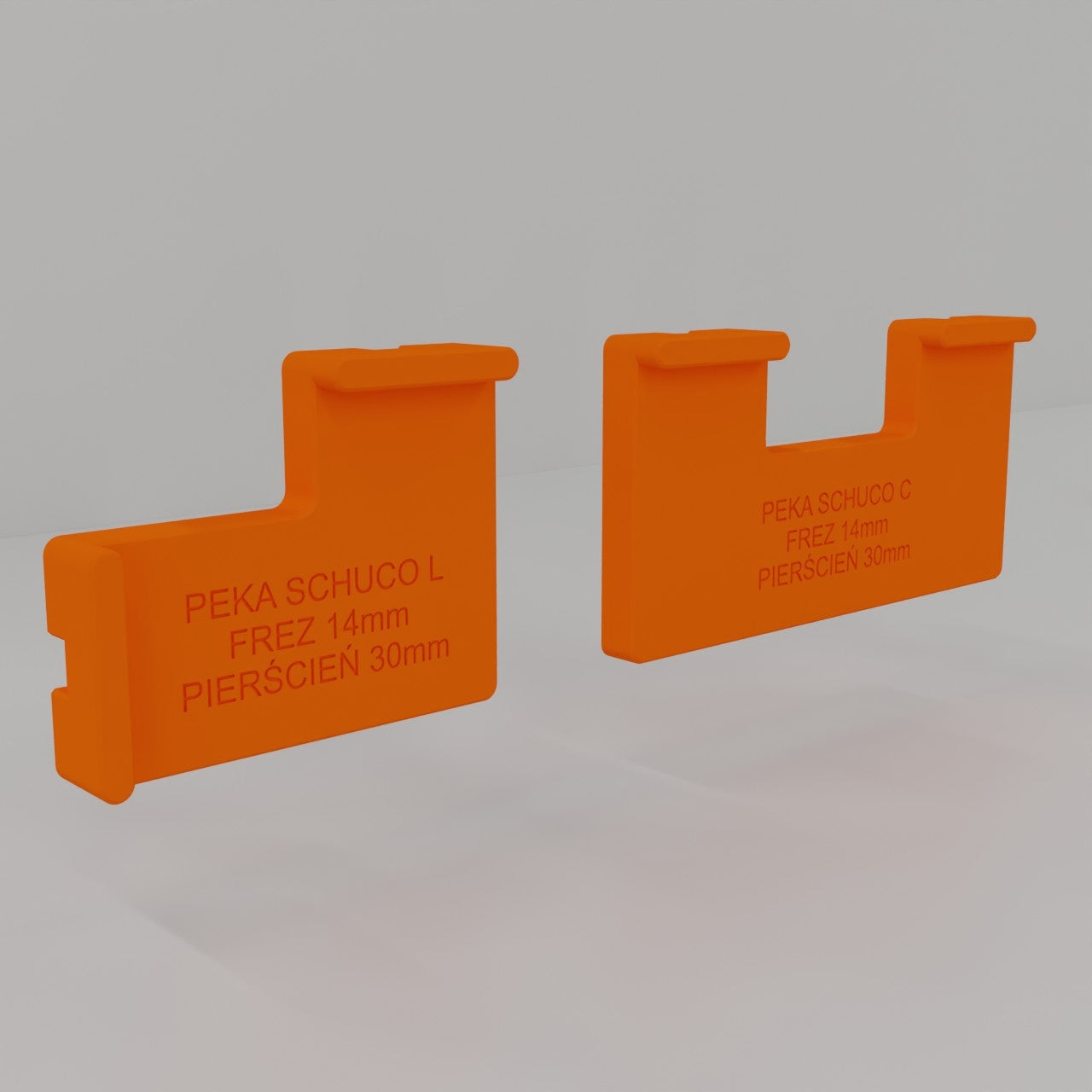

• Strip template C — 200 × 100 × 25 mm
• Strip template L — 126 × 100 × 25 mm
• Strip positioner C — 79 × 30 × 3 mm

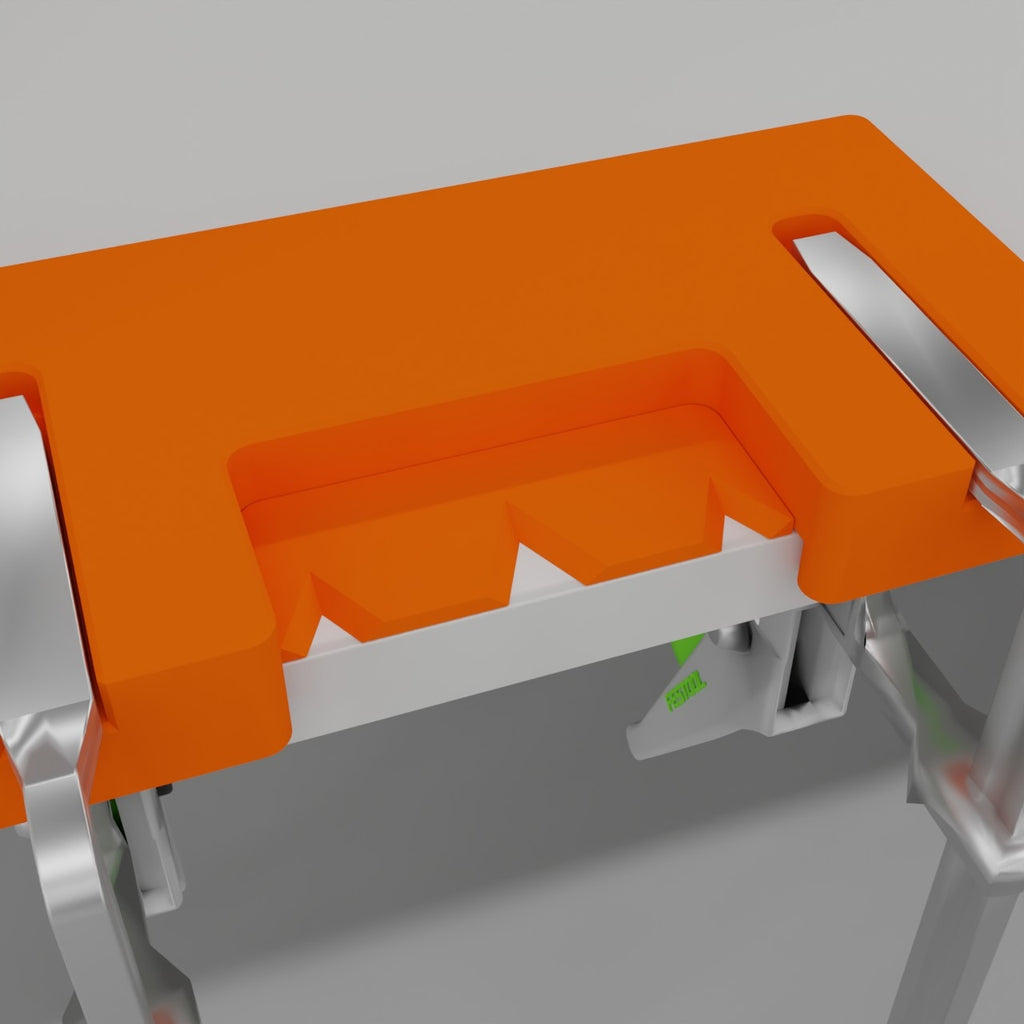

The template has grooves for mounting carpentry clamps, which ensures stability during milling.

Stability and safety at work

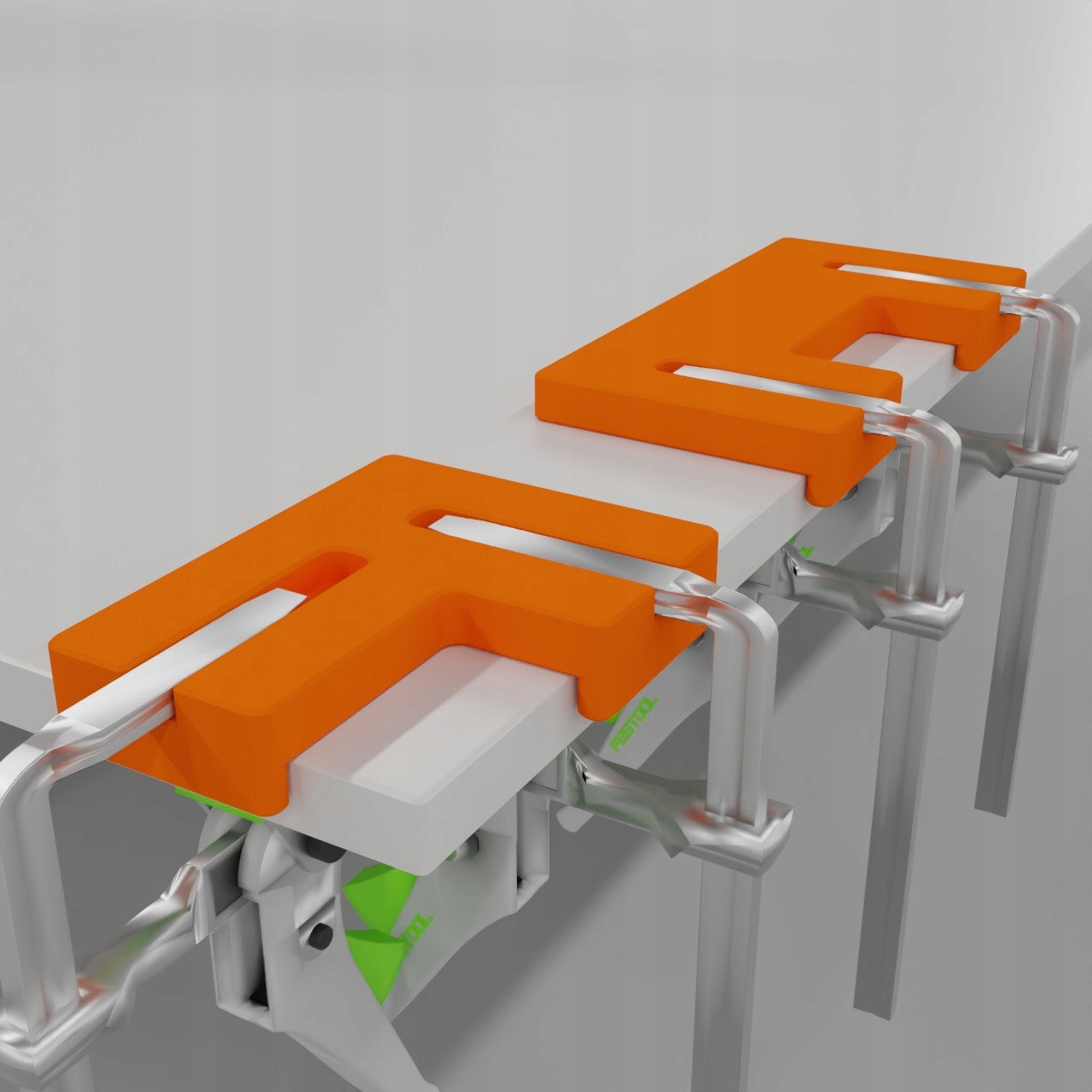

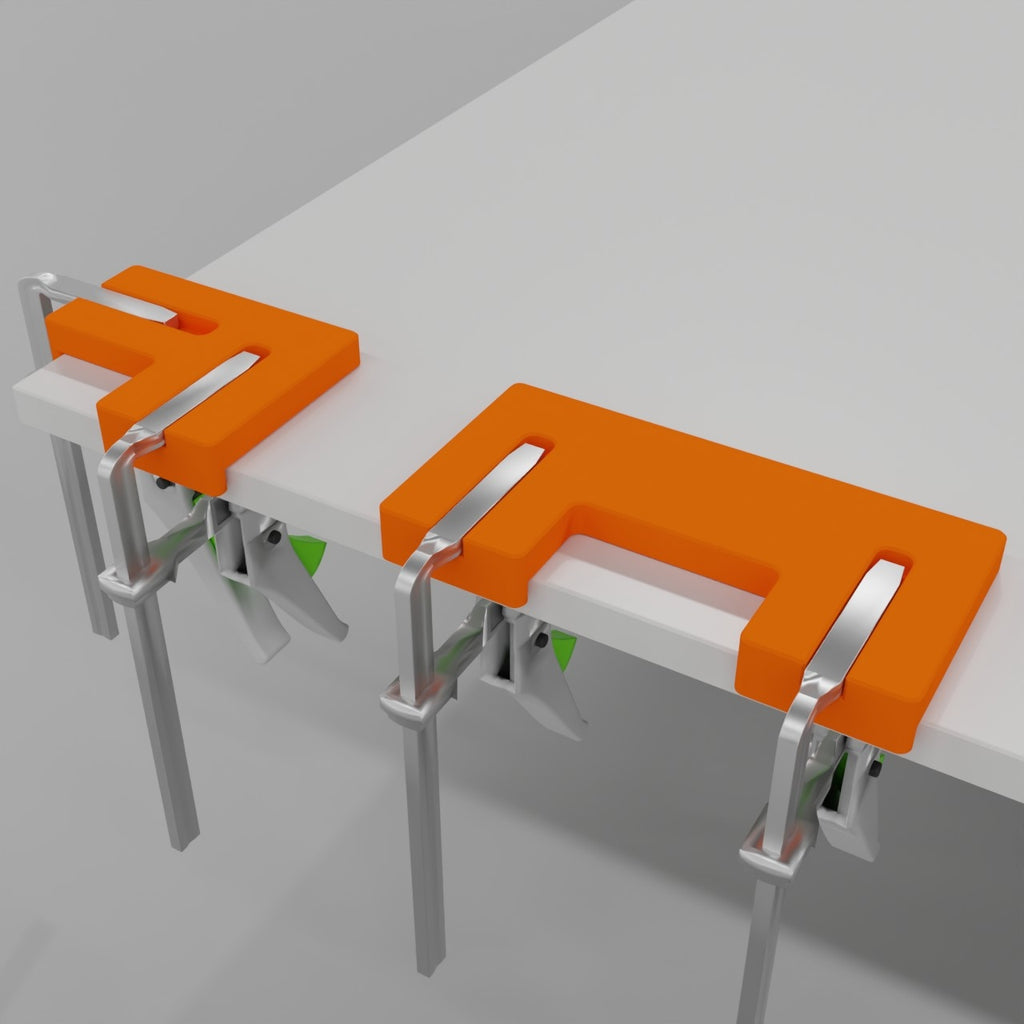

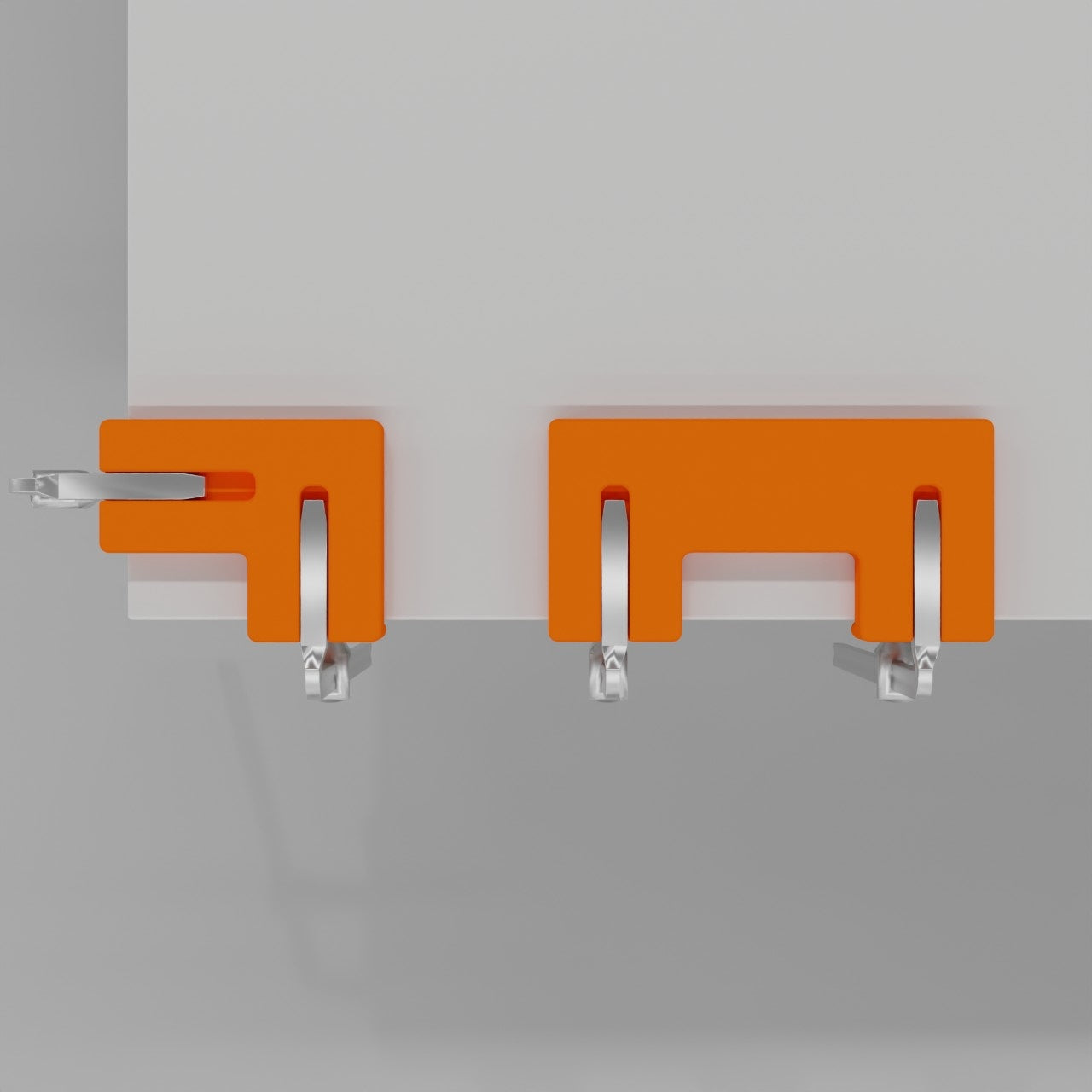

The template must be fixed using carpentry clamps. This ensures full control and precision of milling.

The product is designed to work with a manual milling machine.

Availability and personalization

Standard version 14 / 30 mm:

Shipping in 24 hours

Custom-made versions (other cutters/rings):

lead time up to 3 working days

Project from carpenter for carpenters

The template has been designed and tested in real workshop conditions. It allows you to quickly make precise inlets without the risk of measurement error.
