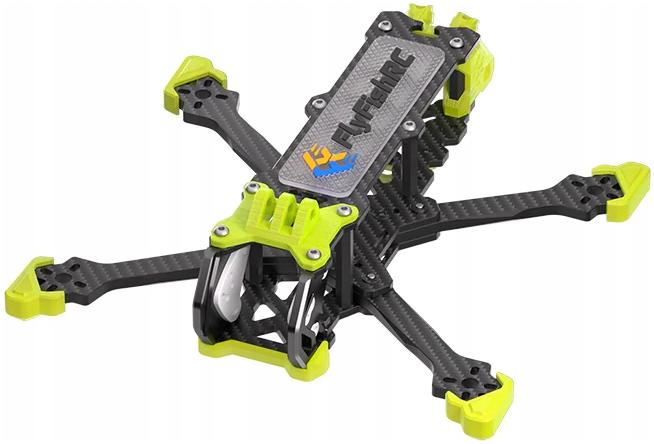

Freestyle Volador VX3 3'' O4 Pro rėmas (geltonas)

Trumpai apie prekę

Prekė: Freestyle Volador VX3 3'' O4 Pro rėmas (geltonas). Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: Volador VX3 3'' O4 Pro

⬇ See more ⬇

The Freestyle Volador VX3 3'' O4 Pro frame in yellow is a lightweight and durable base for building a compact FPV drone. The Squashed X design provides very good control on the fly, and the refined mounting elements make it easy to assemble the set aesthetically and conveniently.

Key features of the product:

• 3 to 3,5 inch propeller frame
• Squashed X design for precise handling
• Compatible with DJI O4 Air Unit and analog and HD systems
• silicone camera suppression limiting the jello effect in recordings
• high-grade T700 carbon fiber and CNC aluminum components
• smooth, chamfered edges to help protect wires and battery strips

The VX3 is designed for performance similar to larger 5-inch designs, while maintaining a compact size and low weight. The compact design helps to reduce resonance, while the included mounting accessories enhance the convenience and reliability of your finished drone.

Specification:

• arm thickness: 3,5 mm
• thickness of the upper plate: 2 mm
• thickness of the middle plate: 2,5 mm
• thickness of the bottom plate: 2,5 mm
• thickness of keystone: 3,5 mm
• CNC side plate thickness: 5 mm
• Material: T700 carbon fiber
• FPV camera spacing: 19/20 mm
• stack mounting holes: 20 × 20 mm / 25,5 × 25,5 mm (M2)
• VTX mounting holes: 20 × 20 mm / 25,5 × 25,5 mm (M2)
• VX3 weight: 68,3 g with TPU elements
• dimensions VX3: 118 × 135 mm
• wheelbase: 144 mm
• colour: yellow/black

It is a great choice for those looking for a sturdy freestyle frame for building a modern FPV drone with a clean, tidy component layout. Thoughtful design and good compatibility make the frame suitable for both new builds and modernization of the current platform.

Composition of the set:

• 1 × Volador VX3 3'' O4 Pro Frame Kit
