Freestyle rėmas Volador VX3 3'' O4 Pro juodas

Trumpai apie prekę

Prekė: Freestyle rėmas Volador VX3 3'' O4 Pro juodas. Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: Freestyle Volador VX3 3'' O4 Pro

⬇ See more ⬇

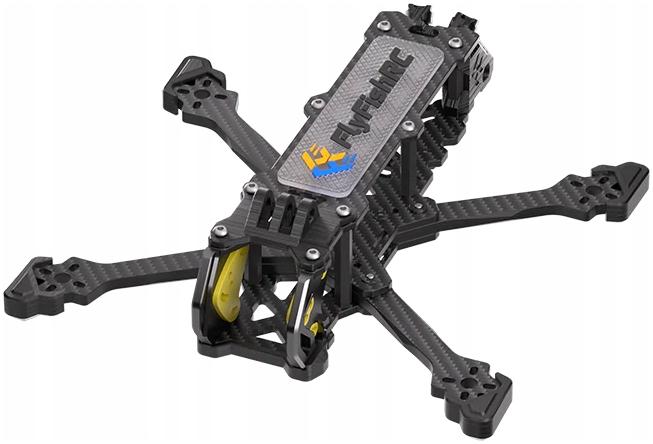

The Freestyle Volador VX3 3'' O4 Pro frame (black) is a lightweight and durable construction for FPV drones, designed for precise freestyle and aesthetically pleasing, orderly assembly. The Squashed X system provides very good flight control and works great in compact 3-inch builds.

The model is made of high-quality T700 carbon fiber and CNC elements made of aluminum, thanks to which it combines low weight with high resistance to damage. Additional TPU elements and a well-thought-out design facilitate clean assembly of electronics and accessories.

Key features of the product:

• Squashed X design for better control and stability
• Compatible with DJI O4 Air Unit and 19mm/20mm cameras
• Silicone camera damping to help reduce the “jello” effect
• Carbon T700 with smooth finish and beveled edges
• CNC aluminum components for increased structural durability
• compatibility with 20x20 mm and 25,5x25,5 mm (M2) mounts
• suitable for 3 to 3,5 inch propellers
• colour: black

The frame has been prepared for easy folding of an analog or HD drone. The compact design helps to reduce resonance, while the included mounting accessories add convenience when building and servicing the model.

Specification:

• arm thickness: 3,5 mm
• thickness of the upper plate: 2 mm
• thickness of the middle plate: 2,5 mm
• thickness of the bottom plate: 2,5 mm
• thickness of keystone: 3,5 mm
• CNC side plate thickness: 5 mm
• Material: T700 carbon fiber
• Propeller size: 3 to 3,5 inches
• FPV camera mount: 19mm/20mm
• VX3 weight: 68,3 g (with TPU elements)
• dimensions VX3: 118 × 135 mm
• wheelbase VX3: 144 mm
• stack mounting holes: 20x20 mm / 25,5x25,5 mm (M2)
• VTX mounting holes: 20x20 mm / 25,5x25,5 mm (M2)

Composition of the set:

• 1 x Volador VX3 3'' O4 Pro Frame Set (Black)
