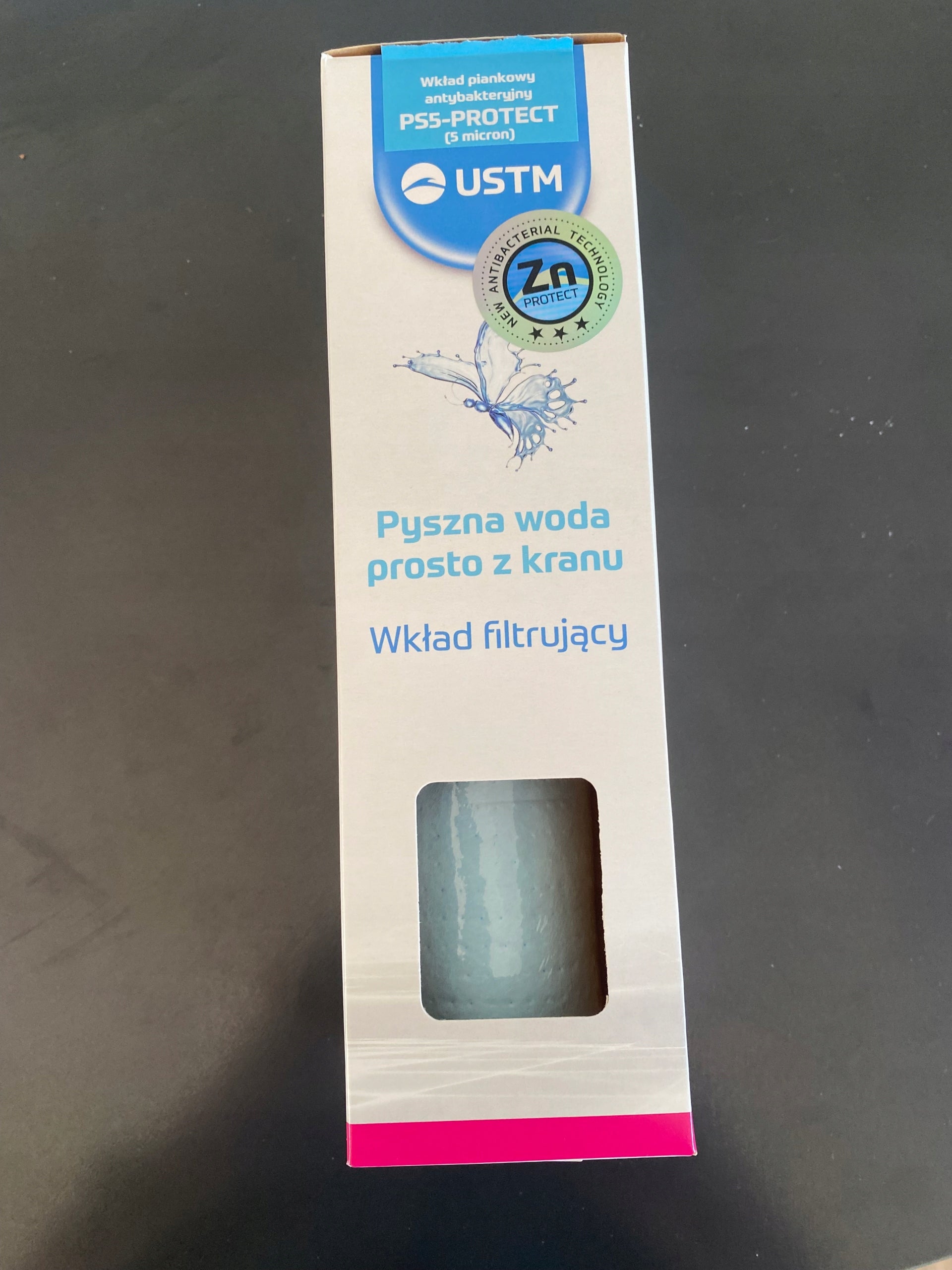

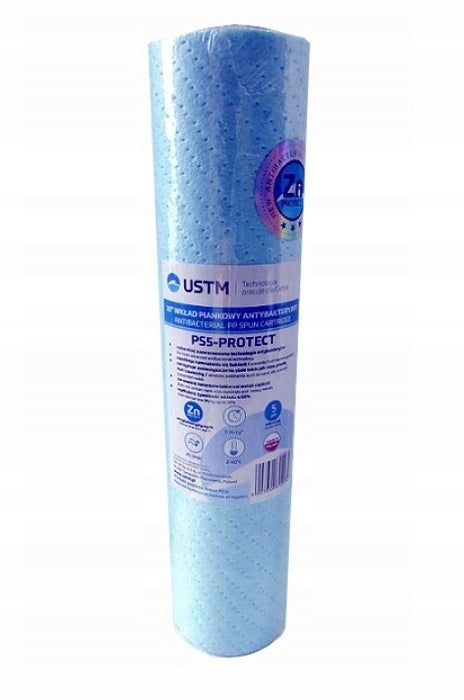

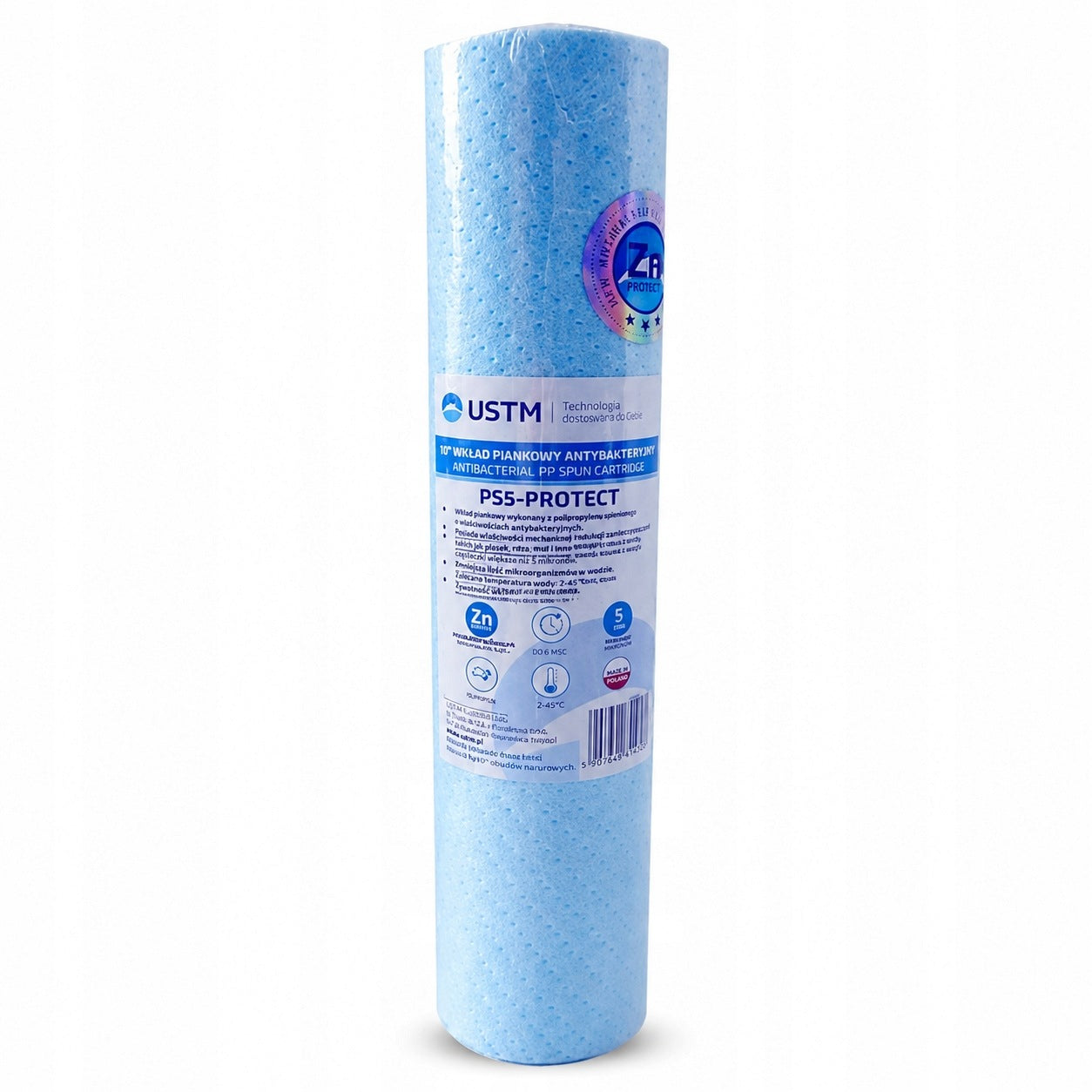

Filtravimo kasetė 5 mikronų 10" ANTIBACTERIAL PS5 PROTECT iw265

Trumpai apie prekę

Prekė: Filtravimo kasetė 5 mikronų 10" ANTIBACTERIAL PS5 PROTECT iw265. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: UST-M
• Modelis: PS5 PROTECT
• Talpa: 0 l

USTM

The most advanced, bactericidal polypropylene nonwoven sedimentary inserts available on the market.

For antibacterial protection, a safe substance approved by the FDA as so-called. GRAS (Generally Recognized as Safe)

Unlike similar products, it does not contain nanomaterials or any other chemicals that may have side effects (e.g. allergic reactions).

PS-PROTECT cartridges are characterized by a gradient structure in which the density of fibers increases to the inside of the cartridge, thus decreasing the micronage, increasing the filtration efficiency. The production process was further improved by UST-M engineers, which allowed to extend the life of the cartridges.

Thanks to the highest quality of workmanship, PS-PROTECT retain solid impurities such as rust, sand, silt and suspensions with a diameter of as little as 1 micrometer.

• Kills m.in bacteria. coli and staphylococcus
• Increased cartridge life by 50%
• Material tested by the Department of Immunology and Infectious Biology of the University of Lodz and by an Italian laboratory with international accreditation
• Unlike other antibacterial substances, it is not released into the environment

  It does not contain nanomaterials or heavy metals

• Stops solid contaminants such as rust, sand, silt and suspensions
• Modern technological process fully supervised by native engineers and technologists
• It has bactericidal activity – confirmed in independent tests in several different laboratories and according to ISO22196 and JIS Z 2801
• Submitted for patent
• Deep filtration enables more effective filtration compared to surface filtration. The cartridge retains more contaminants, which contributes to its longer lifespan
• Three-layer construction provides gradient construction (micron decreases to the inside of the cartridge),

  which extends its service life

• The consumption indicator informs about the need to replace the cartridge. The appearance of the logo means the consumption of the cartridge

CLEANER WATER AND ADDITIONAL PROTECTION OF THE CARTRIDGE AGAINST BACTERIA GROWTH

Tap water or well water may contain fine mechanical impurities such as sand, rust, silt and sediments. They cause deterioration of water clarity, may settle on fittings and accelerate the wear of devices and other elements of the treatment system.

USTM PS5-PROTECT antibacterial foam insert thoroughly filters water from particles as small as 5 micrometers. At the same time, the antibacterial technology used limits the growth of microorganisms on the surface of the cartridge, especially during periods when water remains in the filter housing and does not flow through the system.

It is a practical choice for houses, apartments, under-sink systems and installations requiring effective mechanical filtration and increased cartridge hygiene.

MOST IMPORTANT BENEFITS

✅ Stops small mechanical impurities

The filtration accuracy of 5 microns allows you to remove sand, rust, silt, sediments and other suspended particles from the water.

✅ Protects installation and devices

It limits the entry of contaminants into faucets, valves, heaters, washing machines, dishwashers and subsequent filtration stages.

✅ Antibacterial technology

Active zinc contained in the insert material limits the growth of bacteria on its surface, including selected strains of coliform and staphylococcus bacteria.

✅ The active substance remains in the material

The antibacterial technology is designed so that the active ingredient is not released into the filtered water.

✅ Free from nanomaterials and heavy metals

The insert is made of a material that does not use nanoparticles or heavy metals.

✅ Gradient construction

The density of the fibers increases towards the interior of the insert. Larger particles are retained in the outer layers, and smaller ones are retained deeper, allowing for the efficient use of the entire volume of the filter material.

✅ Extended service life

The gradient design and limited growth of microorganisms help maintain the effectiveness of the insert for a longer period of time.

✅ Standard size 10"

The insert fits most standard 10" filter housings designed for inserts with a diameter of approximately 2.5".

• Product type: cartridge for mechanical water filtration
• Insert type: foam, sediment, antibacterial
• Model: PS5-PROTECT
• Manufacturer: USTM
• Nominal size: 10"
• Filtration accuracy: 5 µm
• Filter material: polypropylene nonwoven fabric
• Protective technology: antibacterial technology with active zinc
• Construction: gradient, multi-layer
• Maximum capacity: up to 25 l/min
• Operating temperature range: 2°C to 40°C
• Approximate dimensions: 253 × 60 mm
• Diameter: about 60 mm
• Length: approximately 253 mm
• Intended use: cold water
• Filtration method: mechanical
• Removed contaminants: sand, rust, silt, sediments and suspensions
• Application: utility and drinking water of appropriate microbiological quality
• Insert color: characteristic blue
• Condition: new product

HOW DOES THE PS5-PROTECT CARTRIDGE WORK?

Water flows through the porous structure of the polypropylene nonwoven fabric. Mechanical impurities are retained inside the filter material:

• larger particles remain in the outer layers,
• medium pollutants are retained deeper,
• the finest particles are captured in the most dense part of the insert.

This solution limits the rapid clogging of the surface and allows for better use of the capacity of the entire insert.

Antibacterial technology works directly in the filter material. It limits the growth of microorganisms on the cartridge, which is particularly important in installations used irregularly and in housings where water may periodically remain motionless.

WHAT DOES 5 MICRON ACCURACY MEAN?

One micrometer is one thousandth of a millimeter. The 5 µm precision insert is designed to retain very fine mechanical impurities.

It is especially useful when the problem is:

• fine sand,
• rust particles,
• mule,
• pipe sediment,
• suspensions that impair water clarity,
• small impurities getting into the fittings.

The 5-micron cartridge provides more thorough filtration than 20 or 50 µm models. In case of heavily polluted water, it is worth using a higher permeability cartridge in front of it to limit its premature wear.

APPLICATION

The PS5-PROTECT insert can be installed in, among others:

• 10" tubular filter housings
• filters installed at the main water inlet to the building,
• under-sink systems,
• multi-stage water treatment sets,
• reverse osmosis systems as a pre-filter,
• home and residential installations,
• installations supplied with tap water,
• installations with well water after checking its quality.

It can operate as a standalone mechanical filter or as the first stage of a larger treatment system.

HOME APPLIANCE PROTECTION

Removing small contaminants from water helps protect:

• kitchen and bathroom faucets,
• ceramic valves and heads,
• water heaters,
• boilers,
• washing machines,
• dishwashers,
• reverse osmosis systems,
• carbon inserts,
• filtration membranes,
• other water-using devices.

Mechanical pre-filtration reduces the build-up of sand and rust and can extend the period of proper operation of subsequent system components.

INSTALLING THE INSERT

1. Close the water supply to the filter housing.
2. Open the nearest water point and relieve the pressure from the system.
3. Unscrew the body cover using the appropriate wrench.
4. Remove the used cartridge.
5. Wash the inside of the filter housing.
6. Check the condition of the O-ring seal.
7. Place the new insert centrally in the lampshade.
8. Screw the housing on according to the housing manufacturer's recommendations.
9. Slowly open the water supply.
10. Check the tightness of the connection.
11. Rinse the cartridge before normal use.

When replacing, keep clean and avoid touching the cartridge with dirty hands.

WHEN SHOULD THE CARTRIDGE BE REPLACED?

The frequency of replacement depends primarily on:

• quality of filtered water,
• the amount of pollutants retained,
• water consumption,
• installation efficiency,
• time of use,
• noticeable drop in pressure.

The cartridge should be replaced when:

• the water flow will significantly decrease,
• the insert will be very dirty,
• a large amount of sediment will accumulate on its surface,
• the replacement deadline recommended for your installation has passed.

The insert is a disposable item. It should not be rinsed and reassembled.

IMPORTANT INFORMATION

• The cartridge is intended for cold water filtration only.
• Do not use with hot water or outside the specified temperature range.
• The product removes mechanical impurities but does not soften water.
• Does not remove dissolved salts, scale, nitrates or most chemicals.
• It does not replace a carbon cartridge or reverse osmosis membrane.
• Antibacterial technology protects the insert material and limits the growth of bacteria on its surface.
• The cartridge is not a device for disinfecting microbiologically contaminated water.
• It should not be used as the sole protection against non-potable water.
• In the case of well water, it is recommended to perform physicochemical and microbiological tests.
• Actual efficiency depends on pressure, water quality and degree of contamination of the cartridge.

USTM PS5-PROTECT 10" antibacterial foam insert is a solution for people who want to effectively remove sand, rust, silt and fine suspensions from water, while at the same time limiting the growth of microorganisms on the surface of the filter material.

5 micron accuracy, gradient design, standard 10" size and flow rate up to 25 l/min make the cartridge suitable as the first level of protection for home installations and water-using devices.
