Endoskopinė apžiūros kamera su pasukama galvute 360°, 1.5 m, 8.5 mm, MOTOR PIPES

Trumpai apie prekę

Prekė: Endoskopinė apžiūros kamera su pasukama galvute 360°, 1.5 m, 8.5 mm, MOTOR PIPES. Kategorija: Endoskopai.

• Gamintojas: MBG Line
• Modelis: MBG line S23

⭕ VERSION 360° 1.5M, diameter 8.5mm

✅ Moving head 360° ✅ POLISH MENU ✅ FULL HD 1080p resolution ✅ 4.3" IPS screen ✅ IP67 ✅ Diameter 8.5mm ✅ Length 1.5m

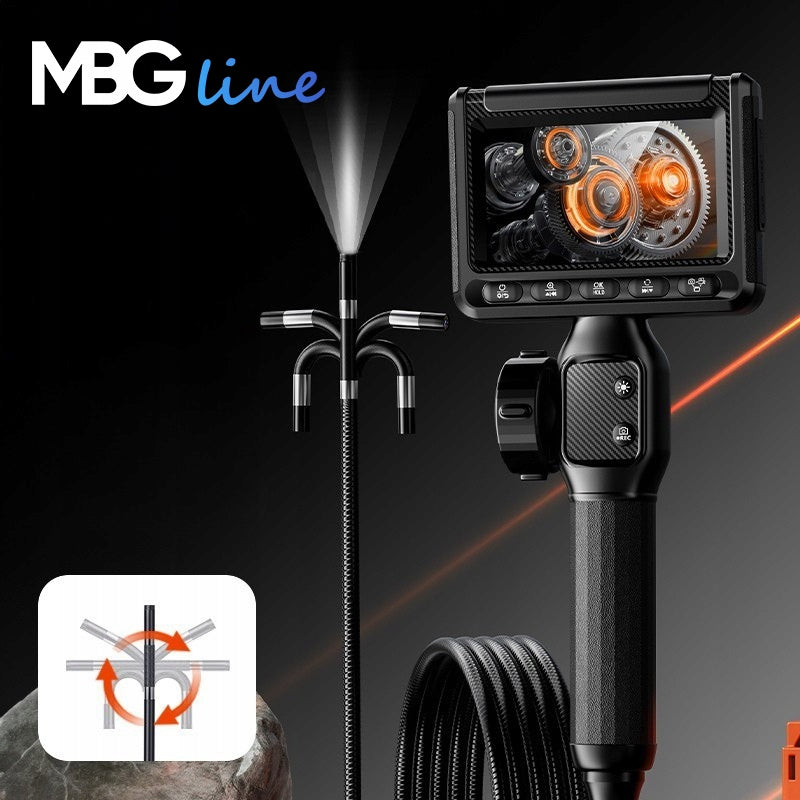

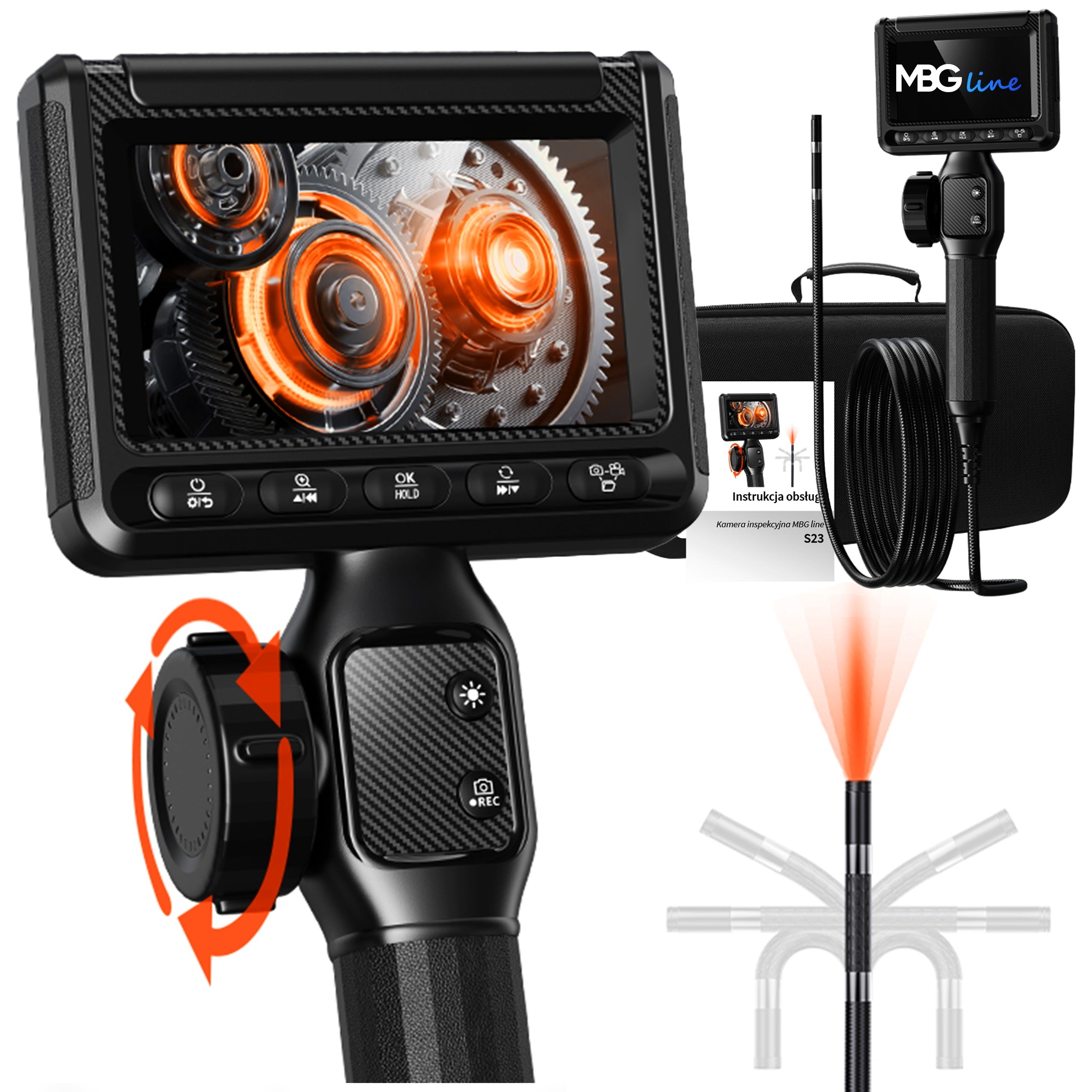

MBG line S23 is a professional inspection camera with its own 4,3" IPS screen, designed to control hard-to-reach places without the need to connect a phone or computer. Thanks to the head controlled in the range of 360°, small probe diameter 8,5 mm and resolution 1080P, the device allows you to conveniently check the interior of pipes, wires, technical channels, machines or car components. IP67 water resistance and LED lighting make it easier to work in humid and dimly lit spaces. It is a practical tool for the mechanic, service technician, installer and home user.

⭕ MBG line S23

⭐⭐⭐⭐⭐

✅ Inspection camera with screen 4,3" IPS

✅ Camera resolution 2 Mpx / 1920 × 1080P

✅ Controlled 360° head for precise viewing

✅ Waterproof camera IP67

✅ Small lens diameter 8,5 mm

✅ Built-in LED lighting, for working in dark places

✅ Support photos, video and preview of saved files

✅ microSD slot up to 32 GB

✅ Built-in 2000 mAh battery

✅ Operation up to about 3 hours, charging via USB-C

✅ Image retention and preview zoom function

✅ Temperature sensor with warning and automatic shutdown of the camera when overheating

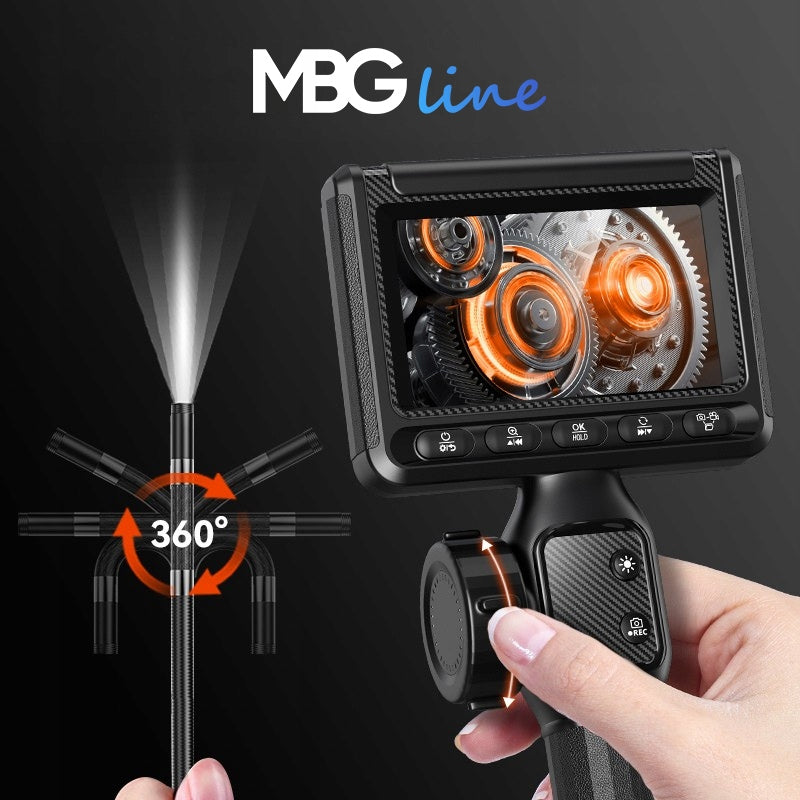

The biggest advantage of this model is the controlled head, which allows you to change the direction of observation in the range of 360°. This significantly increases the effectiveness of inspections and makes it easier to reach places that cannot be viewed with a simple camera.

This solution works well wherever precision counts: in the corners of the engine compartment, installation cables, technical channels or when inspecting mechanical components. The camera gives you more freedom and a better picture of the situation.

The 2 Mpx / 1080P resolution allows you to see more details during the inspection. It is easier to notice minor dirt, cracks, traces of corrosion, leaks or other irregularities that could be omitted with a weaker image.

This is especially important for service and technical tasks, where accurate assessment of the condition of the element saves time and reduces the risk of unnecessary disassembly. You will get the best sharpness at a working distance of 2 to 10 cm.

MBG line S23 is a device designed to work where ordinary flashlight and vision are not enough. The built-in 4,3" IPS screen provides a convenient, easy-to-read live view, so you can quickly assess the status of your controlled space.

It is a practical solution for people who need mobile equipment for diagnostics of pipes, interior of machines, technical chambers, drains or car components. The whole thing is ready to work without having to connect to the phone.

The device allows you to zoom in on the preview, making it easy to analyze details without having to change the position of the probe. This is useful when you want to see a specific place more closely or capture an important part of an image.

This feature increases the convenience of working with technical diagnostics and makes the camera better suited for both quick inspection and more accurate inspection. You can work more efficiently and confidently.

The device allows you to zoom in on the preview, making it easy to analyze details without having to change the position of the probe. This is useful when you want to see a specific place more closely or capture an important part of an image.

This feature increases the convenience of working with technical diagnostics and makes the camera better suited for both quick inspection and more accurate inspection. You can work more efficiently and confidently.

The S23 is equipped with camera temperature monitoring. The system warns you when a high temperature is reached and turns the camera off automatically when it is exceeded.

It is a practical protection that helps protect the device while working in more demanding conditions. The function does not replace the operator's caution, but actually increases the safety of use.

The IP67 rating of the probe enables work in environments exposed to moisture and contact with water. This increases the range of applications and allows you to use the camera when checking drains, pipes or damp technical spaces.

In practice, this means greater freedom of action and better adjustment to real service tasks. At the same time, it is worth remembering to keep the lens and the main unit clean and dry after use.

The camera offers simple control from the buttons on the housing: photos, video, album, image retention, settings and LED brightness adjustment. Thanks to this, the operation is intuitive even for a person who has not used such equipment before.

Additionally, the device supports microSD card up to 32 GB, allowing you to conveniently save your inspection materials. You can then quickly copy the files to your computer via USB-C or directly from the memory card.

⭕ Lens diameter: 8.5. mm

⭕ Cable length: 1.5m

⭕ Number of cameras: 1

• Model: MBG line S23
• Device type: inspection camera / industrial endoscope
• Display: 4,3" color IPS
• Camera Resolution: 2 Mpx / 1920 × 1080P
• Camera waterproof: IP67
• Rechargeable battery: 2000 mAh Li-Ion
• Charging time: up to 2,5 hours
• Working time: up to 3 hours
• Power supply: USB-C 5V/1A or USB-C 5V/2A
• Memory card support: microSD up to 32 GB
• Operating temperature: 0°C to 45°C
• Camera operating temperature: 0°C to 80°C
• Sensor: CMOS
• Lens diameter: 8,5 mm
• Viewing angle: 70°
• LED: yes, 24 lumens
• Focus distance: 2 cm – 10 cm
• Functions: photos, video, album, LED adjustment, image retention, preview magnification, 360° head control

• inspection camera MBG line S23 360°
• USB-C cable
• instruction manual in Polish
• all packed in a sturdy case

1. Controlled head 360° instead of the usual camera looking only straight ahead.
2. Own 4,3" IPS screen without the need for a smartphone.
3. 1080P resolution, which makes it easy to evaluate details.
4. Small probe diameter of 8,5 mm for tight spaces.
5. IP67, which means greater freedom of work in a humid environment.
6. Adjustable LED, thanks to which the camera performs better in the dark.
7. Support photos and video with the possibility of saving to microSD.
8. 2000 mAh battery, which allows you to work without a constant connection to power.
9. Camera temperature sensor with warning and protection function.
10. Simple operation with buttons and knob, convenient also for less advanced user.

1. Does the camera require a phone or app?

No. The S23 has its own 4,3" IPS screen, so it works on its own.

2. What is the image resolution?

The camera offers 2 Mpx / 1920 × 1080P resolution.

3. Can the head be controlled?

Yes, the device has a 360° controlled head, a controlled knob.

4. Is the camera waterproof?

Yes, the camera itself has an IP67 rating.

5. What is the diameter of the lens?

The diameter of the lens is 3,9 mm.

6. What is the best place for this endoscope?

It works best in hard-to-reach spaces, e.g. pipes, installations, machinery and car components.

7. Can I take photos and record videos?

Yes. The device supports photo, video and album mode for viewing saved files.

8. Do I need a memory card?

You need a microSD card to save the materials. The device supports cards up to 32 GB.

9. How do I copy photos and videos to my computer?

You can use the microSD card directly or connect the device via USB-C.

10. How long does the device last on a single charge?

Working time is up to about 3 hours.

11. How long does it take to load?

Full charge takes up to about 2,5 hours.

12. Does the device support fast charging?

No. The manufacturer provides USB-C 5V/1A or 5V/2A power and no support for fast charging.

13. What is the best sharpening distance?

The best focus distance is from 2 cm to 10 cm.

14. Can I use the camera in the dark?

Yes, the camera has built-in LED lighting with adjustable brightness.

15. Does the camera heat up during operation?

Yes, it can heat up, especially with strong LED lighting. This is normal, but the device also has a temperature monitoring function.

16. What happens when the camera overheats?

At 75°C, a warning appears, and when the 80°C is exceeded, the camera automatically stops working until cooled down.

17. Can I use this camera for medical purposes?

No. The manufacturer clearly states that the device is not intended for medical or human testing applications.

18. Can you control the head when the wire is coiled?

No. The manual clearly warns you not to operate the knob when the camera cord is coiled as this can damage the mechanism.

19. What temperature can the device be used at?

The operating temperature of the device is 0°C to 45°C, and the camera itself is 0°C to 80°C.

20. What is included?

The set includes an inspection camera, a USB-C cable, a in Polish and the original case.
