ELM 327 USB diagnostikos įrenginys su adapteriais Fiat Alfa Romeo Dodge Jeep

Trumpai apie prekę

Prekė: ELM 327 USB diagnostikos įrenginys su adapteriais Fiat Alfa Romeo Dodge Jeep. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Versus
• Modelis: 2141241V

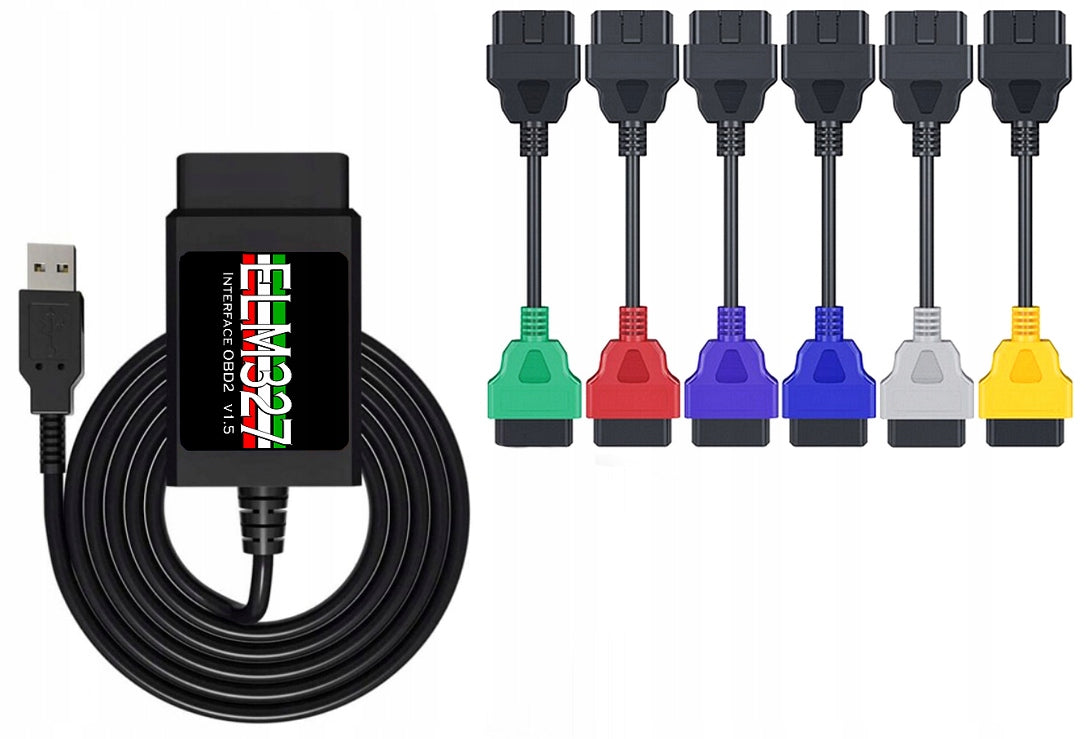

ELM 327 MES + SET OF 6 ADAPTERS

ELM327 interface included with 6 adapters. Thanks to them you will take full advantage of the MultiEcuScan diagnostic program.

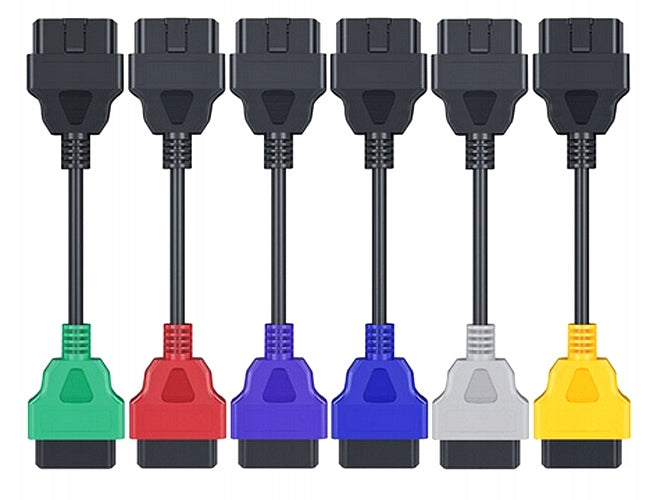

• Adapter Type 1 Green (A1 KL1 KL9 KL12 ELM1 ELM9 ELM12 OBDKEY1 OBDKEY9 OBDKEY12)
• Adapter Type 2 Red (A2 KL3 OBDKEY3)
• Adapter Type 3 Yellow (A3 ELMC19)
• Adapter Type 4 Violet (A4 KL13 OBDKEY13)
• Adapter Type 5 Blue (A5)
• Adapter Type 6 Grey (A6)

High quality diagnostic interface ELM327 is a very practical and useful device dedicated to the MES/FES program. It allows for self-diagnosis of the vehicle, as well as has the option of erasing any errors, making corrections and many other useful functions.Supports cars compatible with Multiecuscan in 1990-2025 years

The interface was built on a motherboard with a chipset PIC18F25K80 and is dedicated to Multiecuscan and Fiatecuscan programs, thanks to which it allows for a full overview of the car - not like the standard Elm327!

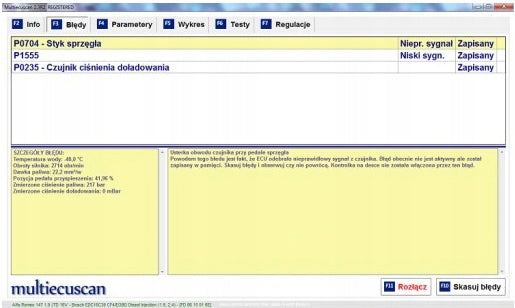

The interface with adapters allows you to:

• ECU reading /identification
• Reading errors
• Error erasure
• Reading diagnostic data ( live data )
• Displaying real values in the form of a chart
• Export data to CSV files
• Deleting service inspections
• Checking the original mileage in ECU
• Conversion from USA
• Allows you to perform tests (lights, valves, candles, relays, etc.)
• Displays a detailed description of error codes, parameters, and tests
• Adaptation of PROXI
• Particulate filter firing DPF
• Zero turning angle
• Adding injections and much more

Included :

• USB interface ELM327
• Set of 6 adapters
• CD
• Drivers
• Free software

Supported protocols :

• 1. SAE J1850 PWM (41.6Kbaud)
• 2. SAE J1850 VPW (10.4Kbaud)
• 3. ISO9141-2 (5 initiating bytes, 10.4Kbaud)
• 4. ISO14230-4 KWP (5 bit, 10,4 Kbaud)
• 5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
• 6. ISO15765-4 CAN (11-bit ID, 500 Kbaud)
• 7. ISO15765-4 CAN (29-bit ID, 500 Kbaud)
• 8. ISO15765-4 CAN (11-bit ID, 250 Kbaud)
• 9. ISO15765-4 CAN (29-bit ID, 250 Kbaud)
• A.SAE J1939 CAN (29-bit ID, 250 * Kbaud)
• B.USER1 CAN (11 * ID bit, 125 * Kbaud)
• C.USER2 CAN (11*bit ID, 50*Kbaud)
