Elektros instaliacijos įrankių rinkinys KNIPEX, 3 vnt.

Trumpai apie prekę

Prekė: Elektros instaliacijos įrankių rinkinys KNIPEX, 3 vnt.. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Knipex
• Modelis: 00 31 30 BK V01
• Ilgis: 200 mm

KIT CONTENTS:

• Tools for electrical installation works
• Quantity in the package : 3 pcs.

GENERAL PRODUCT FEATURES:

• It is the perfect equipment in the daily work of an electrician
• Universal wire stripping tools
• Multifunctional wiring pliers with cable cutter and powerful diagonal cutters make a good team

GENERAL TECHNICAL DATA:

• Art. no.: 00 31 30 BK V01
• EAN: 4003773086574
• Weight: 540g
• Dimensions: 340 x 167 x 33mm

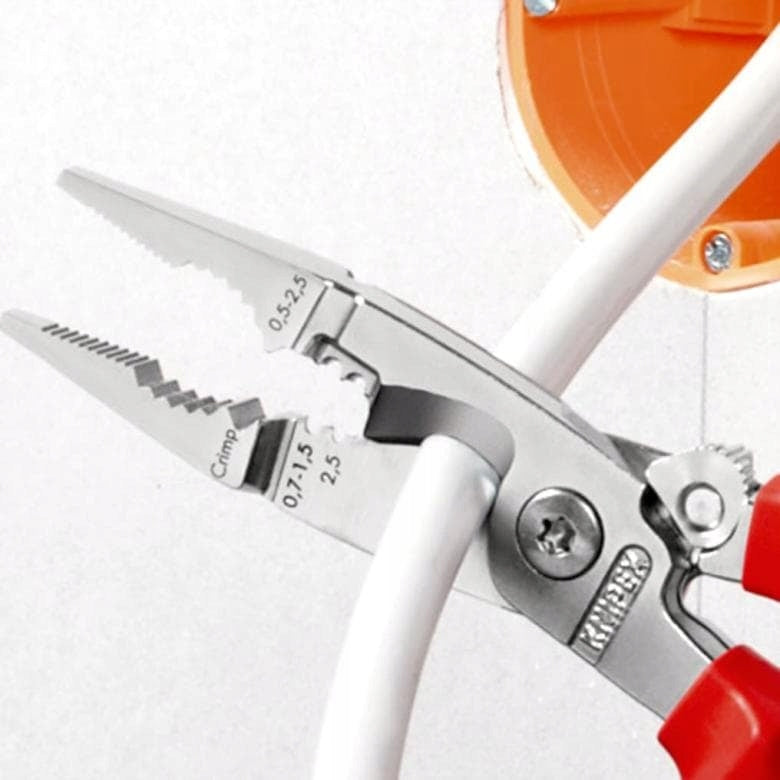

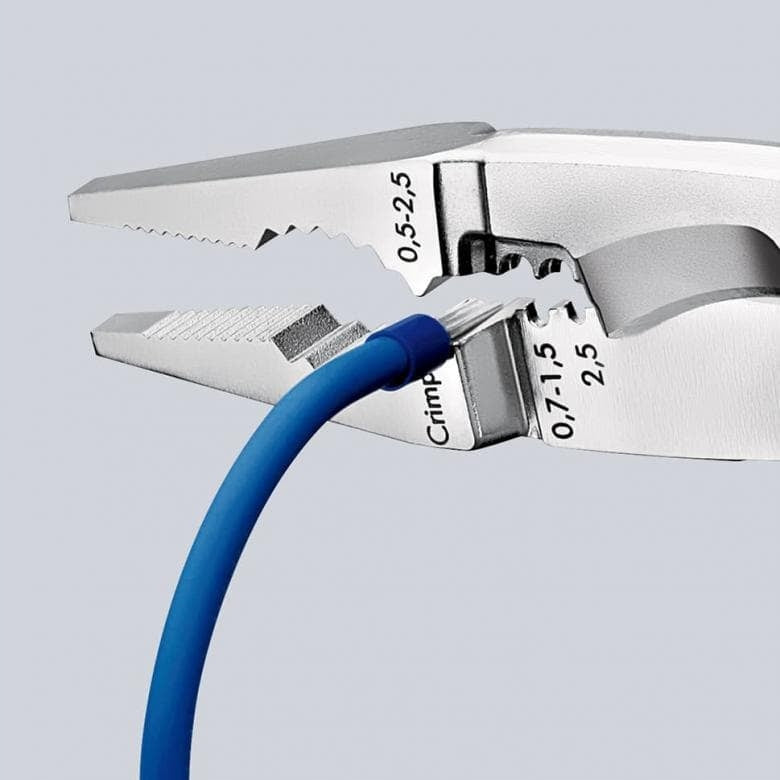

PLIERS FOR WIRING WORKS 13 86 200:

• 6 functions in one tool
• They enable gripping of flat and round materials, bending, deburring, cutting and stripping wires and crimping cable end sleeves
• Smooth gripping surfaces enable secure gripping of individual strands; profiled gripping surfaces and shaped gripping surface enable gripping of flat and round materials
• The outer edge of the jaw allows the processing of flush-mounted boxes and deburring of feed-through holes
• Stripping profiles for wires with a cross-section of 0.75 - 1.5 mm² and 2.5 mm²
• Crimping socket for cable end sleeves 0.5 - 2.5 mm²
• Cable shears with precision blades separately induction hardened for cutting copper and aluminum cables up to 5 x 2.5 mm² / Ø 15 mm
• The compact design makes it easier to work in hard-to-reach places
• The screw connection ensures precise movement of the pliers without play
• Safety confirmed by VDE test up to 1000 V
• High-quality special tool steel, forged, oil-hardened

TECHNICAL DATA PLIERS FOR ELECTROINSTALLATION WORKS 13 86 200:

• Art. no.: 13 86 200
• EAN: 4003773075097
• Pliers: chrome plated
• Headstock: chrome plated
• Handles: with multi-component grips, insulated according to VDE
• Weight: 280g
• Dimensions: 200x85x20mm
• Standard: DIN EN 60900 IEC 60900
• Cutting range for multi-core copper cable: Ø 15 mm
• Cutting capacity for multi-strand copper cable: 50 mm²
• Operating range single wires: 0.75 - 1.5 mm² / 2.5 mm²
• Operating range in mm2: 0.5 - 2.5 mm²
• AWG: 1/0
• VDE insulated: yes

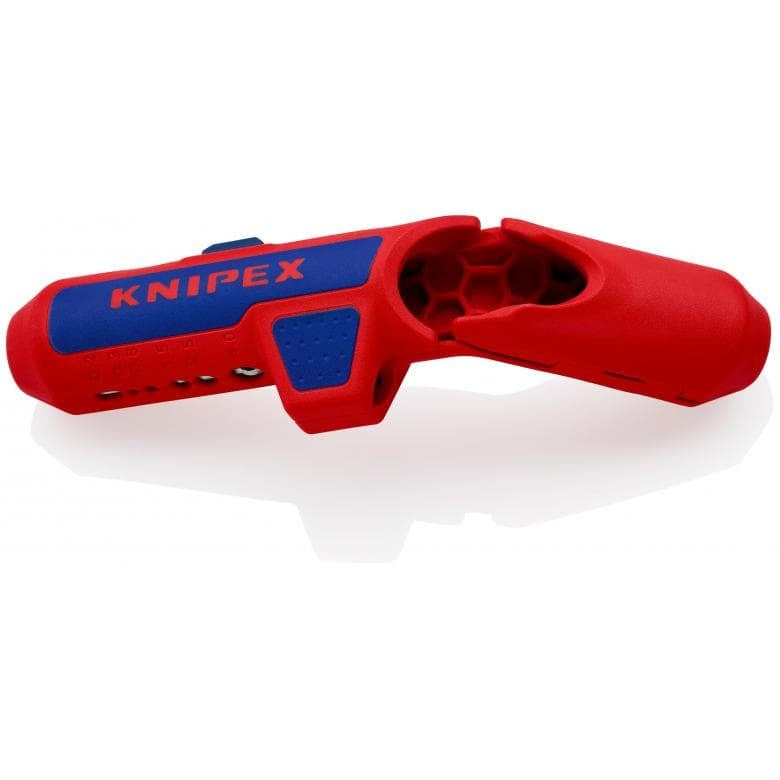

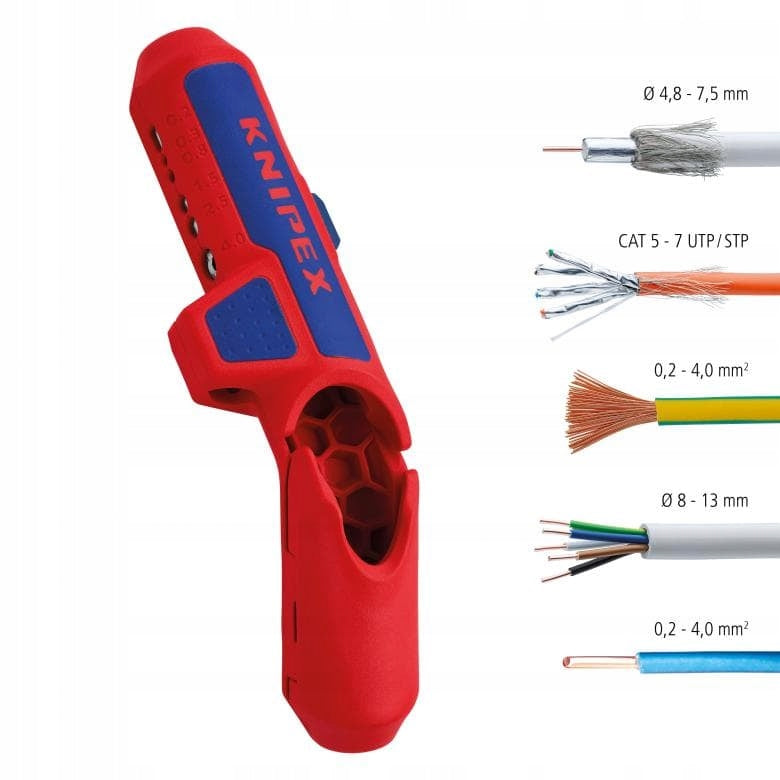

UNIVERSAL STRIPPER TOOL 16 95 01 SB:

• For fast and precise stripping of all common round conductors (e.g. NYM 3 x 1.5 mm² to 5 x 2.5 mm² ), ICT (e.g. Twisted-Pair) and coaxial cables
• Innovative, ergonomic pistol grip for easy cutting, stripping and lengthwise cutting of insulation
• The conical tips of the tool make it easier to work in hard-to-reach places
• For stripping wires with a cross-section of 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm²
• Convenient placement of individual wires in stripping profiles thanks to positioning partitions
• With opening spring and opening lock
• Opening mechanism for easy insertion of coaxial and telecommunication cables in the tool
• Multi-component design with soft plastic zone for comfortable handling and a secure grip
• Housing made of sturdy glass-fibre reinforced plastic

TECHNICAL DATA UNIVERSAL STRIPPER TOOL 16 95 01 SB:

• Art. no.: 16 95 01 SB
• EAN: 4003773079927
• Weight: 75g
• Dimensions: 135x85x37mm
• Stripping range of round wires (diameter): Ø 8 - 13 mm
• Stripping range for stranded wires: 0.2 - 4.0 mm²
• Stripping range of coaxial cables (diameter): Ø 4.8 - 7.5 mm
• The scope of stripping the insulation from telecommunication cables: CAT 5 - 7, Twisted Pair (UTP/STP)
• Working range: Ø 8.0 - 13.0 mm

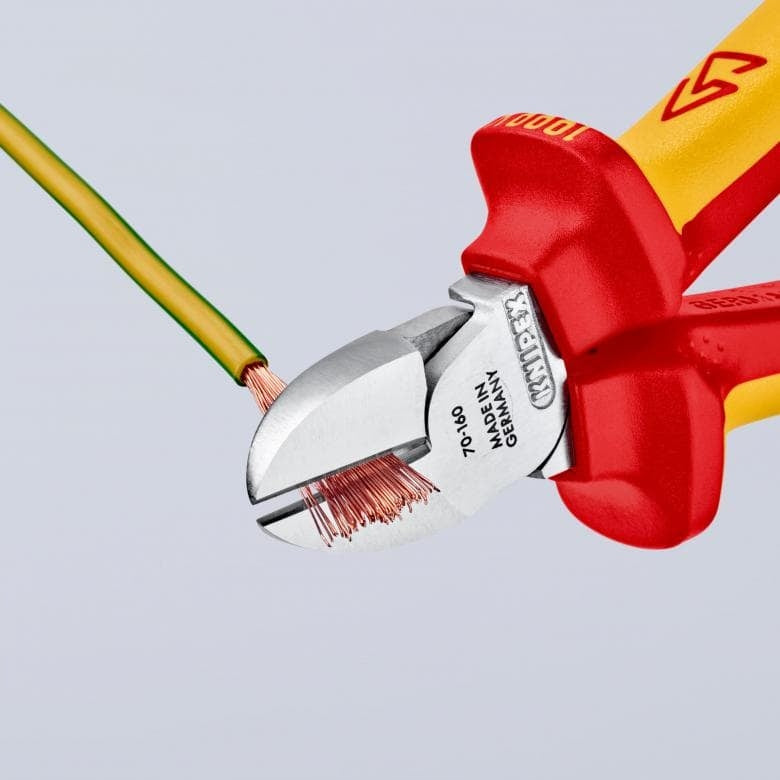

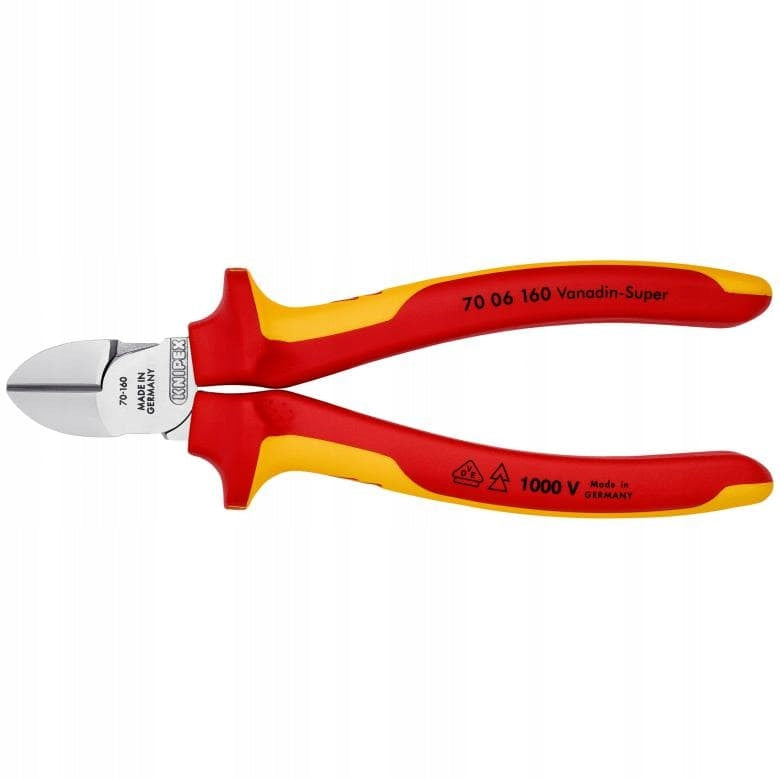

SIDE CUTTING PLIERS 70 06 160:

• With an elongated blade
• One of the most popular pliers models for universal use
• High-quality materials and precise workmanship ensure a long tool life
• Precision blades for cutting soft and hard wire
• Clean cut of fine copper wire even with the tip of the blades
• Cutting edges separately induction hardened, cutting edge hardness approx. 62 HRC
• The slim head allows you to work in hard-to-reach places
• Safety confirmed by VDE test up to 1000 V
• With a bevel
• Vanadium electric steel, forged, repeatedly oil-hardened

TECHNICAL DATA SIDE CUTTERS 70 06 160:

• Art. no.: 70 06 160
• EAN: 4003773021995
• Pliers: chrome plated
• Headstock: chrome plated
• Handles: with multi-component grips, insulated according to VDE
• Weight: 216g
• Dimensions: 160 x 55 x 20mm
• Standard: DIN ISO 5749 DIN EN 60900 IEC 60900
• Cutting range for soft wire (diameter): Ø 4.0 mm
• Cutting range for medium hard wire (diameter): Ø 3.0 mm
• Hard wire cutting range (diameter): Ø 2 mm
• VDE insulated: yes

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Knipex
Parametry	Kind	set
Parametry	Length	200 mm
Parametry	Additional information	1000V certificate
Parametry	Product weight with unit packaging	8.8 kg
Parametry	Manufacturer code	00 31 30 BK V01
Parametry	EAN (GTIN)	4003773086574
