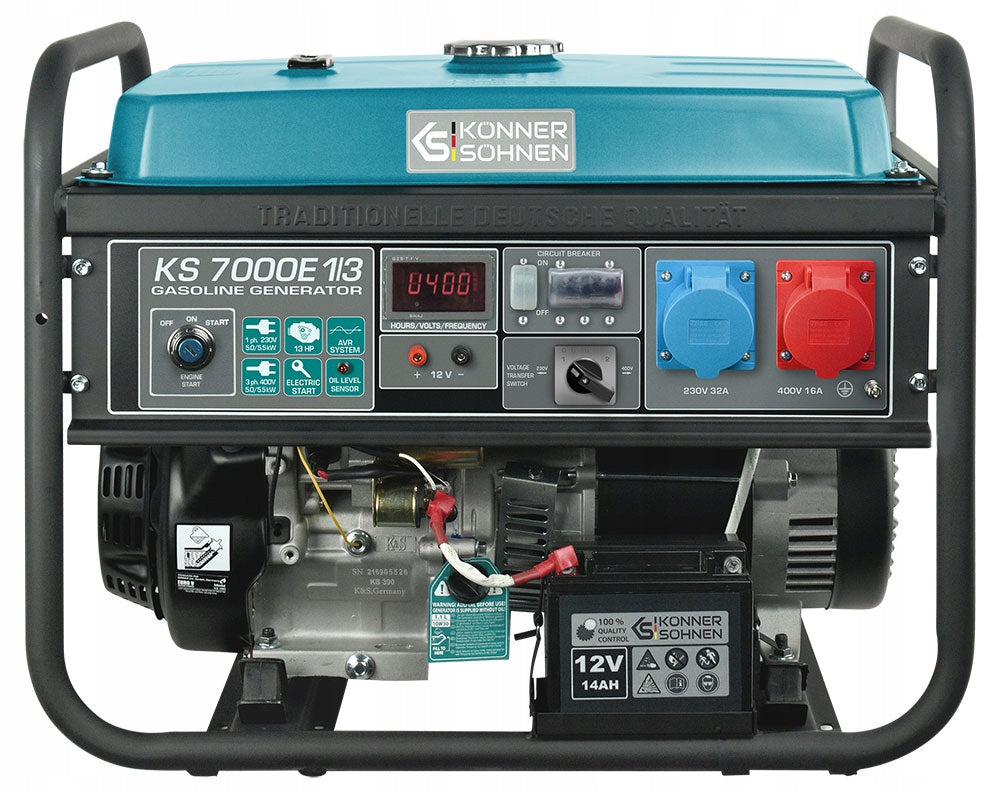

Elektros generatorius 5500 W Könner & Söhnen KS 7000E 230V/400V

Trumpai apie prekę

Prekė: Elektros generatorius 5500 W Könner & Söhnen KS 7000E 230V/400V. Kategorija: Elektros generatoriai.

• Gamintojas: Könner & Söhnen
• Modelis: KS 7000E-1/3
• Įtampa: 400 V

______________________________________

______________________________________

The Konner & Sohnen KS 7000 E-1/3 power generator is a relatively small and light device. The rated power output is 5,0 kW / 6,25 kVA, while the maximum power is 5,5 kW / 6,9 kVA. The unit is powered by a company engine with an electric starter with 13,0 hp, which has undergone many hours and multi-level tests. This engine is a very durable and economical device, which allows for a long service life. The KS 7000 E-1/3 is equipped with a steel oversized fuel tank with a capacity of 25 liters, which (at ~50% load) allows for 17 hours of operation without refueling. The unit has one 16 A / 230 V socket, one 16 A / 400 V DC socket and one 12 V DC socket. The VTS (voltage transfer switch) phase switching system allows you to switch between single- and three-phase mode while maintaining equal power.

______________________________________

• durable and economical company engine
• lightweight and comfortable start system
• VTS phase switching system
• comfortable and ergonomic control panel
• steel oversized fuel tank
• electric starter

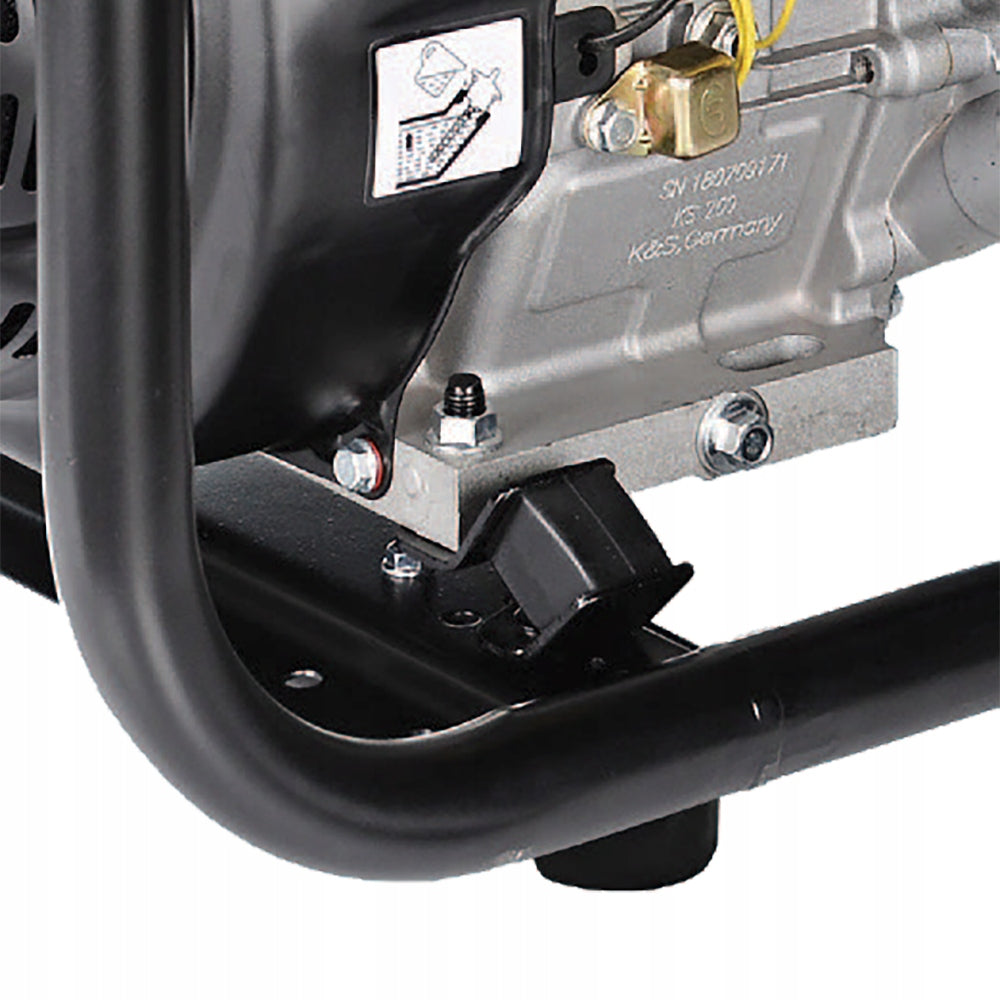

• vibration-reducing feet
• display with voltmeter, frequency indicator and hour counter
• thermal switch
• switch in the absence of oil
• fuse on the control panel
• fuel level indicator

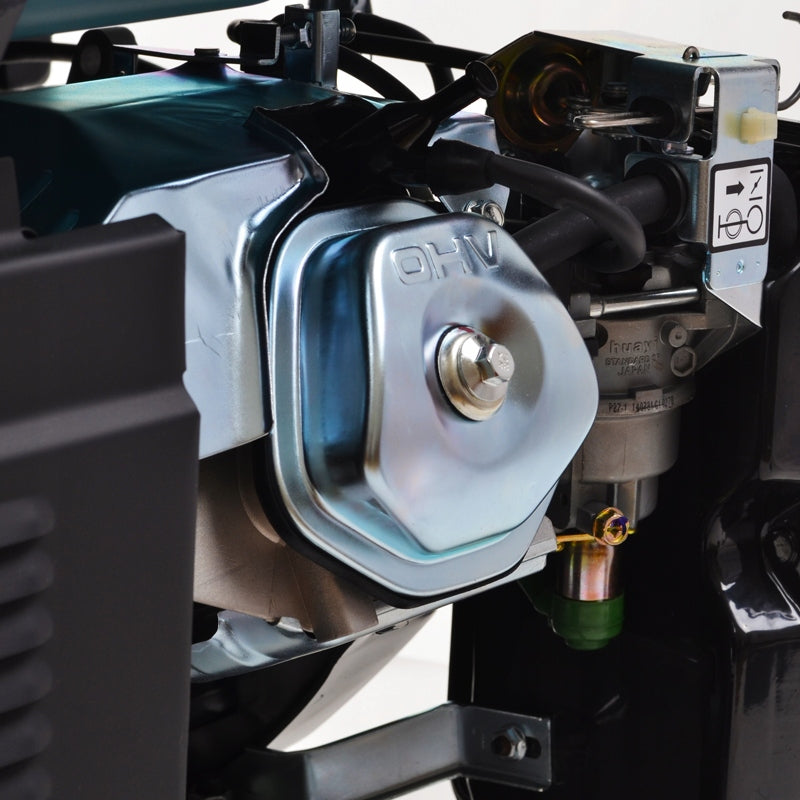

The unit is equipped with a simplified start system that allows you to start the engine quickly, without much effort. The upper position of the engine valves (ONS) increases the service life, reduces fuel consumption and reduces noise levels. The device is covered with a galvanic coating that protects against rust. The convenient, ergonomic control panel allows you to control the entire device with ease and requires no additional skills. The information on the display helps to correctly assess the load on the device and carry out the maintenance of the generator in a timely manner, thereby extending its service life. The KS 7000 E-1/3 is equipped with a synchronous generator with IP23 protection, i.e. protected against foreign solids with a diameter of 12,5 mm and more and against spraying water at any angle up to 60o from the vertical on each side. Special shock absorbers have been installed for each model of the generator to reduce vibration.

______________________________________

• generator set Konner & Sohnen KS 7000 E-1/3
• invoice - in electronic form
• instruction manual in Polish

______________________________________

Generator

• Type: Standard
• Soundproofed: No
• Voltage: 400/230 V
• Voltage Regulation: Electronic AVR
• Voltage Stability: +/- 5-10 %
• Rated Power 1~ (Single Phase): 5.0 kW
• Rated Power 3~ (Three Phase): 5.0 kW / 6.25 kVA
• Maximum Power 1~ (Single Phase): 5.5 kW
• Maximum Power 3~ (Three Phase): 5.5 kW / 6.9 kVA
• Rated Current 1~ (Single Phase): 23.91 A
• Rated Current 3~ (Three Phase): 9.93 A
• Power Factor (cosfi): 1.0 / 0.8
• Fuel Tank Capacity: 25 l
• Run Time at 50% Load: 17 h
• Starting System: Electric Start
• Alternator Type: Synchronous
• Alternator Protection Rating: IP 23
• Sound Power Level (LWA): 95 dB(A)
• Sound Pressure Level (LPA): 70 dB
• Frequency: 50 Hz
• Automatic Transfer Switch (ATS): None

Portable Generator

• Transport Kit: Optional
• Country of Origin: China (German Supervision)

Generator Features

• Standard Equipment: Fuse / DC Outlet / Hour Meter / Voltage Transfer Switch (VTS) / Copper Winding / Voltmeter / Frequency Meter / Fuel Level Indicator / Display / Magneto-Thermal Generator Protection / Engine Oil Protection
• Outlets: 12V, 8A - 1 pc / 230V, 32A - 1 pc / 400V, 16A - 1 pc

Engine

• Engine Brand: Konner & Sohnen
• Model: KS 390
• Type: OHV
• Power: 9.56 kW / 13.0 HP
• Fuel: Gasoline
• Displacement: 390 cm3
• Number of Cylinders: 1
• Number of Strokes: 4
• Oil Capacity: 1.1 l
• Oil Type: SAE 10W-30
• Cooling: Air-cooled
• Emission Standard: EURO 5

Physical Dimensions

• Width: 68.0 cm
• Depth: 54.5 cm
• Height: 55.0 cm
• Package Depth: 54.5 cm
• Weight: 81 kg
• Package Weight: 83 kg

______________________________________

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Könner & Söhnen
Parametry	Model	KS 7000E-1/3
Parametry	Kind	portable
Parametry	Generator type	three-phase
Parametry	Engine	4-stroke
Parametry	Maximum power	5500 W
Parametry	Nominal power of the alternator	5000 W
Parametry	Engine power	13 KM
Parametry	Gasoline tank capacity	25 l
Parametry	Device weight	81 kg
Parametry	Fuel type	petrol
Parametry	Frequency	50 Hz
Parametry	Operating time on the tank	17 h
Parametry	Lc IEC noise level	95 dB
Parametry	Product height	55 cm
Parametry	Product width	55 cm
Parametry	Product depth	68 cm
Parametry	Average combustion	1.4 l/h
Parametry	Number of 1-phase outlets	1
Parametry	Number of 3-phase outlets	1
Parametry	European emissions standard	EURO 5
Parametry	Supply voltage	400 V
Parametry	Manufacturer code	KS 7000E-1/3
Parametry	Product weight with unit packaging	83 kg
Parametry	Startup	electric,manual
Parametry	Additional information	voltage regulation (AVR),12 V outlet
